Tugger Cart – 1240 x 840 mm
Tugger Cart – 1240 x 840 mm
Tugger Cart – 1240 x 840 mm
Tugger Cart – 1240 x 840 mm
Q-100-0828

Tugger Cart – 1240 x 840 mm

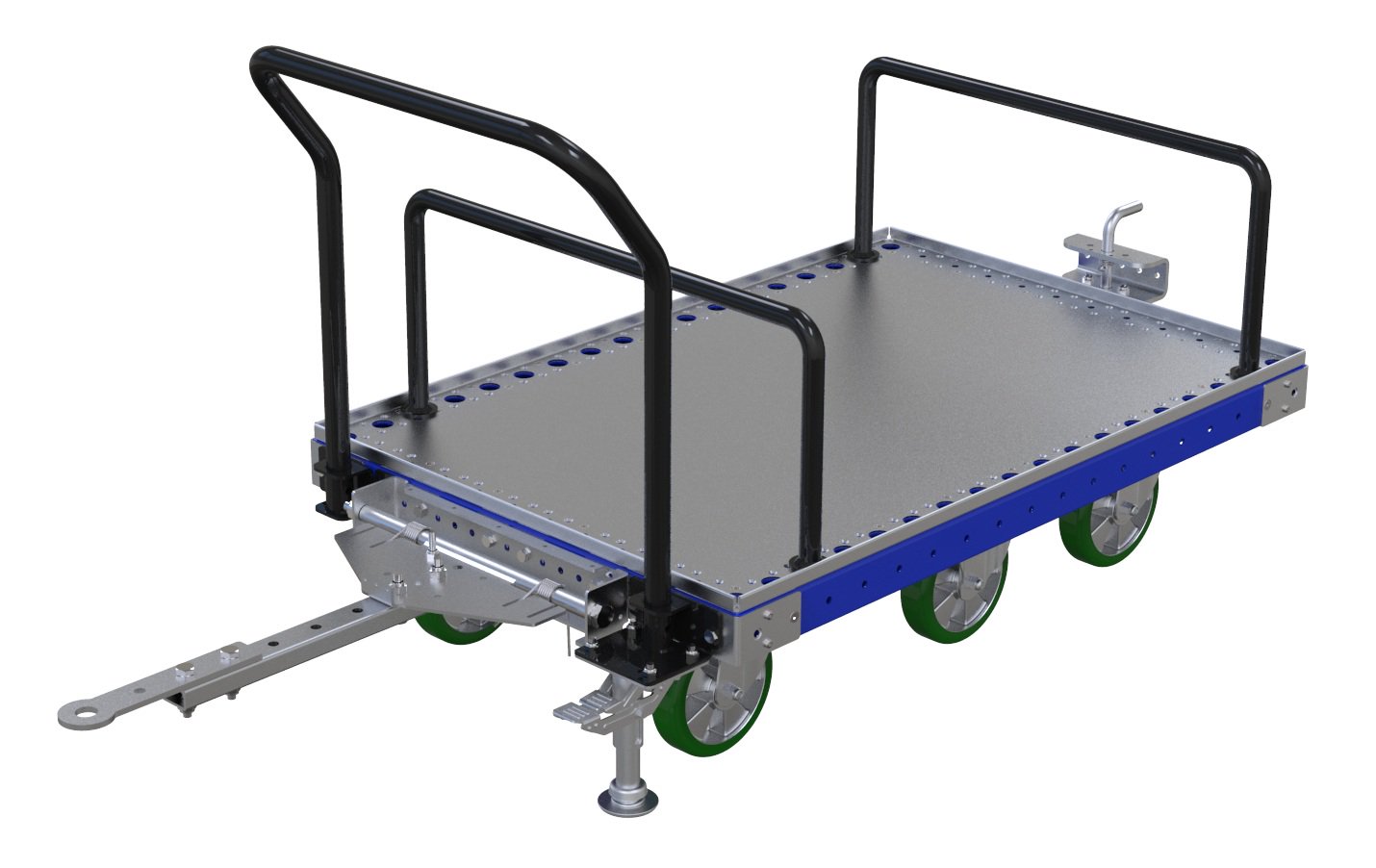

Custom tugger cart with added handlebars to keep the materials secure.

Technical specifications

Category: Flat Deck

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 840 mm

Length: 1240 mm

Load capacity: 1000 kg

Transportation method: Manual, Tugger

Caster size: 200 mm

Caster Type: Polyurethane

Type of Load: Pallets and Containers

More info

This tugger cart with a flat deck is used to hold containers and pallets. The added handlebars help to keep the containers secure while on the cart. This tugger cart comes with a spring-loaded tow bar and a floor brake. It also comes with a push handle for easy use.

Parts included
FlexBeam™ 1190 mm 4 Q-001-1300
FlexBeam™ 1120 mm FE 2 Q-001-1401
FlexBeam™ 840 mm FE 2 Q-001-1405
FlexBeam™ 700 mm FE 2 Q-001-1407
FlexPlate™ 4 Q-002-1001
Stiffener – Outside 4 Q-002-1050
Flexplate™ M10 16 Q-002-1162
Flexplate™ 30.5 mm hole 4 Q-002-1320
Wheel Attachment – 105 x 77.5 mm 2 Q-004-1065
Caster Polyurethane – 200 mm 4 Q-004-1100
Caster Polyurethane – 200 mm Fixed 2 Q-004-1101
Floor Brake LTL 200 1 Q-004-1359
Towing VKR – 460 mm 1 Q-005-0102
Old part: Spring for Tow Bar 2 Q-005-1012
Towing Hole 2 Q-005-1056
Wheel Attachment Box 6 Q-005-1079
64 mm FlexBeam™ Collet 4 Q-005-1426
M6 x 30 mm Allen Head 1 Q-006-1012
M20 x 500 mm Hex Head 1 Q-006-1016
M14 x 60 mm Hex Head 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
M10 x 25 mm Hex Head 54 Q-006-1041
Locking Nut M10 79 Q-006-1042
Locking Nut M6 1 Q-006-1050
M10 x 95 mm Hex Head 4 Q-006-1088
M10 x 90 mm Hex Head 8 Q-006-1132
M10 x 30 mm Hex Head 2 Q-006-1161
Nut M10 1 Q-006-1195
M10 x 50 mm Hex Head Fully Threaded 1 Q-006-1343
M10 x 90 mm Extra Low Head 4 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 40 Q-006-1384
M6 x 20 Countersunk Self Tapping Screw 60 Q-006-1385
M20 Locking Nut 1 Q-006-1405
M10 x 16 mm Low Allen Head 4 Q-006-1409
M10 x 25 mm Extra Low Head Allen 2 Q-006-1410
Compression Spring for US Tow Hitch 1 Q-012-0007
Handlebar Attachment EUR 1 Q-015-0026
Handlebar/Floor brake attachment EUR 1 Q-015-0027
Tube for Handlebar EUR 1 Q-015-0033
Removable Handlebar with stopper 2 Q-015-0093
Top Plate W Edge – 1260 x 840 mm 1 Q-016-0399
Handle for Tow Hole 1 Q-017-0022
Towing Lip – 28 mm 1 Q-017-1010
Tow Attachment to Beam 1 Q-017-1080
Tow Hinge 1 Q-017-1083
