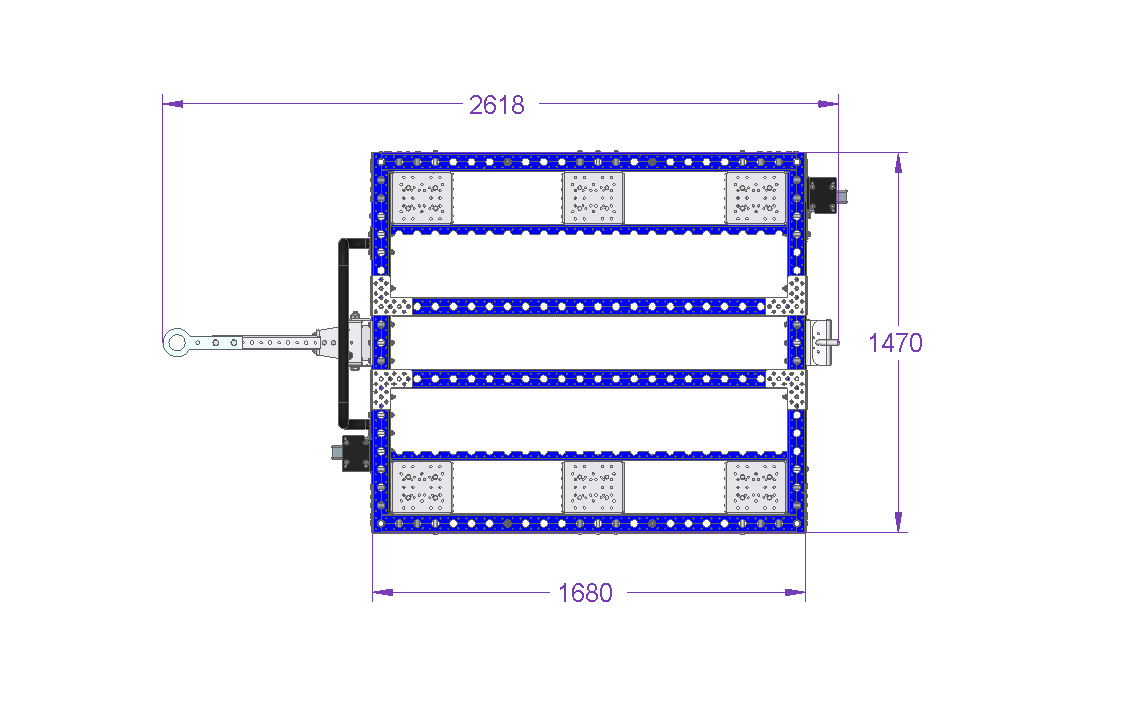

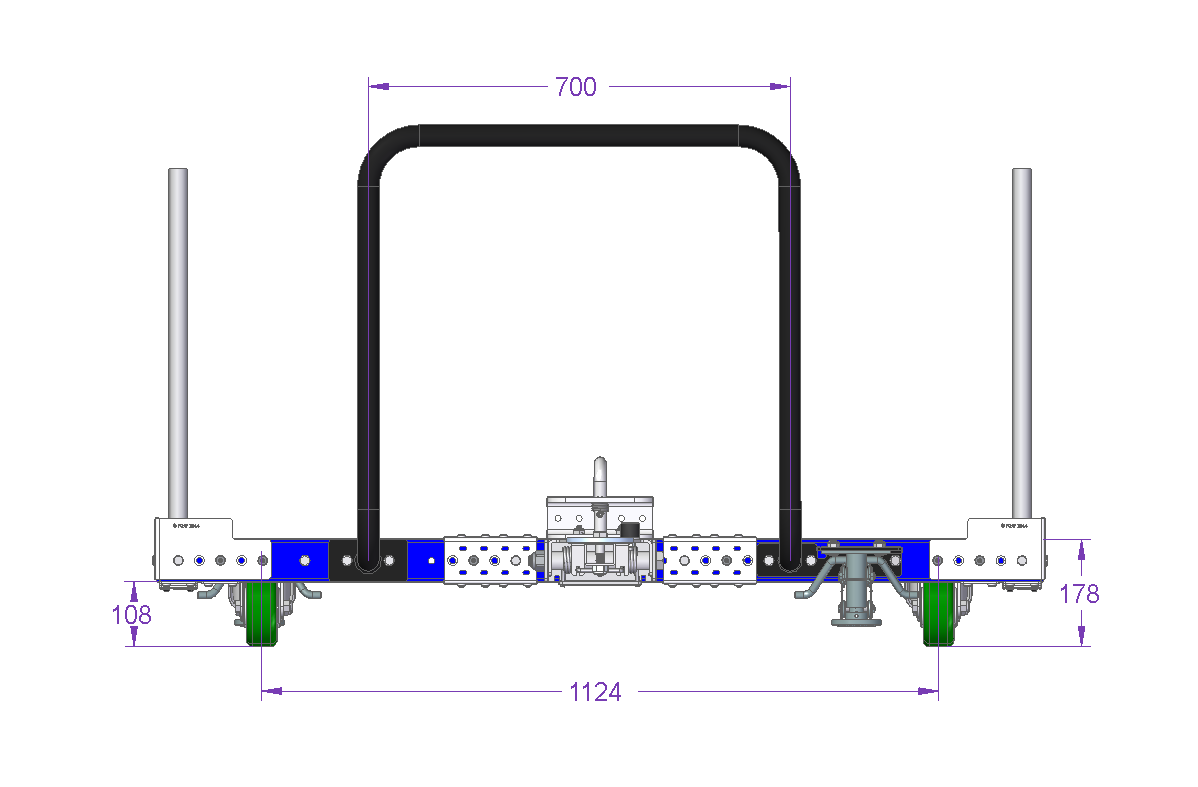

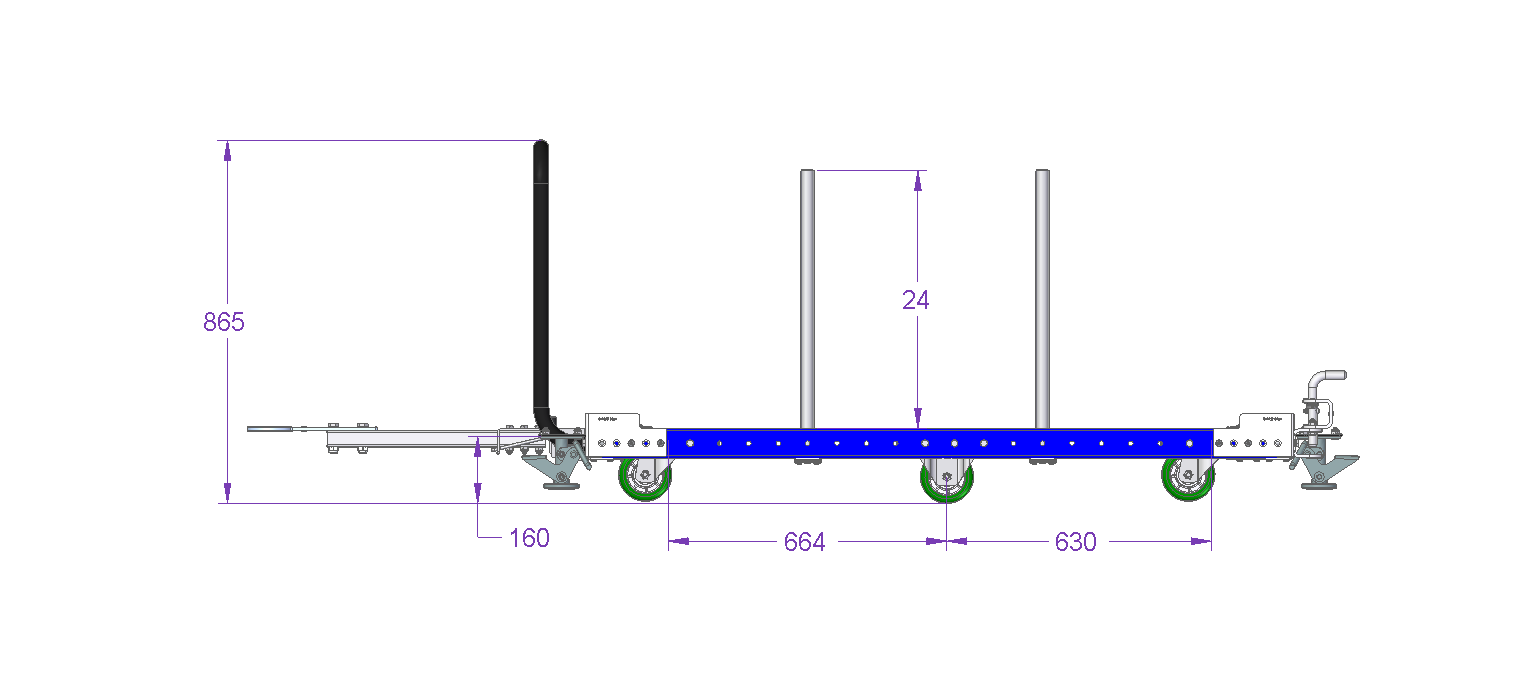

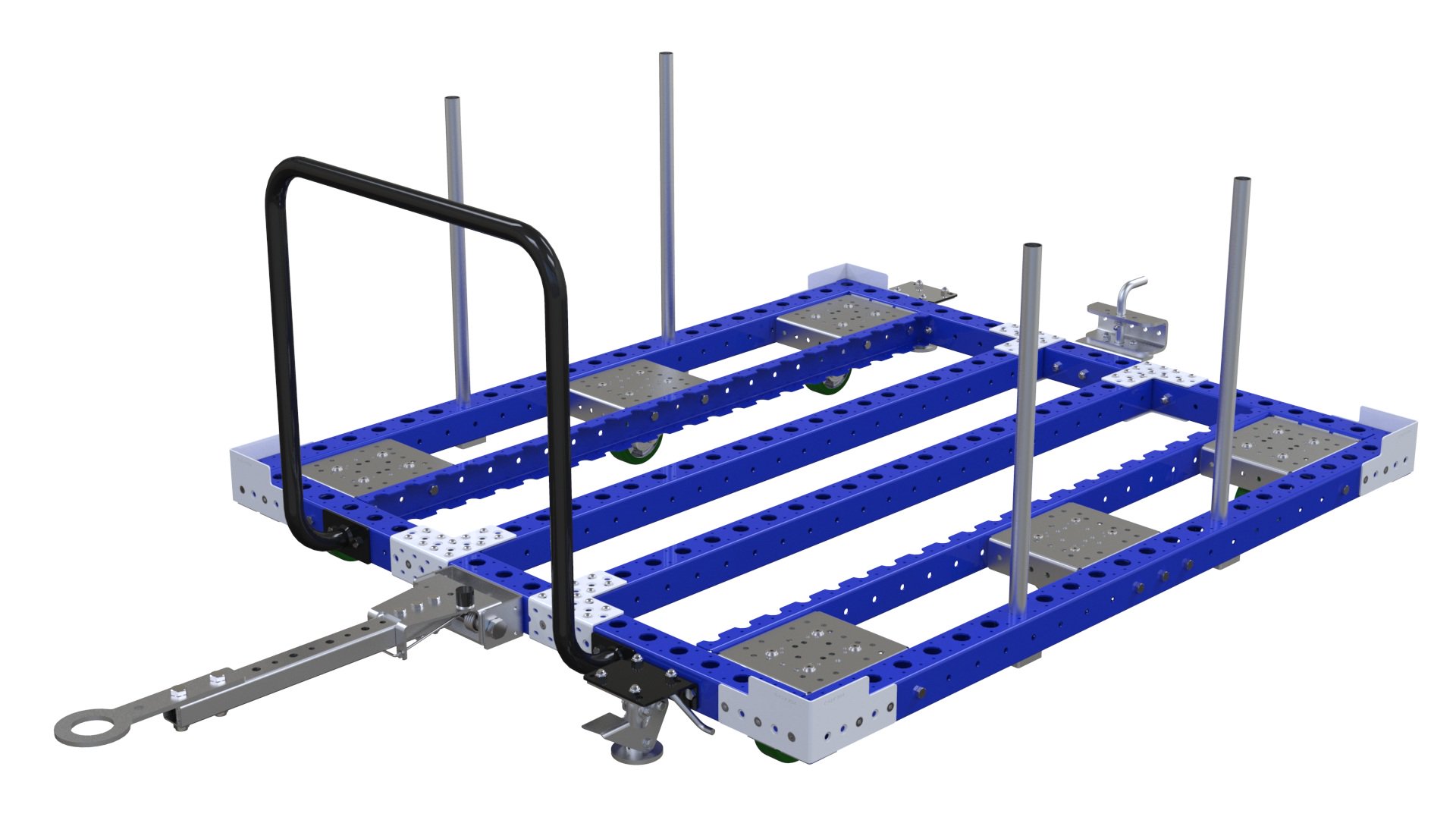

Tugger Cart – 1680 x 1470 mm

Tuggable pallet cart equipped with a handlebar, floor brake six polyurethane casters and tubes to secure the load during transport.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 1470 mm

Length: 1680 mm

Load capacity: 1000 kg

Transportation method: Manual, Tugger

Caster size: 125 mm

Caster Type: Polyurethane

More info

This tugger cart is a heavy duty solution for moving pallets and containers within your facility. It comes equipped with a drop pin and hitch tow bar so that it can be easily added to a tugger train system and transported within your facility. The tubes have been added to each side of the cart so that it can hold the load in place, however they can also be used to add additional materials over the top of the tubes.

Parts included
FlexBeam™ – 1610 mm 4 Q-001-1294
FlexBeam™ 1330 mm FE 2 Q-001-1501
FlexBeam™ 1470 mm FE 2 Q-001-1503
FlexBeam™ 1540 mm FE 6 Q-001-1504
FlexPlate™ 8 Q-002-1001
Flexplate™ M10 18 Q-002-1162
Flexplate™ 30.5 mm hole 12 Q-002-1320
Floor lock COLSON – 4" x 4–1/2" – 125 – 150 mm 2 Q-004-0031
Wheel Attachment – 105 x 77.5 mm 2 Q-004-1065
Caster Polyurethane – 125 mm 4 Q-004-1106
Caster Polyurethane – 125 mm Fixed 2 Q-004-1107
Spring Threaded Tube Connectors 4 Q-005-0469
M8 Damper – GN352-30-25-M8-S-55 1 Q-005-0648
Wheel Attachment Box 6 Q-005-1079
Pallet Guide Corner Plate 4 Q-005-1096
64 mm FlexBeam™ Collet 24 Q-005-1426
Heavy Duty Joint M10 4 Q-005-1580
M6 x 20 K6S 10.9 Round Head (black) 16 Q-006-1018
Washer 10.5 x 30 x 2.5 1 Q-006-1030
M14 x 60 mm Hex Head 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
M10 x 25 mm Hex Head 12 Q-006-1041
Locking Nut M10 101 Q-006-1042
Washer M10 18 Q-006-1043
M10 x 95 mm Hex Head 5 Q-006-1088
M10 x 90 mm Hex Head 23 Q-006-1132
Locking Nut M8 1 Q-006-1181
M10 x 90 mm Extra Low Head 18 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 128 Q-006-1384
M10 x 25 mm Extra Low Head Allen 44 Q-006-1410
M10 x 60 mm Hex Head Fully Threaded 3 Q-006-1502
FlexHandle 700 mm low rider w floor lock plate 1 Q-015-0016
Low Rider Floor Brake Plate 1 Q-015-0019
US Modular Tow Bar VKR 520 mm – LIP 1 Q-017-0014
Tow Hinge Module 1 Q-017-0059
Spring Loaded Tow Hinge 1 Q-017-0067
Towing Lip 2.5 Inch 1 Q-017-1012
Outer Tube (No Plate) – 694 mm 4 Q-025-0694
