Tugger Cart – 1750 x 1120 mm
Tugger Cart – 1750 x 1120 mm
Tugger Cart – 1750 x 1120 mm
Tugger Cart – 1750 x 1120 mm
Q-100-0640

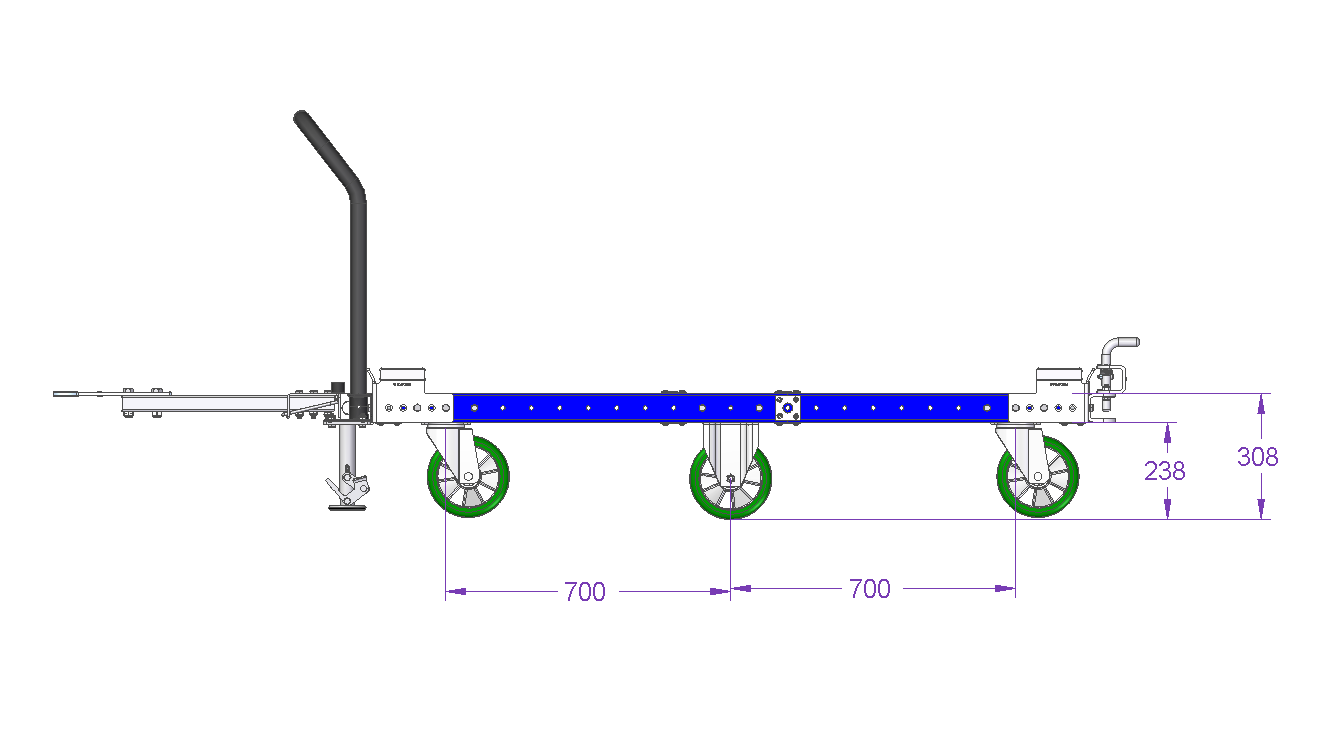

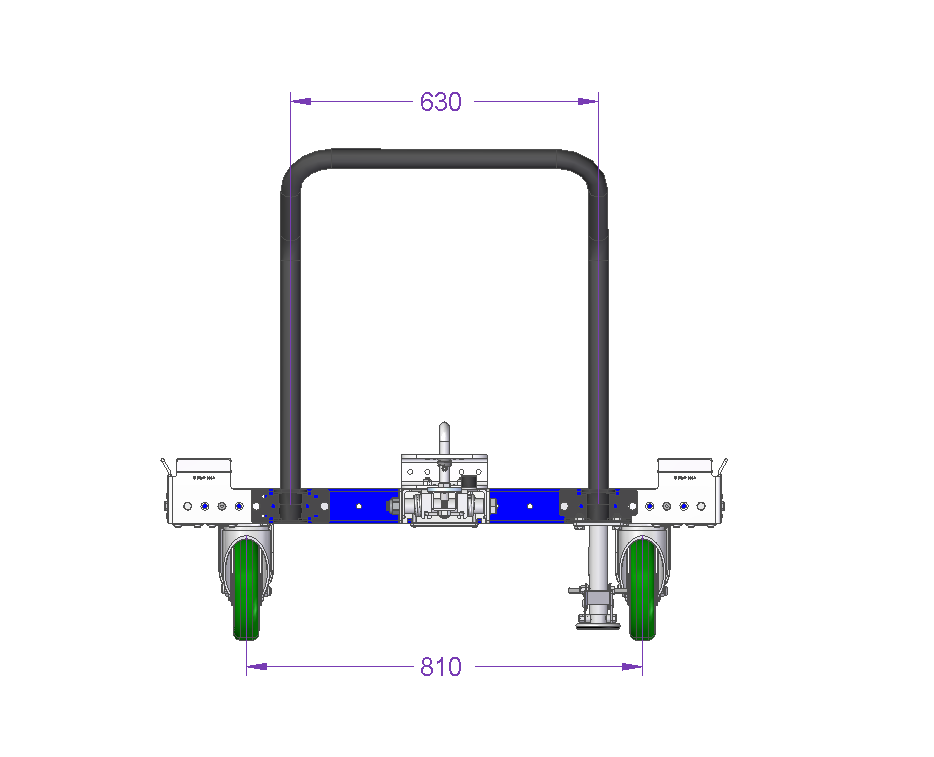

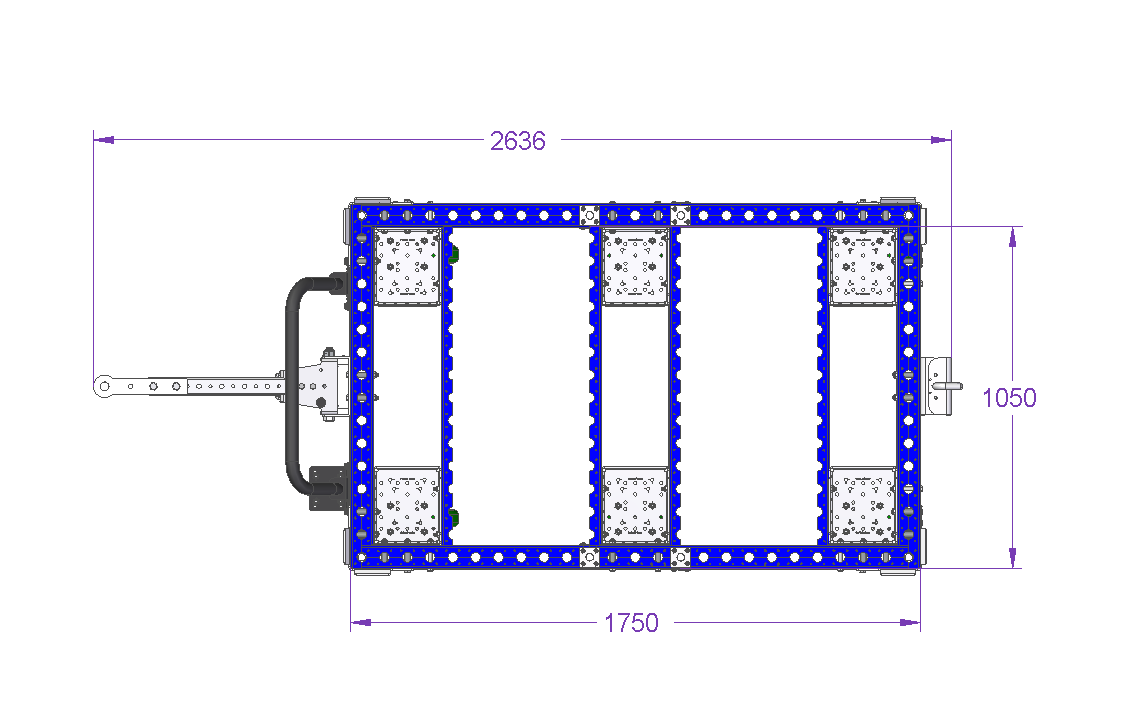

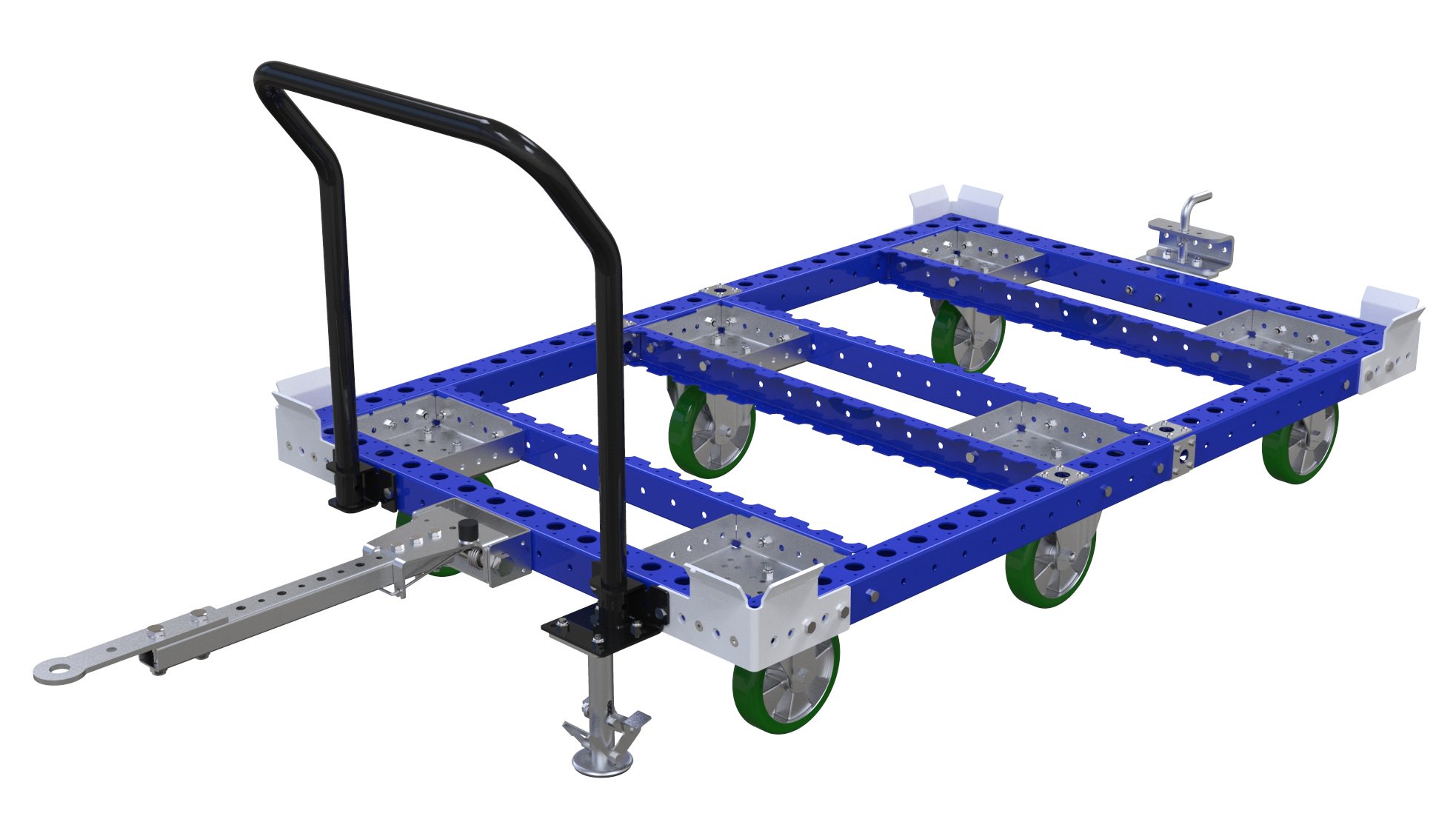

Tugger Cart – 1750 x 1120 mm

Long tugger cart designed for transporting pallets.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 1120 mm

Length: 1750 mm

Load capacity: 1360 kg

Transportation method: Manual, Tugger

Caster size: 200 mm

Caster Type: Polyurethane

More info

This tugger cart is designed by FlexQube to handle various pallets with ease. This cart comes with an ergonomic handlebar for easier manual transportation. It is also equipped with a tow bar to be tugged in a train system. There are six high quality polyurethane casters, two of which are used to improve tracking in a train.

Parts included
FlexBeam™ 980 mm 4 Q-001-1303
FlexBeam™ 700 mm 4 Q-001-1307
FlexBeam™ 1120 mm FE 2 Q-001-1401
FlexBeam™ 980 mm FE 6 Q-001-1403
FlexPlate™ 20 Q-002-1001
Flexplate™ M10 16 Q-002-1162
Wheel Attachment – 105 x 77.5 mm 2 Q-004-1065
Caster Polyurethane – 200 mm 4 Q-004-1100
Caster Polyurethane – 200 mm Fixed 2 Q-004-1101
US Floor Brake – 200 mm 1 Q-004-1613
Wheel Attachment Box – 5 mm 6 Q-005-0046
Angle corner plate – 5 mm 4 Q-005-0227
M8 Damper – GN352-30-25-M8-S-55 1 Q-005-0648
Towing Hole 2 Q-005-1056
64 mm FlexBeam™ Collet 24 Q-005-1426
M6 x 30 mm Allen Head 1 Q-006-1012
Washer 10.5 x 30 x 2.5 1 Q-006-1030
M14 x 60 mm Hex Head 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
M10 x 25 mm Hex Head 46 Q-006-1041
Locking Nut M10 85 Q-006-1042
Washer M10 6 Q-006-1043
Locking Nut M6 1 Q-006-1050
M10 x 95 mm Hex Head 8 Q-006-1088
M10 x 90 mm Hex Head 14 Q-006-1132
M10 x 30 mm Hex Head 2 Q-006-1161
Locking Nut M8 1 Q-006-1181
M10 x 100 mm Hex Head 2 Q-006-1302
M10 x 90 mm Extra Low Head 6 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 80 Q-006-1384
M10 x 25 mm Extra Low Head Allen 4 Q-006-1410
M10 x 60 mm Hex Head Fully Threaded 3 Q-006-1502
Compression Spring for US Tow Hitch 1 Q-012-0007
Handlebar/Floor Brake Attachment US 1 Q-015-0029
Handlebar Attachment US 1 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
US Modular Tow Bar VKR 520 mm – LIP 1 Q-017-0014
Handle for Tow Hole 1 Q-017-0022
Tow Hinge Module 1 Q-017-0059
Towing Lip – 28 mm 1 Q-017-1010
