Tugger Cart – 1890 x 1400 mm
Tugger Cart – 1890 x 1400 mm
Tugger Cart – 1890 x 1400 mm
Tugger Cart – 1890 x 1400 mm
Q-100-0587

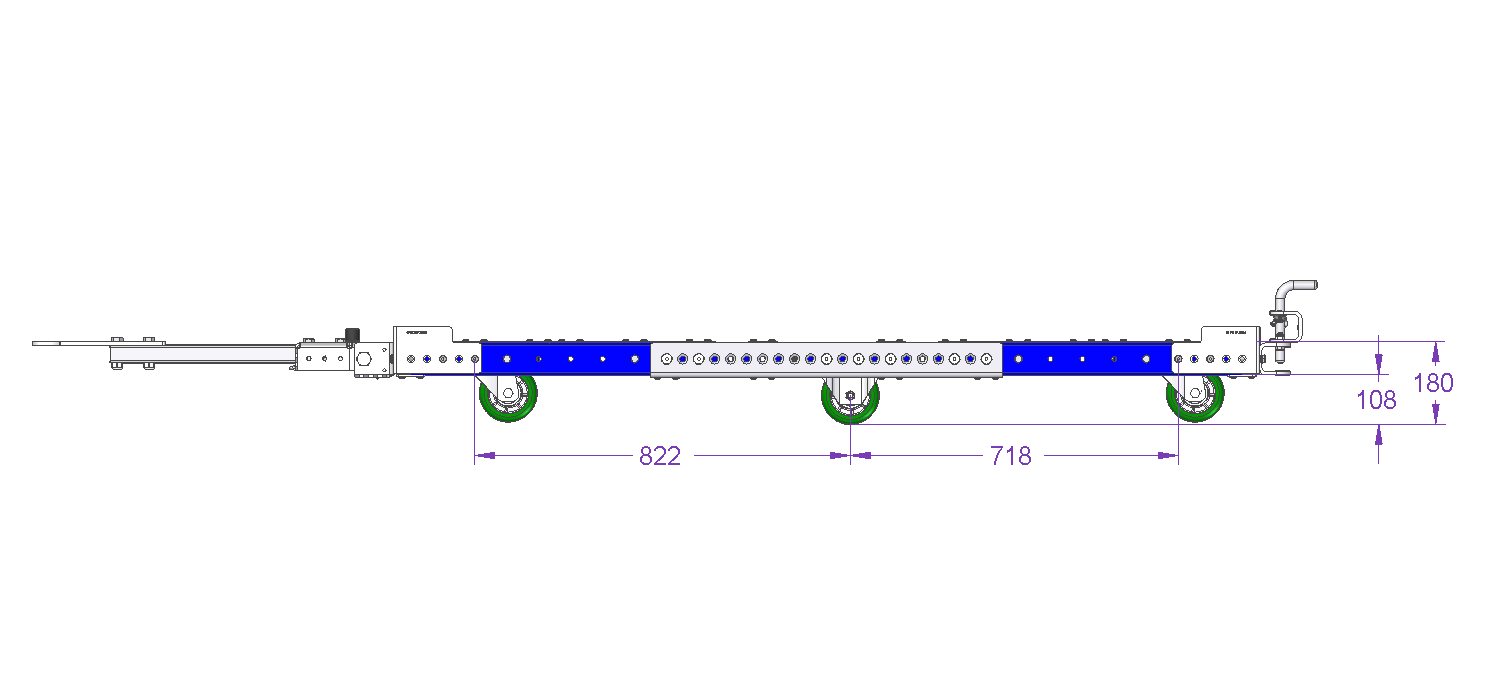

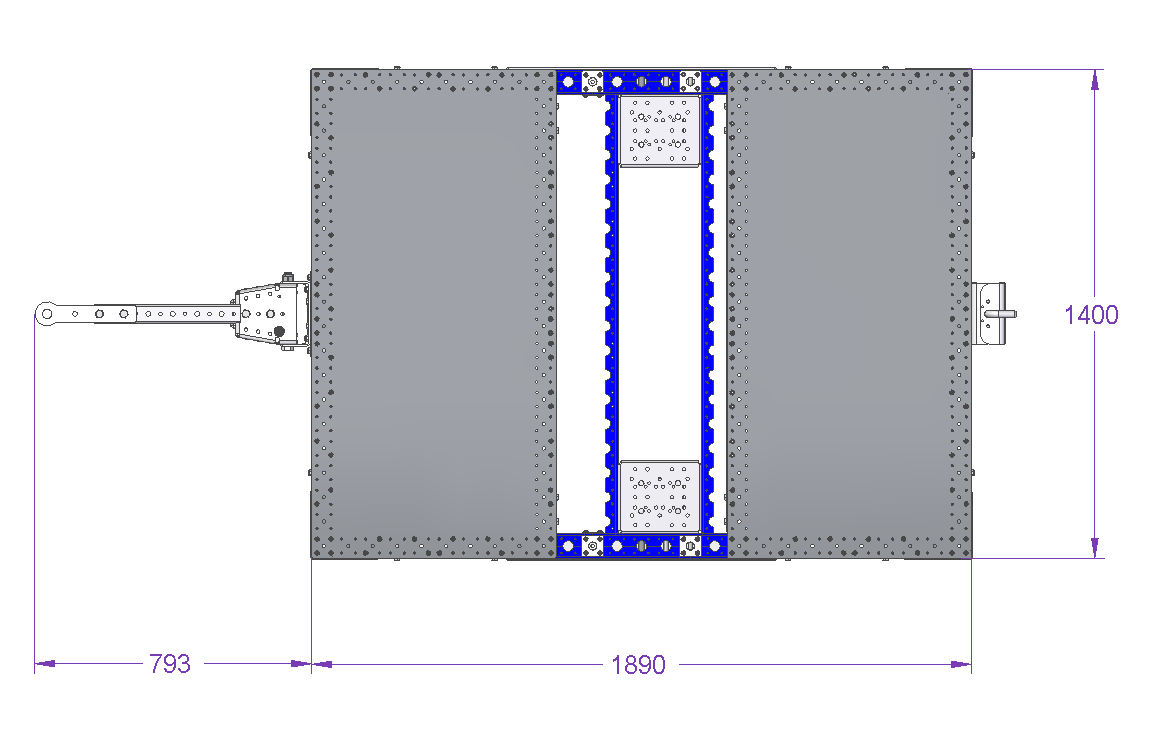

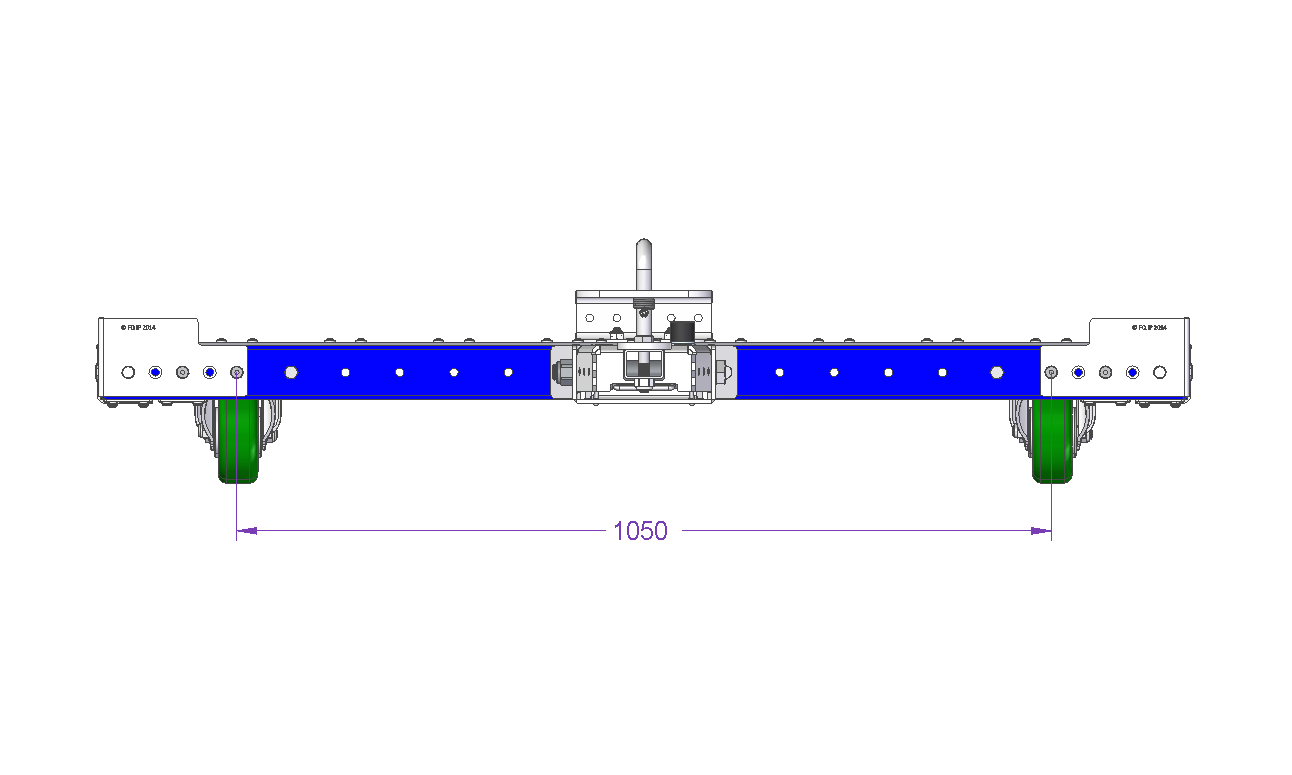

Tugger Cart – 1890 x 1400 mm

Flatbed tugger cart equipped with a tow bar and six polyurethane casters giving the cart excellent tracking properties.

Technical specifications

Category: Flat Deck

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 1400 mm

Length: 1890 mm

Load capacity: 1000 kg

Transportation method: Manual, Tugger

Caster size: 125 mm

Caster Type: Polyurethane

Type of Load: Pallets and Containers

More info

This flatbed pallet cart is great for transportation of larger pallets and containers or several smaller ones. The cart is equipped with a tow bar and six high quality polyurethane casters which give the cart excellent tracking properties and silent movement when connected in a train.

Parts included
FlexBeam™ 1050 mm 4 Q-001-1302
FlexBeam™ 770 mm 4 Q-001-1306
FlexBeam™ 1260 mm FE 8 Q-001-1500
FlexBeam™ 1400 mm FE 2 Q-001-1502
FlexPlate™ 14 Q-002-1001
Flexplate™ M10 12 Q-002-1162
Wheel Attachment – 105 x 77.5 mm 2 Q-004-1065
Caster Polyurethane – 125 mm 4 Q-004-1106
Caster Polyurethane – 125 mm Fixed 2 Q-004-1107
L Bracket Joint 4 Q-005-0031
Wheel Attachment Box 6 Q-005-1079
Pallet Guide Corner Plate 4 Q-005-1096
Reinforcement Plate – 770 mm 2 Q-005-1112
64 mm FlexBeam™ Collet 26 Q-005-1426
M14 x 60 mm Hex Head 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
M10 x 25 mm Hex Head 24 Q-006-1041
Locking Nut M10 102 Q-006-1042
Washer M10 16 Q-006-1043
M10 x 90 mm Hex Head 18 Q-006-1132
M10 x 90 mm Countersunk MF6S 14 Q-006-1135
M10 x 90 mm Extra Low Head 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 232 Q-006-1384
M10 x 16 mm Low Allen Head 2 Q-006-1409
M10 x 25 mm Extra Low Head Allen 28 Q-006-1410
US Modular Tow Bar VKR 520 mm – LIP 1 Q-017-0014
Spring Loaded Tow Hinge 1 Q-017-0067
Heavy Duty Tow Hinge – Narrow 1 Q-017-0087
Towing Lip – 28 mm 1 Q-017-1010
