Tugger cart – 2520 x 1260 mm
Tugger cart – 2520 x 1260 mm
Tugger cart – 2520 x 1260 mm
Tugger cart – 2520 x 1260 mm
Q-100-0614

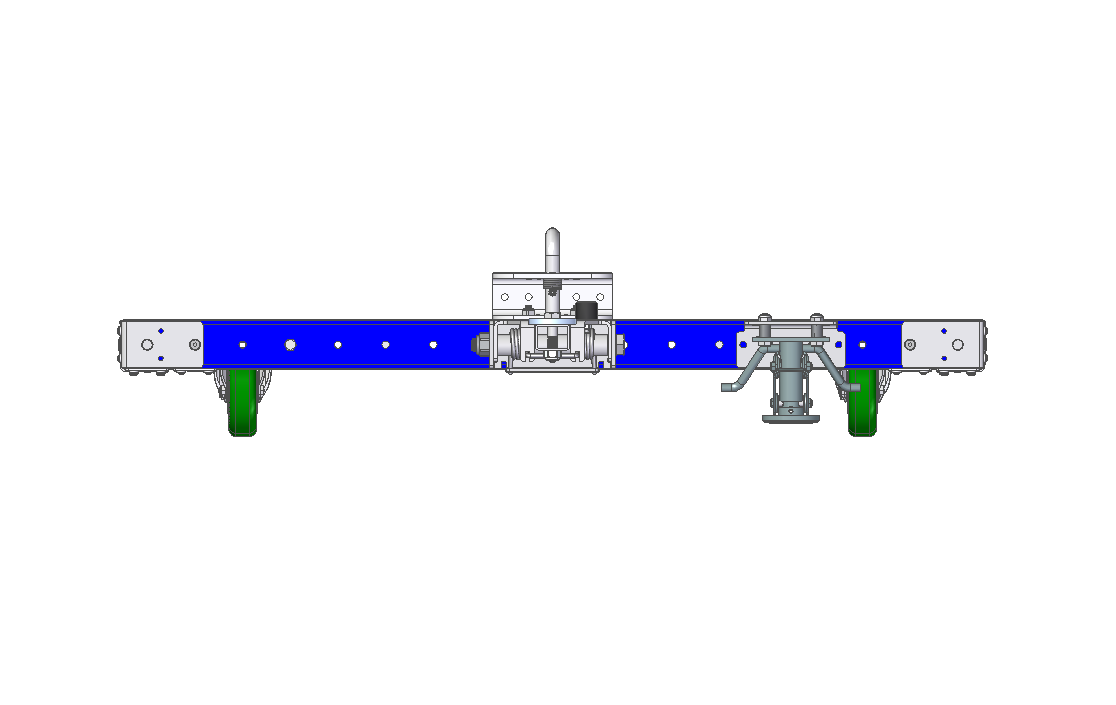

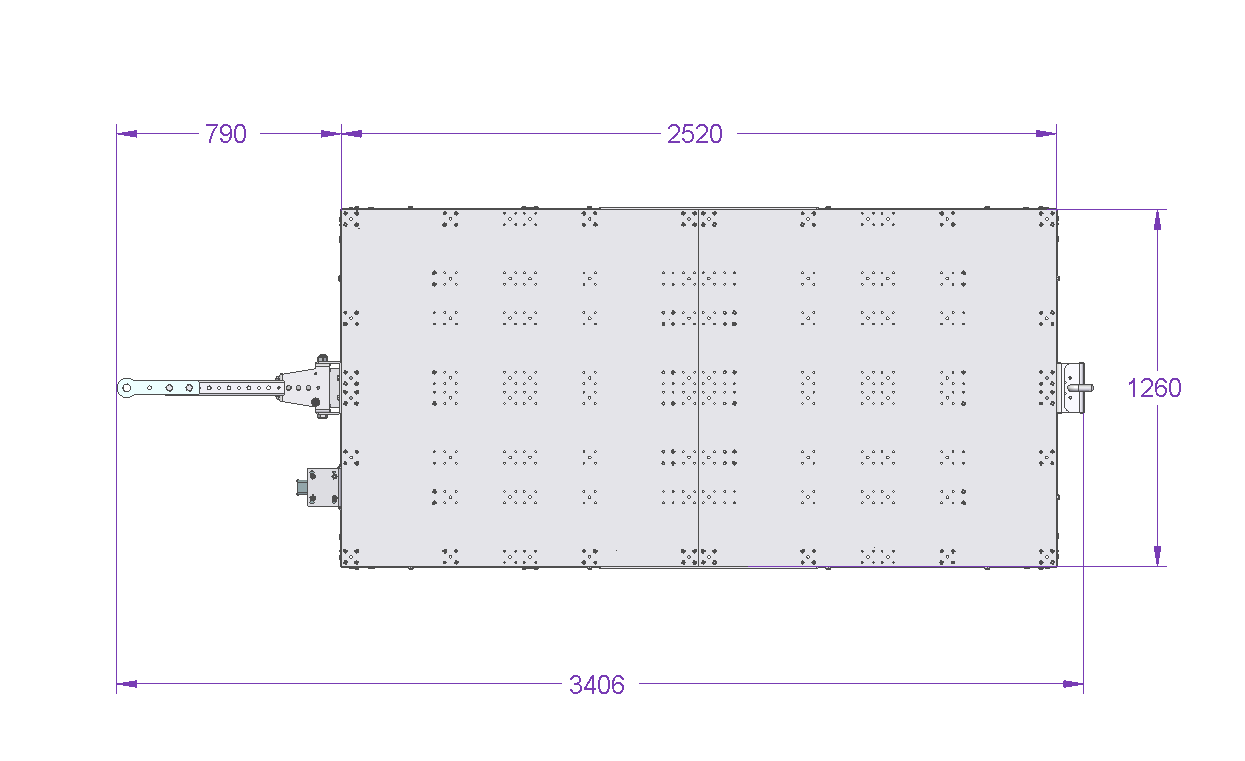

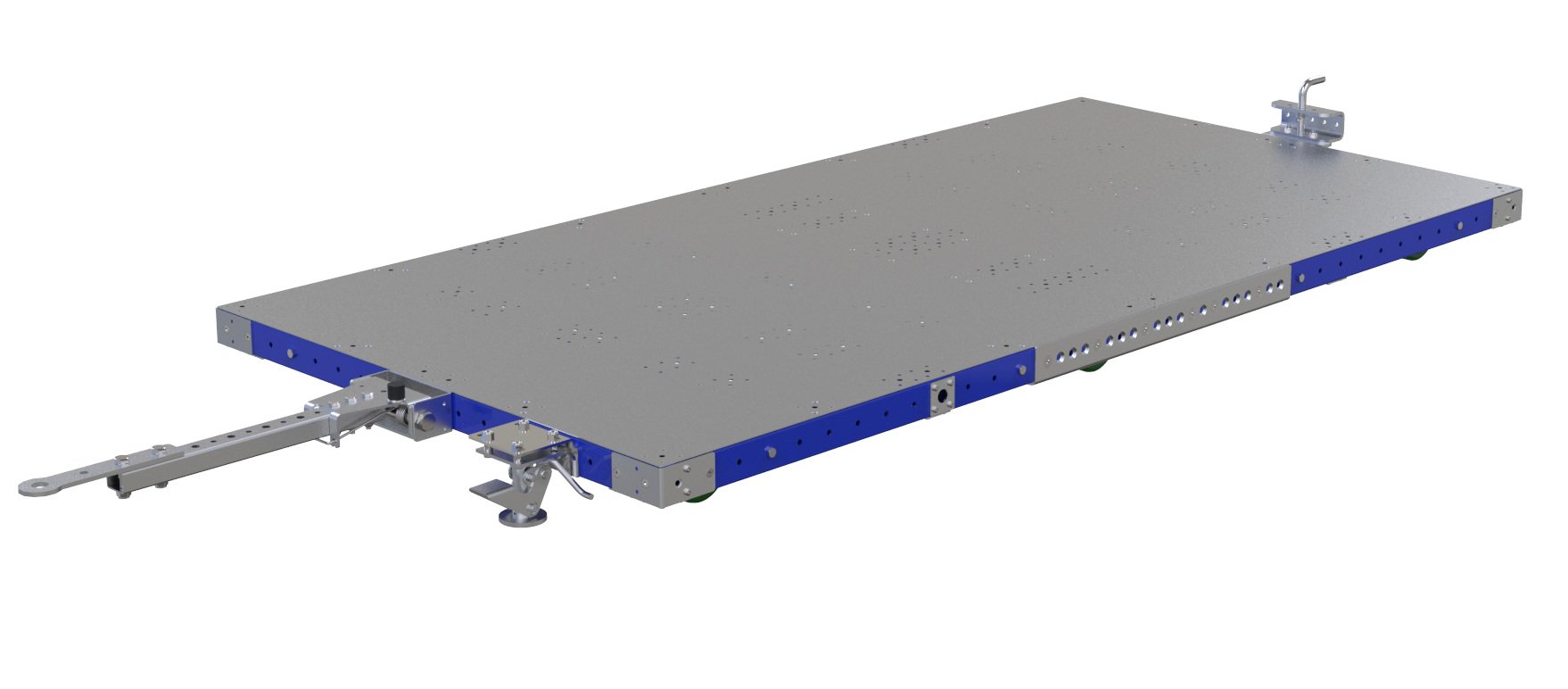

Tugger cart – 2520 x 1260 mm

Custom designed large tugger cart with added flat deck.

Technical specifications

Category: Flat Deck

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 1260 mm

Length: 2520 mm

Load capacity: 907 kg

Transportation method: Manual, Tugger

Caster size: 125 mm

Caster Type: Polyurethane

More info

This large tugger cart was designed to transport long and heavy parts. But it can also be used for transporting pallets and containers. It comes with a drop pin and hitch tow bar for transportation in a tugger train system. It also comes equipped with a floor lock brake to keep the cart secure when not in use.

Parts included
FlexBeam™ 1050 mm 4 Q-001-1302
FlexBeam™ 770 mm 4 Q-001-1306
FlexBeam™ 630 mm 4 Q-001-1308
FlexBeam™ 1120 mm FE 6 Q-001-1401
FlexBeam™ 1260 mm FE 2 Q-001-1500
FlexPlate™ 16 Q-002-1001
Stiffener – Outside 4 Q-002-1050
Flexplate™ M10 8 Q-002-1162
Floor lock COLSON – 4" x 4–1/2" – 125 – 150 mm 1 Q-004-0031
Caster Polyurethane 125 mm 80 x 60 Swivel 4 Q-004-1220
Caster Polyure. 125 mm, 80 x 60, Fixed 2 Q-004-1221
163 mm Collet – 30 x 2 mm 1 Q-005-0298
184 mm Collet – 25 x 2 mm 1 Q-005-0299
Spring tow bar 1 Q-005-0450
M8 Damper – GN352-30-25-M8-S-55 1 Q-005-0648
Towing Hole 2 Q-005-1056
Wheel Attachment Box 6 Q-005-1079
Reinforcement Plate – 770 mm 2 Q-005-1112
Triangle Corner Plate 4 Q-005-1145
Floor brake handle – wheel plate 1 Q-005-1383
Caster Distance Collet – 18 mm 4 Q-005-1396
64 mm FlexBeam™ Collet 12 Q-005-1426
Wheel Attachment – 80 x 60 mm 2 Q-005-1722
M6 x 30 mm Allen Head 1 Q-006-1012
Washer 10.5 x 30 x 2.5 1 Q-006-1030
M14 x 60 mm Hex Head 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
M10 x 25 mm Hex Head 20 Q-006-1041
Locking Nut M10 70 Q-006-1042
Washer M10 2 Q-006-1043
M8 x 20 mm MELC6S 10.9 Allen Head 8 Q-006-1044
Locking Nut M6 1 Q-006-1050
M10 x 95 mm Hex Head 1 Q-006-1088
M10 x 90 mm Hex Head 16 Q-006-1132
M10 x 90 mm Countersunk MF6S 12 Q-006-1135
M10 x 30 mm Hex Head 2 Q-006-1161
Locking Nut M8 23 Q-006-1181
Hex Head – M10 x 40 4 Q-006-1208
M20 x 210 mm – Hex head 1 Q-006-1364
M10 x 90 mm Extra Low Head 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 112 Q-006-1384
M6 x 20 Countersunk Self Tapping Screw 92 Q-006-1385
M20 Locking Nut 1 Q-006-1405
M10 x 25 mm Extra Low Head Allen 4 Q-006-1410
M10 x 60 mm Hex Head Fully Threaded 3 Q-006-1502
Compression Spring for US Tow Hitch 1 Q-012-0007
US Modular Tow Bar VKR 520 mm – LIP 1 Q-017-0014
Handle for Tow Hole 1 Q-017-0022
Hinge attachment 1 Q-017-0035
Tow bar Hinge 1 Q-017-0036
Towing Lip – 28 mm 1 Q-017-1010
