Q-100-0065

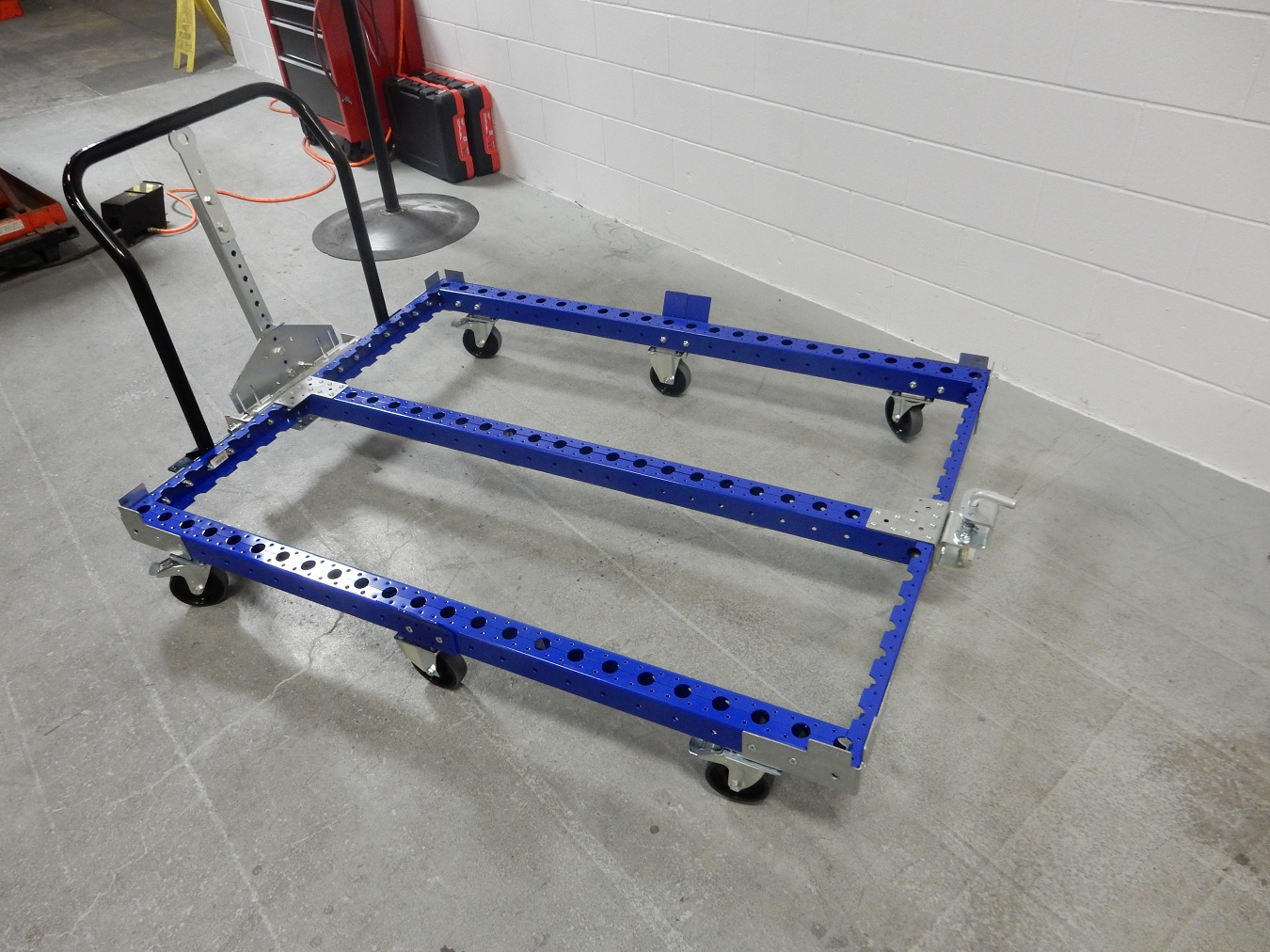

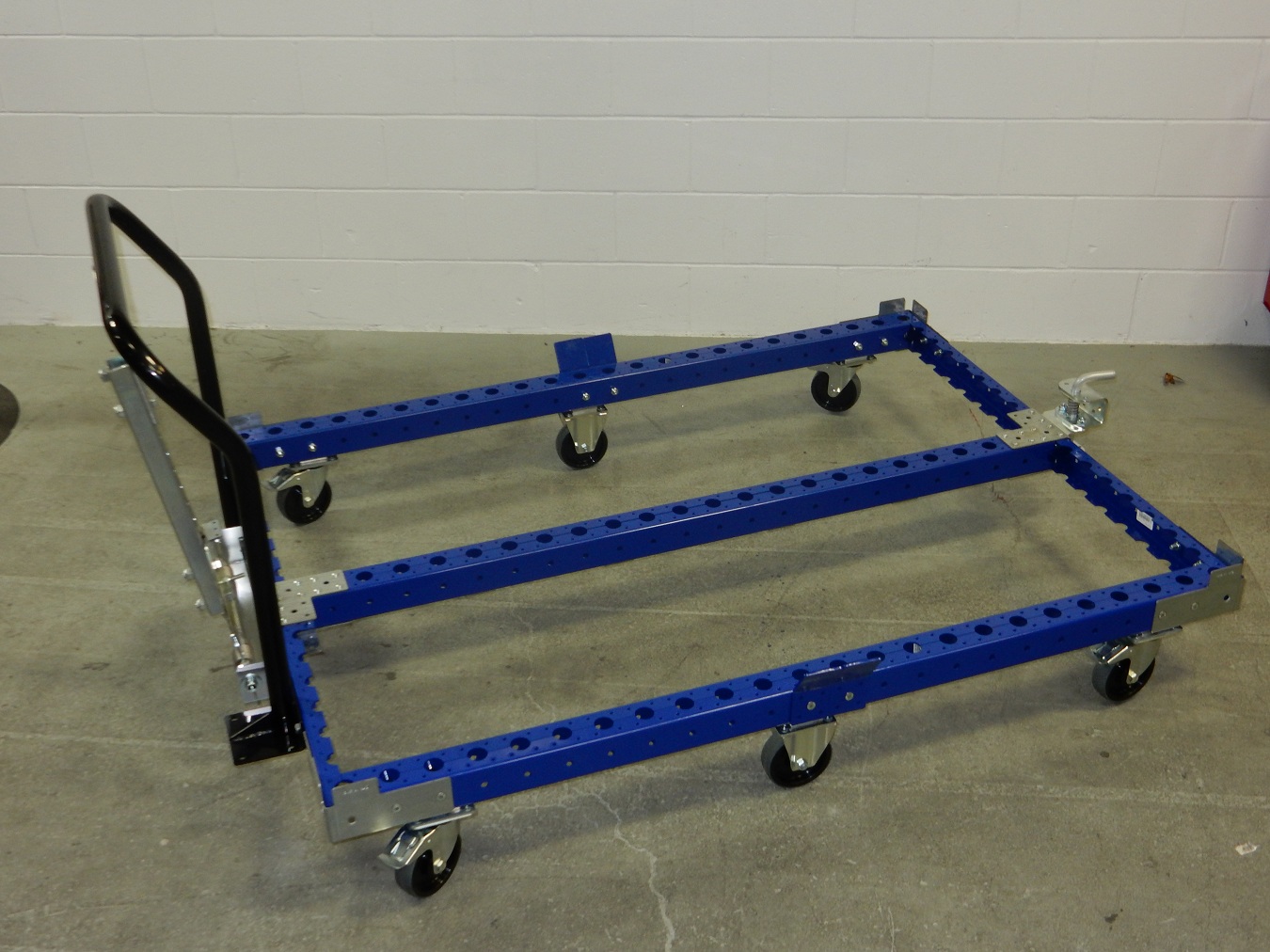

Tugger Cart – 50 x 50 inches

Simply designed tugger cart without a flat deck for transporting pallets and containers.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 1260 mm

Length: 1260 mm

Load capacity: 454 kg

Type of tow bar: Tongue and Hitch

Transportation method: Manual, Tugger

Caster size: 125 mm

Caster Type: Gray

More info

This tugger cart does not have a flat deck and is used for transporting containers. This cart also comes with an attached ergonomic handlebar for easier manual transportation. It also comes with a drop pin and hitch tow bar for use in a tugger train system. This cart comes with six high quality polyamide casters.

Parts included
FlexBeam™ 1190 mm 6 Q-001-1300
FlexBeam™ 1260 mm FE 2 Q-001-1500
FlexPlate™ 18 Q-002-1001
Flexplate™ M10 2 Q-002-1162
125 mm Swivel Caster with Brake 4 Q-004-1364
125 mm Fixed Caster 2 Q-004-1365
Towing Hole 2 Q-005-1056
Spring for Tow Bar 2 Q-005-1070
Pallet Guide Corner Plate 4 Q-005-1096
Caster Distance Collet – 18 mm 4 Q-005-1396
64 mm FlexBeam™ Collet 8 Q-005-1426
Heavy Duty Joint M10 2 Q-005-1580
Wheel Attachment – 80 x 60 mm 6 Q-005-1722
Washer M20 2 Q-006-0016
M6 x 30 mm Allen Head 1 Q-006-1012
M14 x 60 mm Hex Head 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
M10 x 25 mm Hex Head 10 Q-006-1041
Locking Nut M10 33 Q-006-1042
Locking Nut M6 1 Q-006-1050
M10 x 30 mm Hex Head 2 Q-006-1161
Locking Nut M8 24 Q-006-1181
Nut M10 1 Q-006-1195
M8 x 16 mm Countersunk 24 Q-006-1214
M10 x 50 mm Hex Head Fully Threaded 5 Q-006-1343
M10 x 90 mm Extra Low Head 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 56 Q-006-1384
M6 x 20 Countersunk Self Tapping Screw 24 Q-006-1385
M10 x 25 mm Extra Low Head Allen 8 Q-006-1410
Compression Spring for US Tow Hitch 1 Q-012-0007
Handle With Bent Top + Floor Brake (North America) 1 Q-015-1060
US Modular Tow Bar VKR 520 mm – LIP 1 Q-017-0014
Handle for Tow Hole 1 Q-017-0022
Cotter Pin – 3.2 x 32 mm 2 Q-017-0023
Towing Lip – 28 mm 1 Q-017-1010
Tow Bar Lock Tube – 498 mm 1 Q-017-1061
Tow Attachment to Beam 1 Q-017-1080
Tow Hinge 1 Q-017-1083
