Tugger Cart – 840 x 1540 mm
Tugger Cart – 840 x 1540 mm
Tugger Cart – 840 x 1540 mm
Tugger Cart – 840 x 1540 mm
Q-100-1735

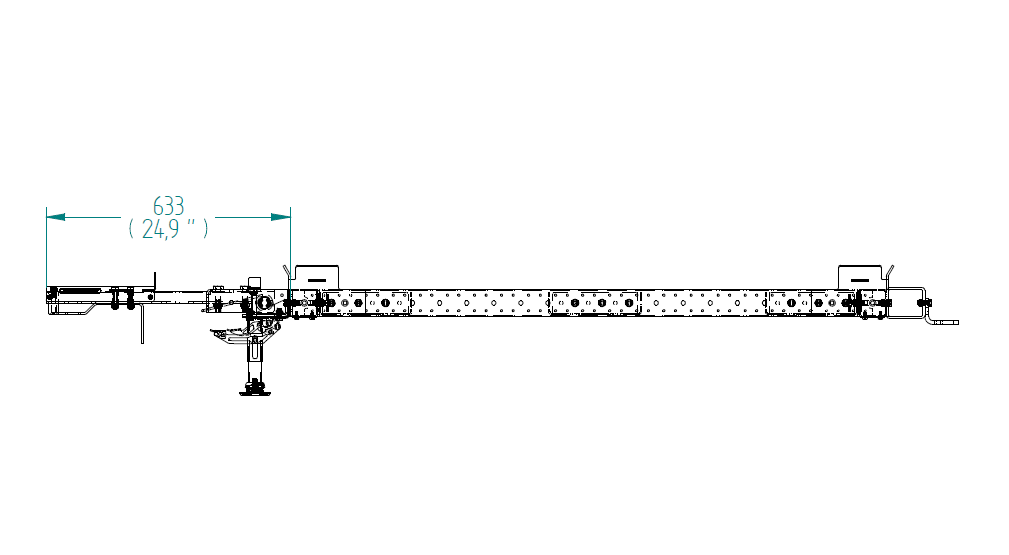

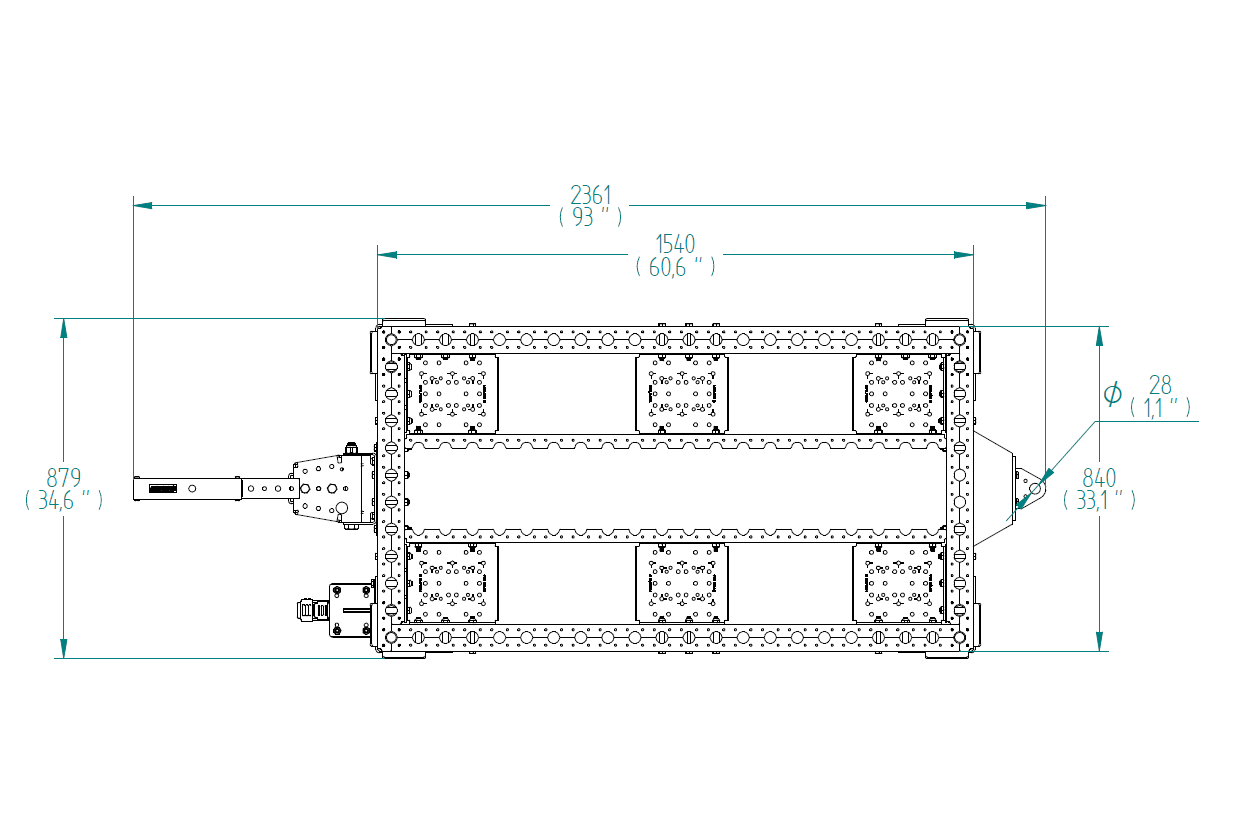

Tugger Cart – 840 x 1540 mm

Tugger cart for pallets or containers uses floor and comes equipped with brake and foot release tow bar.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 840 mm

Length: 1540 mm

Load capacity: 850 kg

Transportation method: Manual, Tugger

Type of Load: Pallets and Containers

More info

This tugger cart is designed for transporting pallets or containers and is equipped with a foot release tow bar and a floor friction brake. The cart can be used with any of our casters, and they can be used for different loads and type of transportation.

Parts included
FlexPlate™ 8 Q-002-1001
Flexplate™ M10 12 Q-002-1162
Floor Brake LTL 200 1 Q-004-1359
Angle corner plate – 5 mm 4 Q-005-0227
31 mm Collet 2 Q-005-1008
Spring Cover Plate 1 Q-005-1025
Wheel Attachment Box 6 Q-005-1079
Floor Brake Plate 1 Q-005-1387
64 mm FlexBeam™ Collet 24 Q-005-1426
M14 x 60 mm Hex Head 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
M10 x 25 mm Hex Head 17 Q-006-1041
Locking Nut M10 63 Q-006-1042
M10 x 70 mm Countersunk 1 Q-006-1112
M10 x 90 mm Hex Head 20 Q-006-1132
M10 x 30 mm Hex Head 2 Q-006-1161
M10 x 100 mm Hex Head 1 Q-006-1302
M10 x 50 mm Hex Head Fully Threaded 2 Q-006-1343
M10 x 90 mm Extra Low Head 15 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 36 Q-006-1384
M10 x 16 mm Low Allen Head 2 Q-006-1409
M10 x 25 mm Extra Low Head Allen 3 Q-006-1410
Spring 1.5 x 15yd x 70 1 Q-012-1141
Countersunk Towing Lock Pin – 25 mm 1 Q-017-0010
Foot Release Locking Lip 1 Q-017-0024
Heavy Duty Tow Hinge – Narrow 1 Q-017-0087
Tow Hole 28 mm – Symmetrical 1 Q-017-1066
FlexBeam™ – 1470 mm 4 Q-020-1470
