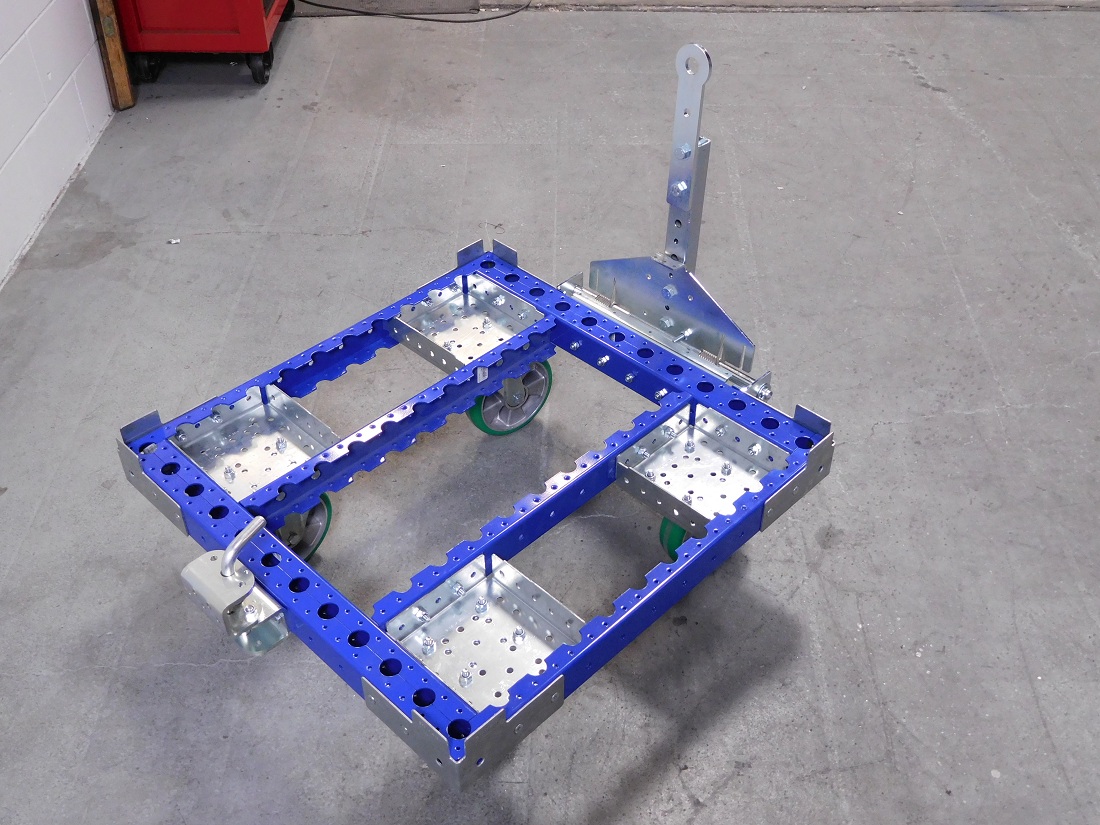

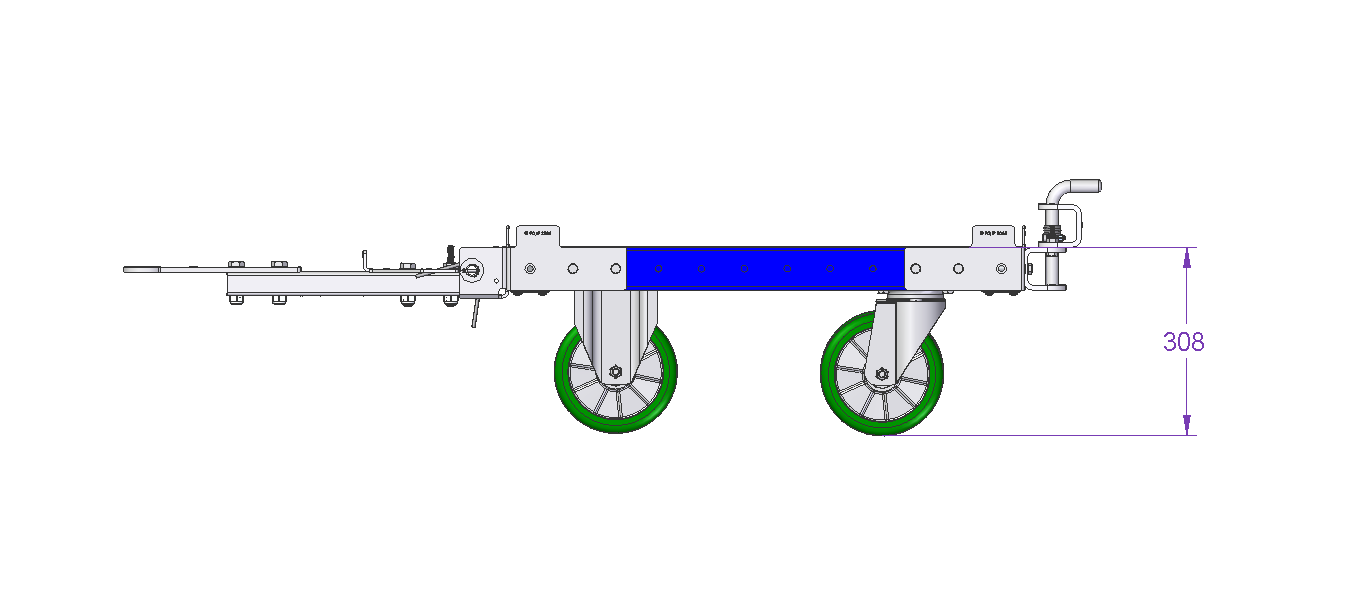

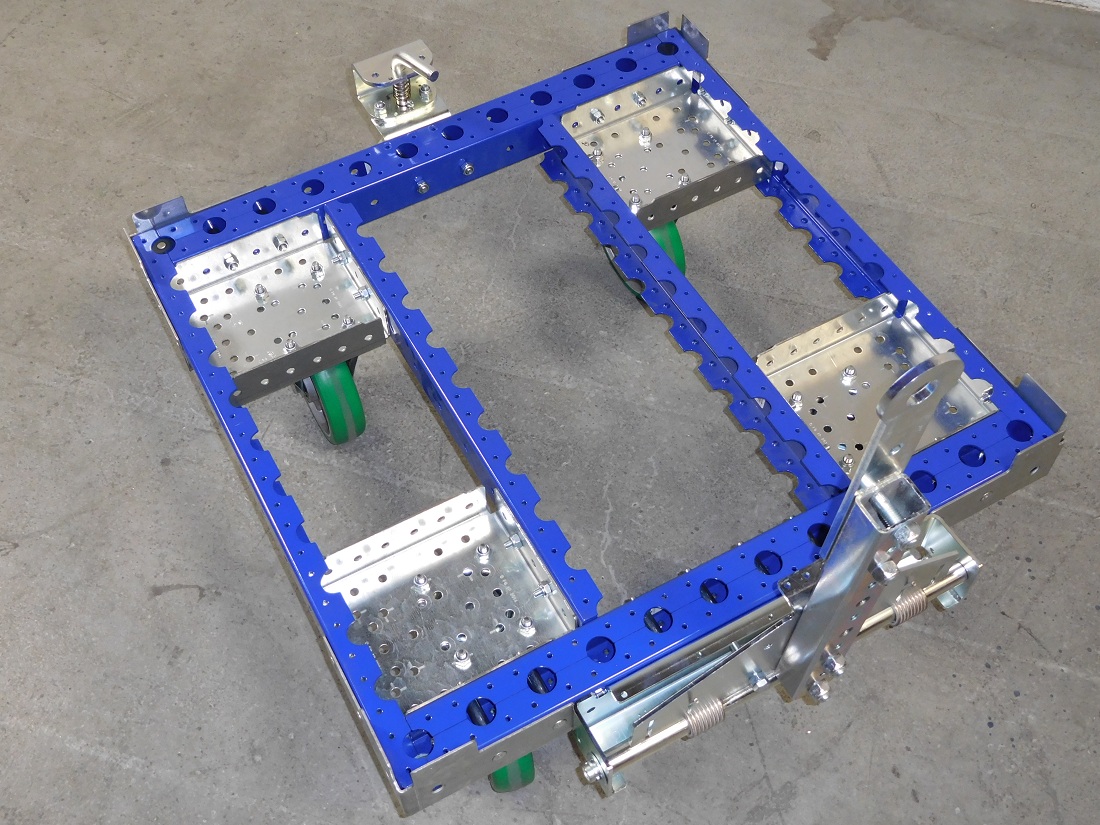

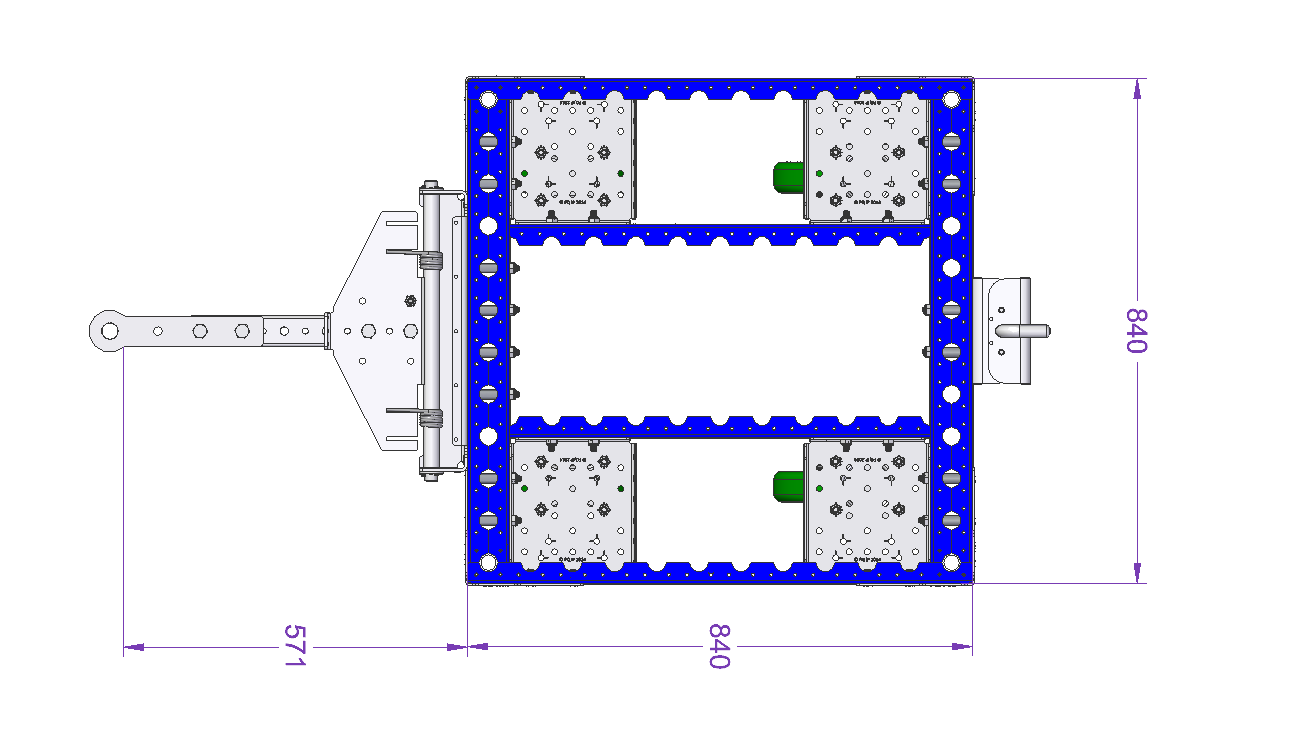

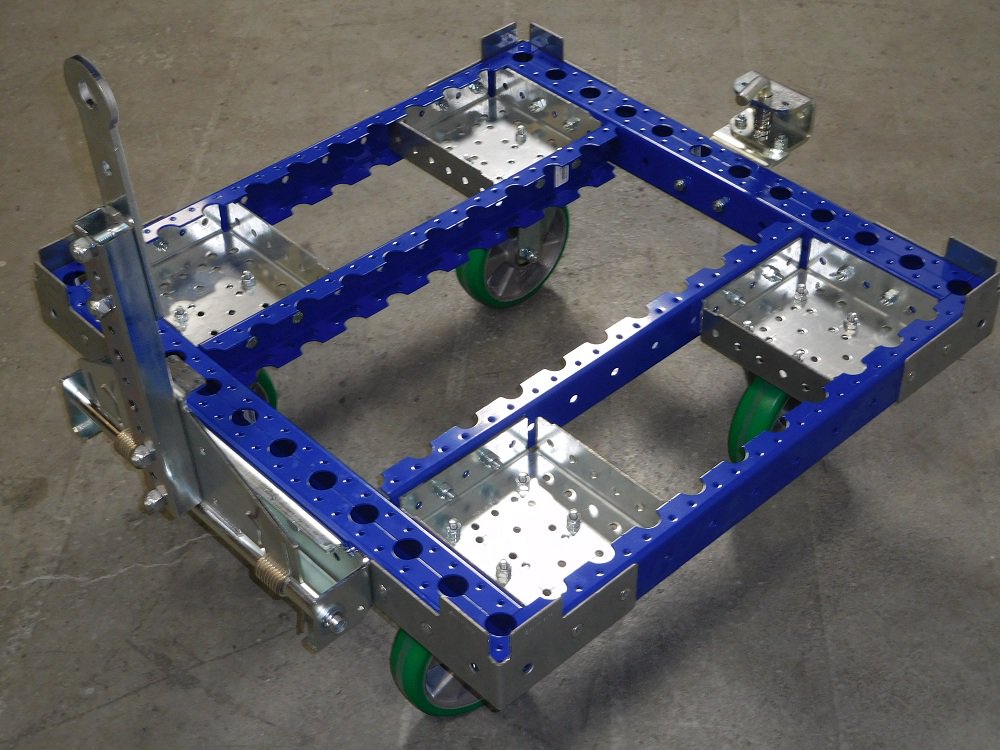

Pallet Cart – 840 x 840 mm

Standard tugger cart without a flat deck for transporting pallets and containers.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 840 mm

Load capacity: 500 kg

Width: 840 mm

Caster Type: Polyurethane

Caster size: 200 mm

Type of tow bar: Tongue and Hitch

More info

This small tugger cart was designed to transport containers, bins and boxes. It comes equipped with a drop pin and hitch tow bar for transportation via a tugger train. It has four high quality polyurethane casters to improve the tracking when towed in a tugger train system.

Parts included
FlexBeam™ 770 mm 4 Q-001-1306
FlexBeam™ 700 mm 2 Q-001-1307
FlexBeam™ 840 mm FE 2 Q-001-1405
FlexPlate™ 4 Q-002-1001
Caster Polyurethane – 200 mm 2 Q-004-1100
Caster Polyurethane – 200 mm Fixed 2 Q-004-1101
Towing Hole 2 Q-005-1056
Spring for Tow Bar 2 Q-005-1070
Wheel Attachment Box 4 Q-005-1079
Pallet Guide Corner Plate 4 Q-005-1096
64 mm FlexBeam™ Collet 14 Q-005-1426
Washer M20 2 Q-006-0016
M6 x 30 mm Allen Head 1 Q-006-1012
M14 x 60 mm Hex Head 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
M10 x 25 mm Hex Head 24 Q-006-1041
Locking Nut M10 49 Q-006-1042
Locking Nut M6 1 Q-006-1050
M10 x 90 mm Hex Head 6 Q-006-1132
M10 x 30 mm Hex Head 2 Q-006-1161
Nut M10 1 Q-006-1195
M10 x 50 mm Hex Head Fully Threaded 1 Q-006-1343
M10 x 90 mm Extra Low Head 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 16 Q-006-1384
M10 x 25 mm Extra Low Head Allen 8 Q-006-1410
Compression Spring for US Tow Hitch 1 Q-012-0007
US Modular Tow Bar VKR 380 mm – Lip 1 Q-017-0015
Handle for Tow Hole 1 Q-017-0022
Cotter Pin – 3.2 x 32 mm 2 Q-017-0023
Towing Lip – 28 mm 1 Q-017-1010
Tow Bar Lock Tube – 498 mm 1 Q-017-1061
Tow Attachment to Beam 1 Q-017-1080
Tow Hinge 1 Q-017-1083
