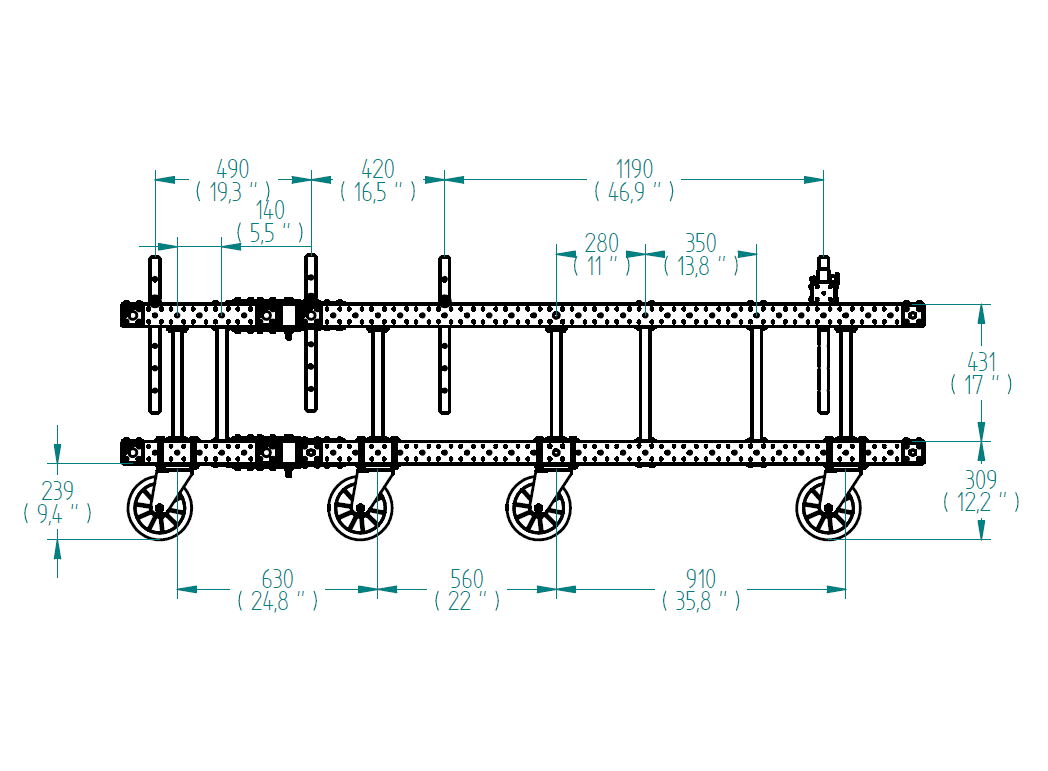

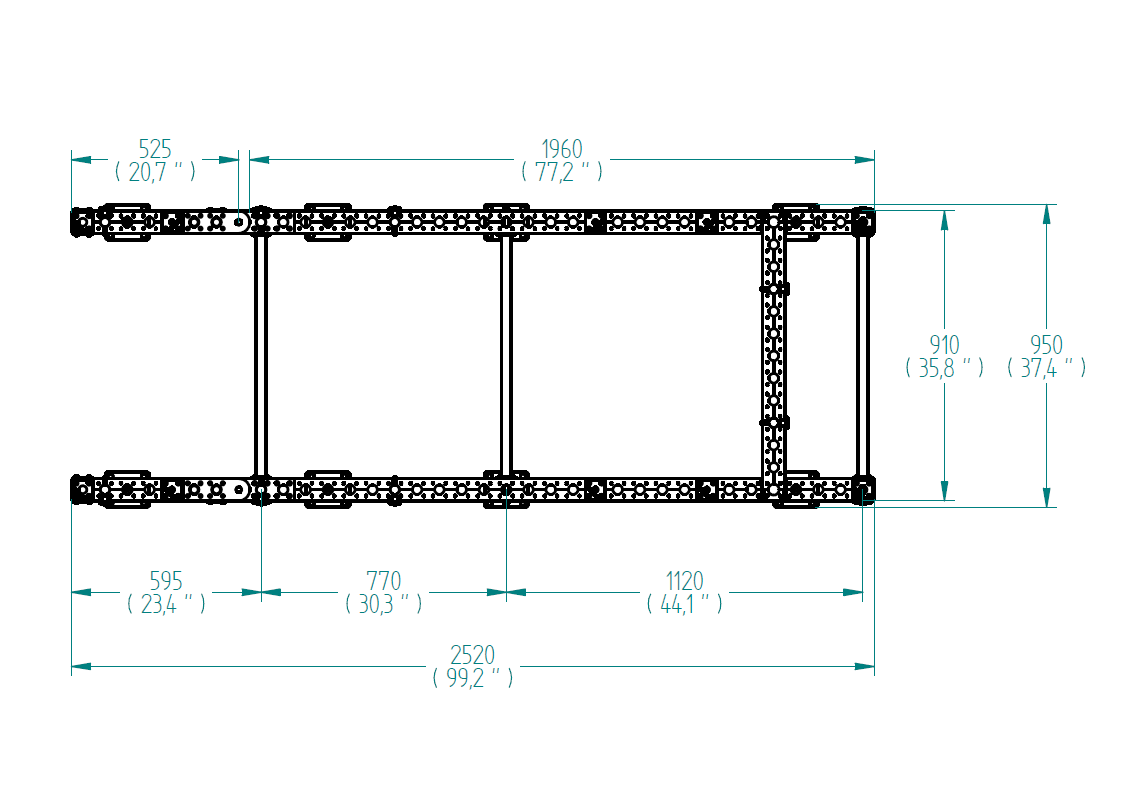

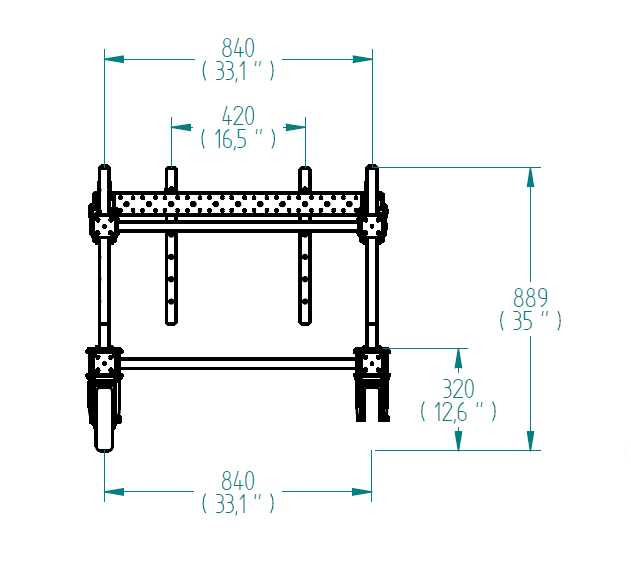

Tugger Fixture – 910 x 1960 mm

Fixture cart for transporting parts in an assembly line.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 910 mm

Length: 1960 mm

Load capacity: 1000 kg

Transportation method: Manual

Caster size: 200 mm

Caster Type: Polyurethane

Type of Load: Misc parts

More info

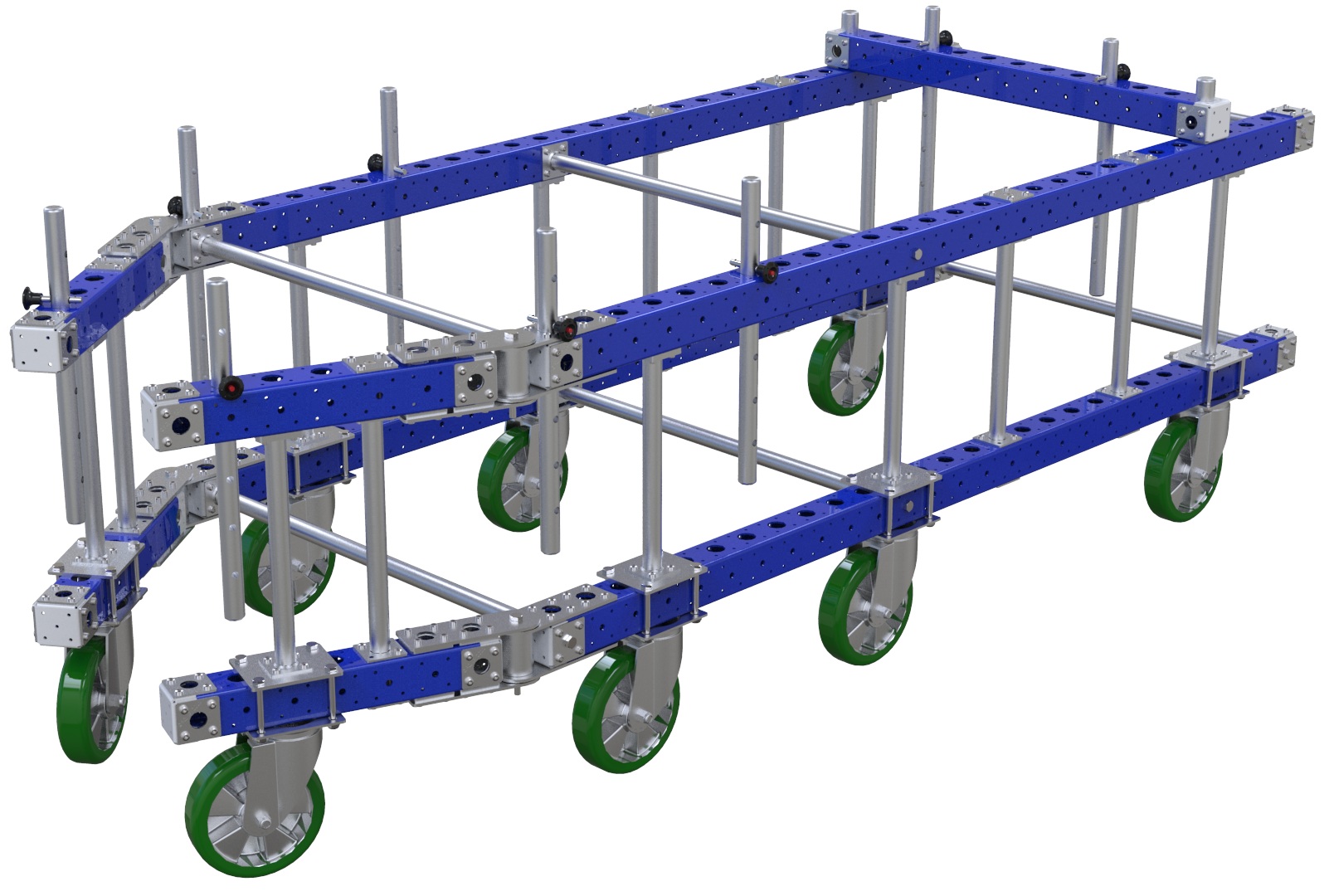

This fixture is a custom made cart/base for an assembly station. The parts are placed on the top, and the cart is moved along the assembly station to continue the process. Equipped with polyurethane wheels and FlexTubes, the front of the cart opens and closes to help the forklift to place the parts on top of the cart.

Parts included
FlexTube™ 350 mm 8 Q-000-1055
FlexTube™ 770 mm 6 Q-000-1265
FlexQube® 18 Q-001-1078
FlexPlate™ 70 Q-002-1001
Flexplate™ M10 18 Q-002-1162
Flexplate™ 30.5 mm hole 12 Q-002-1320
Wheel Attachment – 105 x 77.5 mm 8 Q-004-1065
Caster Polyurethane – 200 mm Swivel 8 Q-004-1211
Spring Threaded Tube Connectors 32 Q-005-0469
64 mm FlexBeam™ Collet 4 Q-005-1426
M6 x 16 mm Allen Head 96 Q-006-1011
M10 x 120 mm Fully Threaded 14 Q-006-1037
Locking Nut M10 36 Q-006-1042
M10 x 90 mm Hex Head 32 Q-006-1132
Self Tapping Screw M6 Torx H60 x 16 344 Q-006-1384
M10 x 25 mm Extra Low Head Allen 12 Q-006-1410
Outer tube (no plate) – 140 mm 6 Q-025-0140
