Tugger Roller Cart - 1120 x 1260 mm
Tugger Roller Cart - 1120 x 1260 mm
Tugger Roller Cart - 1120 x 1260 mm
Tugger Roller Cart - 1120 x 1260 mm
Tugger Roller Cart - 1120 x 1260 mm
Q-100-1744

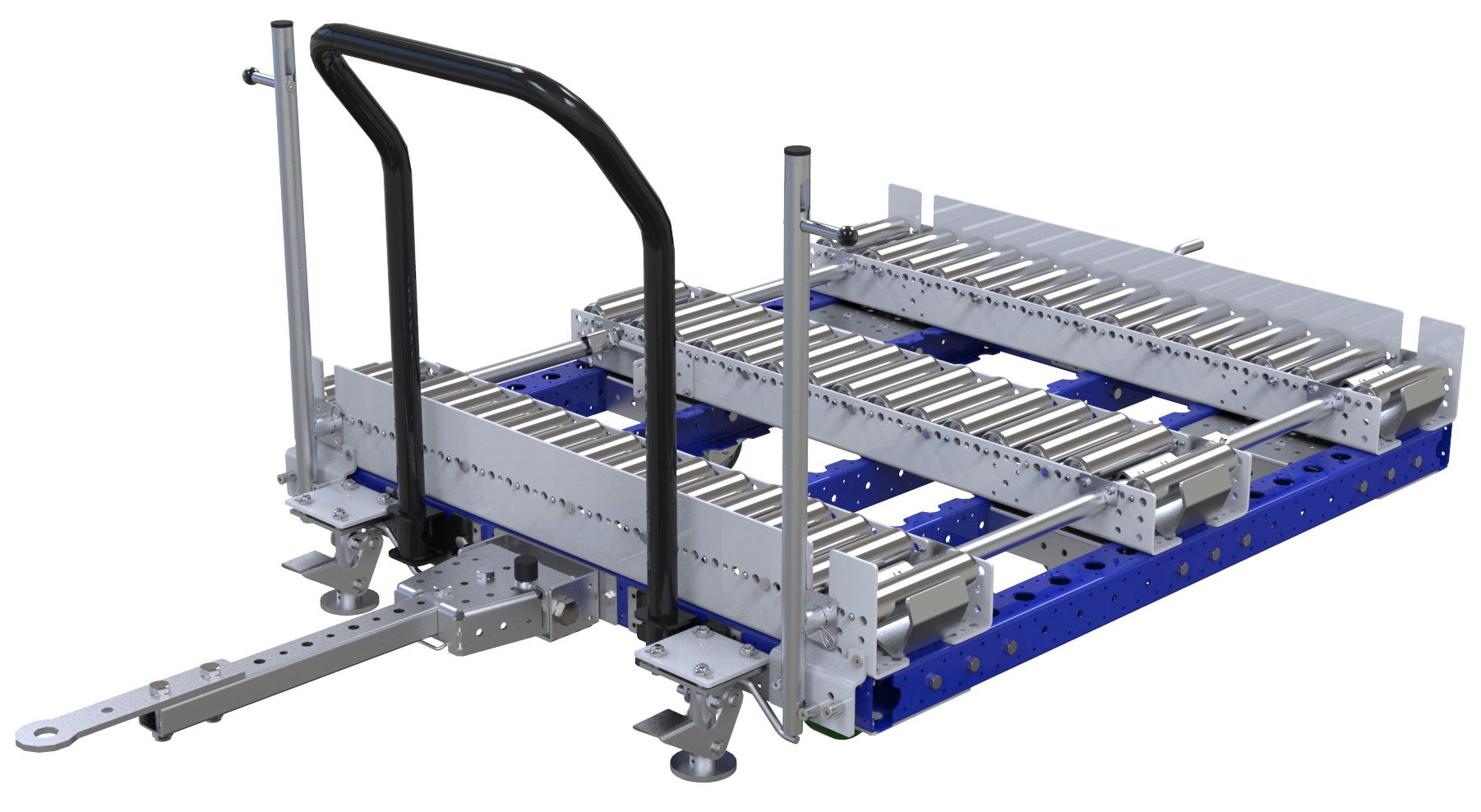

Tugger Roller Cart - 1120 x 1260 mm

Roller cart for pallets/containers, with locking, handlebar, drop pin tow bar and two-floor friction brakes.

Technical specifications

Category: Conveyor

Type of tow bar: Tongue and Hitch

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

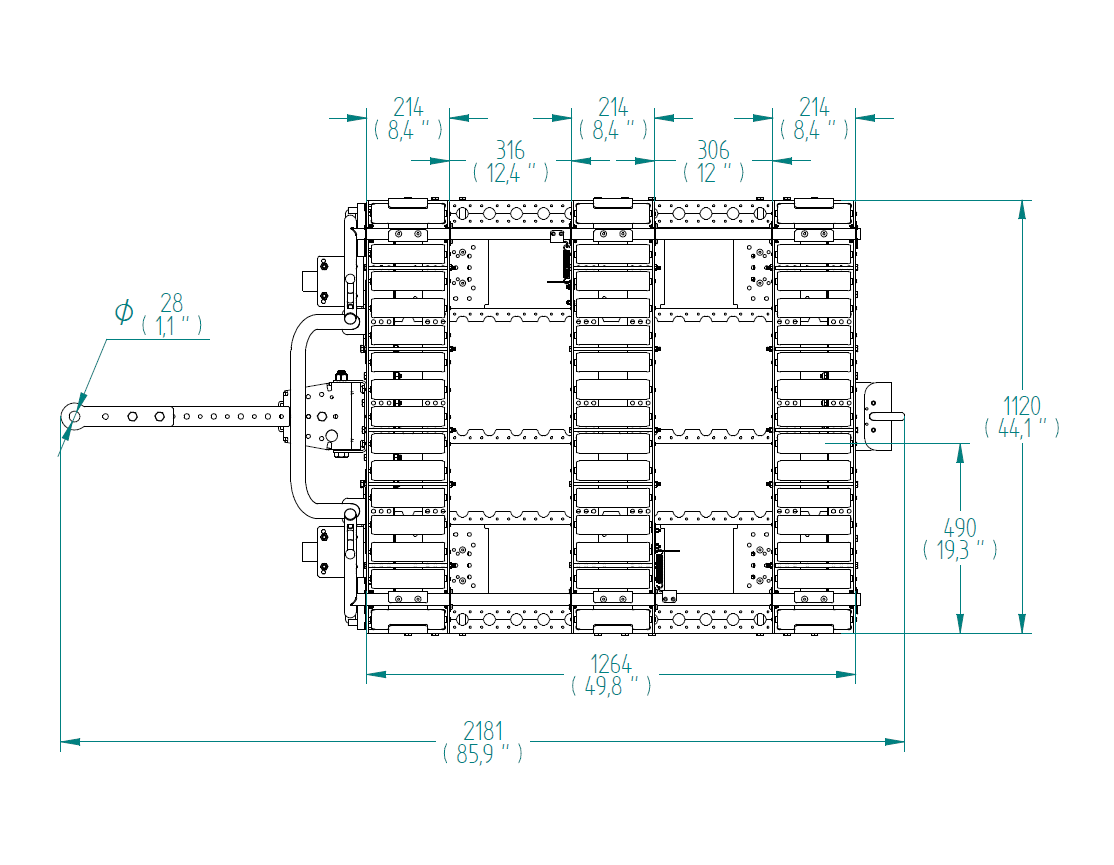

Width: 1120 mm

Length: 1260 mm

Load capacity: 800 kg

Transportation method: Manual, Tugger

Caster size: 125 mm

Caster Type: Polyurethane

More info

This roller cart for pallets or containers is one of the best options to save time and space in production lines when transporting pallets, where a lifting truck is not available or cannot be used. The rollers help push the pallets easily and the locking mechanism, placed at an ergonomic height, keeps the pallets secured in the cart during transportation. The cart is equipped with floor brake, top bent handlebar and drop pin tow bar.

Parts included
Inner Tube (No Plate) – 640 mm 2 Q-000-0215
FlexPlate™ Half w. CSK holes 8 Q-002-0021
Flexplate™ M10 20 Q-002-1162
FlexPlate™ half 8 Q-002-1369
Roller Guide – 1120 mm 4 Q-003-0224
Roller Guide (Side) – 1120 mm 2 Q-003-0225
Steel Roller – 200 mm (8 mm Axle) 45 Q-004-0058
Wheel Attachment – 105 x 77.5 mm 8 Q-004-1065
Caster Polyurethane – 125 mm 4 Q-004-1106
Caster Polyurethane – 125 mm Fixed 2 Q-004-1107
Floor Lock COLSON 4'' x 4-1/2'' 2 Q-004-1369
L Bracket Joint 2 Q-005-0031
Floor brake plate 2 Q-005-0275
27 mm collet – 15 x 2 mm 4 Q-005-0341
L-Bracket Joint – 70 x 70 mm 2 Q-005-0429
Cotter Pin Ø 1/4" 4 Q-005-0464
Triangle Joint With Notch 4 Q-005-0832
Wheel Attachment Box 6 Q-005-1079
Tube end plug GN 991-D30 2 Q-005-1118
Spherical Knob 2 Q-005-1146
64 mm FlexBeam™ Collet 24 Q-005-1426
Spring Attach. Plate 2 Q-005-2410
Fixture Plate – 5 mm 2 Q-005-2411
M6 x 50 mm – Allen Head Partly threaded 4 Q-006-0035
M10 Collet – 7 mm 8 Q-006-0043
M8 x 230 mm – Hex Head 15 Q-006-0055
M6 x 20 K6S 10.9 Round Head (black) 4 Q-006-1018
M14 x 60 mm Hex Head 4 Q-006-1036
M10 x 120 mm Fully Threaded 4 Q-006-1037
Locking Nut M14 4 Q-006-1039
M10 x 25 mm Hex Head 16 Q-006-1041
Locking Nut M10 99 Q-006-1042
Locking Nut M6 8 Q-006-1050
M10 x 95 mm Hex Head 6 Q-006-1088
M10 x 90 mm Hex Head 29 Q-006-1132
M10 x 30 mm Hex Head 8 Q-006-1161
Locking Nut M8 15 Q-006-1181
Extra low head [1.5 mm] M10 x 40 mm 26 Q-006-1361
M10 x 90 mm Extra Low Head 2 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 96 Q-006-1384
M6 x 20 Countersunk Self Tapping Screw 56 Q-006-1385
M10 x 16 mm Low Allen Head 2 Q-006-1409
M10 x 25 mm Extra Low Head Allen 20 Q-006-1410
Stopper Plate – 100 x 110 mm 6 Q-011-0005
Locking Tube Weld Assembly 1 Q-011-0010
Locking Tube Weld Assembly – Mirror 1 Q-011-0011
Pull spring – 4 inches 2 Q-012-0042
Handlebar Attachment US 2 Q-015-0031
Tube for handlebar US – 490 mm 1 Q-015-0075
Collet – 11.5 mm 2 Q-015-1048
US Modular Tow Bar VKR 520 mm – LIP 1 Q-017-0014
Spring Loaded Tow Hinge 1 Q-017-0067
Heavy Duty Tow Hinge – Narrow 1 Q-017-0087
Towing Lip – 28 mm 1 Q-017-1010
FlexBeam™ – 1190 mm 4 Q-020-1190
FlexBeam™ 980 mm STS FE 2 Q-021-0980
