Tugger Train Cart – 50 x 50 Inches
Tugger Train Cart – 50 x 50 Inches
Tugger Train Cart – 50 x 50 Inches
Tugger Train Cart – 50 x 50 Inches
Q-100-0228

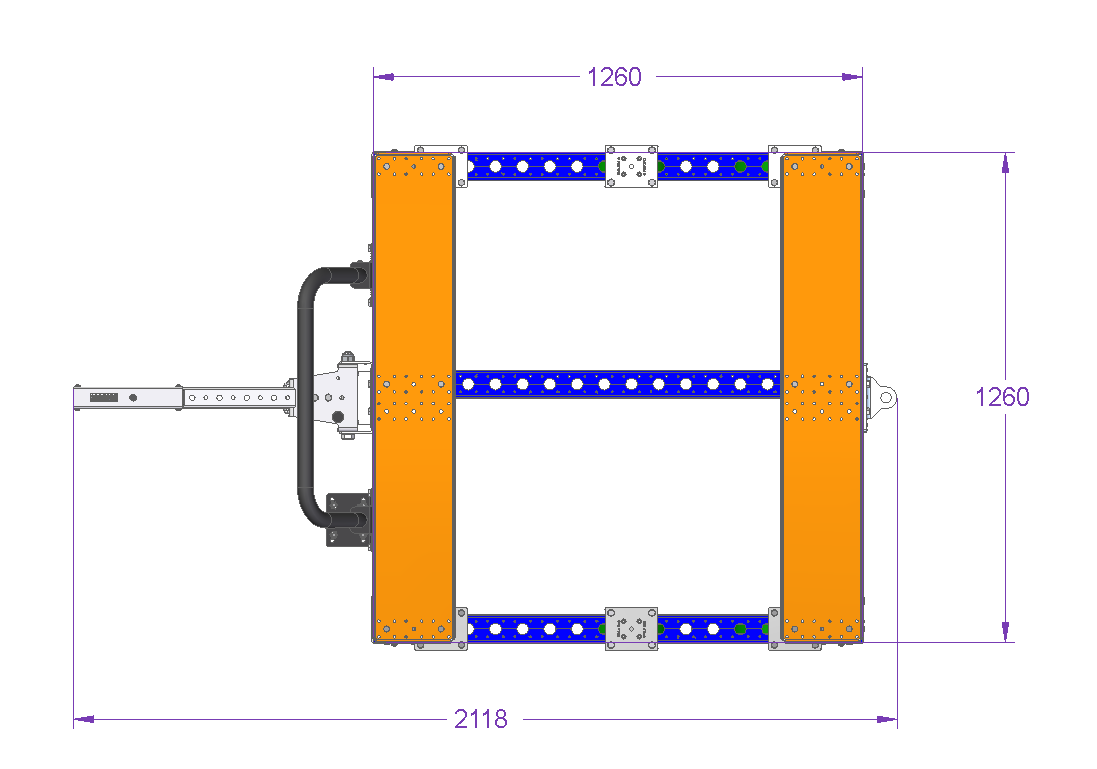

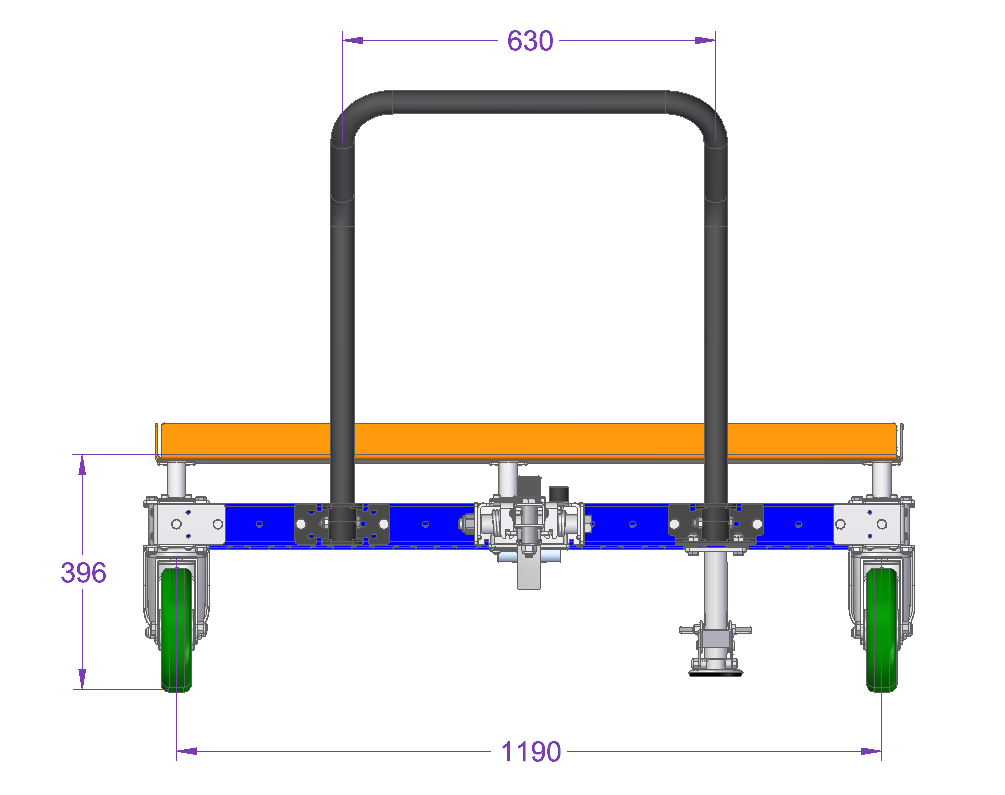

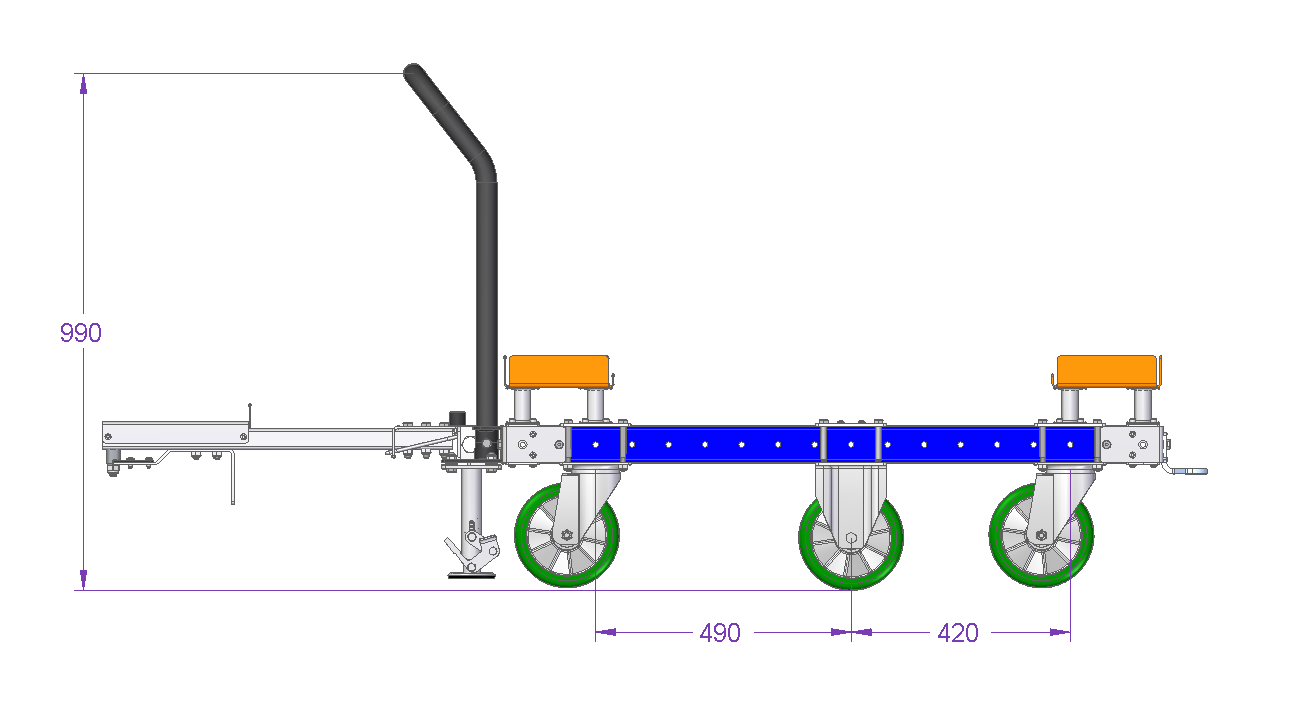

Tugger Train Cart – 50 x 50 Inches

Custom designed tugger cart with a top structure for improved ergonomics.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 1260 mm

Length: 1260 mm

Load capacity: 270 kg

Transportation method: Manual, Tugger

Caster size: 200 mm

Caster Type: Polyurethane

More info

This specific trolley is a tugger cart for carrying pallets or containers in an industrial environment. It is equipped with a tow bar and is meant to tug several of these in a train. This particular tow bar is a foot release tow bar but can be modified with either a wire release tow bar or a drop pin tow bar. Other features include a removable handlebar to enable better ergonomic access to containers as well as easier loading and unloading with a fork lift.

Parts included
FlexTube™ 70 mm – Locking Nut 12 Q-000-1101
FlexBeam™ 1190 mm 6 Q-001-1300
FlexBeam™ 1260 mm FE 2 Q-001-1500
FlexPlate™ 22 Q-002-1001
Stiffener – Outside 4 Q-002-1050
Wheel Attachment – 105 x 77.5 mm 8 Q-004-1065
Caster Polyurethane – 200 mm 4 Q-004-1100
Caster Polyurethane – 200 mm Fixed 2 Q-004-1101
US Floor Brake – 200 mm 1 Q-004-1613
M8 Damper – GN352-30-25-M8-S-55 1 Q-005-0648
Spring Cover Plate 1 Q-005-1025
Hex Head M14 x 90 mm 1 Q-005-1406
64 mm FlexBeam™ Collet 4 Q-005-1426
M6 x 30 mm Allen Head 48 Q-006-1012
Washer 10.5 x 30 x 2.5 1 Q-006-1030
Locking Nut M14 1 Q-006-1039
M10 x 25 mm Hex Head 8 Q-006-1041
Locking Nut M10 55 Q-006-1042
Washer M10 14 Q-006-1043
M10 x 95 mm Hex Head 8 Q-006-1088
M10 x 90 mm Hex Head 16 Q-006-1132
M10 x 30 mm Hex Head 4 Q-006-1161
Locking Nut M8 1 Q-006-1181
Extra low head [1.5 mm] M10 x 40 mm 12 Q-006-1361
M10 x 90 mm Extra Low Head 4 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 46 Q-006-1384
M10 x 25 mm Extra Low Head Allen 8 Q-006-1410
M10 x 60 mm Hex Head Fully Threaded 7 Q-006-1502
Spring 1.5 x 15yd x 70 1 Q-012-1141
Handlebar/Floor Brake Attachment US 1 Q-015-0029
Handlebar Attachment US 1 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
US Modular Tow Bar VKR 670 mm – Foot Release 1 Q-017-0012
Foot Release Locking Lip 1 Q-017-0024
Tow Hinge Module 1 Q-017-0059
Locking lip attachment 1 Q-017-1043
Tow Hole 28 mm – Symmetrical 1 Q-017-1066
Towing Lock Pin US 1 Q-017-1105
39 mm Sleeve for M10 US 2 Q-017-1106
