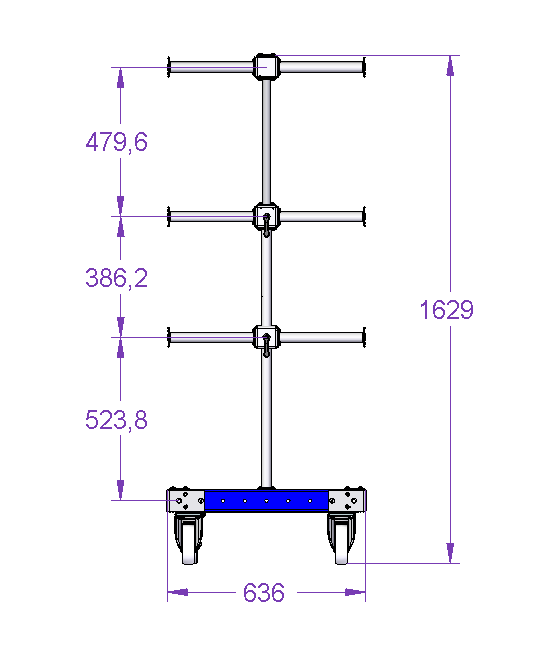

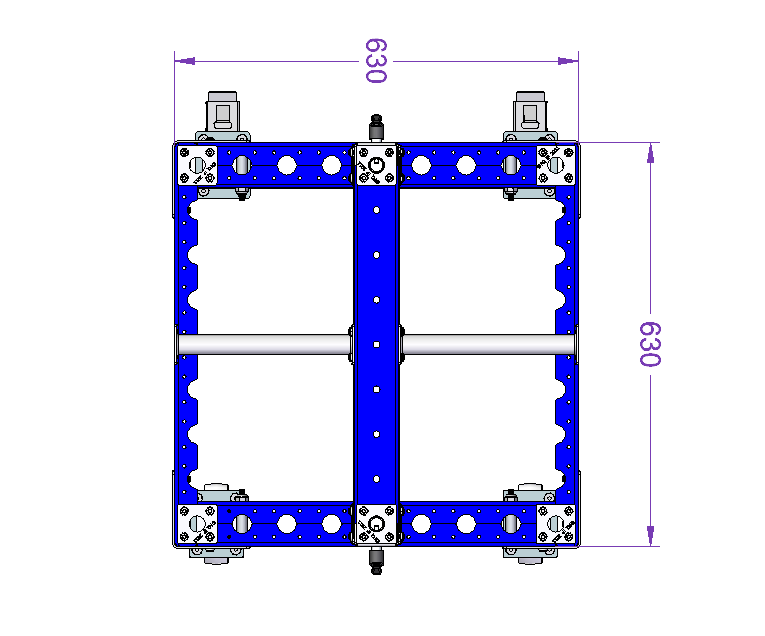

Two Sided Hose Cart – 630 x 630 mm
Two Sided Hose Cart – 630 x 630 mm
Two Sided Hose Cart – 630 x 630 mm
Q-100-0106

Two Sided Hose Cart – 630 x 630 mm

Specially designed cart for transporting lighter hoses to the assembly line.

Technical specifications

Transportation method: Manual

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Category: Hanging Carts

Length: 630 mm

Width: 630 mm

Load capacity: 180 kg

Caster size: 125 mm

Caster Type: Gray

More info

This custom cart is equipped to transport smaller hanging materials such as hoses, wires, tubes and ropes. The hangers can be adjusted to match your materials. It is equipped with four high quality gray casters for better movability.

Parts included
FlexTube™ Inner 700 mm 2 Q-000-1004
FlexTube™ 280 mm 6 Q-000-1262
FlexTube™ 840 mm 2 Q-000-1398
FlexQube® 6 Q-001-1078
FlexBeam™ 560 mm 10 Q-001-1309
FlexBeam™ 630 mm FE 2 Q-001-1408
FlexPlate™ 20 Q-002-1001
Stiffener – Outside 4 Q-002-1050
125 mm Swivel Caster with Brake 2 Q-004-1364
125 mm Fixed Caster 2 Q-004-1365
M6 Locking Handle 4 Q-005-1266
64 mm FlexBeam™ Collet 4 Q-005-1426
Wheel Attachment – 80 x 60 mm 4 Q-005-1722
Locking Nut M10 12 Q-006-1042
Locking Nut M8 16 Q-006-1181
M8 x 16 mm Countersunk 16 Q-006-1214
M10 x 90 mm Extra Low Head 4 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 104 Q-006-1384
M6 x 20 Countersunk Self Tapping Screw 8 Q-006-1385
M10 x 25 mm Extra Low Head Allen 8 Q-006-1410
