Angled Assembly Table - 2310 x 630 mm
Angled Assembly Table - 2310 x 630 mm
Angled Assembly Table - 2310 x 630 mm
Angled Assembly Table - 2310 x 630 mm
Angled Assembly Table - 2310 x 630 mm
Angled Assembly Table - 2310 x 630 mm
Q-100-0500

Angled Assembly Table - 2310 x 630 mm

Custom designed angled assembly table.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 91 inch

Width: 25 inch

Load capacity: 300 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Nylon

Type of Load: Misc parts

More info

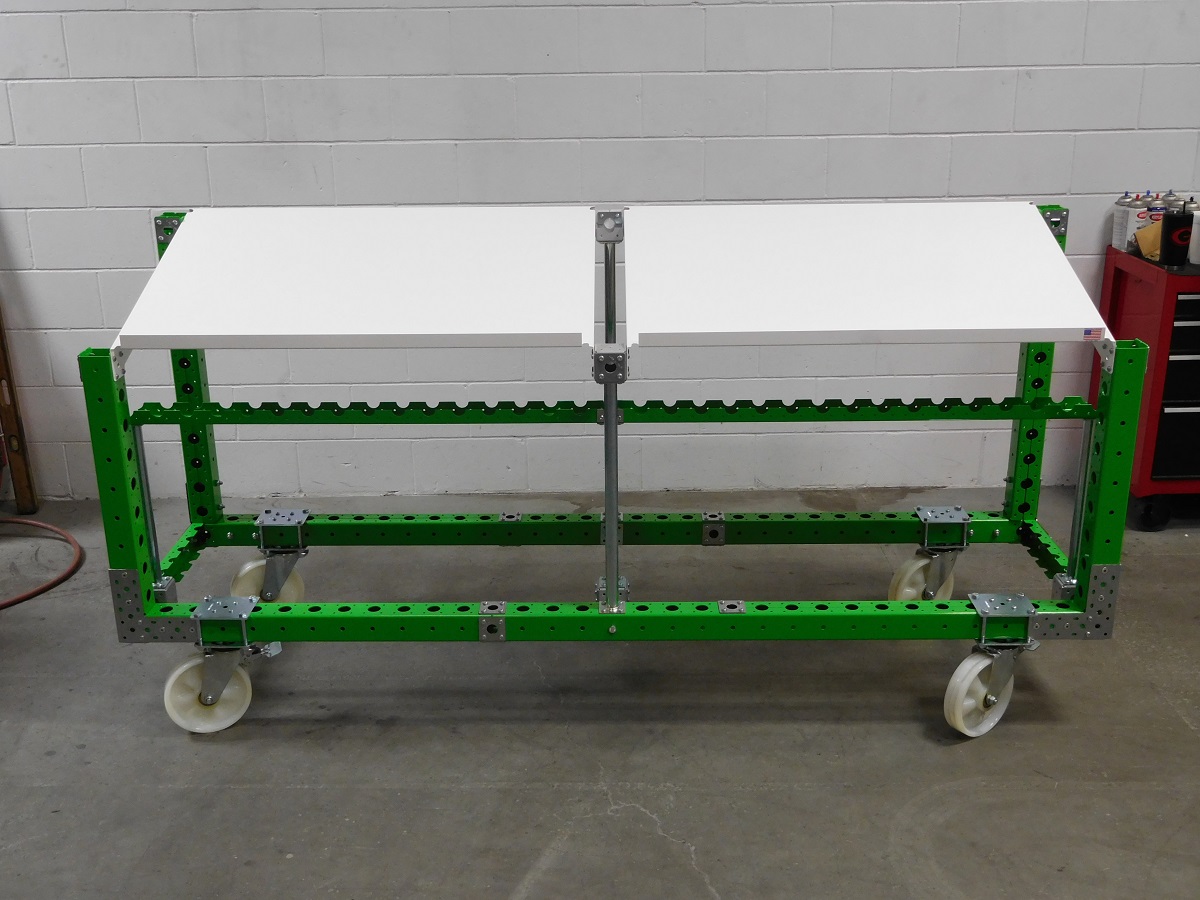

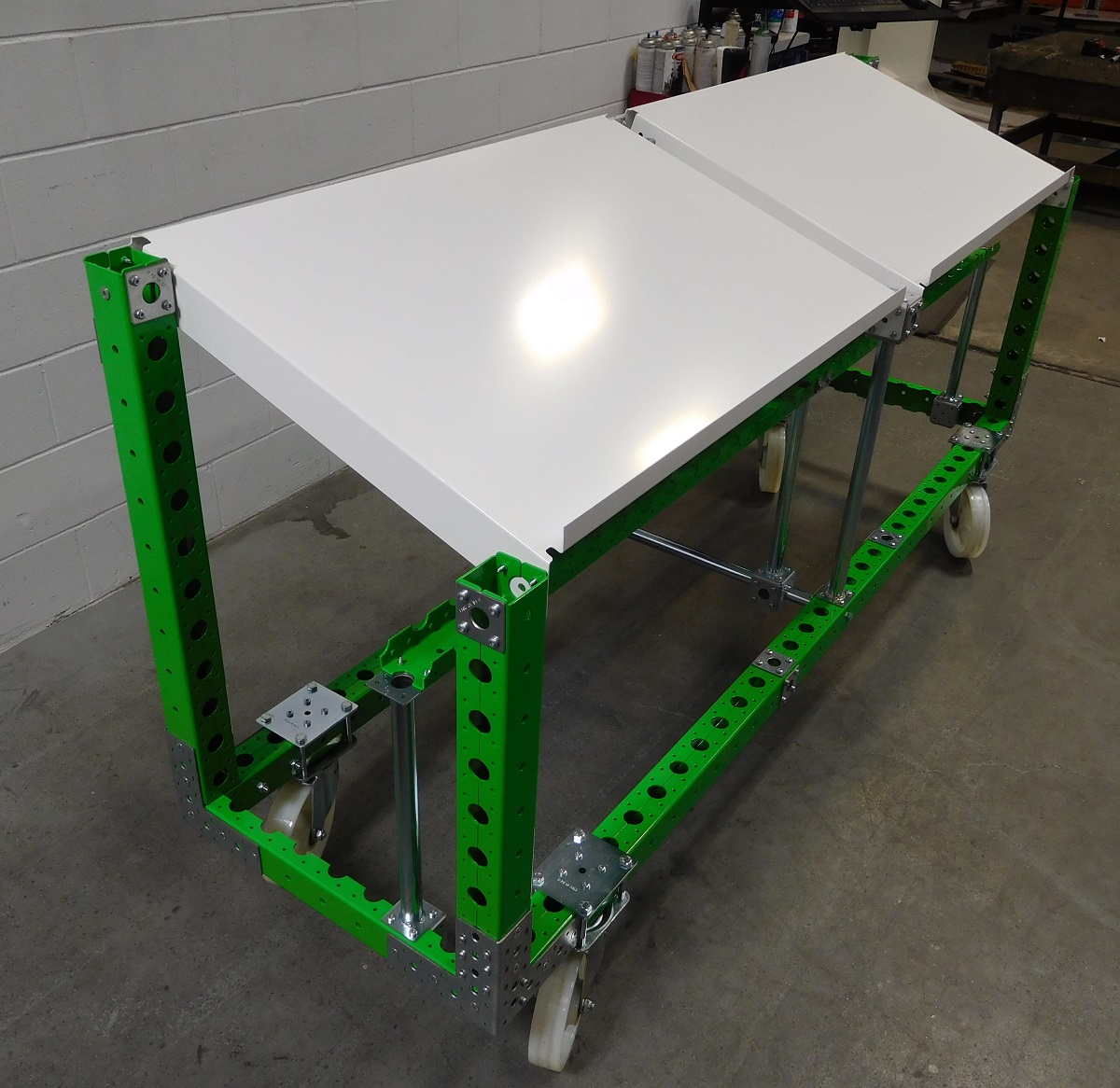

This assembly cart was custom made to match the assembly process of this customer. It is equipped with one level wvich is angled. Along the bottom there is an edge to ensure no parts slip off. There are also four high quality polyamide casters attached for easier handling.

Parts included
FlexTube™ 560 mm 1 Q-000-1182
FlexTube™ 490 mm 1 Q-000-1247
FlexTube™ 770 mm 1 Q-000-1265
FlexTube™ 420 mm 3 Q-000-1270
FlexQube 7 Q-001-1078
FlexBeam™ - 1400 mm 4 Q-001-1297
FlexBeam™ 1120 mm 2 Q-001-1301
FlexBeam™ 840 mm 4 Q-001-1305
FlexBeam™ 840 mm FE 4 Q-001-1405
FlexBeam™ 630 mm FE 6 Q-001-1408
FlexPlate™ 25 Q-002-1001
FlexPlate™ half 3 Q-002-1369
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Polyamide Caster 200 mm with Brake 2 Q-004-1351
Polyamide Caster 200 mm without Brake 2 Q-004-1352
RTE Plug 2 Q-005-1289
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 16 Q-005-1426
Allen Head - M6 x 16 mm 2 Q-006-1011
Locking Nut M10 46 Q-006-1042
Locking Nut M6 2 Q-006-1050
Hex Head - M10 x 95 mm 2 Q-006-1088
Hex Head - M10 x 90 mm 16 Q-006-1132
Extra Low Head - M10 x 90 mm 18 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 214 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410
Flow shelf - 1048 x 630 mm 2 Q-016-0155
