Angled Cart - 1190 x 770 mm
Angled Cart - 1190 x 770 mm
Angled Cart - 1190 x 770 mm
Angled Cart - 1190 x 770 mm
Angled Cart - 1190 x 770 mm
Angled Cart - 1190 x 770 mm
Q-100-0800

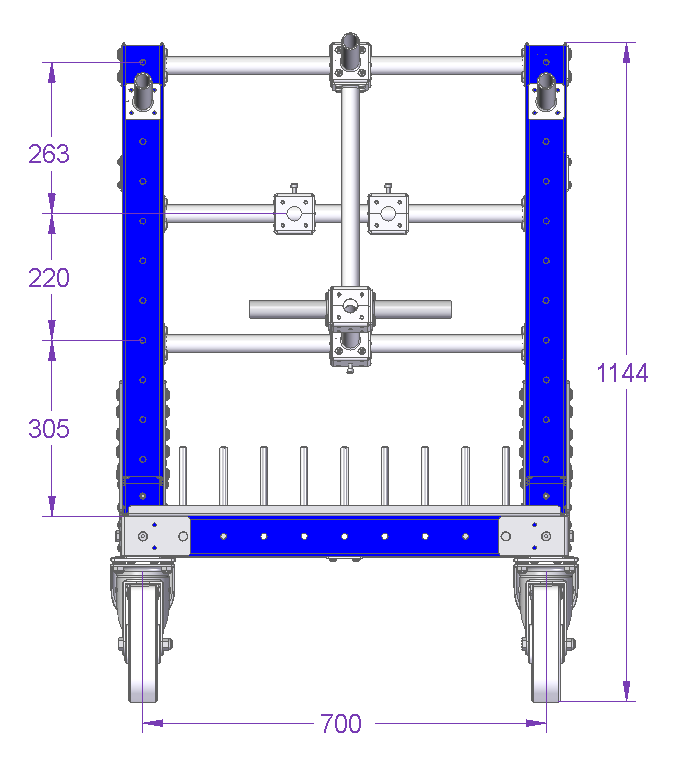

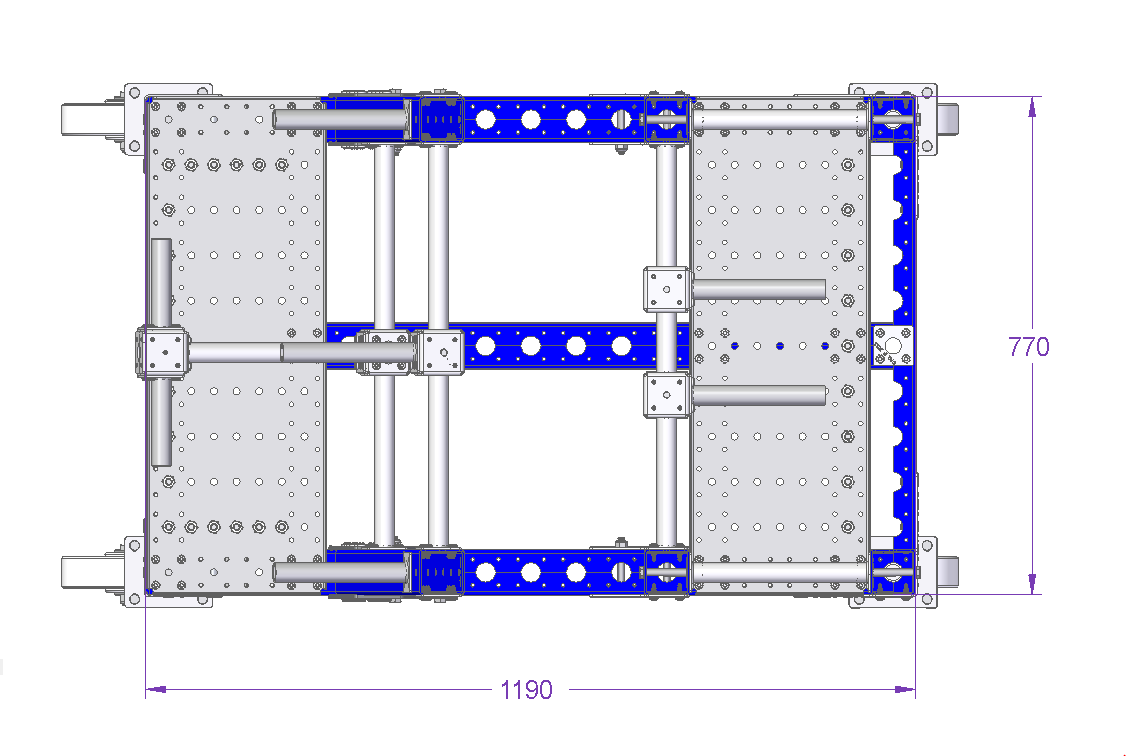

Angled Cart - 1190 x 770 mm

This cart is a great exmaple of how customized FlexQube carts can be.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 30 inch

Length: 47 inch

Load capacity: 441 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Nylon

More info

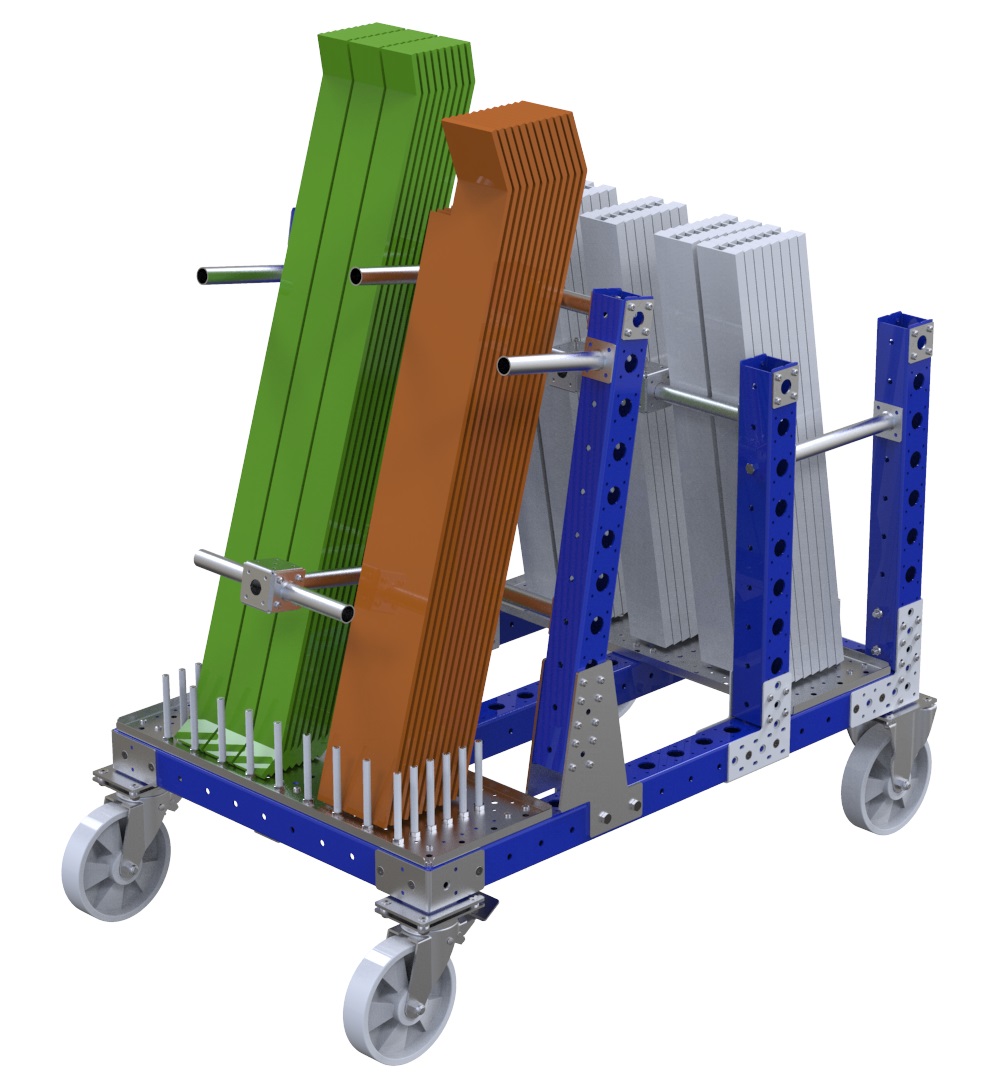

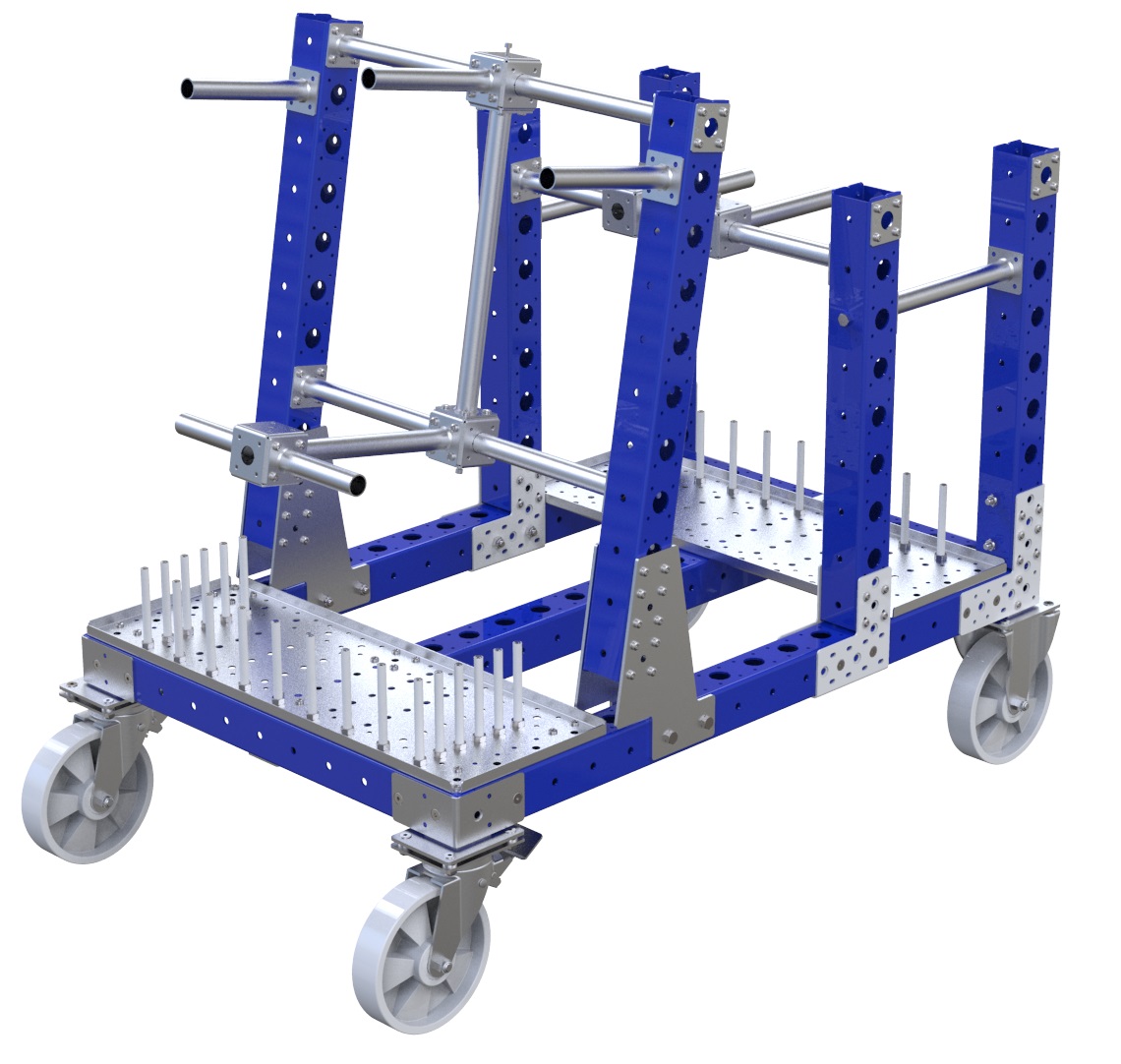

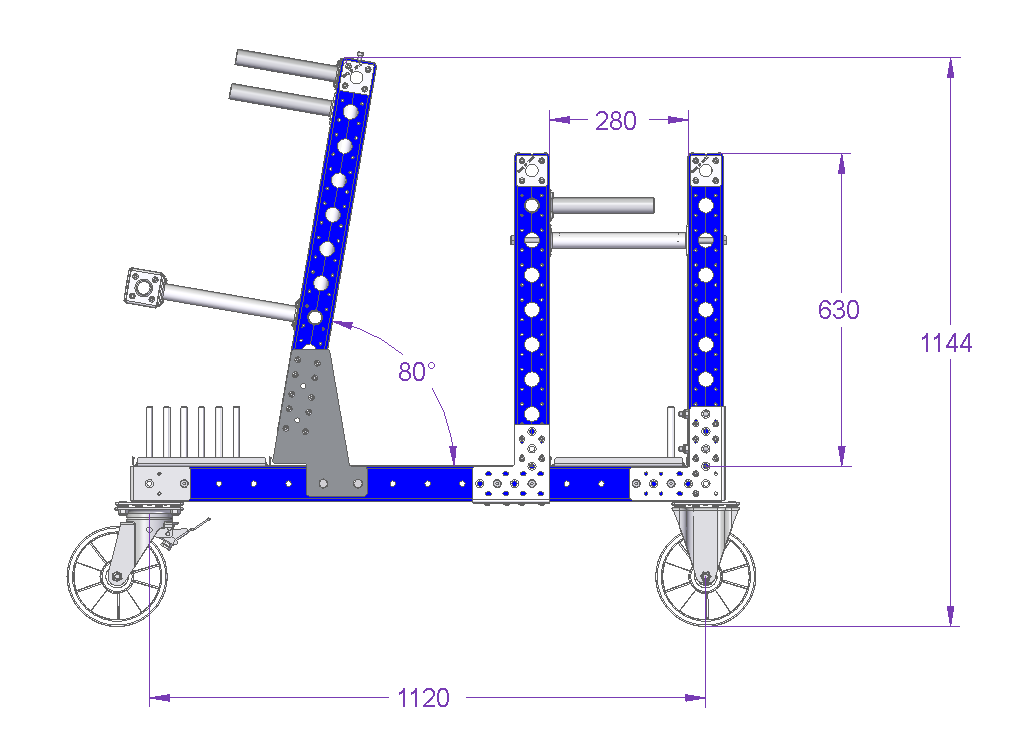

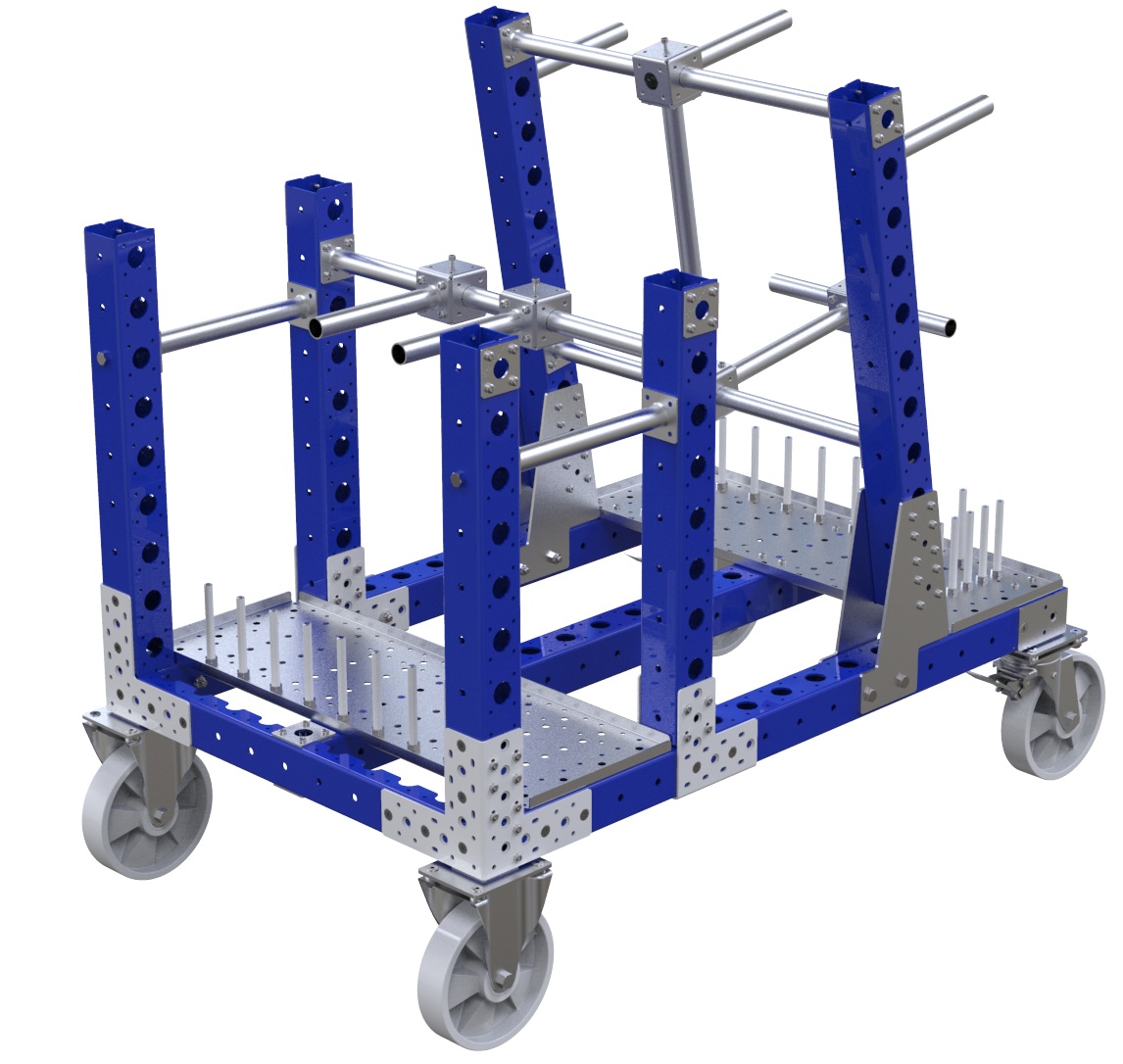

This 30 x 47 inch cart is specially designed to hold parts upright on an angle. The materials that this cart was designed for were quite long and odd shaped, the tubes help to keep these materials secure in place and the pins along the bottom ensure they dont slide out. This is an example of how the FlexQube concept can be used to create material handling equipment to suit your materials. This cart is equipped with four polyamide casters, two of which are equipped with brakes.

Parts included
Outer Tube (One Plate) - 210 mm 5 Q-000-0071
Plastic Tube - 109 mm 28 Q-000-0103
Outer Tube (One Plate) - 140 mm 2 Q-000-0110
FlexTube™ 280 mm 3 Q-000-1262
FlexTube™ 420 mm 1 Q-000-1270
FlexTube™ 630 mm 3 Q-000-1312
FlexQube 10 Q-001-1078
FlexBeam™ 1120 mm 6 Q-001-1301
FlexBeam™ 770 mm FE 6 Q-001-1406
FlexBeam™ 630 mm FE 8 Q-001-1408
FlexPlate™ 13 Q-002-1001
Stiffener - Outside 2 Q-002-1050
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Polyamide Caster 200 mm without Brake 2 Q-004-1352
Polyamide Caster 200 mm Fixed 2 Q-004-1354
Angle support plate 4 Q-005-0294
Spring Threaded Tube Connectors 4 Q-005-0469
Beam to Beam Corner Plate 2 Q-005-1356
64 mm FlexBeam™ Collet 6 Q-005-1426
Heavy Duty Joint M10 2 Q-005-1580
Allen Head - M6 x 30 mm 4 Q-006-1012
Fully Threaded - M10 x 120 mm 28 Q-006-1037
Locking Nut M10 44 Q-006-1042
Washer M10 48 Q-006-1043
Hex Head - M10 x 95 mm 8 Q-006-1088
Nut M10 28 Q-006-1195
Extra Low Head - M10 x 90 mm 14 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 248 Q-006-1384
Low Allen Head - M10 x 16 mm 2 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 24 Q-006-1410
Top Plate - 770 x 280 mm 2 Q-016-0383
