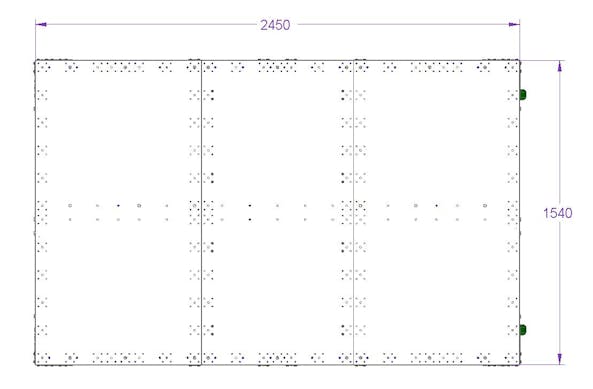

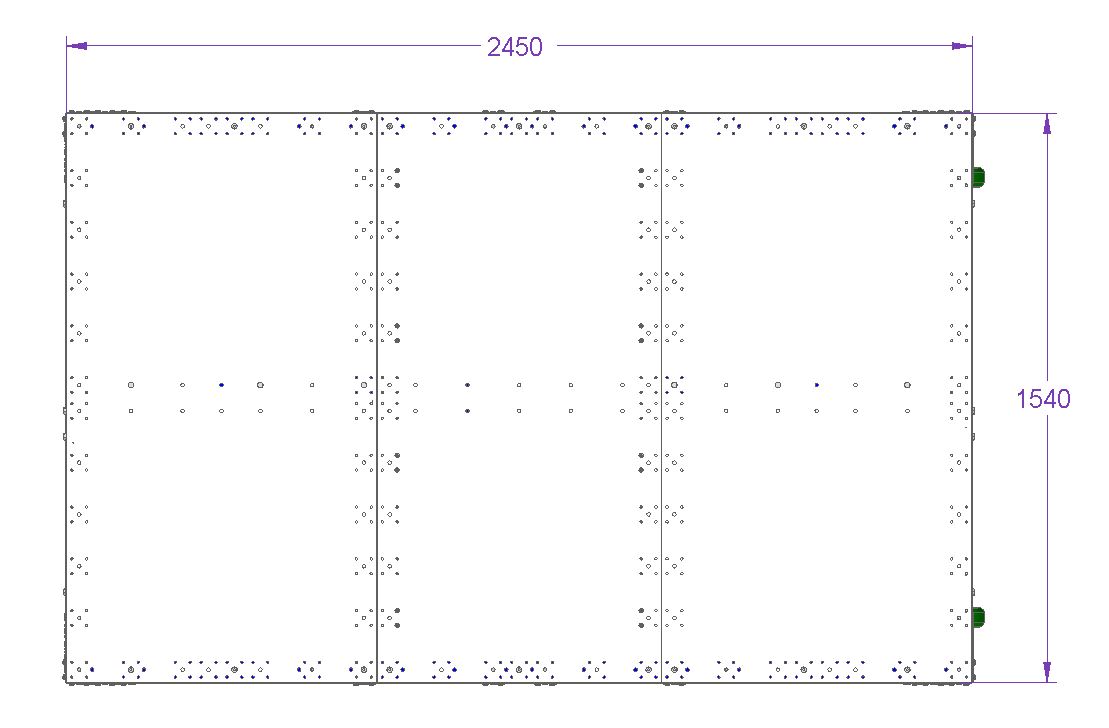

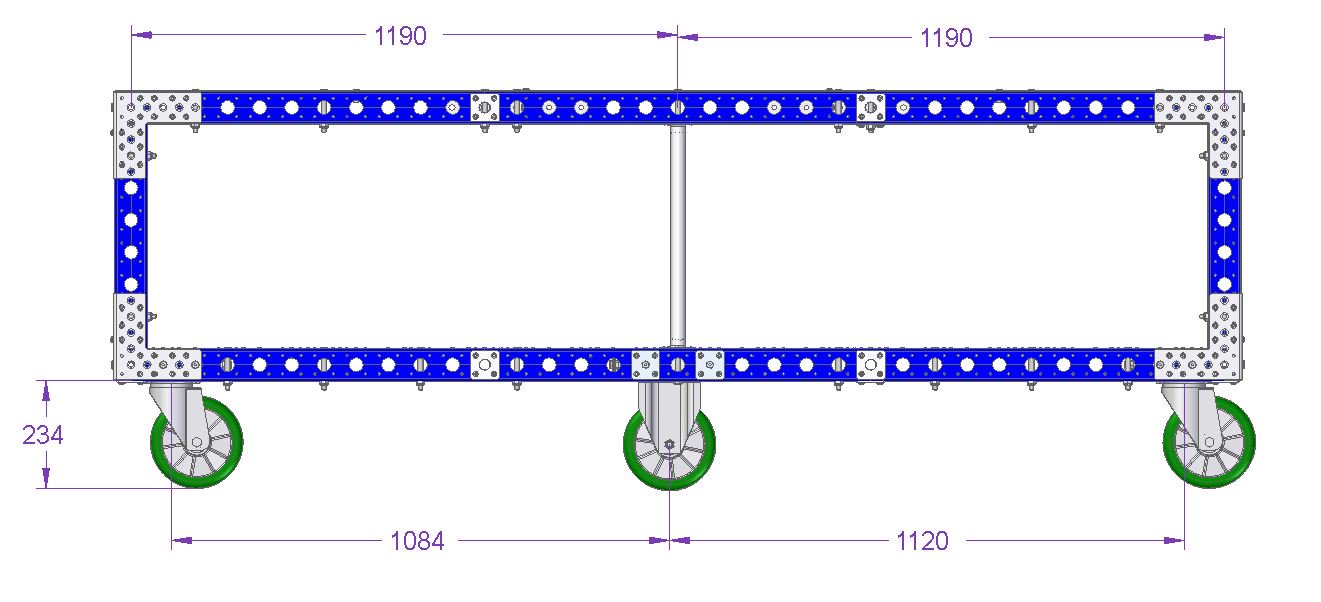

Assembly Table - 2450 x 1540 mm
Assembly Table - 2450 x 1540 mm
Assembly Table - 2450 x 1540 mm
Assembly Table - 2450 x 1540 mm
Q-100-0798

Assembly Table - 2450 x 1540 mm

Custom designed assembly table for along the assembly line.

Technical specifications

Category: Flat Shelf

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 96 inch

Width: 61 inch

Levels: 2

Load capacity: 1786 lbs

Load Capacity per Level: 300 lbs, 1499 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Polyurethane

Type of Load: Misc parts

More info

This assembly table was created to follow the operators along the assembly line. The top is used for the assembly of the materials and the lower shelf is used to store materials and tools.

Parts included
FlexTube™ 490 mm 2 Q-000-1247
FlexBeam™ - 1610 mm 8 Q-001-1294
FlexBeam™ 840 mm 2 Q-001-1305
FlexBeam™ 770 mm 8 Q-001-1306
FlexBeam™ 490 mm 8 Q-001-1310
FlexBeam™ - 1400 mm FE 6 Q-001-1502
FlexBeam™ 1540 mm FE 4 Q-001-1504
FlexPlate™ 22 Q-002-1001
Flexplate™ M10 6 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
Caster Polyurethane - 200 mm 4 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
L Bracket Joint 8 Q-005-0031
Spring Threaded Tube Connectors 4 Q-005-0469
Wheel Attachment Box 6 Q-005-1079
Beam to Beam Corner Plate 8 Q-005-1356
Hex Head - M10 x 25 mm 64 Q-006-1041
Locking Nut M10 146 Q-006-1042
Hex Head - M10 x 95 mm 2 Q-006-1088
Extra Low Head - M10 x 90 mm 54 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 308 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 30 Q-006-1410
Top Plate - 1540 x 770 mm 4 Q-016-0389
Top Plate - 1540 x 840 mm 2 Q-016-0409
