Q-100-0327

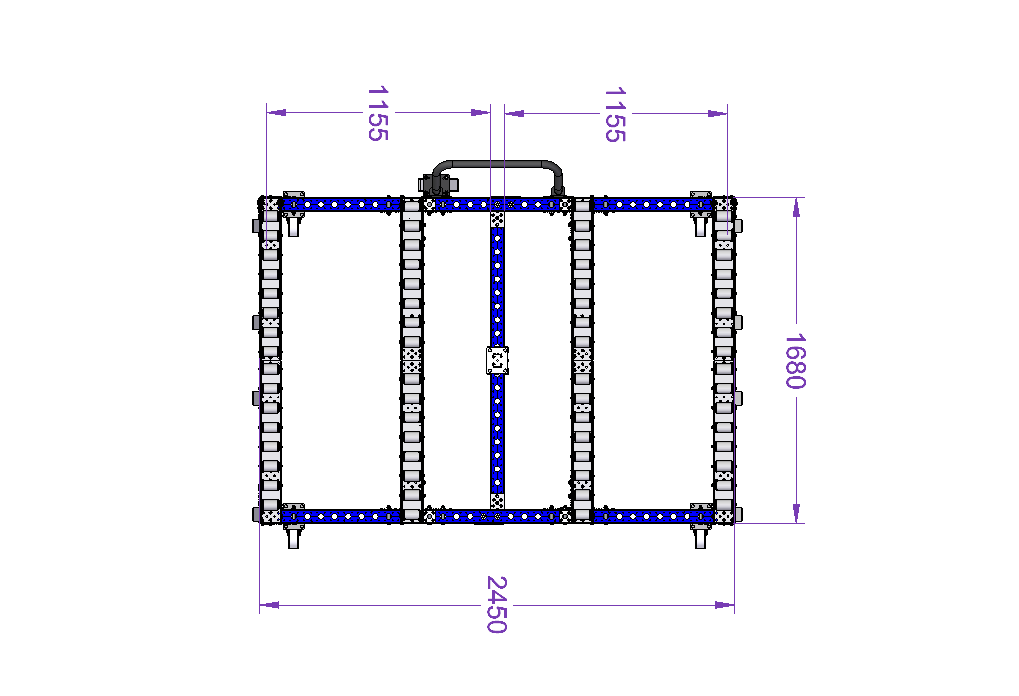

Base Cart for Container 1610 x 2450 mm

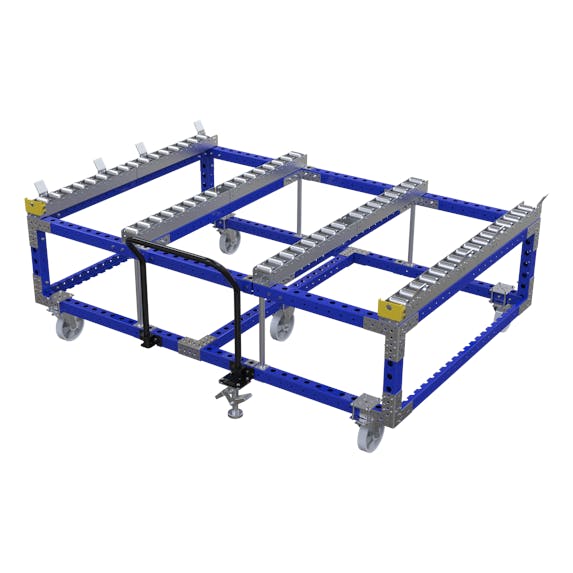

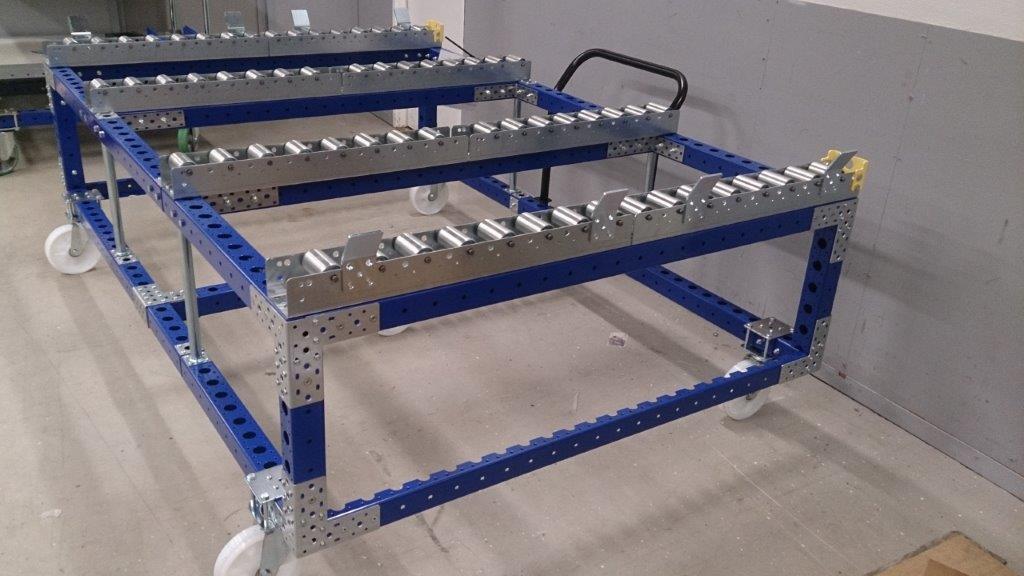

Large pallet conveyor cart equipped with a handlebar, floor brake and four nylon swivel casters.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Transportation method: Manual

Width: 63 inch

Length: 96 inch

Load capacity: 992 lbs

Caster size: 8 inch

Caster Type: Nylon

More info

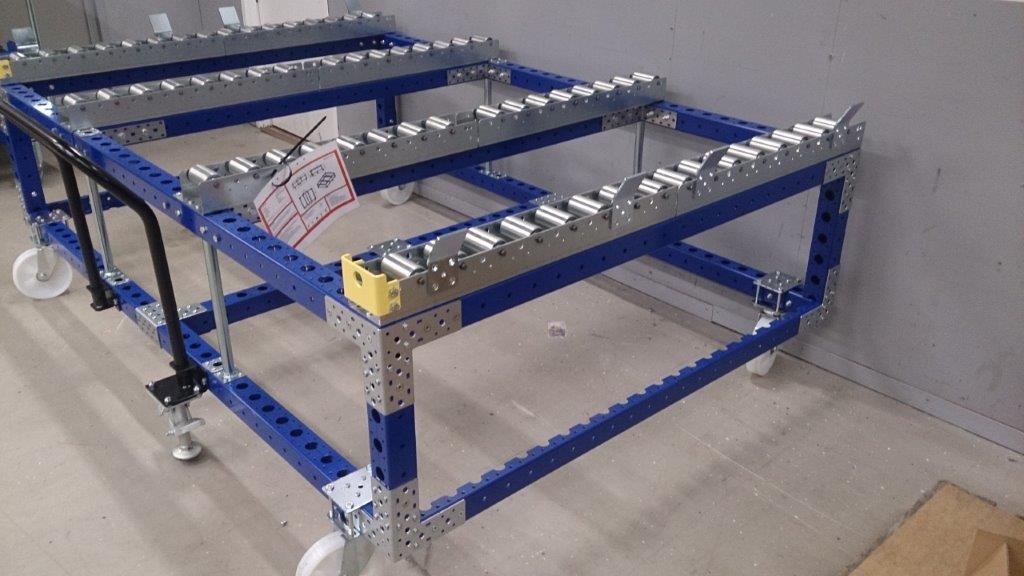

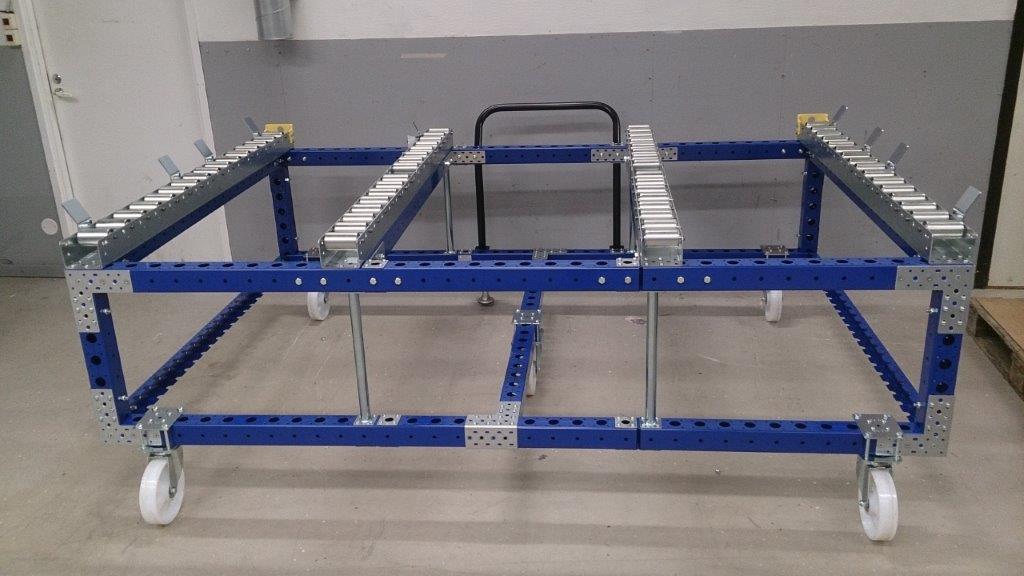

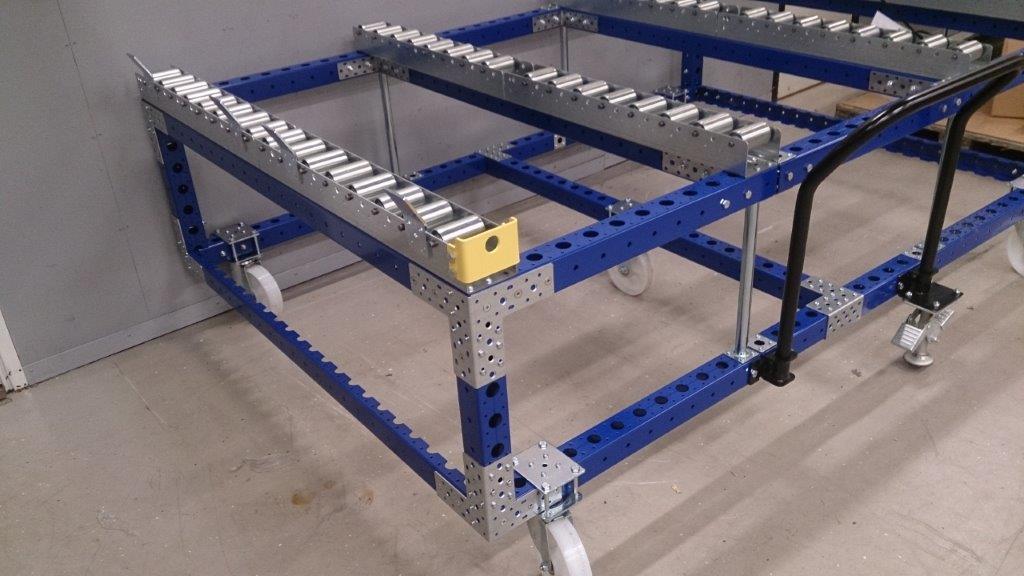

This conveyor cart was designed to transport large pallets and containers from the warehouse to an assembly table where it smoothly can be rolled over. The cart is equipped with a handlebar, floor brake and four nylon swivel casters making it easy to maneuver in tight areas.

Parts included

FlexTube™ 420 mm 4 Q-000-1270

FlexBeam™ - 1610 mm 4 Q-001-1294

FlexBeam™ - 1540 mm 10 Q-001-1295

FlexBeam™ 840 mm 4 Q-001-1305

FlexBeam™ 420 mm 8 Q-001-1311

FlexBeam™ 840 mm FE 4 Q-001-1405

FlexBeam™ 1540 mm FE 2 Q-001-1504

FlexBeam™ - 1610 mm FE 4 Q-001-1505

FlexPlate™ 24 Q-002-1001

Flexplate™ M10 1 Q-002-1162

Wheel Attachment - 105 x 77,5 mm 6 Q-004-1065

Polyamide Caster 200 mm without Brake 4 Q-004-1352

Polyamide Caster 200 mm Fixed 1 Q-004-1354

Floor Brake LTL - 200 mm 1 Q-004-1359

L Bracket Joint 8 Q-005-0031

Roller guide - 835 mm for 100 mm Rollers 8 Q-005-0229

Beam to Beam Corner Plate 8 Q-005-1356

64 mm FlexBeam™ Collet 40 Q-005-1426

Base Cart for Container 1610 x 2450 mm 64 Q-100-0327

Heavy Duty Joint M10 2 Q-005-1580

Corner Pallet Guide 8 Q-005-1684

Hex Head - M10 x 25 mm 8 Q-006-1041

Locking Nut M10 104 Q-006-1042

Washer M10 12 Q-006-1043

Locking Nut M6 16 Q-006-1050

Hex Head - M10 x 90 mm 48 Q-006-1132

Hex Head - M10 x 30 mm 4 Q-006-1161

Countersunk Allen Head - M6 x 16 mm 16 Q-006-1197

Extra Low Head - M10 x 90 mm 32 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 372 Q-006-1384

Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410

Handlebar Attachment EUR 1 Q-015-0026

Handlebar / Floor brake attachment EUR 1 Q-015-0027

Tube for Handlebar EUR 1 Q-015-0033
