Base Frame - 980 x 1190 mm
Base Frame - 980 x 1190 mm
Base Frame - 980 x 1190 mm
Base Frame - 980 x 1190 mm
Q-100-1577

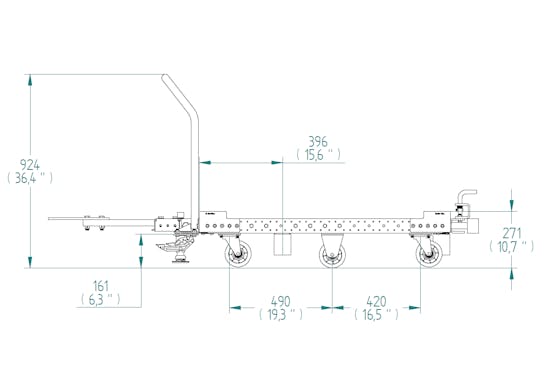

Base Frame - 980 x 1190 mm

This base frame cart is designed to have a FlexQube top structure added to it.

Technical specifications

Category: Standard

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Length: 47 inch

Load capacity: 1323 lbs

Width: 39 inch

Transportation method: Manual, Tugger

Caster size: 5 inch

Caster Type: Polyurethane

More info

This base frame is designed to transport different structures on the top of it. The fork pockets are used to lift the cart via forklift, but it can also be towed using the towbar within a tugger train. It is equipped with a floor friction brake, a handlebar, six polyurethane casters and two dampers at the rear to absorb impact when placed together in the lines.

Parts included
FlexTube (One Plate) - Locking nut - 82.5 mm 2 Q-000-0156
Flexplate M10 Countersunk 4 Q-002-0009
FlexPlate™ 8 Q-002-1001
Flexplate™ M10 3 Q-002-1162
Caster Polyurathane 125 mm 80 x 60 Swivel 4 Q-004-1220
Caster Polyure. 125 mm 80 x 60 Fixed 2 Q-004-1221
Floor Brake LTL - 125 mm 1 Q-004-1360
L Bracket Joint 4 Q-005-0031
Towing VKR - 460 mm 1 Q-005-0102
Caster to Beam Attachment - 80 x 60 mm 6 Q-005-0265
Fork Tunnel EU - 80 mm 4 Q-005-0396
Spring Threaded Tube Connectors 2 Q-005-0469
Rubber Damper Threaded Stud - 70 x 55 mm 2 Q-005-0743
Pallet Guide Corner Plate 4 Q-005-1096
64 mm FlexBeam™ Collet 32 Q-005-1426
Wheel Attachment - 80 x 60 mm 2 Q-005-1722
Hex Head - M14 x 60 mm 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Hex Head - M10 x 25 mm 2 Q-006-1041
Locking Nut M10 58 Q-006-1042
Washer M10 12 Q-006-1043
Hex Head - M10 x 95 mm 3 Q-006-1088
Hex Head - M10 x 90 mm 31 Q-006-1132
Hex Head - M10 x 30 mm 4 Q-006-1161
Locking Nut M8 24 Q-006-1181
Countersunk - M8 x 20 24 Q-006-1282
Extra Low Head - M10 x 90 mm 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 40 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 8 Q-006-1385
Low Allen Head - M10 x 16 mm 2 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Handle With Bent Top + Floor Brake (North America) 1 Q-015-1060
Spring Loaded Tow Hinge 1 Q-017-0067
Heavy Duty Tow Hinge - Narrow 1 Q-017-0087
Towing Lip - 28 mm 1 Q-017-1010
FlexBeam™ - 1120 mm 4 Q-020-1120
FlexBeam™ STS FE - 980 mm 2 Q-021-0980
