Q-100-0331

Cart for Hanging Hoses

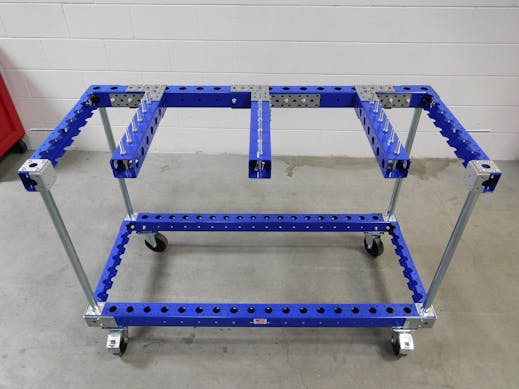

Hanging push cart with three hangers split into five sections each. Equipped with four nylon swivel casters.

Technical specifications

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Transportation method: Manual

Category: Hanging Carts

Length: 55 inch

Width: 25 inch

Load capacity: 201 lbs

Caster size: 5 inch

Caster Type: Nylon

More info

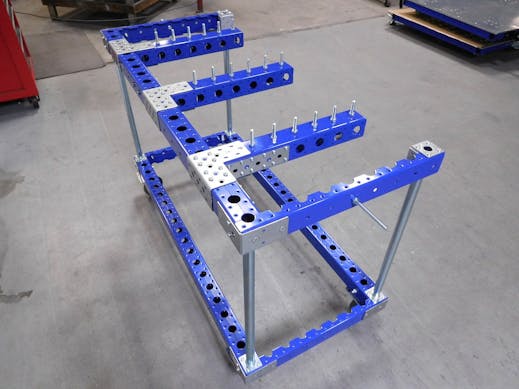

This cart was designed to store and transport hoses and similar parts. The hoses hangs from the three FlexBeams which has been split into five sections each. The cart is equipped with four nylon swivel casters, two with brakes making it easy to maneuver in tight areas.

Parts included
FlexTube™ 630 mm 4 Q-000-1312
FlexQube 2 Q-001-1078
FlexBeam™ - 1330 mm 6 Q-001-1298
FlexBeam™ 630 mm FE 4 Q-001-1408
FlexBeam™ 490 mm FE 6 Q-001-1410
FlexPlate™ 10 Q-002-1001
Stiffener - Outside 6 Q-002-1050
Swivel Caster - 125 mm 2 Q-004-1363
125 mm Swivel Caster with Brake 2 Q-004-1364
L Bracket Joint 3 Q-005-0031
64 mm FlexBeam™ Collet 7 Q-005-1426
Heavy Duty Joint M10 3 Q-005-1580
Wheel Attachment - 80 x 60 mm 4 Q-005-1722
Fully Threaded - M10 x 120 mm 20 Q-006-1037
Locking Nut M10 46 Q-006-1042
Hex Head - M10 x 90 mm 2 Q-006-1132
Locking Nut M8 16 Q-006-1181
M8 x 16 mm Countersunk 16 Q-006-1214
Extra Low Head - M10 x 90 mm 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 132 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 16 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410
