Cart for Roof Plates
Cart for Roof Plates
Cart for Roof Plates
Cart for Roof Plates
Q-007-1293

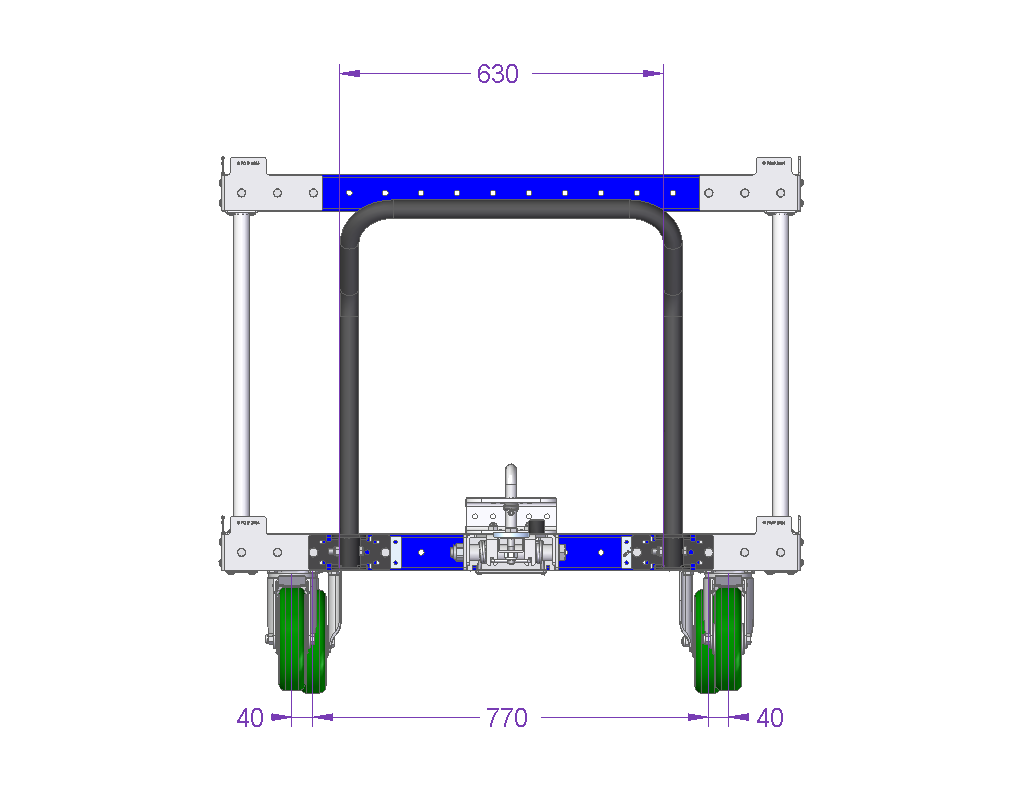

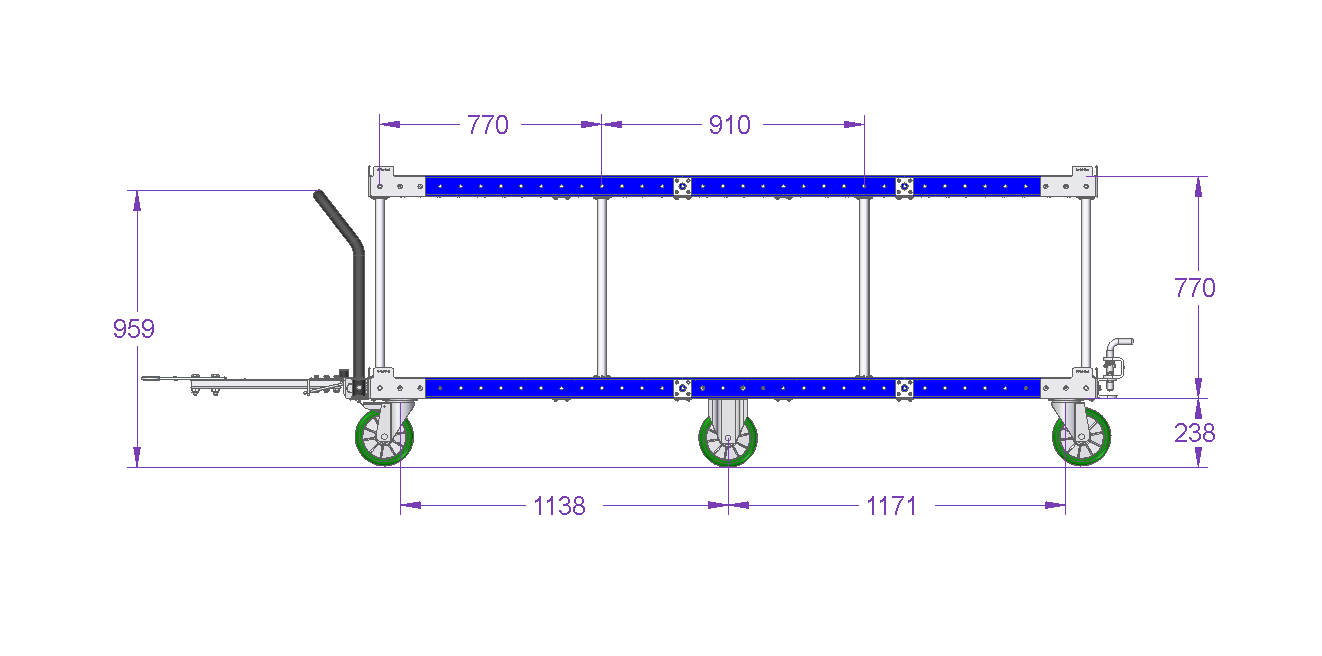

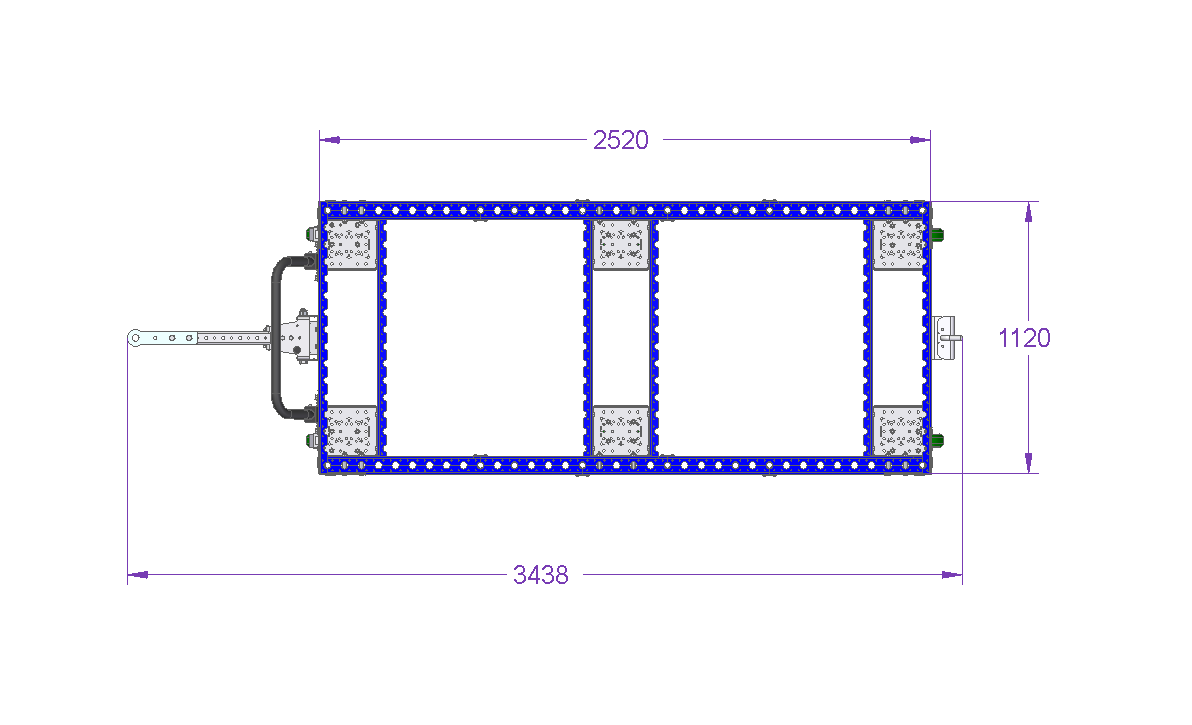

Cart for Roof Plates

Specially designed tugger cart for large materials.

Technical specifications

Transportation method: Manual, Tugger

Industry: Defense Equipment, Industrial Machinery, Wind & Energy

Length: 99 inch

Width: 50 inch

Type of tow bar: Pin and hole with manual release

Load capacity: 1102 lbs

Caster size: 8 inch

Caster Type: Polyurethane

More info

This pallet cart was designed with an added top structure. The purpose of the top structure is to improve ergonomics and the access to the materials. This cart comes with an ergonomic handlebar for easier pushing by operators. It also comes with a tow bar for transportation via a tugger train.

Parts included
FlexTube™ 630 mm 8 Q-000-1312
FlexBeam™ 1050 mm 8 Q-001-1302
FlexBeam™ 770 mm 8 Q-001-1306
FlexBeam™ 630 mm 8 Q-001-1308
FlexBeam™ 1120 mm FE 4 Q-001-1401
FlexBeam™ 980 mm FE 4 Q-001-1403
FlexPlate™ 36 Q-002-1001
Flexplate™ M10 2 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
Caster Polyurethane 200 mm with Brake 2 Q-004-1099
Caster Polyurethane - 200 mm 2 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648
Towing Hole 2 Q-005-1056
Wheel Attachment Box 6 Q-005-1079
Pallet Guide Corner Plate 8 Q-005-1096
64 mm FlexBeam™ Collet 16 Q-005-1426
Allen Head - M6 x 30 mm 1 Q-006-1012
Washer 10,5 x 30 x 2,5 1 Q-006-1030
Hex Head - M14 x 60 mm 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
Hex Head - M10 x 25 mm 48 Q-006-1041
Locking Nut M10 97 Q-006-1042
Washer M10 2 Q-006-1043
Locking Nut M6 1 Q-006-1050
Hex Head - M10 x 30 mm 2 Q-006-1161
Locking Nut M8 1 Q-006-1181
Hex Head Fully Threaded - M10 x 50 mm 3 Q-006-1343
Extra Low Head - M10 x 90 mm 20 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 208 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 22 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 2 Q-006-1502
Compression Spring for US Tow Hitch 1 Q-012-0007
Handlebar Attachment EUR 2 Q-015-0026
Tube for Handlebar EUR 1 Q-015-0033
Handle for Tow Hole 1 Q-017-0022
EUR modular Tow bar VKR - Lip - 520 mm 1 Q-017-0031
Tow Hinge Module 1 Q-017-0059
Towing Lip - 28 mm 1 Q-017-1010
