Q-100-0897

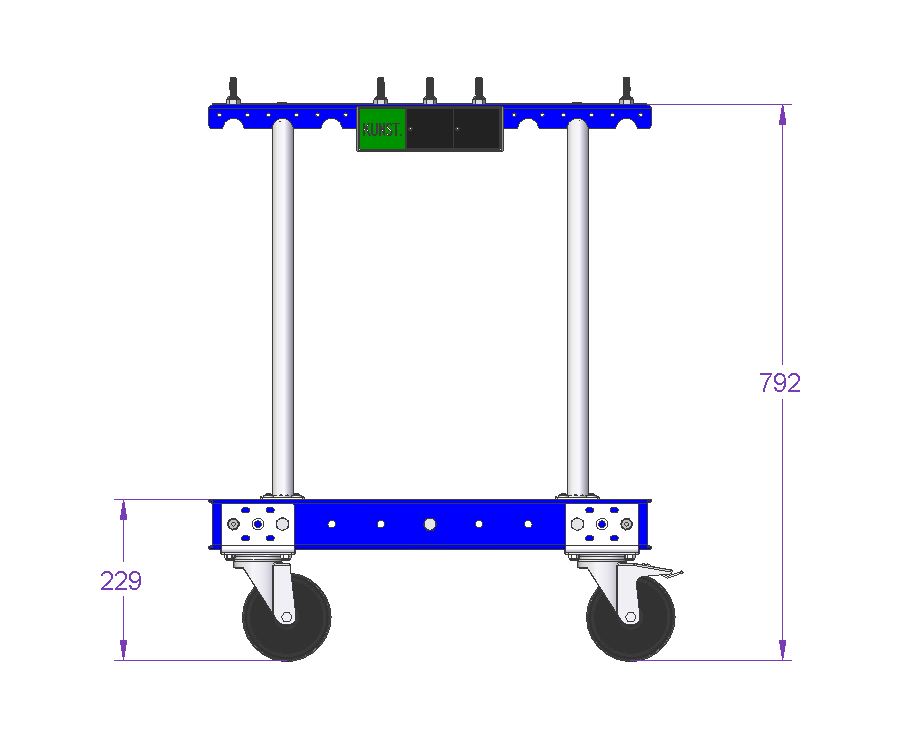

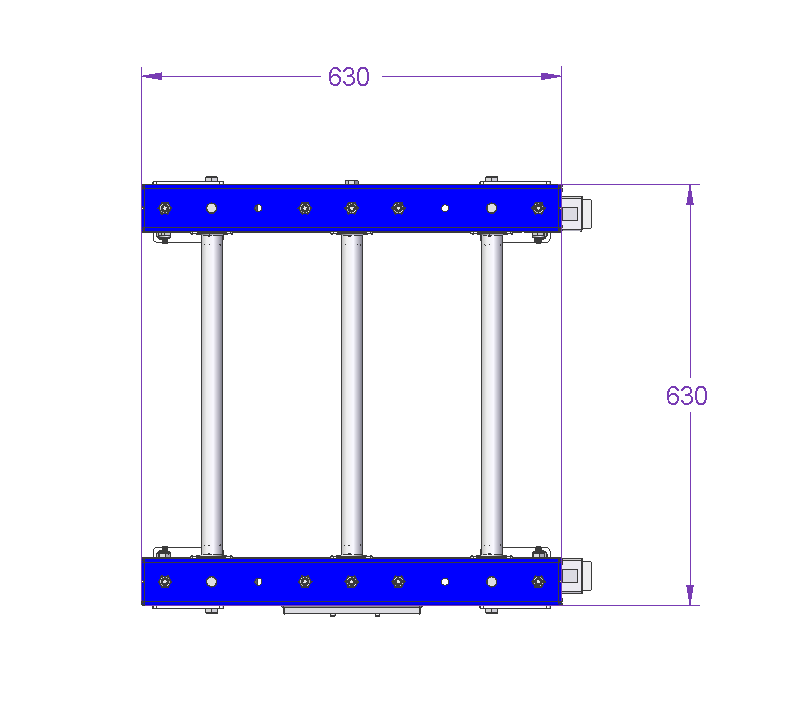

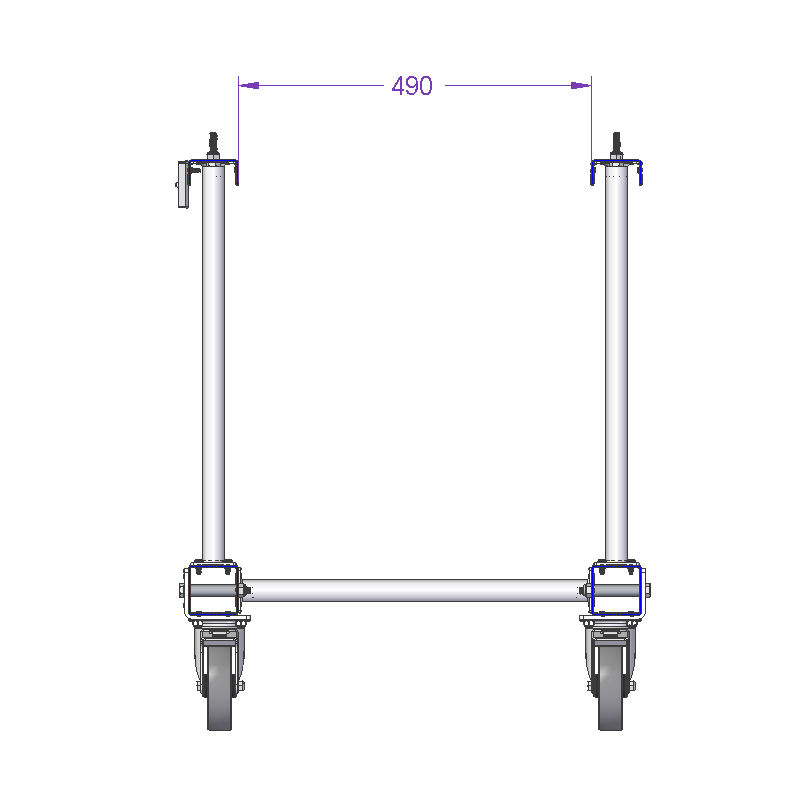

Cart for Trash - 630 x 630 mm

Small custom cart designed to hold scrap materials and rubbish.

Technical specifications

Transportation method: Manual

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 25 inch

Caster size: 5 inch

More info

This simple cart is designed to remove trash and scrap from the facility. This cart uses the tubes to hold up the trash bags. It is equipped with four casters so this trash cart can easily be transported within your facility.

Parts included

FlexTube™ 560 mm 4 Q-000-1182

FlexTube™ 490 mm 3 Q-000-1247

FlexBeam™ 630 mm FE 6 Q-001-1408

Swivel Caster - 125 mm 2 Q-004-1363

125 mm Swivel Caster with Brake 2 Q-004-1364

Caster to Beam Attachment - 80 x 60 mm 4 Q-005-0265

Spring Threaded Tube Connectors 10 Q-005-0469

Label Adapter Plate - 210 x 70 mm 1 Q-005-0667

64 mm FlexBeam™ Collet 10 Q-005-1426

3 Slot Label Indicator - KFP 1 Q-005-2206

Fully Threaded - M10 x 120 mm 6 Q-006-1037

Locking Nut M10 14 Q-006-1042

Locking Nut M8 16 Q-006-1181

Hex Head - M10 x 40 10 Q-006-1208

M8 x 16 mm Countersunk 16 Q-006-1214

Extra Low Head - M10 x 90 mm 4 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 16 Q-006-1384

Countersunk Self Tapping Screw - M6 x 20 4 Q-006-1385

Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
