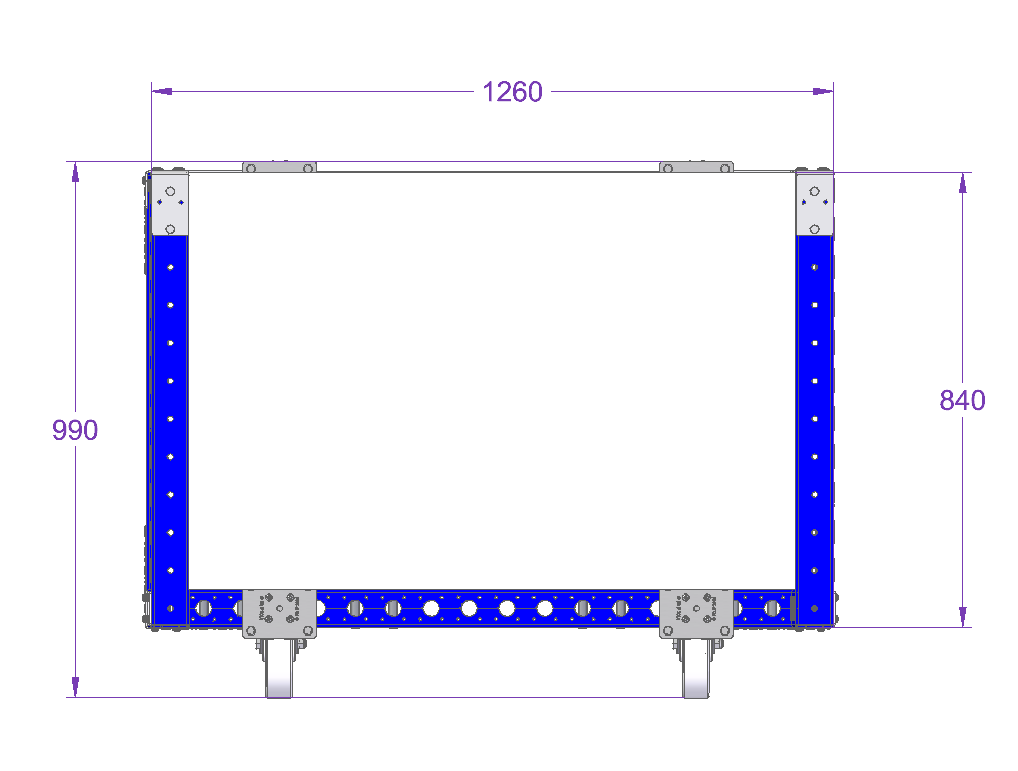

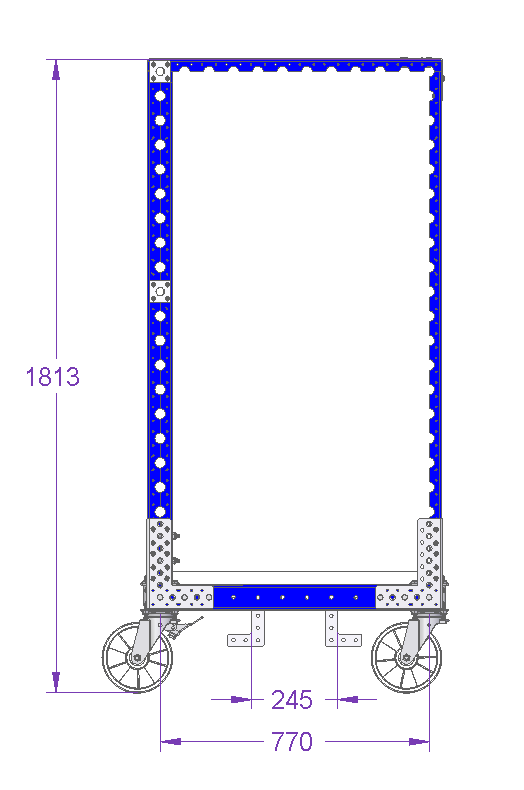

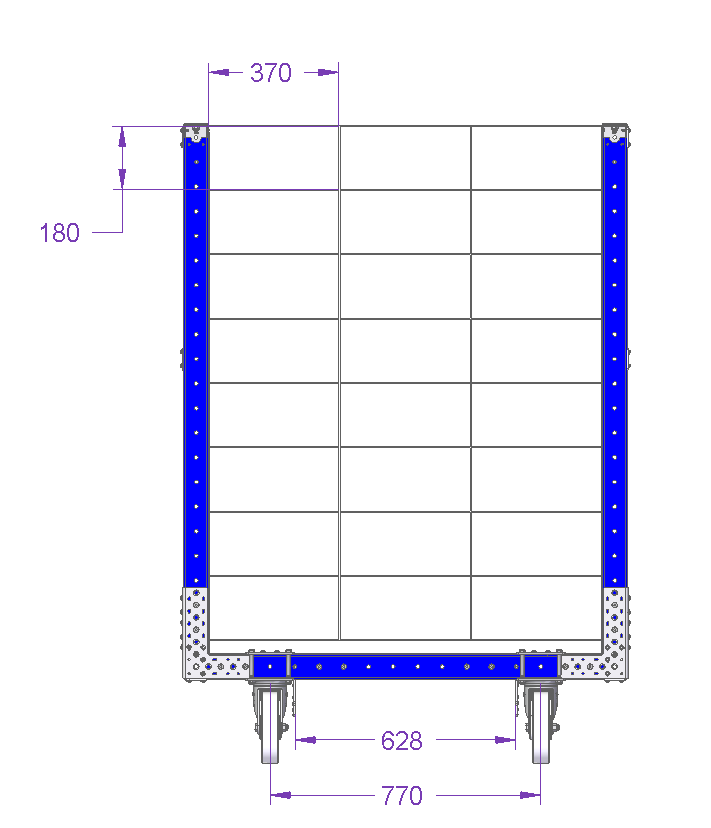

Compartment Cart For 370 x 180 mm
Compartment Cart For 370 x 180 mm
Compartment Cart For 370 x 180 mm
Compartment Cart For 370 x 180 mm
Q-100-0307

Compartment Cart For 370 x 180 mm

Custom designed compartment cart for transporting smaller materials.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 33 inch

Length: 50 inch

Levels: 8

Load capacity: 370 lbs

Load Capacity per Level: 46 lbs

Transportation method: LiftRunner Frames, Manual

Caster size: 8 inch

Caster Type: Nylon

Type of Load: Bins, Boxes, Misc parts, Totes

More info

This cart was designed to place smaller materials into the slots. This makes it easier for the operators to access the materials along the assembly line. This cart is similar to Q-100-0308.

Parts included
FlexBeam™ - 1470 mm 6 Q-001-1296
FlexBeam™ 1190 mm 4 Q-001-1300
FlexBeam™ 840 mm FE 4 Q-001-1405
FlexPlate™ 8 Q-002-1001
Stiffener - Outside 2 Q-002-1050
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Polyamide Caster 200 mm with Brake 2 Q-004-1351
Polyamide Caster 200 mm without Brake 2 Q-004-1352
Forklift Plate - 700 mm 2 Q-005-0307
Beam To Beam Corner Plate High 4 Q-005-0390
64 mm FlexBeam™ Collet 18 Q-005-1426
Hook Shaped Forklift Guide 4 Q-005-1989
Hex Head - M10 x 25 mm 12 Q-006-1041
Locking Nut M10 70 Q-006-1042
Hex Head - M10 x 90 mm 16 Q-006-1132
Extra Low Head - M10 x 90 mm 20 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 98 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 22 Q-006-1410
Compartment - 370 x 180 x 770 mm 1 Q-016-0136
