Container cart 1260 x 1960 mm
Container cart 1260 x 1960 mm
Container cart 1260 x 1960 mm
Container cart 1260 x 1960 mm
Q-100-0401

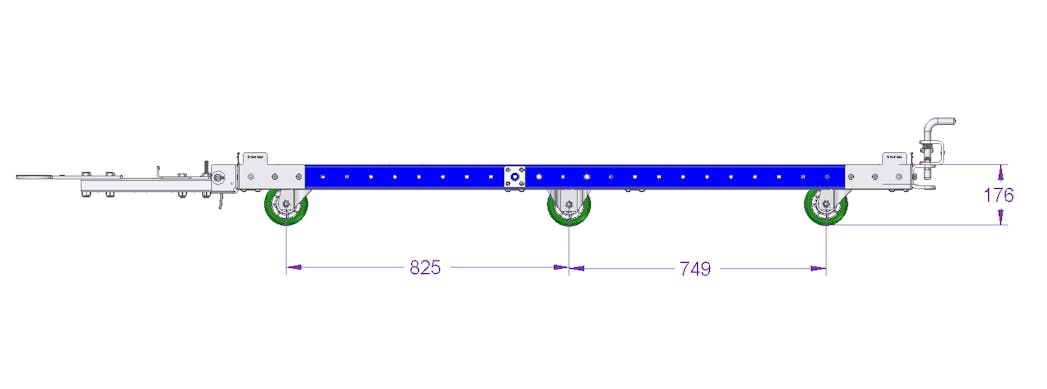

Container cart 1260 x 1960 mm

Tuggable low rider cart used for the transportation of pallets and containers. Equipped with six polyurethane casters, two fixed and four swivel.

Technical specifications

Transportation method: Manual

Category: Standard

Industry: Automotive, Distribution, Industrial Machinery, Tier One Suppliers

Length: 77 inch

Width: 50 inch

Load capacity: 992 lbs

Type of tow bar: Tongue and Hitch

Caster size: 5 inch

Caster Type: Polyurethane

More info

Tuggable low rider cart used for the transportation of pallets and containers. The low loading area allows you to fit more material in an ergonomic height for the operators. The cart is equipped with six polyurethane casters, two fixed and four swivel giving it excellent tracking properties and silent movement when connected in a train.

Parts included
FlexBeam™ 1120 mm 4 Q-001-1301
FlexBeam™ 770 mm 4 Q-001-1306
FlexBeam™ 1120 mm FE 6 Q-001-1401
FlexBeam™ 1260 mm FE 2 Q-001-1500
FlexPlate™ 12 Q-002-1001
Flexplate™ M10 8 Q-002-1162
Caster Polyurethane - 125 mm 4 Q-004-1106
Caster Polyurethane 125 mm Fixed 2 Q-004-1107
Towing Hole 2 Q-005-1056
Wheel Attachment Box 6 Q-005-1079
Pallet Guide Corner Plate 4 Q-005-1096
64 mm FlexBeam™ Collet 18 Q-005-1426
Washer M20 2 Q-006-0016
Allen Head - M6 x 30 mm 1 Q-006-1012
Hex Head - M14 x 60 mm 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Hex Head - M10 x 25 mm 16 Q-006-1041
Locking Nut M10 73 Q-006-1042
Washer M10 56 Q-006-1043
Locking Nut M6 1 Q-006-1050
Hex Head - M10 x 95 mm 2 Q-006-1088
Hex Head - M10 x 90 mm 8 Q-006-1132
Hex Head - M10 x 30 mm 2 Q-006-1161
Hex Head Fully Threaded - M10 x 50 mm 1 Q-006-1343
Extra Low Head - M10 x 90 mm 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 48 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 28 Q-006-1410
Compression Spring for US Tow Hitch 1 Q-012-0007
US Modular Tow Bar VKR - Lip - 380 mm 1 Q-017-0015
Handle for Tow Hole 1 Q-017-0022
Cotter Pin - 3,2 x 32 mm 2 Q-017-0023
Towing Lip - 2,5 Inch 1 Q-017-1012
Tow Bar Lock Tube - 498 mm 1 Q-017-1061
Tow Attachment to Beam 1 Q-017-1080
Tow Hinge 1 Q-017-1083
