Q-100-0336

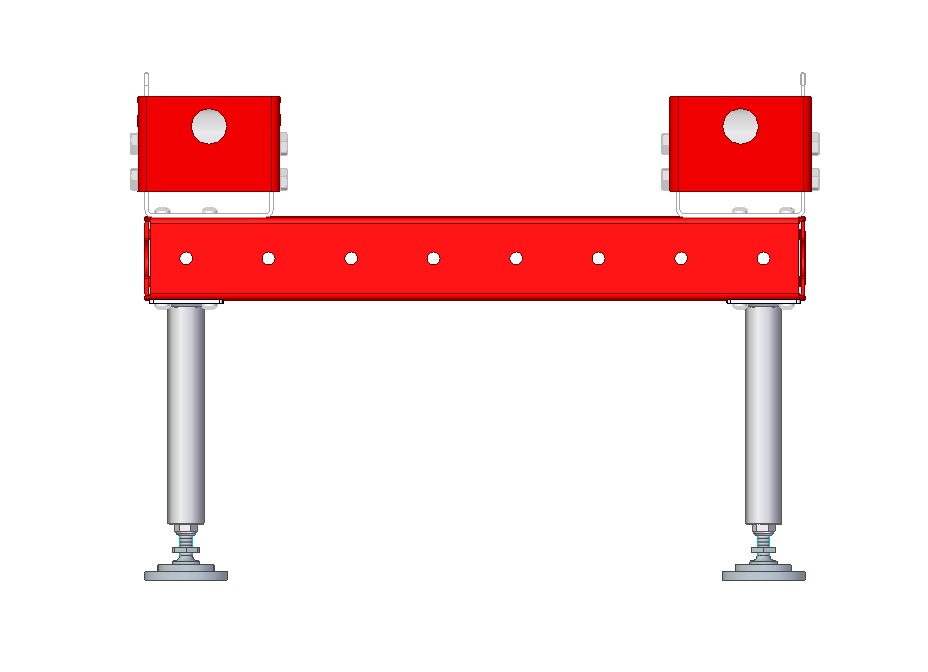

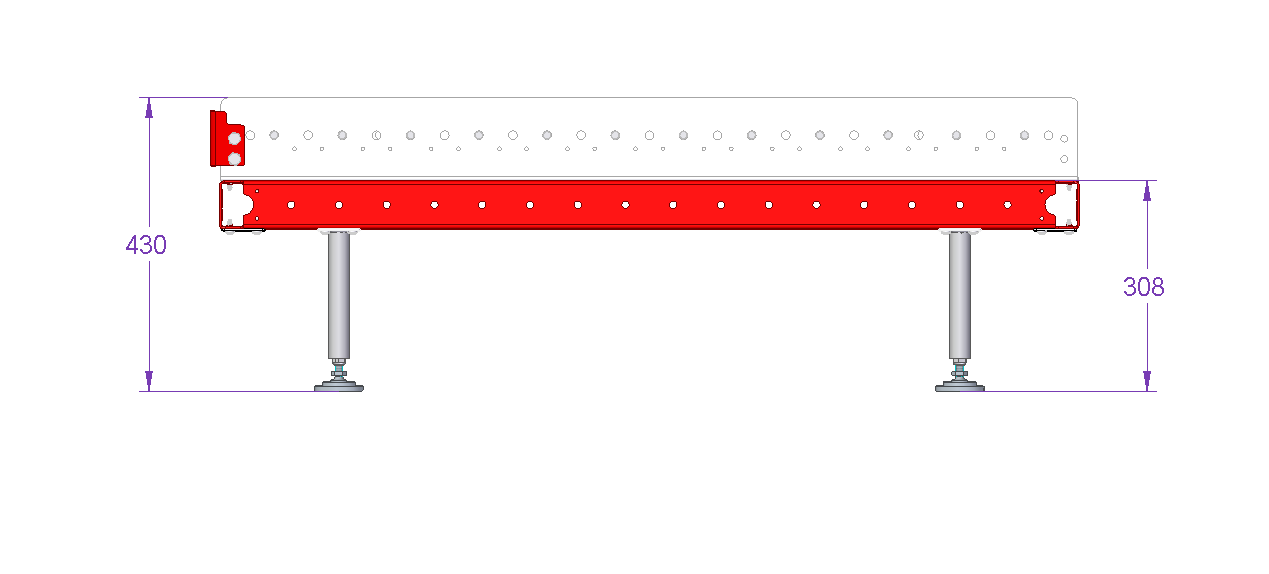

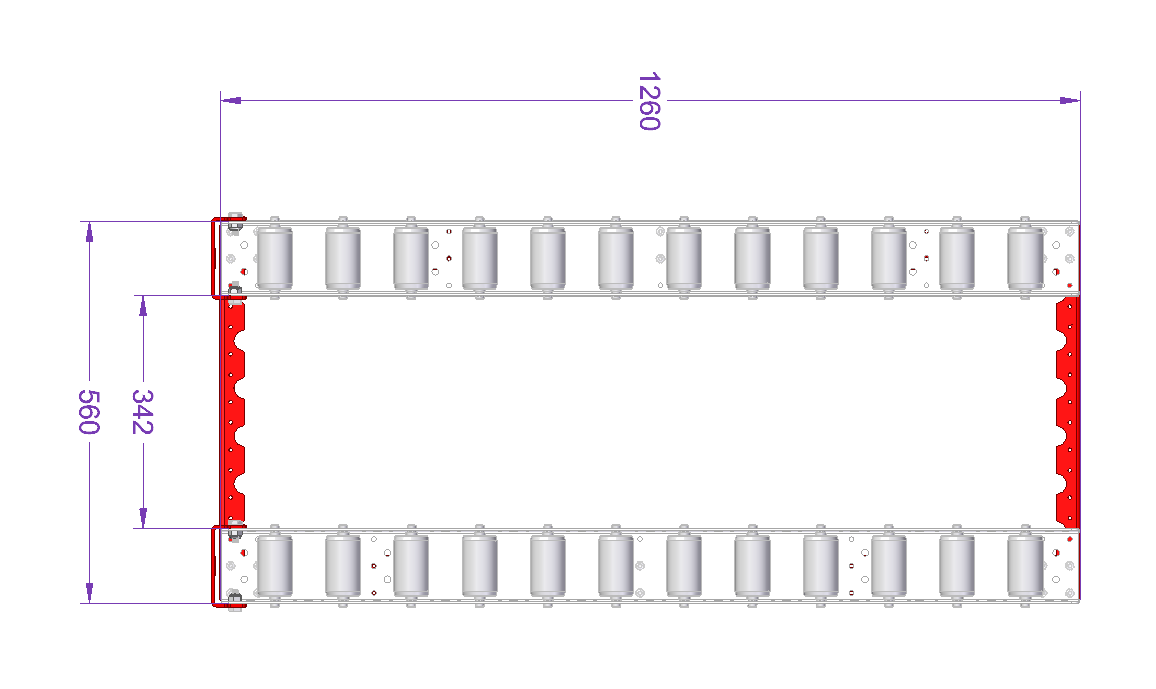

Conveyor cart 1260 x 560 mm

Conveyor station designed to be used in combination with Q-100-0298. Most commonly used to store pallets and containers near the assembly station.

Category: Conveyor

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Width: 22 inch

Length: 50 inch

Load capacity: 551 lbs

Transportation method: Manual

Conveyor station designed to be used in combination with Q-100-0298. Most commonly used to store pallets and containers near the assembly station.

Outer Tube (One Plate) - 190 mm 4 Q-000-0082

FlexBeam™ 1190 mm 4 Q-001-1300

FlexBeam™ 560 mm FE 2 Q-001-1409

FlexPlate™ 4 Q-002-1001

Roller guide - 1260 mm for 100 mm Rollers 2 Q-005-0233

Levelling element 4 Q-005-0246

RTE Plug 4 Q-005-1289

Conveyor cart 1260 x 560 mm 24 Q-100-0336

Hex Head - M10 x 25 mm 8 Q-006-1041

Locking Nut M10 20 Q-006-1042

Self Tapping Screw M6 Torx H60 x 16 56 Q-006-1384
