Daughter cart – 640 x 770 mm
Daughter Cart
Daughter Cart
Daughter Cart
Q-100-0231

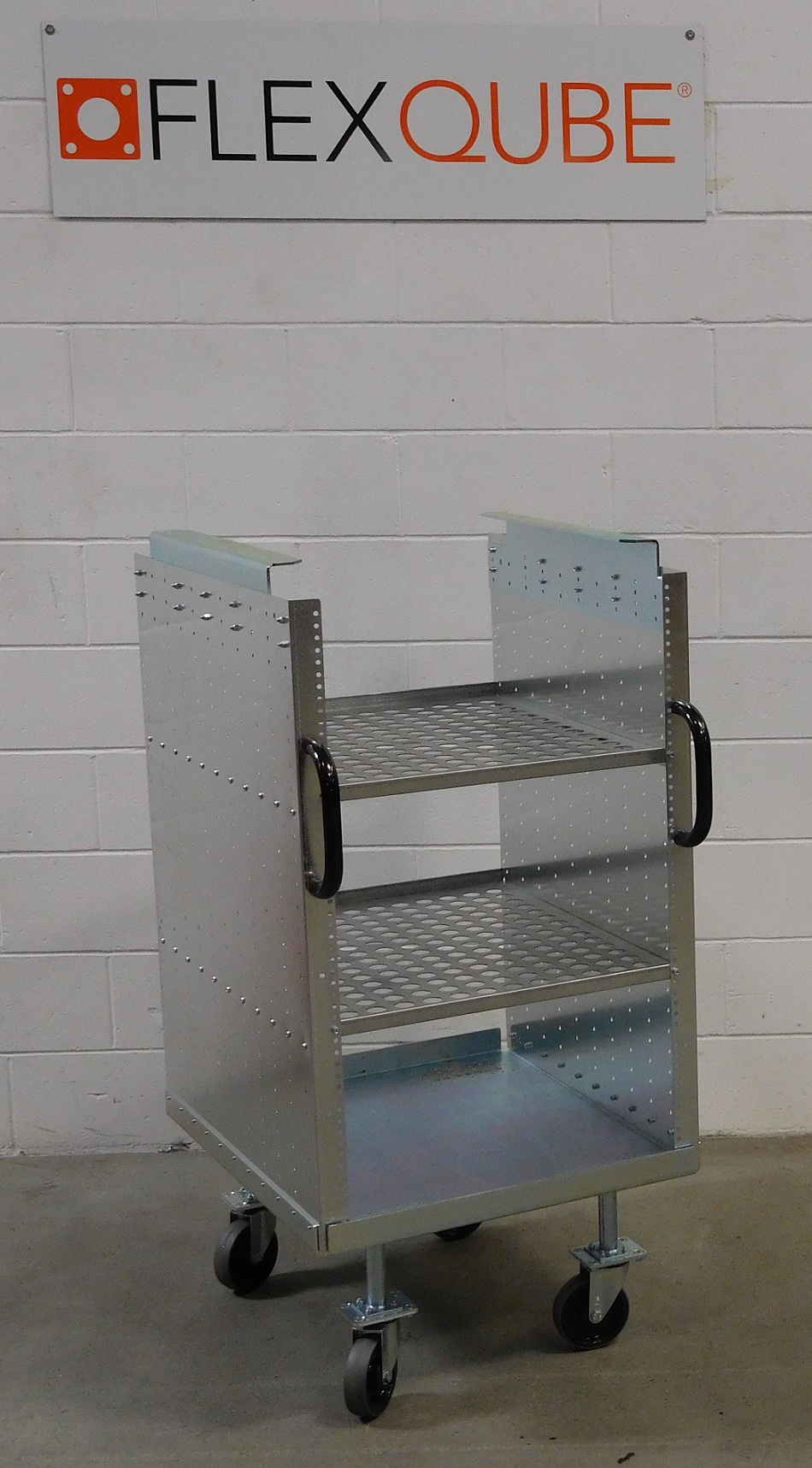

Daughter cart – 640 x 770 mm

Standard daughter cart with two flat shelves.

Technical specifications

Transportation method: Manual, Mother-Daughter Cart

Industry: Defense Equipment, Industrial Machinery, Wind & Energy

Category: Daughter Cart, Flat Shelf

Length: 30 inch

Width: 25 inch

Load capacity: 300 lbs

Caster size: 5 inch

Caster Type: Nylon, Polyurethane

More info

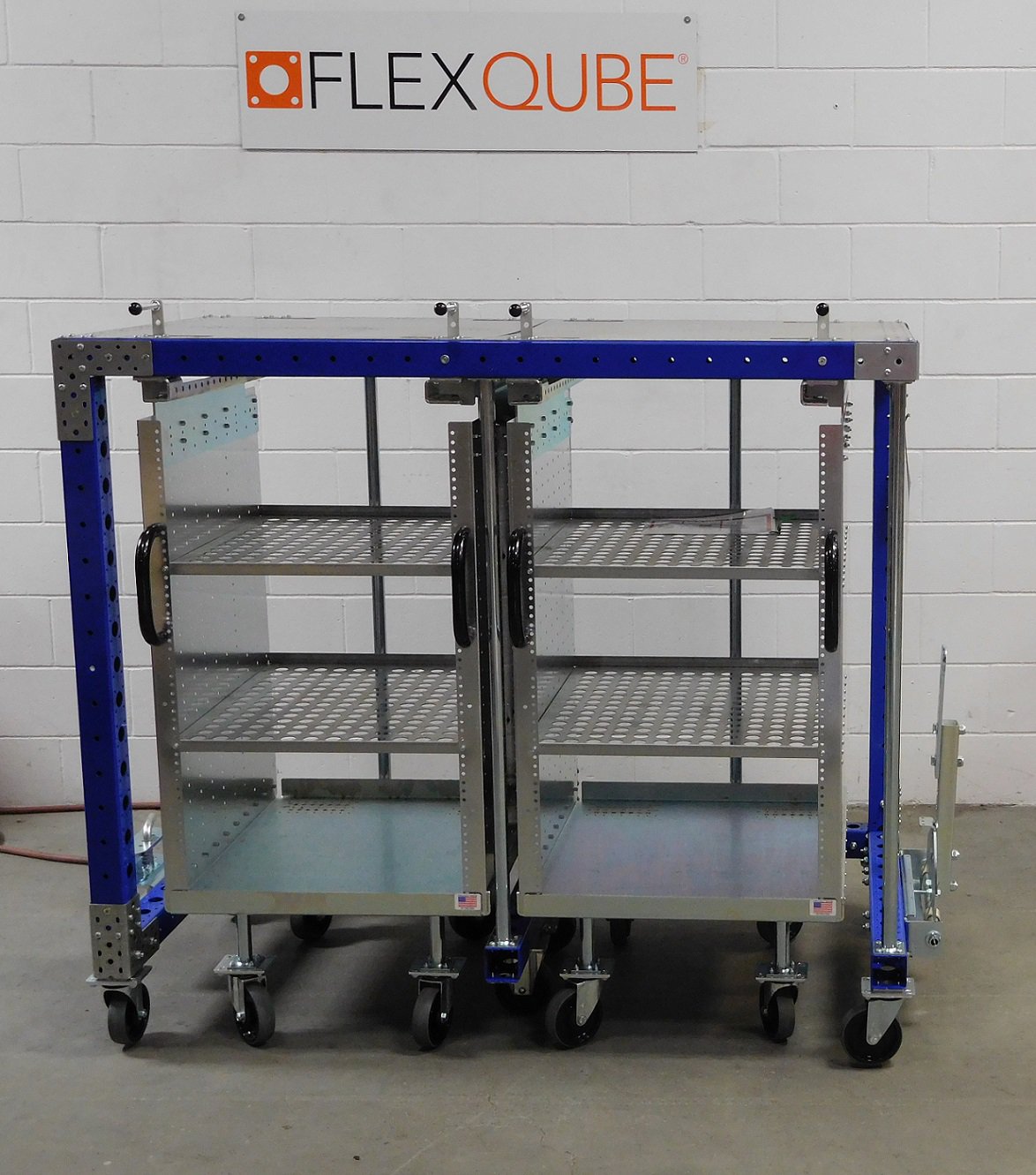

This daughter cart was designed to carry bins, totes and boxes within a 2 in 1 mother frame. The daughter carts can be locked into the mother frame for transportation and then unlocked and left at work stations.

Parts included
FlexTube™ 140 mm - Locking Nut 4 Q-000-1102
Swivel Caster - 125 mm 4 Q-004-1363
Daughter Cart Bottom 1 Q-005-0158
Daughter Cart Side 2 Q-005-0159
L Shape Daughter Cart Guide 2 Q-005-0160
Wheel Attachment - 80 x 60 mm 4 Q-005-1722
Locking Nut M6 36 Q-006-1050
Round Head - M6 x 12 mm 24 Q-006-1051
Old Part: M6 x 12 mm Allen Head 20 Q-006-1080
Hex Head - M8 x 16 mm 4 Q-006-1120
Locking Nut M8 16 Q-006-1181
Countersunk Allen Head - M6 x 16 mm 16 Q-006-1197
M8 x 16 mm Countersunk 16 Q-006-1214
Allen Head - M6 x 8 mm 42 Q-006-1336
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Handle Bar 210 mm M8 2 Q-015-1037
Daughter Cart Shelf - 825 x 632 mm 2 Q-016-0095
