Daughter cart 24 x 60 inch
Daughter cart 24 x 60 inch
Daughter cart 24 x 60 inch
Daughter cart 24 x 60 inch
Q-100-0233

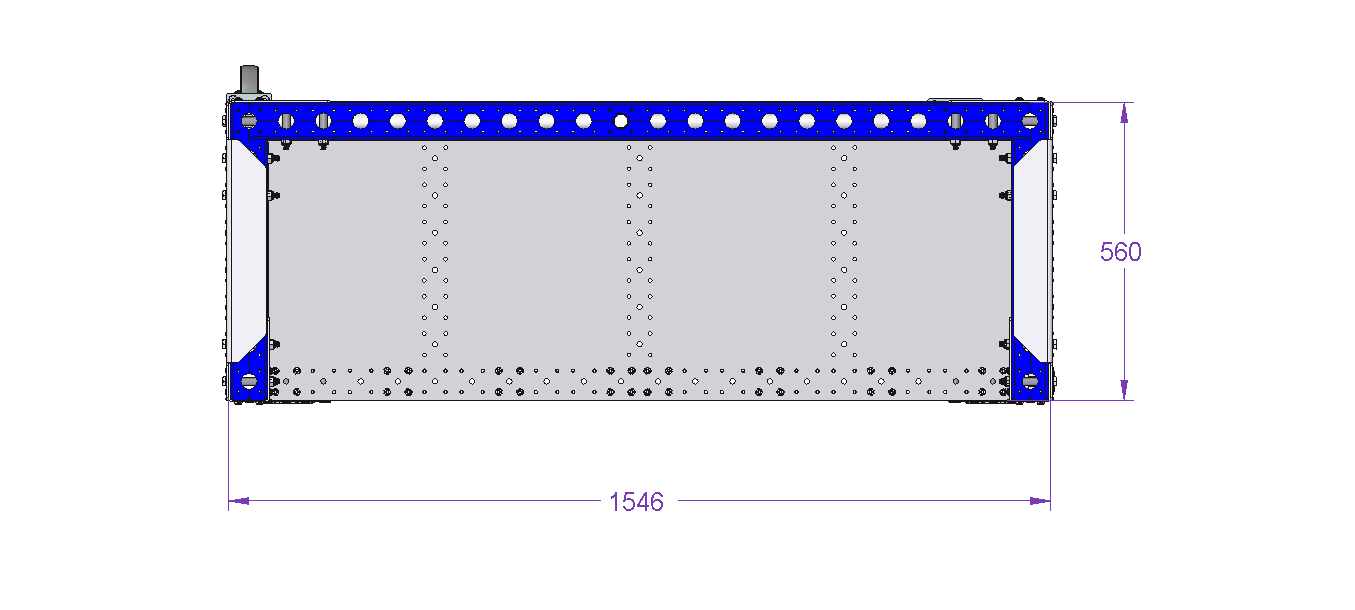

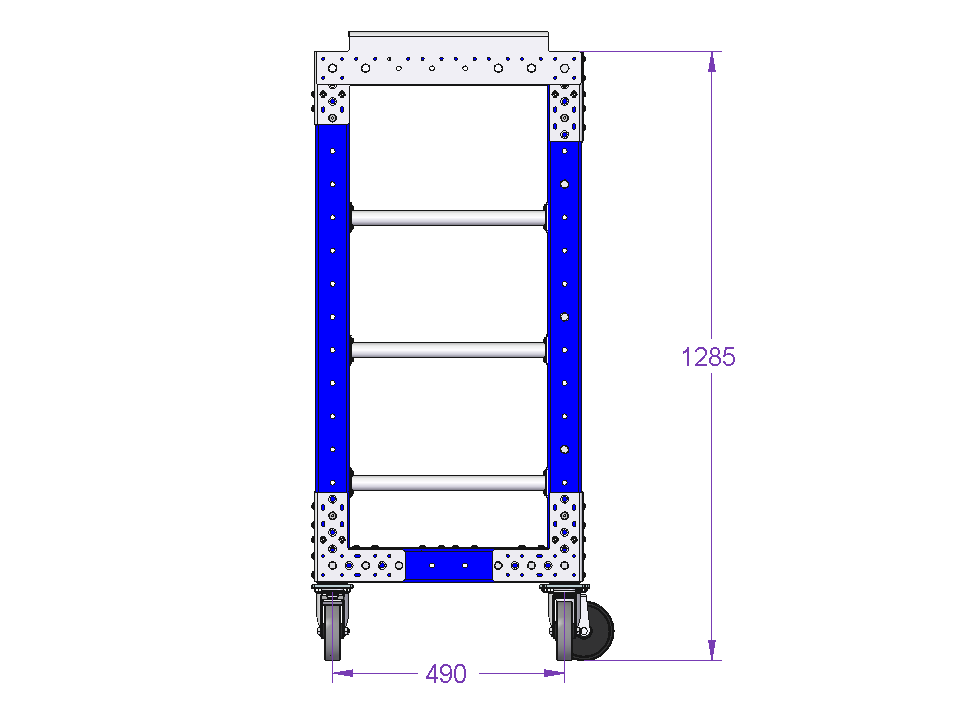

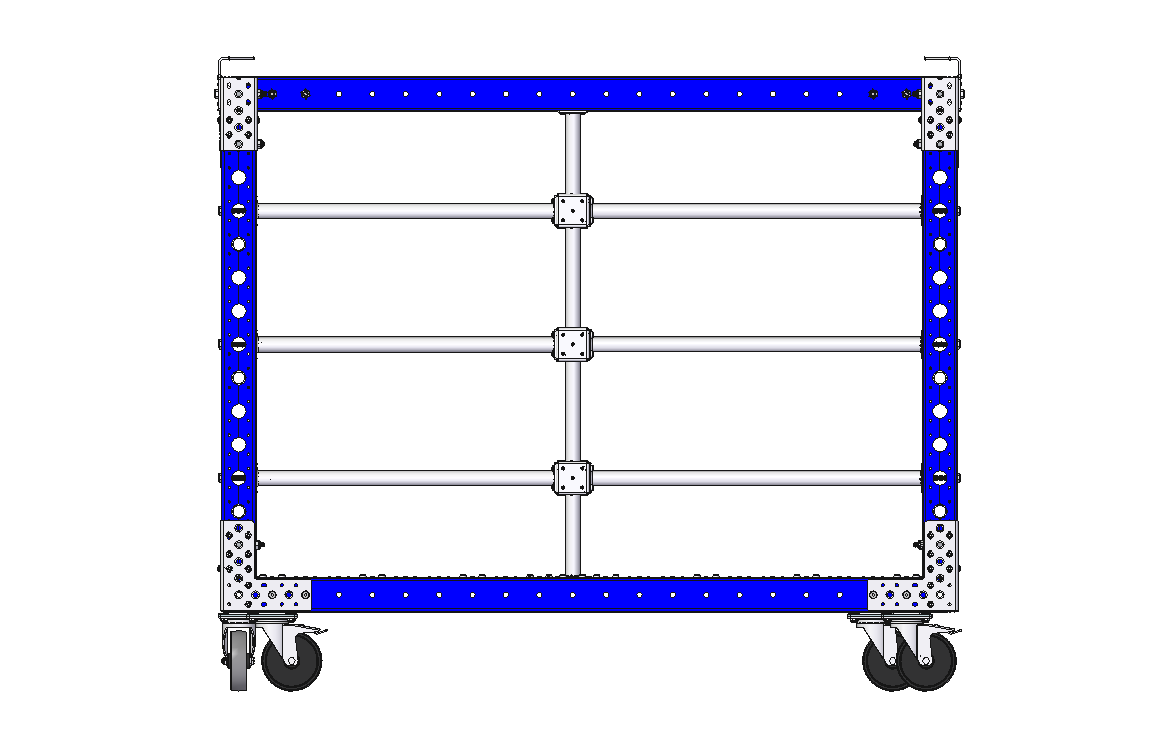

Daughter cart 24 x 60 inch

This cart was designed to transport tall crates and containers in a mother daughter system in combination with Q-100-0213.

Technical specifications

Transportation method: Mother-Daughter Cart

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Category: Flat Deck

Width: 22 inch

Length: 61 inch

Load capacity: 500 lbs

Caster size: 5 inch

Caster Type: Gray

More info

This cart was designed to carry tall containers and crates and be transported by a mother cart (Q-100-0213). Tubes covers the sides to prevent parts from falling out during transportation and can also be used as handlebars. The cart is also equipped with four nylon swivel casters, two with brakes making it easy to maneuver in tight areas.

Parts included
FlexTube™ 700 mm 3 Q-000-1002
FlexTube™ 420 mm 6 Q-000-1270
FlexTube™ 630 mm 3 Q-000-1312
FlexTube™ 980 mm 1 Q-000-1399
FlexQube 6 Q-001-1078
FlexBeam™ - 1470 mm 6 Q-001-1296
FlexBeam™ 980 mm 8 Q-001-1303
FlexBeam™ 560 mm FE 4 Q-001-1409
FlexBeam™ 490 mm FE 2 Q-001-1410
FlexPlate™ 8 Q-002-1001
Swivel Caster - 125 mm 2 Q-004-1363
125 mm Swivel Caster with Brake 2 Q-004-1364
L Bracket Joint 4 Q-005-0031
L-Shape Daughter Cart Guide 2 Q-005-0161
Daughter cart shelf 1 Q-005-0164
RTE Plug 6 Q-005-1289
Beam to Beam Corner Plate 6 Q-005-1356
64 mm FlexBeam™ Collet 23 Q-005-1426
Heavy Duty Joint M10 2 Q-005-1580
Wheel Attachment - 80 x 60 mm 4 Q-005-1722
Fully Threaded - M10 x 120 mm 6 Q-006-1037
Hex Head - M10 x 25 mm 2 Q-006-1041
Locking Nut M10 38 Q-006-1042
Locking Nut M8 16 Q-006-1181
M8 x 16 mm Countersunk 16 Q-006-1214
Hex Head - M10 x 100 mm 8 Q-006-1302
Extra Low Head - M10 x 90 mm 20 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 234 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 16 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410
