Q-100-0276

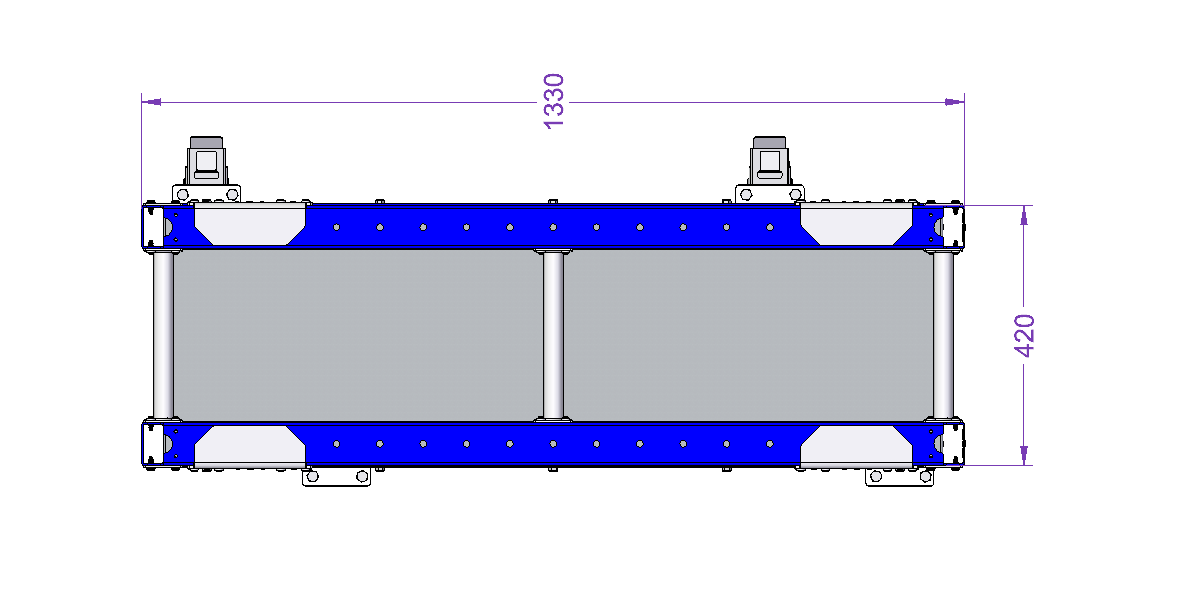

Daughter Cart 420 x 1330 mm

Custom daughter cart for Mother/Daughter 3 in 1 configuration used for bins, totes and boxes.

Technical specifications

Category: Daughter Cart

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Width: 17 inch

Length: 52 inch

Levels: 2

Load capacity: 498 lbs

Load Capacity per Level: 249 lbs

Transportation method: Mother-Daughter Cart

Caster size: 5 inch

Caster Type: Polyurethane

More info

This daughter cart was designed to carry bins, totes and boxes within a 3 in 1 mother frame. The daughter carts can be locked into the mother frame for transportation and then unlocked and left at work stations.

Parts included

FlexTube™ 280 mm 5 Q-000-1262

FlexBeam™ - 1260 mm 8 Q-001-1299

FlexBeam™ 910 mm FE 4 Q-001-1404

Flexplate™ M10 8 Q-002-1162

Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065

Caster Polyurethane 125 mm w. Brake 2 Q-004-1105

Caster Polyurethane - 125 mm 2 Q-004-1106

L-Shape Daughter Cart Guide - 200 mm 4 Q-005-0220

Hex Head - M10 x 25 mm 16 Q-006-1041

Locking Nut M10 16 Q-006-1042

Washer M10 48 Q-006-1043

Hex Head - M8 x 16 mm 20 Q-006-1120

Locking Nut M8 20 Q-006-1181

Self Tapping Screw M6 Torx H60 x 16 144 Q-006-1384

Shelf Edge Lip - 1330 mm 6 Q-016-0166

Flat Shelf - 1260 x 420 mm 2 Q-016-0167
