Q-100-1000

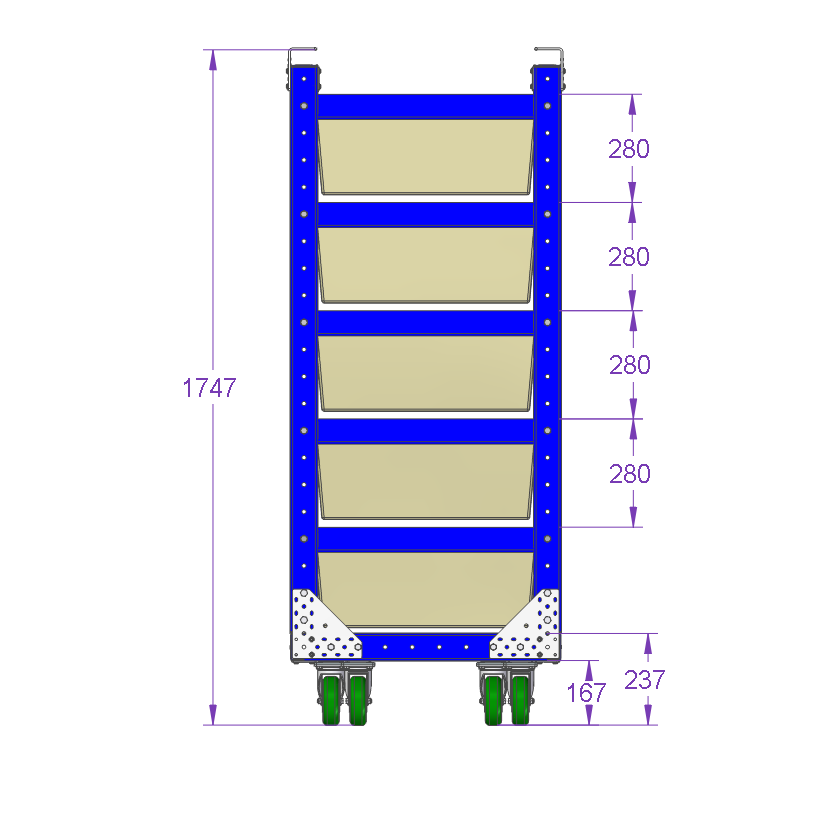

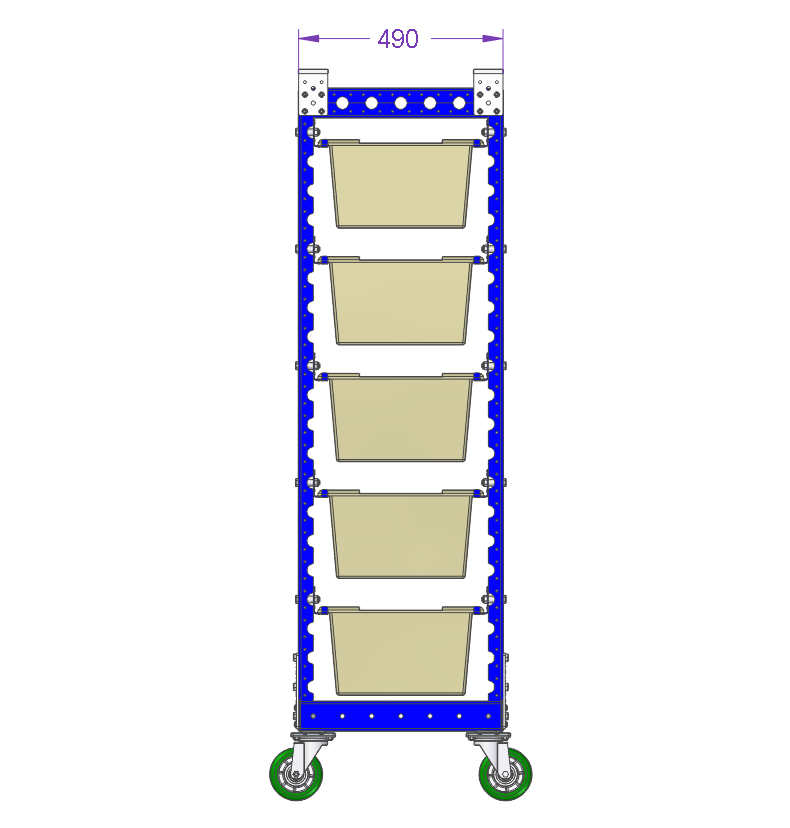

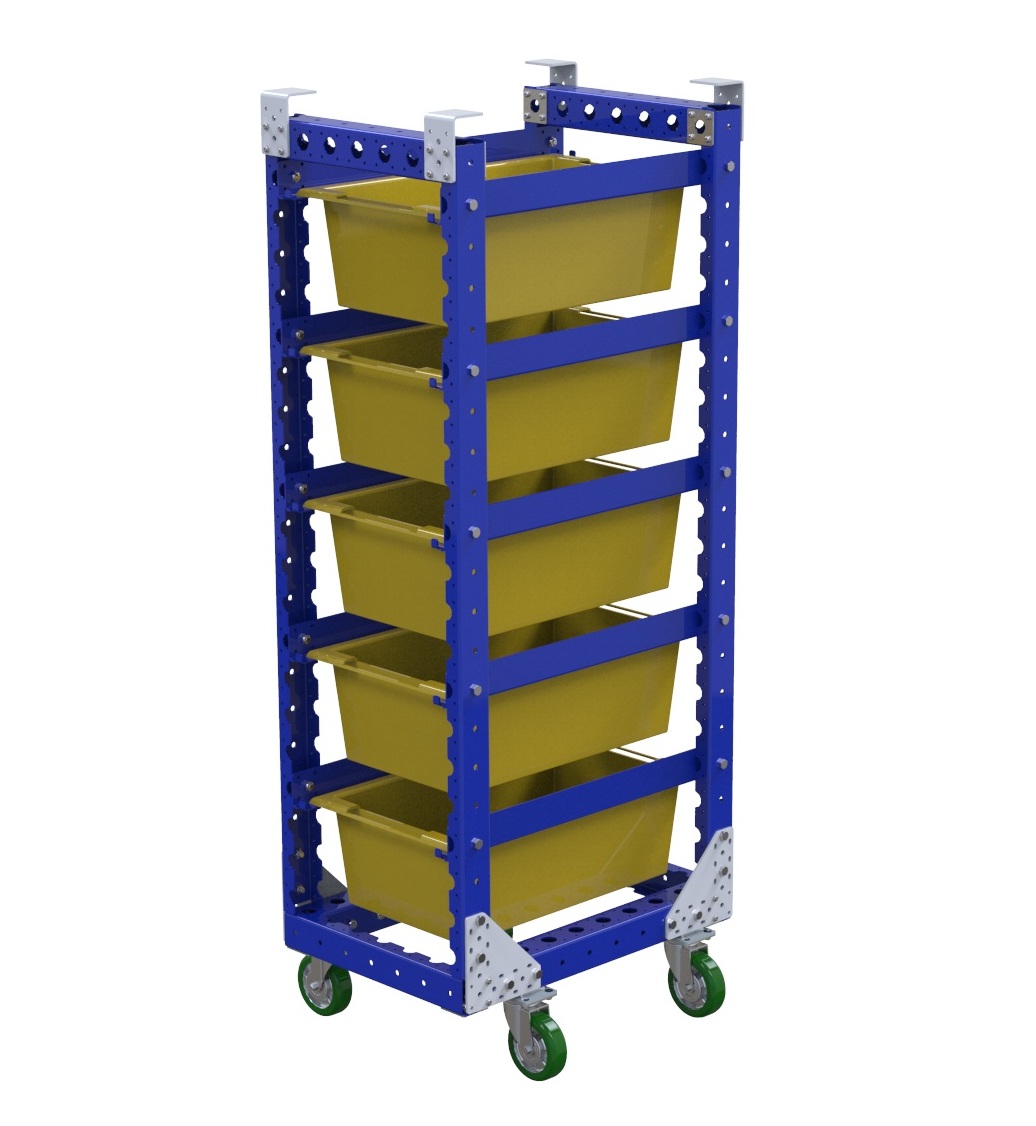

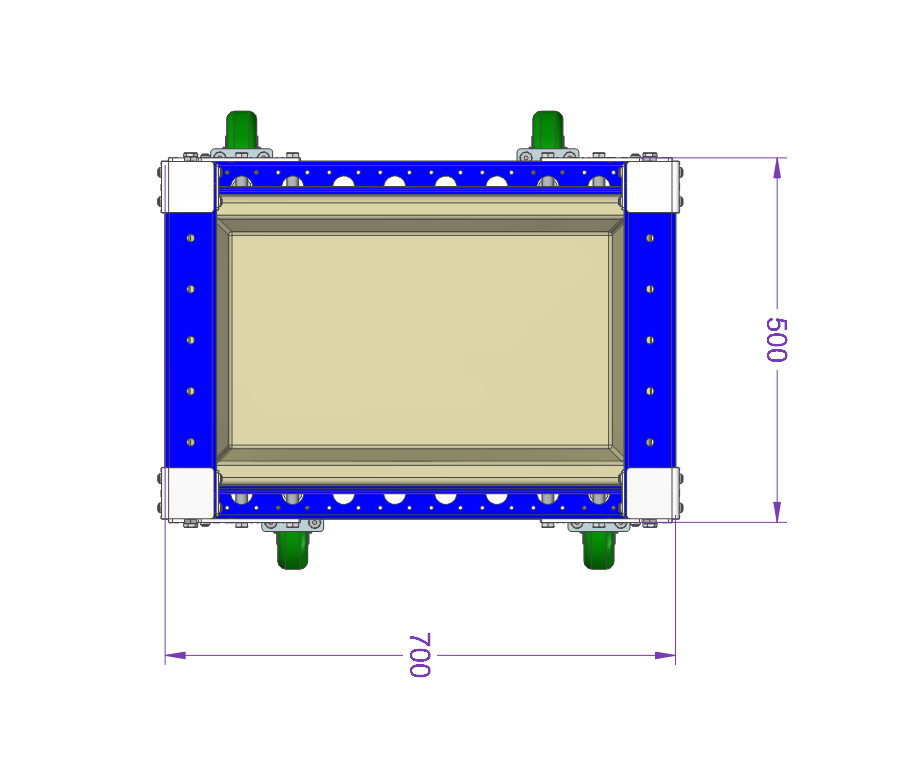

Daughter Cart - 700 x 490 mm

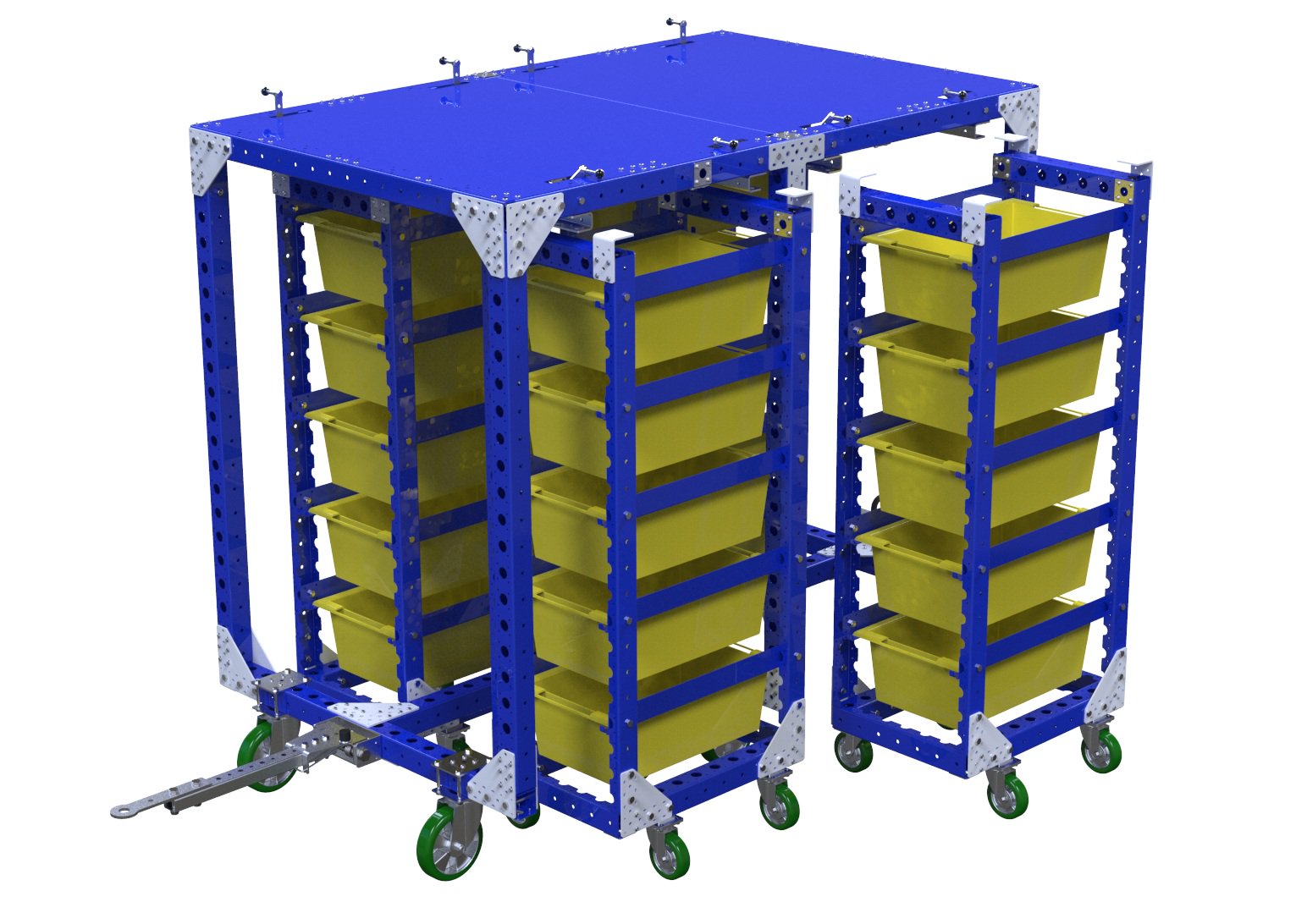

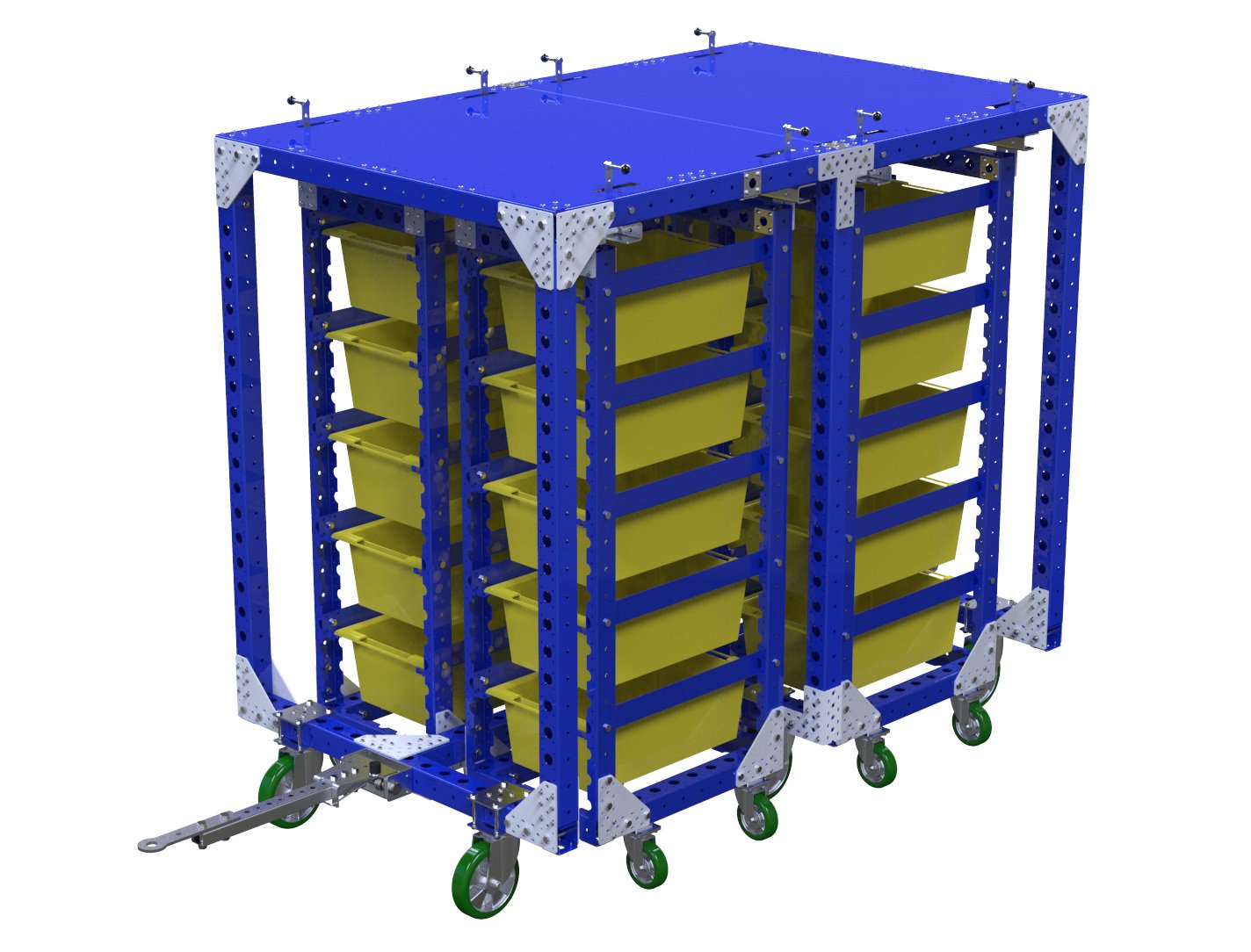

This cart is designed to be used in a mother daughter system in combination with Q-100-1002. The cart is equipped with five levels of panels which holds bins and boxes.

Technical specifications

Category: Daughter Cart

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Length: 28 inch

Levels: 5

Load capacity: 551 lbs

Load Capacity per Level: 93 lbs

Width: 19 inch

Transportation method: Manual

Caster size: 5 inch

Caster Type: Polyurethane

More info

This cart is designed to be used in a mother daughter system in combination with Q-100-1002. The cart is equipped with five levels of panels which holds bins and boxes.

Parts included
FlexBeam™ 630 mm 4 Q-001-1308
FlexBeam™ 420 mm 4 Q-001-1311
FlexBeam™ 490 mm FE 2 Q-001-1410
FlexBeam™ - 1470 mm FE 4 Q-001-1503
FlexPlate™ 16 Q-002-1001
Caster Polyurathane 125 mm 80 x 60 Swivel 4 Q-004-1220
Collet - 35 mm 20 Q-005-0028
Triangle Joint 4 Q-005-0483
64 mm FlexBeam™ Collet 8 Q-005-1426
Wheel Attachment - 80 x 60 mm 4 Q-005-1722
Hex Head - M10 x 25 mm 8 Q-006-1041
Locking Nut M10 36 Q-006-1042
Hex Head - M10 x 90 mm 8 Q-006-1132
Locking Nut M8 16 Q-006-1181
M8 x 16 mm Countersunk 16 Q-006-1214
Hex Head Fully Threaded - M10 x 50 mm 20 Q-006-1343
Self Tapping Screw M6 Torx H60 x 16 56 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 16 Q-006-1385
