E-Frame Pallet Cart - 1050 x 1260 mm
E-Frame Pallet Cart - 1050 x 1260 mm
E-Frame Pallet Cart - 1050 x 1260 mm
E-Frame Pallet Cart - 1050 x 1260 mm
Q-100-1340

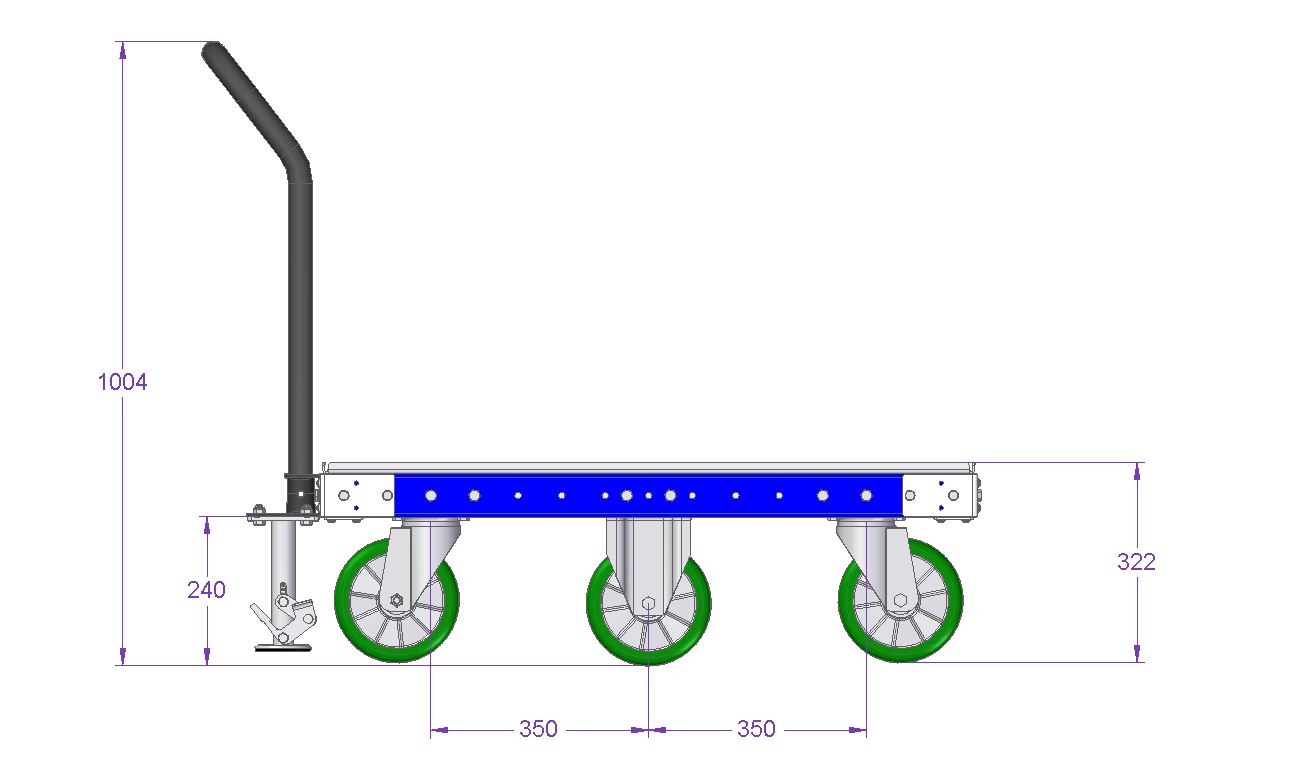

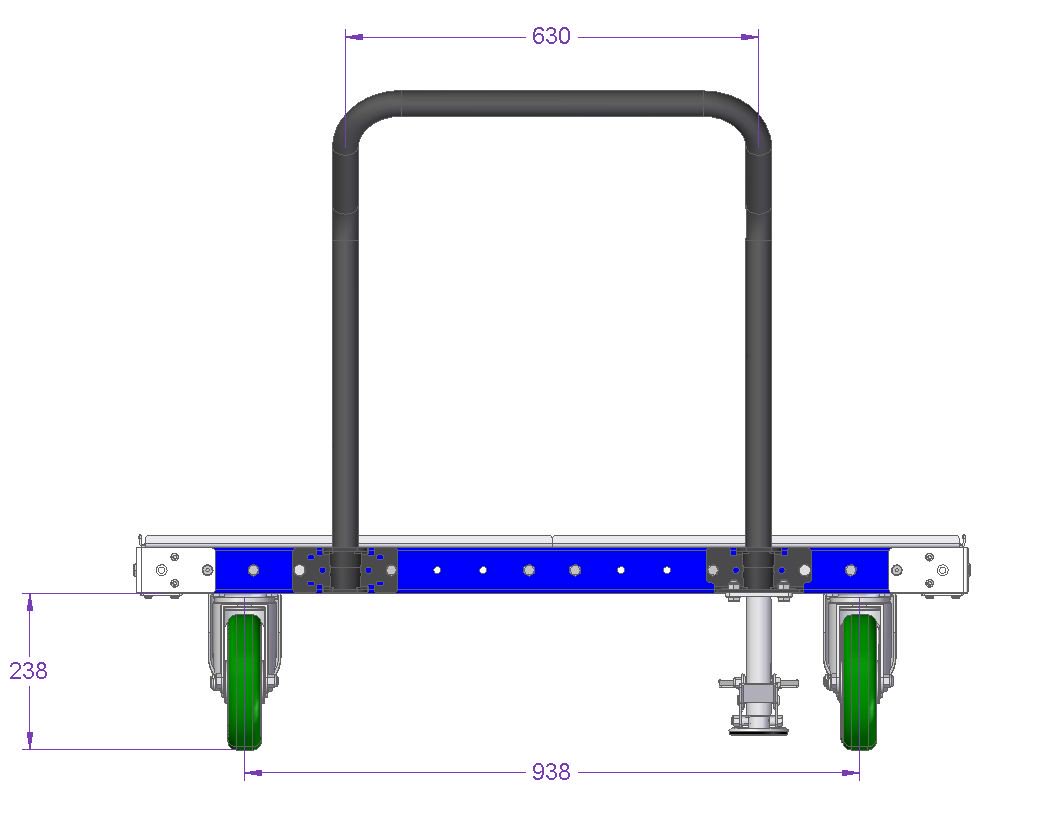

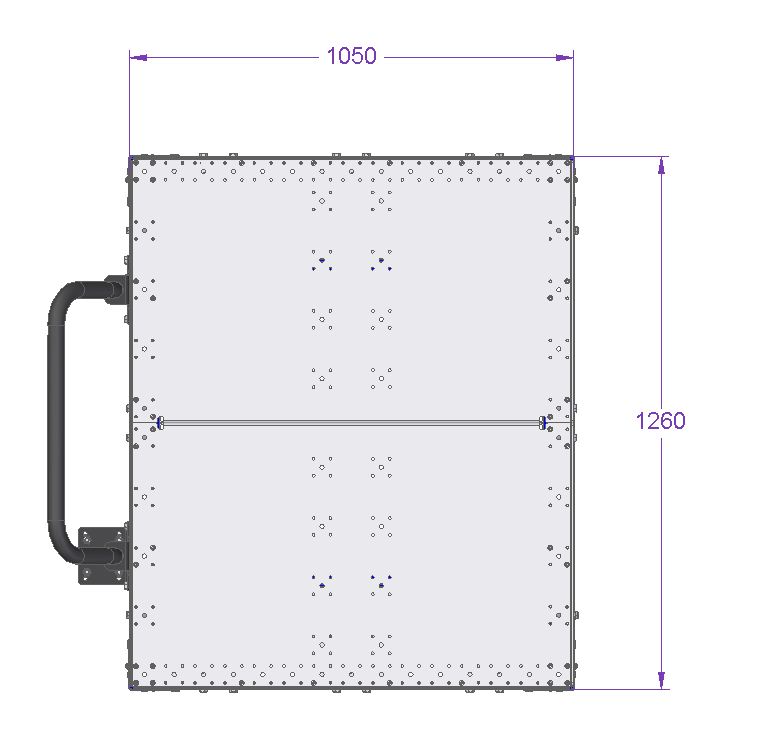

E-Frame Pallet Cart - 1050 x 1260 mm

Pallet/Container cart designed to be used in an E-Frame and manually. The cart is equipped with a handlebar, floor brake and six polyurethane casters.

Technical specifications

Category: Flat Deck

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 41 inch

Length: 50 inch

Load capacity: 2205 lbs

Transportation method: LiftRunner Frames, Manual

Caster size: 8 inch

Caster Type: Polyurethane

More info

This cart is great for transporting pallets and containers and since it has a flat deck it can handle various different sizes. The cart can be transported manually and in an E-Frame and is equipped with a handlebar, floor brake and six polyurethane casters.

Parts included
FlexBeam™ 1190 mm 4 Q-001-1300
FlexBeam™ 1050 mm FE 2 Q-001-1402
FlexBeam™ 910 mm FE 2 Q-001-1404
FlexPlate™ 4 Q-002-1001
Stiffener - Outside 4 Q-002-1050
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
Caster Polyurethane - 200 mm Swivel 4 Q-004-1211
Caster Polyurethan 200 mm Fixed IP2 2 Q-004-1212
US Floor Brake - 200 mm 1 Q-004-1613
Wheel Attachment Box 6 Q-005-1079
64 mm FlexBeam™ Collet 12 Q-005-1426
Hex Head - M10 x 25 mm 57 Q-006-1041
Locking Nut M10 79 Q-006-1042
Hex Head - M10 x 90 mm 10 Q-006-1132
Extra Low Head - M10 x 90 mm 4 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 64 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 8 Q-006-1410
Handlebar / Floor Brake Attachment US 1 Q-015-0029
Handlebar Attachment US 1 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
Top Plate Half - 630 x 1050 mm 2 Q-016-0704
