ESD Shelf Cart - 840 x 1260 mm
ESD Shelf Cart - 840 x 1260 mm
ESD Shelf Cart - 840 x 1260 mm
ESD Shelf Cart - 840 x 1260 mm
Q-100-1642

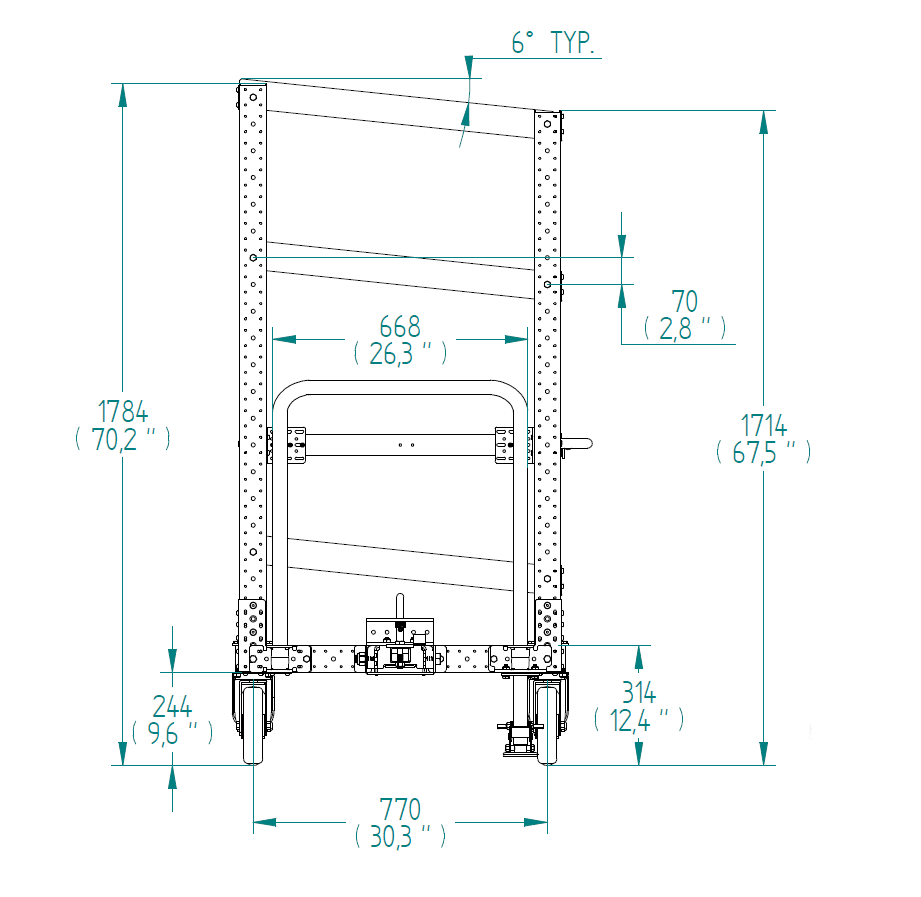

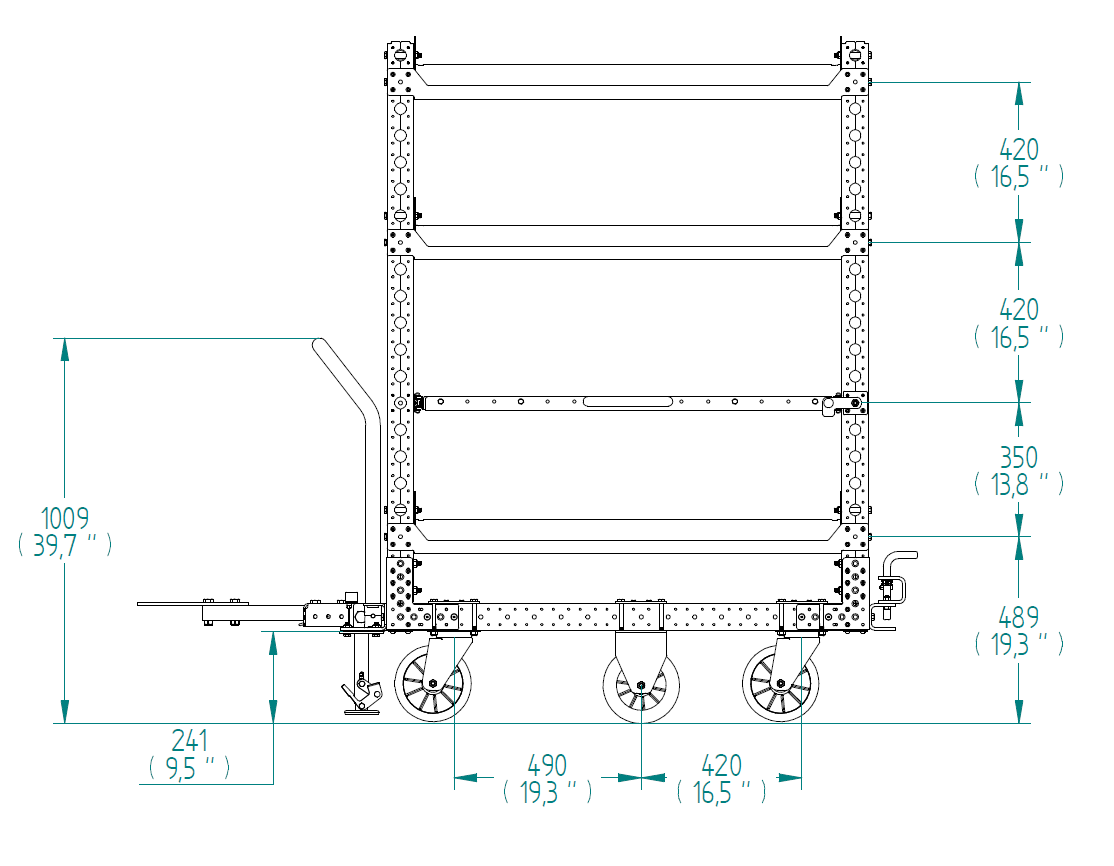

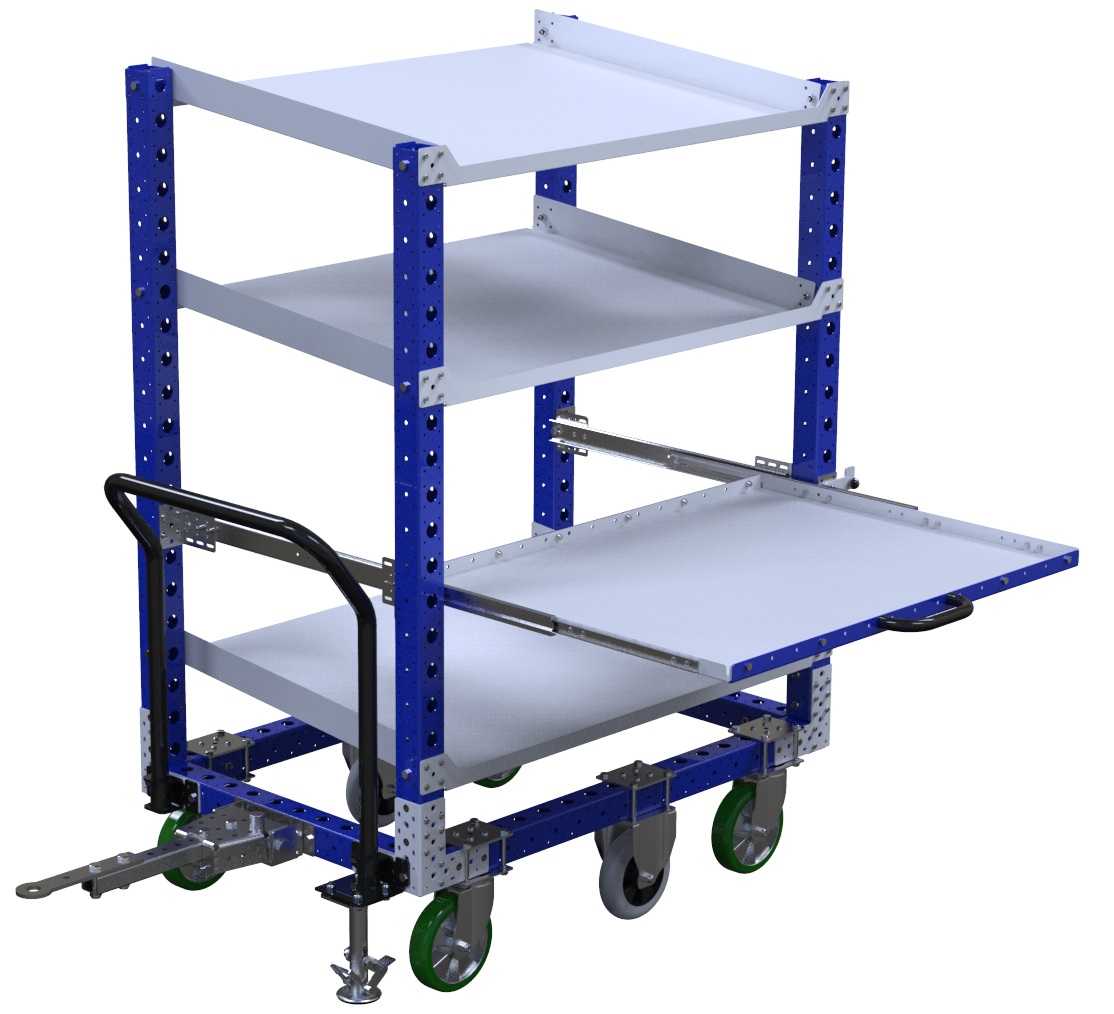

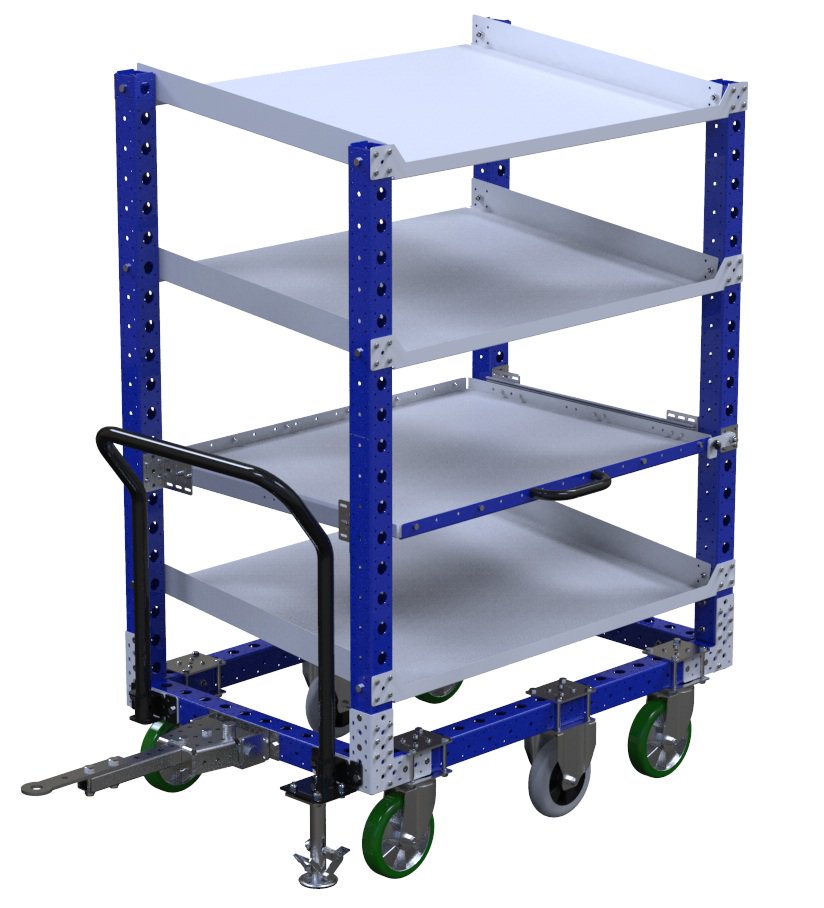

ESD Shelf Cart - 840 x 1260 mm

Four level shelf cart equipped with a handlebar, floor brake, tow bar and ESD casters.

Technical specifications

Category: Flat Shelf

Transportation method: Manual

Industry: Appliances & Electronics, Distribution, Medical Equipment

Length: 50 inch

Levels: 4

Load capacity: 423 lbs

Load Capacity per Level: 106 lbs

Width: 33 inch

Caster size: 8 inch

Caster Type: Polyurethane

Type of tow bar: Tongue and Hitch

More info

Four level shelf cart equipped with three flow and one extendable shelf. Perfect for the transportation of totes, bins, boxes. The cart is also equipped with a handlebar, floor brake, tow bar and six casters with the two fixed being ESD friendly allowing you to transport electrical components.

Parts included
FlexPlate™ 10 Q-002-1001
Flexplate™ M10 1 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 8 Q-004-1065
Caster Polyurethane - 200 mm Swivel 4 Q-004-1211
US Floor Brake - 200 mm 1 Q-004-1613
Modular attachment plate for telescopic lists 4 Q-005-0149
5321-0070 Telescopic Slide 700 mm - Closed 2 Q-005-0261
Spherical Knob 1 Q-005-1146
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 40 Q-005-1426
Locking Handle Plate 1 Q-005-1880
M6 x 20 K6S 10.9 Round Head (black) 8 Q-006-1018
Hex Head - M14 x 60 mm 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Hex Head - M10 x 25 mm 2 Q-006-1041
Locking Nut M10 77 Q-006-1042
Washer M10 8 Q-006-1043
Locking Nut M6 20 Q-006-1050
Round Head - M6 x 12 mm 12 Q-006-1051
Hex Head - M10 x 95 mm 8 Q-006-1088
Hex Head - M8 x 16 mm 12 Q-006-1120
Hex Head - M10 x 90 mm 36 Q-006-1132
Hex Head - M10 x 30 mm 4 Q-006-1161
Locking Nut M8 10 Q-006-1181
Extra Low Head - M10 x 90 mm 22 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 138 Q-006-1384
Low Allen Head - M10 x 16 mm 3 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 3 Q-006-1410
Handlebar / Floor Brake Attachment US 1 Q-015-0029
Handlebar Attachment US 1 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
Handle Bar 210 mm M8 1 Q-015-1037
Angled Plate for Telescopic Shelf - 1059 mm 2 Q-016-0121
Telescopic Shelf - 1080 x 830 mm 1 Q-016-0567
Flow Shelf - 1120 x 840 mm 3 Q-016-0575
US Modular Tow Bar VKR - Lip - 380 mm 1 Q-017-0015
Spring Loaded Tow Hinge 1 Q-017-0067
Heavy Duty Tow Hinge - Narrow 1 Q-017-0087
Towing Lip - 28 mm 1 Q-017-1010
FlexBeam™ - 1190 mm 4 Q-020-1190
