Q-100-0234

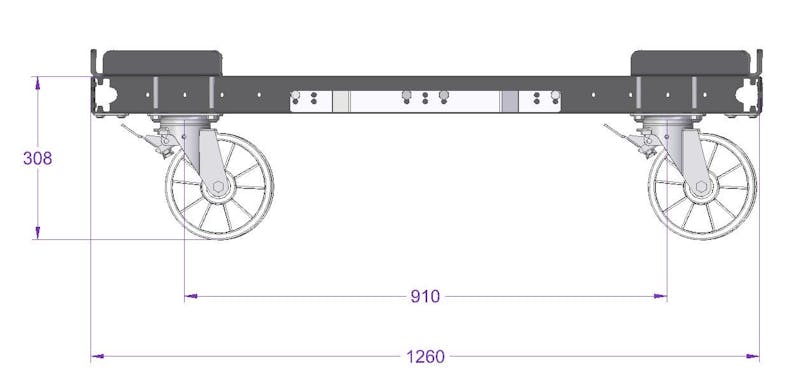

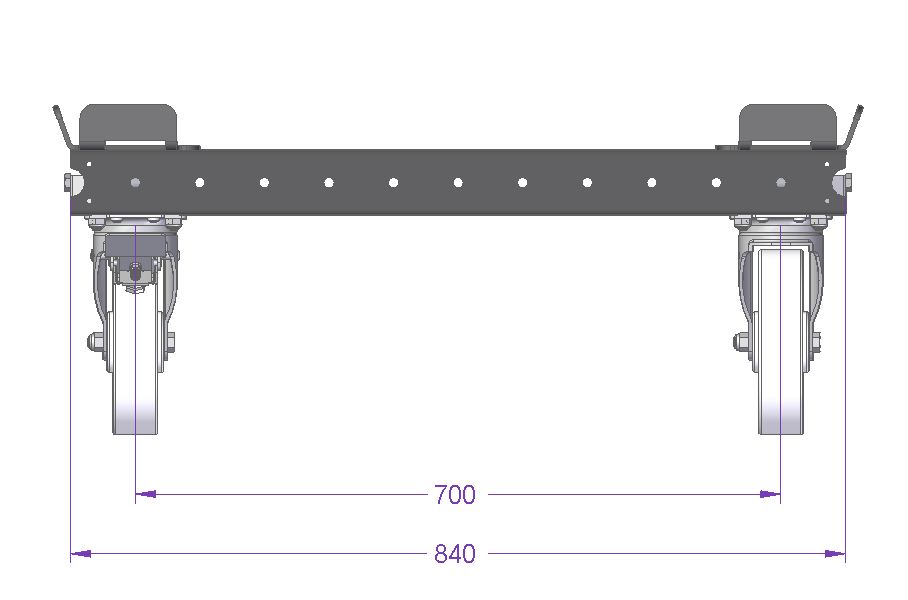

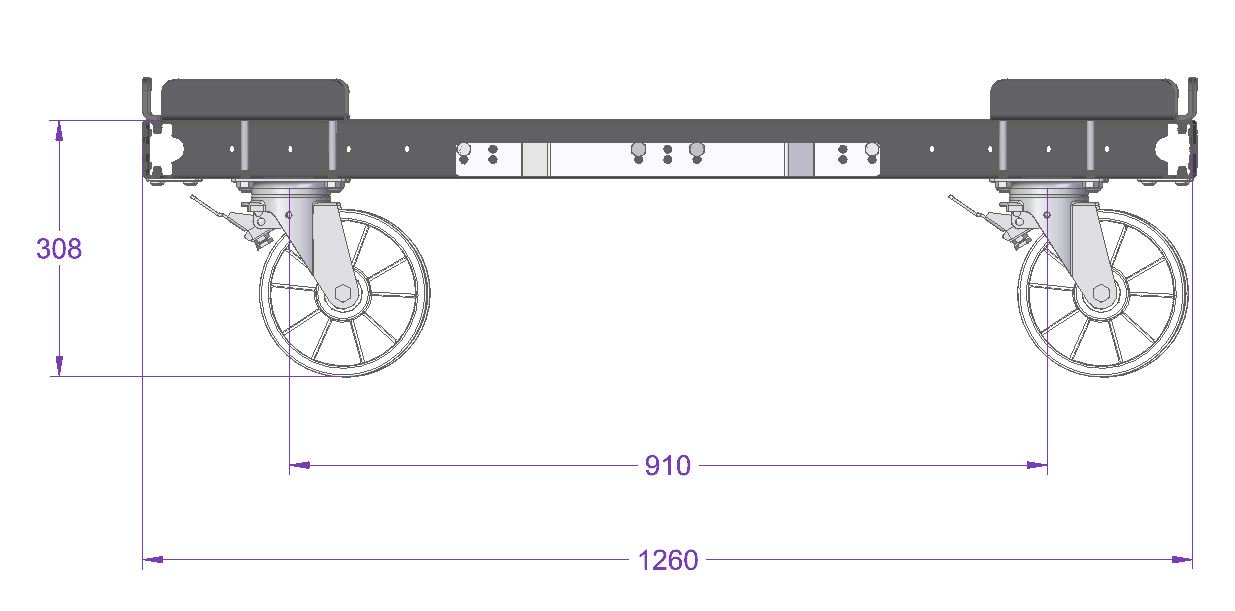

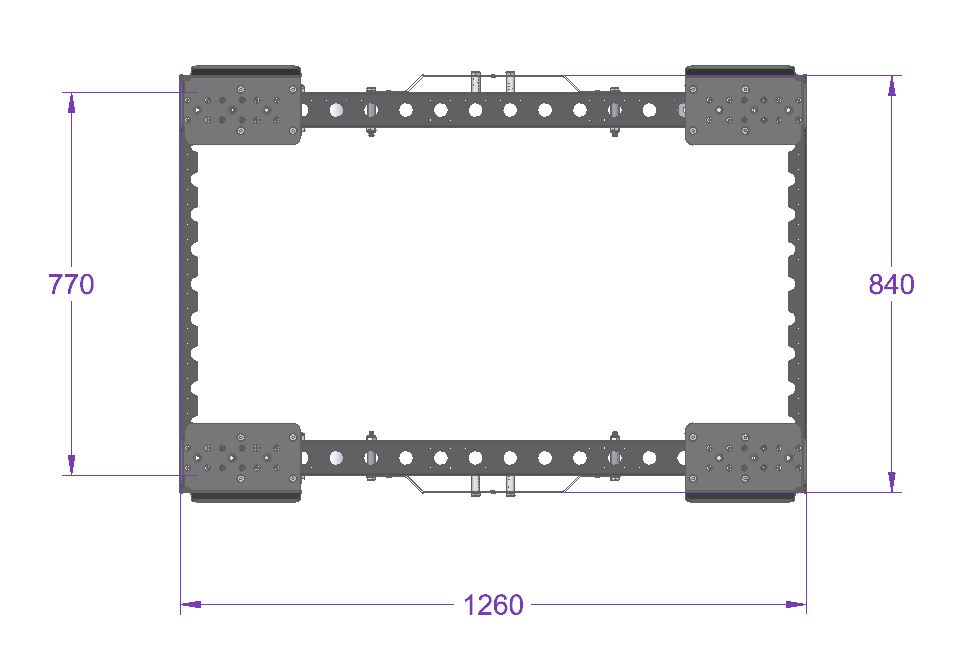

EUR Pallet Trolley 1260 x 840 mm

Basic pallet trolley designed for the STILL LiftRunner tugger train system.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 33 inch

Length: 50 inch

Load capacity: 1102 lbs

Transportation method: LiftRunner Frames, Manual

Caster size: 8 inch

Caster Type: Nylon

More info

This pallet trolley is designed to transport pallets and containers. It is designed to fit the the STILL LiftRunner Tugger Train System. This solution was purchased by Donaldson Filtration Systems in Italy.

Parts included

FlexBeam™ 1190 mm 4 Q-001-1300

FlexBeam™ 840 mm 2 Q-001-1305

FlexPlate™ 4 Q-002-1001

Polyamide Caster 200 mm with Brake 2 Q-004-1351

Polyamide Caster 200 mm without Brake 2 Q-004-1352

Collet - 35 mm 4 Q-005-0028

Pallet Guide Wheel Attachment Right 2 Q-005-0062

Pallet Guide Wheel Attachment Left 2 Q-005-0063

Tugger Train opener - 35 mm 2 Q-005-0274

64 mm FlexBeam™ Collet 4 Q-005-1426

Locking Nut M10 22 Q-006-1042

Hex Head - M10 x 90 mm 4 Q-006-1132

Hex Head Fully Threaded - M10 x 50 mm 4 Q-006-1343

Extra Low Head - M10 x 90 mm 16 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 16 Q-006-1384

Countersunk Self Tapping Screw - M6 x 20 32 Q-006-1385
