Extendable Shelf Cart - 1400 x 840 mm
Extendable Shelf Cart - 1400 x 840 mm
Extendable Shelf Cart - 1400 x 840 mm
Extendable Shelf Cart - 1400 x 840 mm
Extendable Shelf Cart - 1400 x 840 mm
Q-100-1213

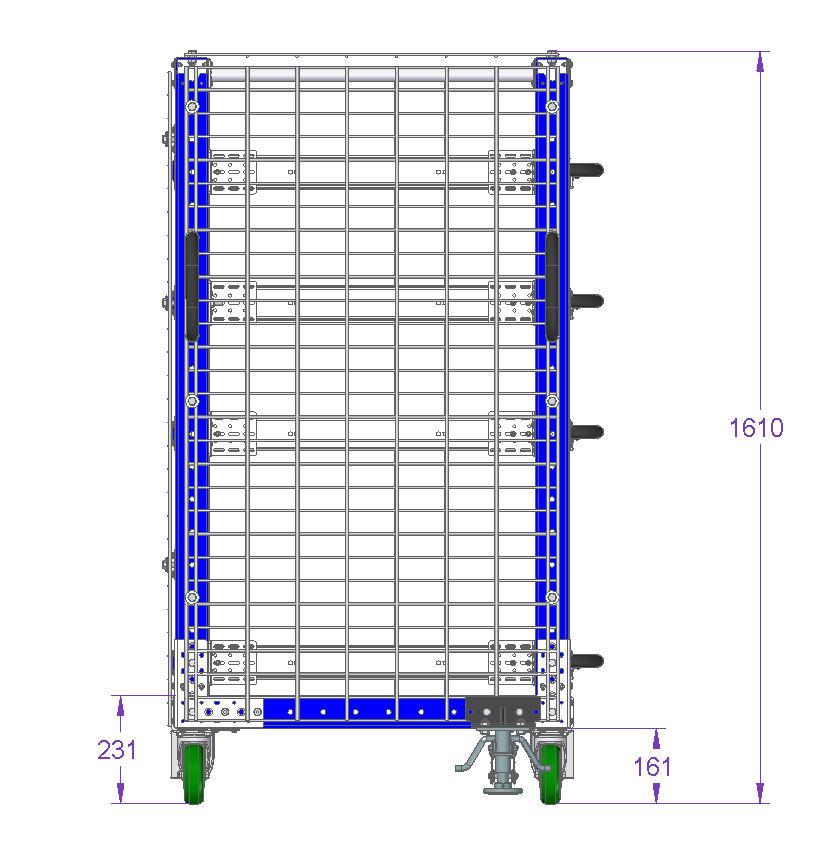

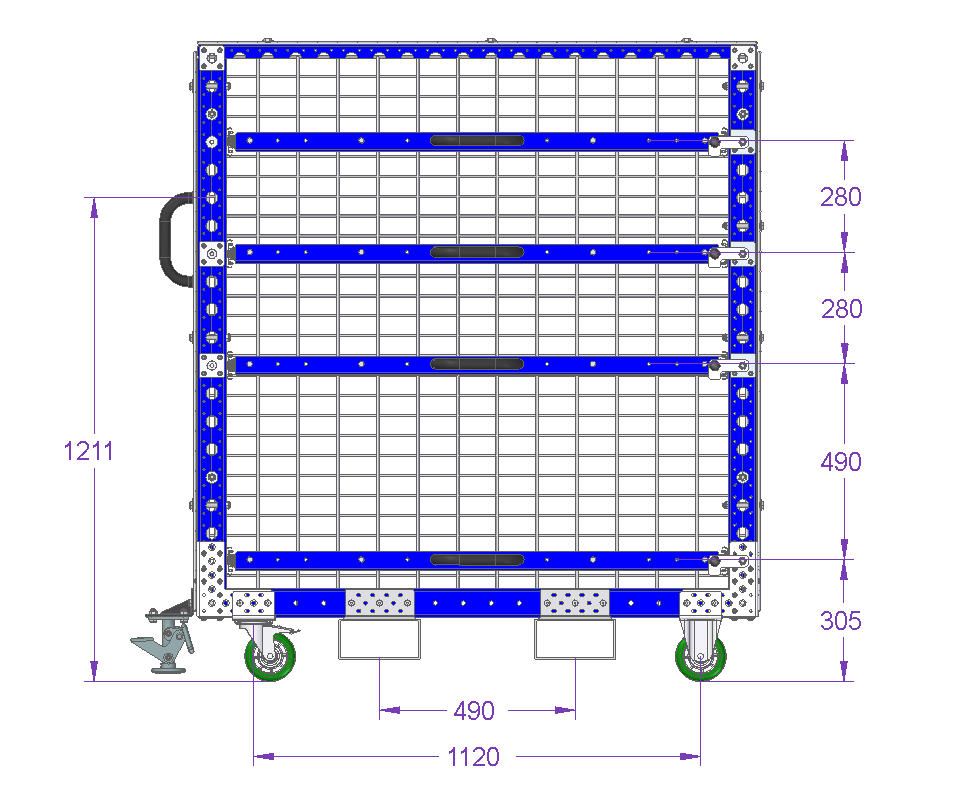

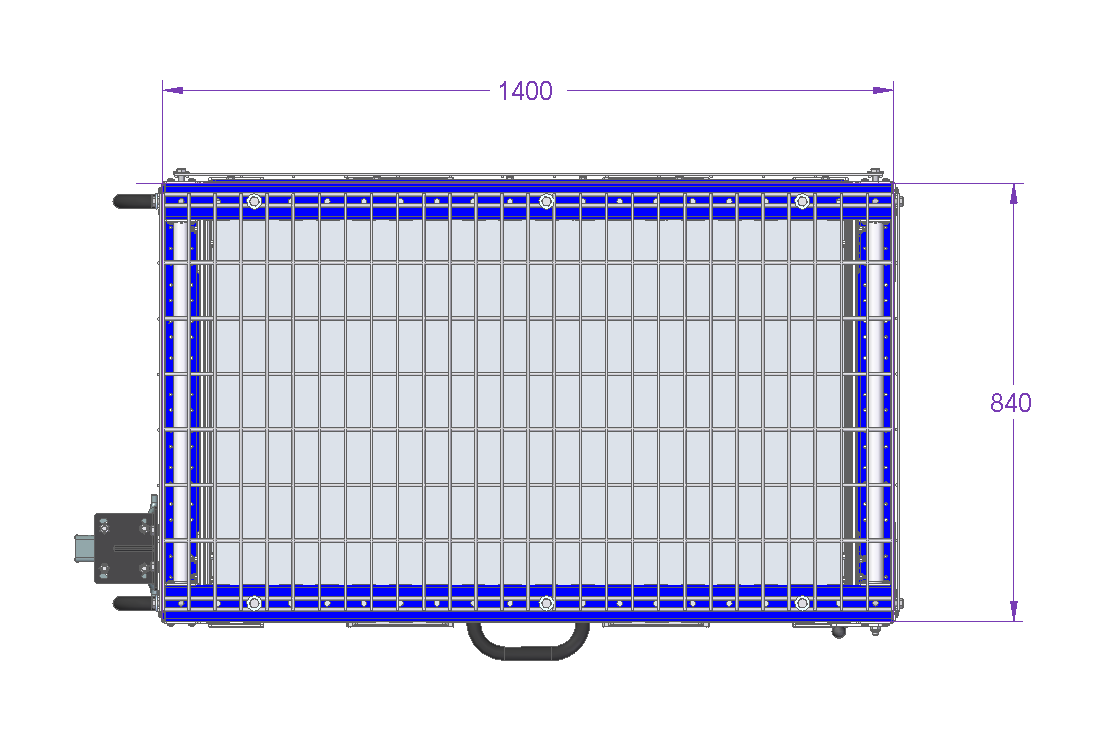

Extendable Shelf Cart - 1400 x 840 mm

Four level extendable shelf cart equipped with wire mesh, a floor brake, handlebar, fork pockets and four polyurethane casters.

Technical specifications

Category: Extendable Shelf

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 55 inch

Levels: 4

Load capacity: 882 lbs

Load Capacity per Level: 220 lbs

Width: 33 inch

Transportation method: Manual

Caster size: 5 inch

Caster Type: Polyurethane

More info

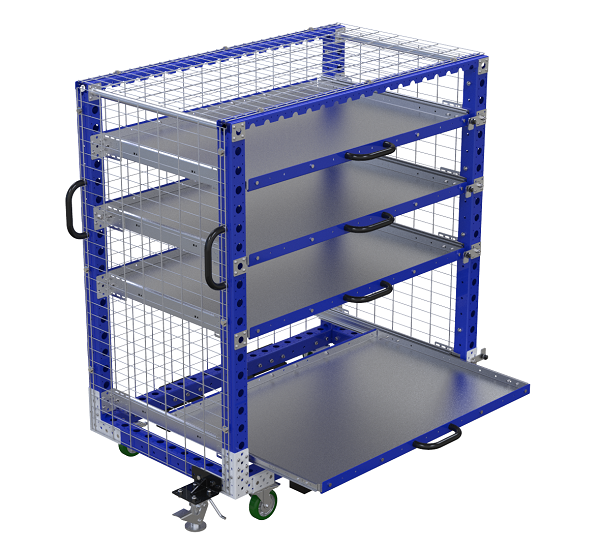

Four level extendable shelf cart with three sides plus the top covered by a wire mesh to prevent parts from falling out during transportation. The cart is also equipped with a floor brake, handlebars, fork pockets and four polyurethane casters, two fixed and two swivel.

Parts included
FlexTube™ 700 mm 2 Q-000-1002
FlexBeam™ - 1330 mm 12 Q-001-1298
FlexBeam™ 840 mm FE 2 Q-001-1405
FlexBeam™ 700 mm FE 2 Q-001-1407
FlexBeam™ - 1400 mm FE 2 Q-001-1502
FlexPlate™ 16 Q-002-1001
Flexplate™ M10 9 Q-002-1162
Caster Polyure. 125 mm 80 x 60 Fixed 2 Q-004-1221
Floor Lock COLSON 4 x 4-1/2 1 Q-004-1369
Modular attachment plate for telescopic lists 16 Q-005-0149
Caster to Beam Attachment - 80 x 60 mm 4 Q-005-0265
Wire Mesh - 1400 x 800 mm 3 Q-005-0335
Fork Tunnel US - 80 mm 4 Q-005-0431
Spherical Knob 4 Q-005-1146
Beam to Beam Corner Plate 4 Q-005-1356
Floor Brake Plate 1 Q-005-1387
64 mm FlexBeam™ Collet 24 Q-005-1426
Locking Handle Plate 4 Q-005-1880
Hex head fully threaded - M8 x 25 mm 4 Q-006-0014
M6 x 20 K6S 10.9 Round Head (black) 24 Q-006-1018
Washer 10,5 x 30 x 2,5 34 Q-006-1030
Fully Threaded - M10 x 120 mm 2 Q-006-1037
Hex Head - M10 x 25 mm 10 Q-006-1041
Locking Nut M10 70 Q-006-1042
Washer M10 16 Q-006-1043
Locking Nut M6 56 Q-006-1050
Round Head - M6 x 12 mm 32 Q-006-1051
Hex Head - M10 x 95 mm 14 Q-006-1088
Hex Head - M8 x 16 mm 48 Q-006-1120
Hex Head - M10 x 30 mm 4 Q-006-1161
Locking Nut M8 56 Q-006-1181
M8 Washer 4 Q-006-1183
M8 x 16 mm Countersunk 16 Q-006-1214
Hex Head - M10 x 100 mm 2 Q-006-1302
Extra Low Head - M10 x 90 mm 26 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 220 Q-006-1384
Low Allen Head - M10 x 16 mm 4 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410
Handle Bar 210 mm M8 6 Q-015-1037
Angled plate for telescopic - 1210 mm 8 Q-016-0072
Telescopic Shelf - 1220 x 830 mm 4 Q-016-0439
