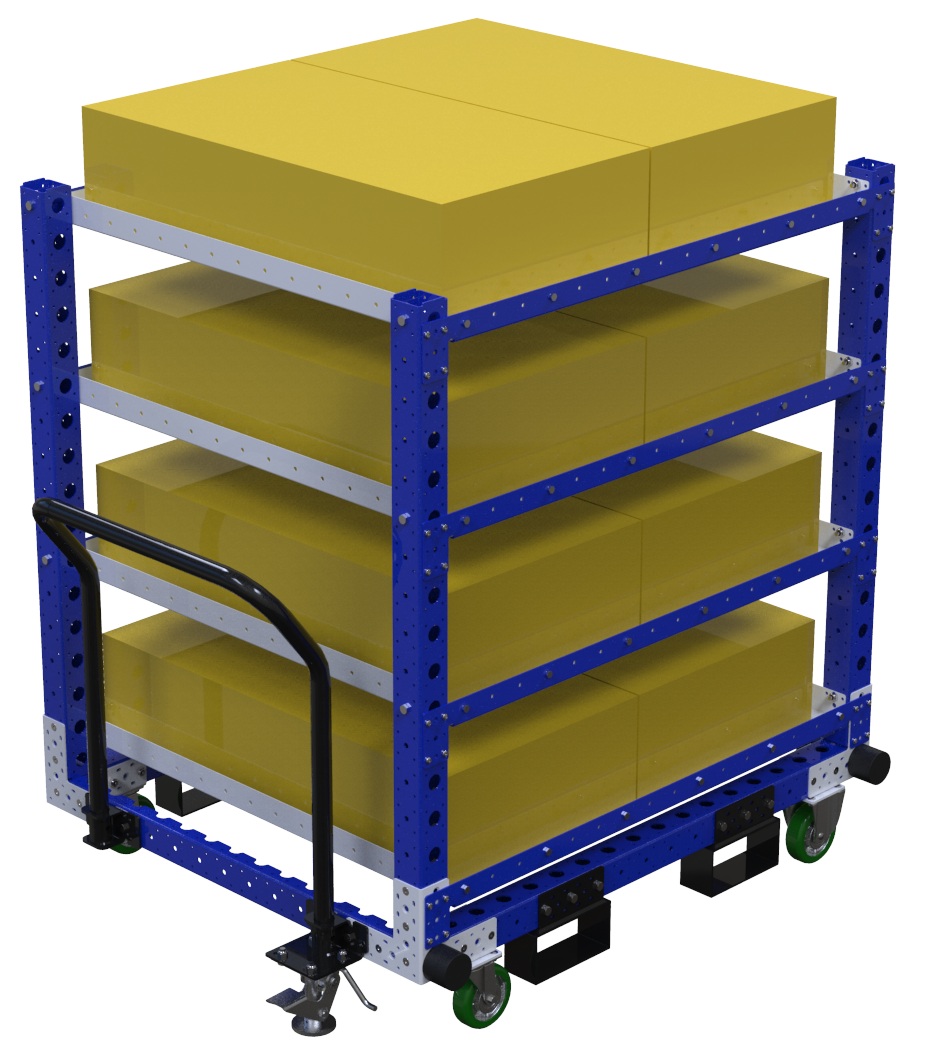

Flat Shelf Cart - 1050 x 1260 mm

4 level flat shelf cart equipped with a handlebar, floor brake and four high quality polyurethane casters.

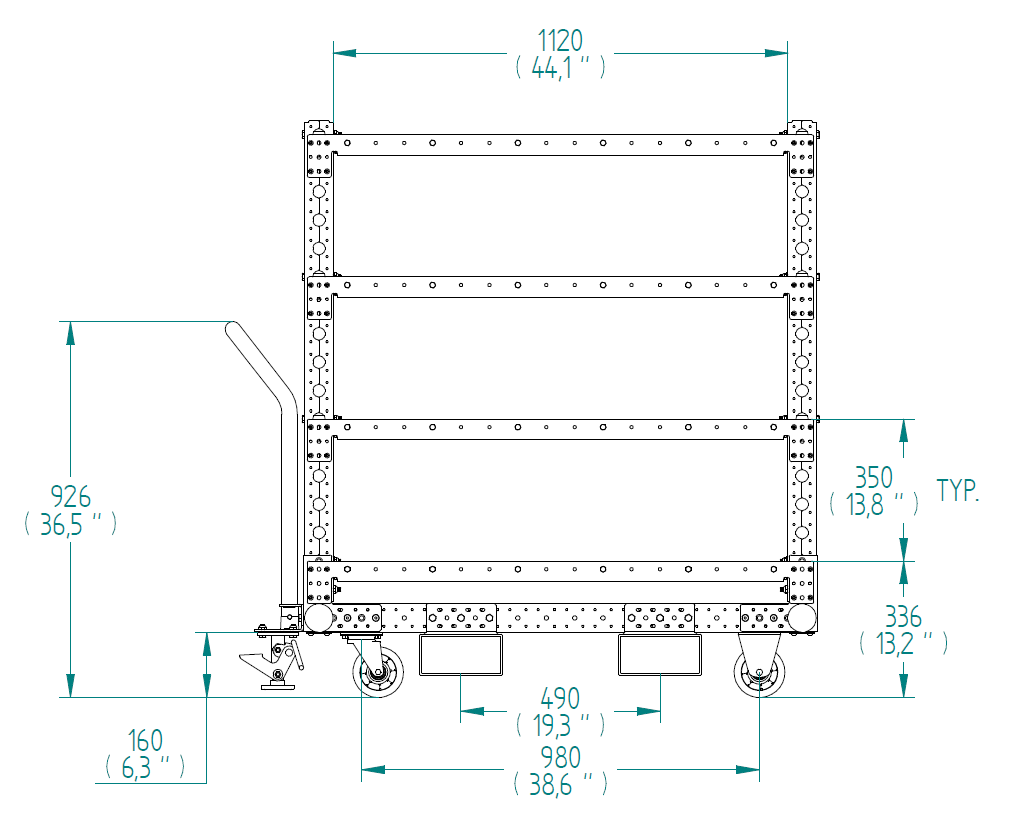

Technical specifications

Category: Flat Shelf

Transportation method: Manual

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 41 inch

Length: 50 inch

Levels: 4

Load capacity: 1199 lbs

Load Capacity per Level: 300 lbs

Caster size: 5 inch

Caster Type: Polyurethane

More info

4 level flat shelf cart commonly used for transportation of totes/bins/boxes or loose components. The cart is also equipped with a floor brake, a handlebar. fork pockets and four high quality polyurethane casters.

Parts included
FlexPlate™ 4 Q-002-1001
Flexplate™ M10 2 Q-002-1162
Caster Polyurathane 125 mm 80 x 60 Swivel 2 Q-004-1220
Caster Polyure. 125 mm 80 x 60 Fixed 2 Q-004-1221
Floor Lock COLSON 4 x 4-1/2 1 Q-004-1369
Caster to Beam Attachment - 80 x 60 mm 4 Q-005-0265
Fork Tunnel US - 80 mm 4 Q-005-0431
Rubber Damper Threaded Stud - 70 x 55 mm 2 Q-005-0743
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 36 Q-005-1426
Hex Head - M10 x 25 mm 8 Q-006-1041
Locking Nut M10 60 Q-006-1042
Hex Head - M8 x 16 mm 48 Q-006-1120
Hex Head - M10 x 90 mm 24 Q-006-1132
Locking Nut M8 64 Q-006-1181
M8 Washer 24 Q-006-1183
M8 x 16 mm Countersunk 16 Q-006-1214
Extra Low Head - M10 x 90 mm 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 84 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 10 Q-006-1410
Handlebar / Floor Brake Attachment US 1 Q-015-0029
Handlebar Attachment US 1 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
Flat Shelf - 1050 x 1120 mm 4 Q-016-0874
Angled Plate - 1248 mm 8 Q-016-1238
FlexBeam™ - 1190 mm 4 Q-020-1190
FlexBeam FE - 1050 mm 2 Q-021-1050
