Q-100-0813

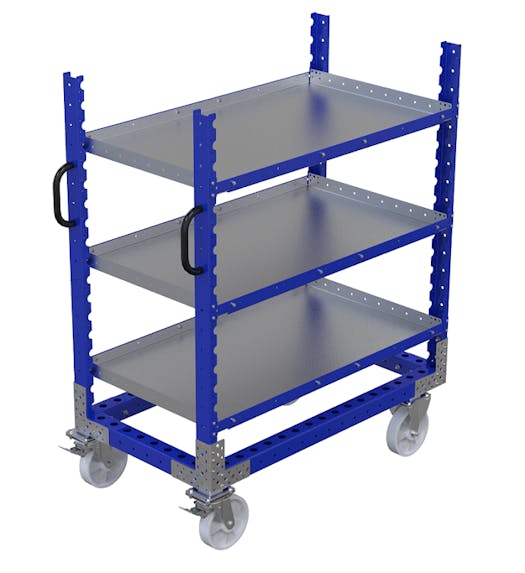

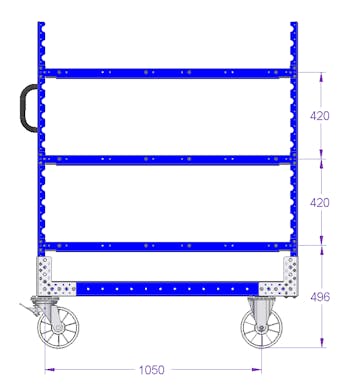

Flat Shelf Cart - 1260 x 700 mm

Simply designed flat shelf cart for transporting bins and boxes.

Technical specifications

Category: Flat Shelf

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery

Width: 28 inch

Length: 50 inch

Load capacity: 661 lbs

Levels: 3

Load Capacity per Level: 220 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Nylon

Type of Load: Bins, Boxes, Misc parts, Totes

More info

This flat shelf cart is equipped with three shelves for storing bins and boxes. The height of the shelves can be easily adjusted higher or lower. More shelves can also be added to this cart by just bolting them into the frame. This cart is also equipped with two handles for easier manual pushing by operators.

Parts included
FlexBeam™ 1190 mm 4 Q-001-1300
FlexBeam™ 700 mm FE 2 Q-001-1407
FlexBeam™ 560 mm FE 2 Q-001-1409
FlexBeam™ 1260 mm FE 4 Q-001-1500
FlexPlate™ 12 Q-002-1001
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Polyamide Caster 200 mm with Brake 2 Q-004-1351
Polyamide Caster 200 mm Fixed 2 Q-004-1354
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 14 Q-005-1426
M6 x 20 K6S 10.9 Round Head (black) 16 Q-006-1018
Locking Nut M10 44 Q-006-1042
Washer M10 32 Q-006-1043
Hex Head - M8 x 16 mm 28 Q-006-1120
Hex Head - M10 x 30 mm 16 Q-006-1161
Locking Nut M8 24 Q-006-1181
M8 Washer 4 Q-006-1183
Extra Low Head - M10 x 90 mm 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 60 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410
Handle Bar 210 mm M8 2 Q-015-1037
Flat Shelf - 1190 x 700 mm 3 Q-016-0009
Shelf Edge Lip - 1250 mm 6 Q-016-1239
