Q-007-3068

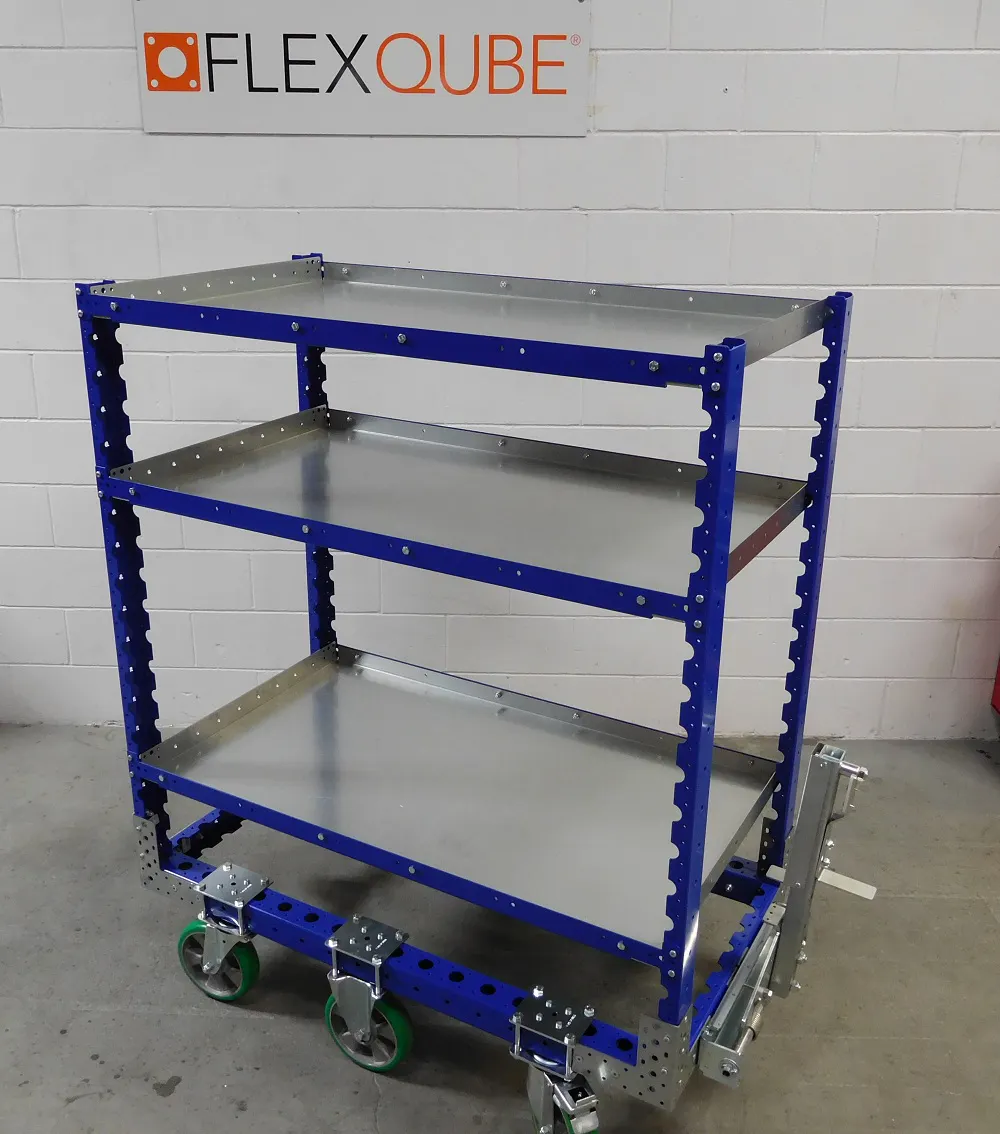

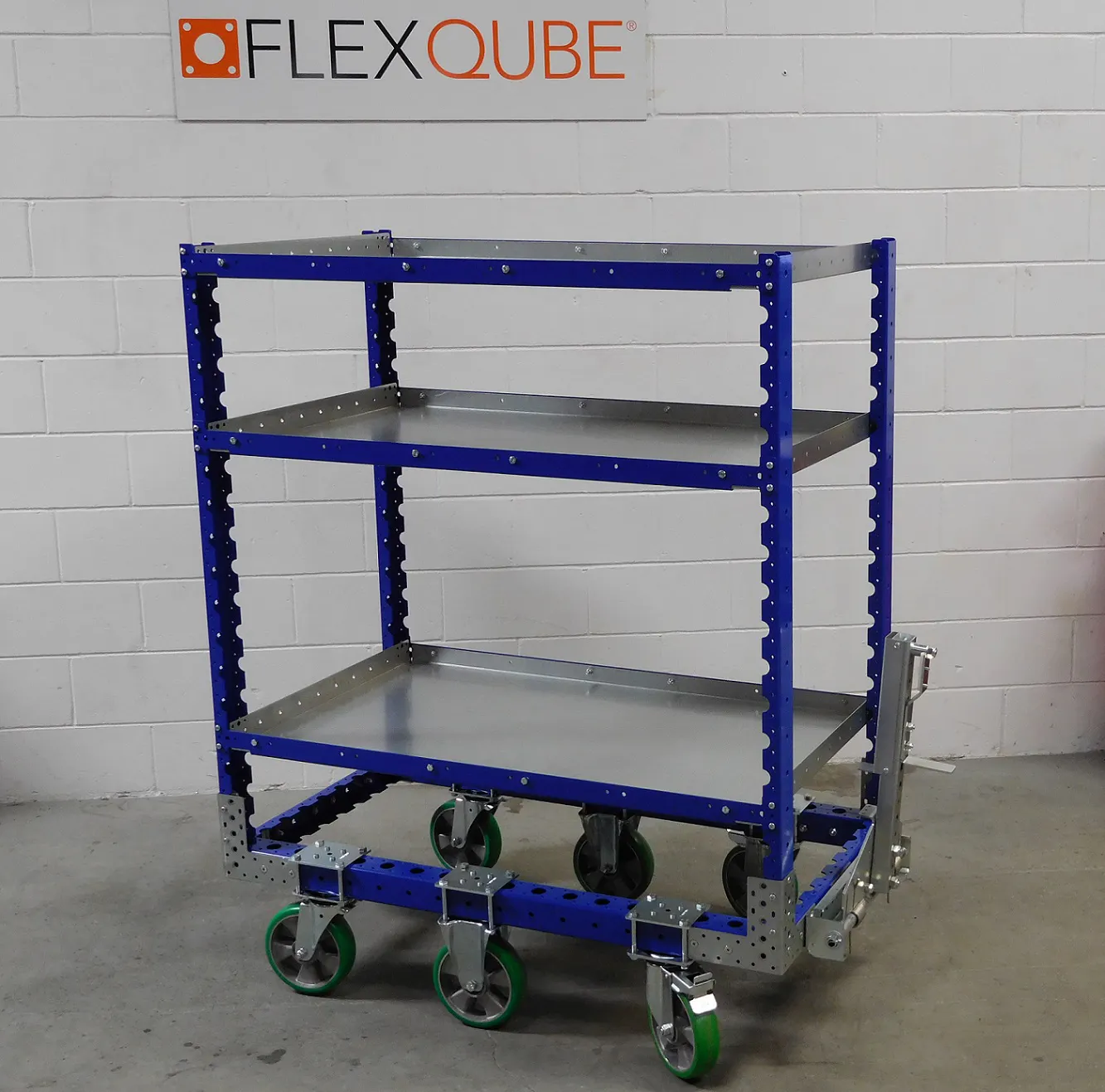

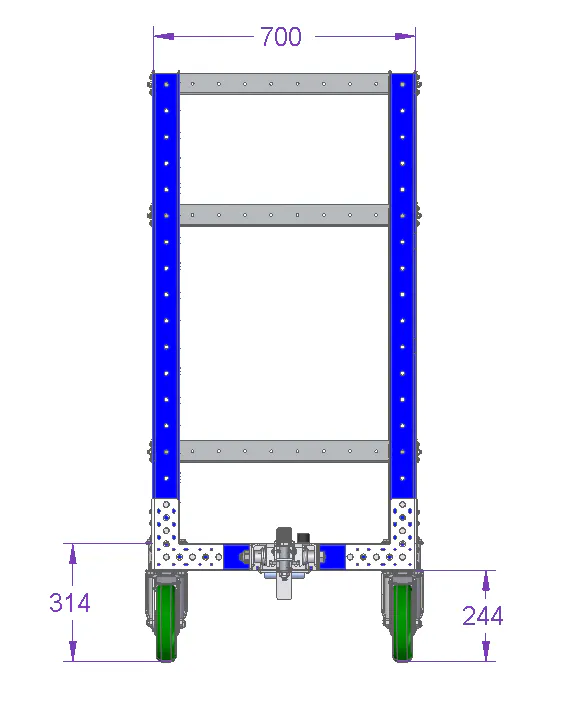

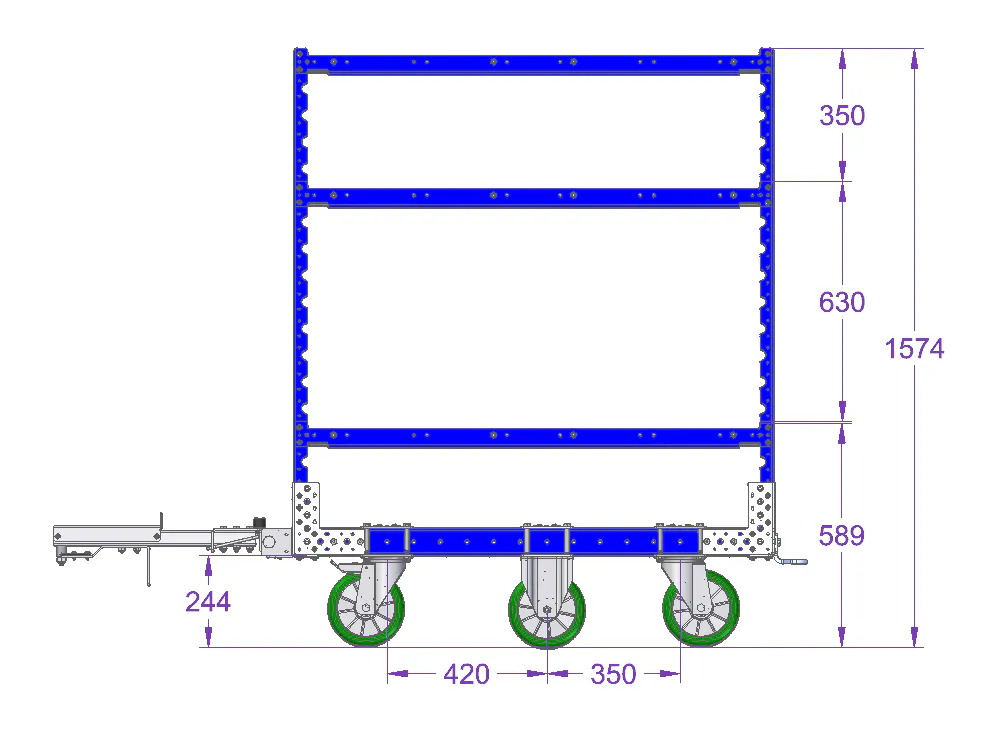

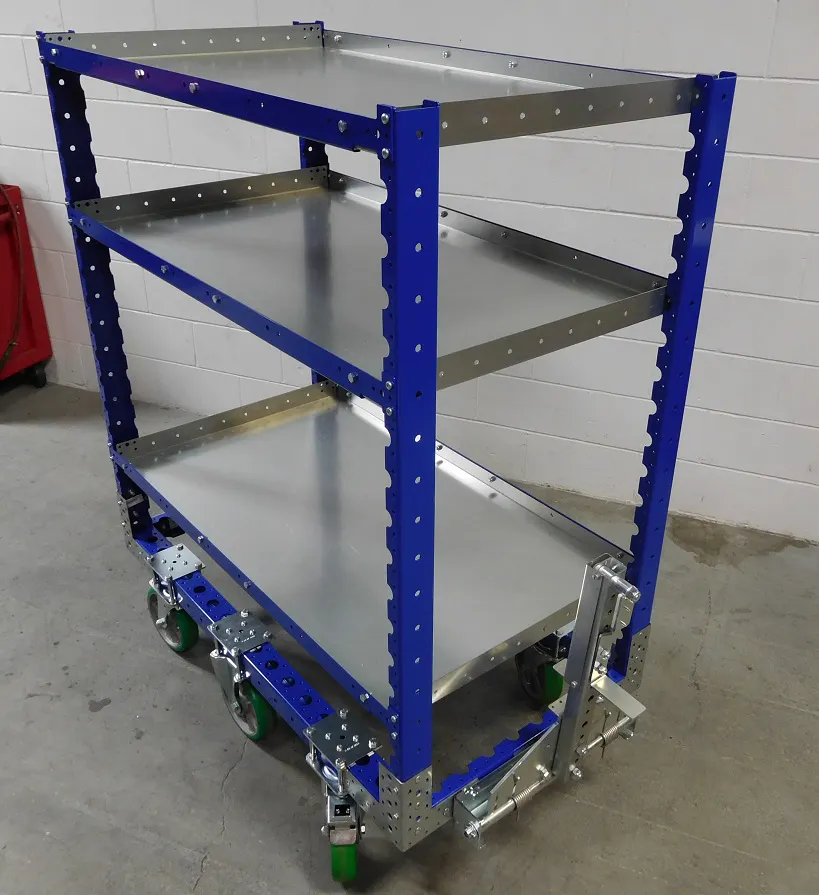

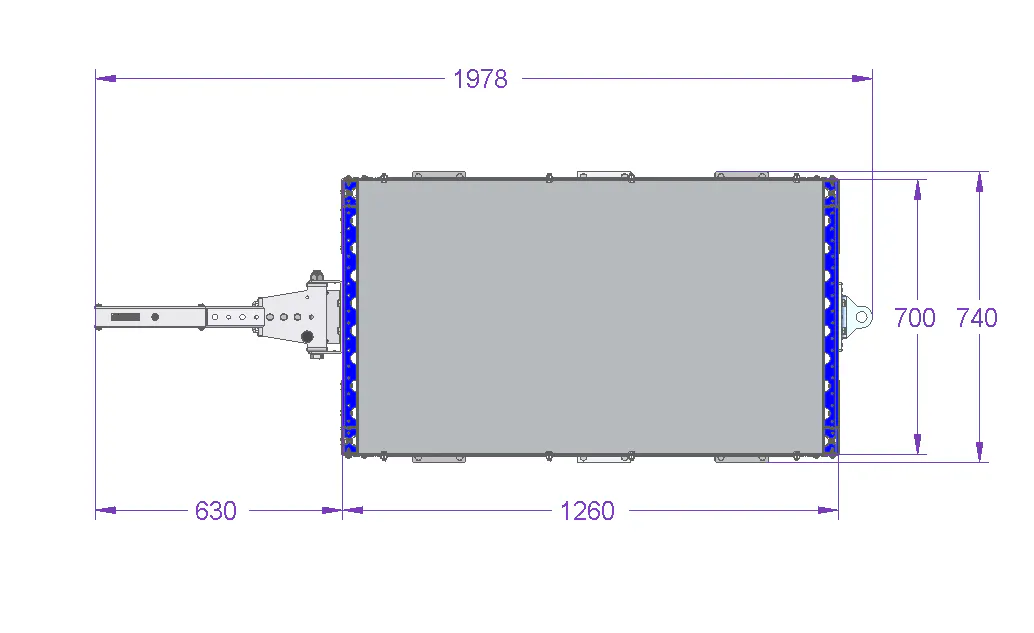

Flat Shelf Cart w. tugger 1260 x 700 mm

Standard flat shelf cart with three flat shelves for transporting bins, totes, and boxes.

Technical specifications

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Transportation method: Tugger

Width: 28 inch

Length: 50 inch

Load capacity: 661 lbs

Caster size: 8 inch

Caster Type: Polyurethane

More info

This flat shelf cart is equipped with three flat shelves for transporting totes, bins, and boxes. It is equipped with a foot release tow bar for transportation using a tugger train system. The purpose of the foot release is to improve ergonomics and reduce bending and flexing by the operators.

Parts included

FlexBeam™ 1190 mm 4 Q-001-1300

FlexBeam™ 700 mm FE 2 Q-001-1407

FlexBeam™ 1260 mm FE 4 Q-001-1500

FlexPlate™ 4 Q-002-1001

Wheel Attachment - 105 x 77,5 mm 8 Q-004-1065

Caster Polyurethane 200 mm with Brake 2 Q-004-1099

Caster Polyurethane - 200 mm 2 Q-004-1100

Caster Polyurethane 200 mm Fixed 2 Q-004-1101

M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648

Spring Cover Plate 1 Q-005-1025

Beam to Beam Corner Plate 4 Q-005-1356

Hex Head M14 x 90 mm 1 Q-005-1406

64 mm FlexBeam™ Collet 8 Q-005-1426

Washer 10,5 x 30 x 2,5 1 Q-006-1030

Locking Nut M14 1 Q-006-1039

Hex Head - M10 x 25 mm 4 Q-006-1041

Locking Nut M10 61 Q-006-1042

Washer M10 2 Q-006-1043

Hex Head - M10 x 95 mm 8 Q-006-1088

Hex Head - M8 x 16 mm 24 Q-006-1120

Hex Head - M10 x 90 mm 16 Q-006-1132

Locking Nut M8 25 Q-006-1181

Extra Low Head - M10 x 90 mm 8 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 90 Q-006-1384

Extra Low Head Allen - M10 x 25 mm 20 Q-006-1410

Hex Head Fully Threaded - M10 x 60 mm 5 Q-006-1502

Spring 1,5 x 15yd x 70 1 Q-012-1141

Flat Shelf - 1190 x 700 mm 3 Q-016-0009

Shelf Edge Lip - 1250 mm 6 Q-016-1239

Foot Release Locking Lip 1 Q-017-0024

US Modular Tow Bar VKR - Foot Release - 530 mm 1 Q-017-0025

Tow Hinge Module 1 Q-017-0059

Locking lip attachment 1 Q-017-1043

Tow Hole 28 mm - Symmetric 1 Q-017-1066

Towing Lock Pin US 1 Q-017-1105

39 mm Sleeve for M10 US 2 Q-017-1106
