Q-007-1814

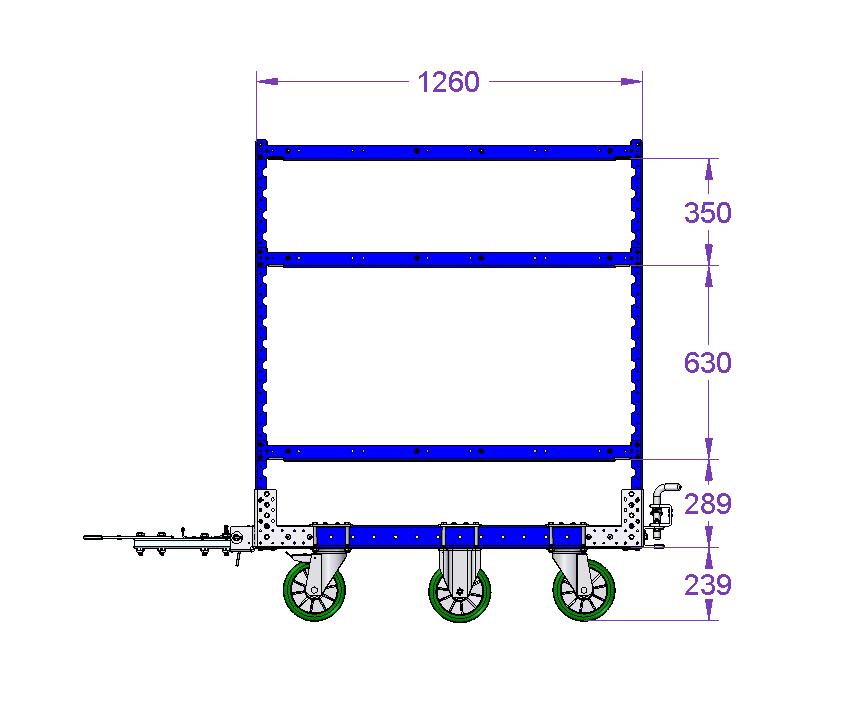

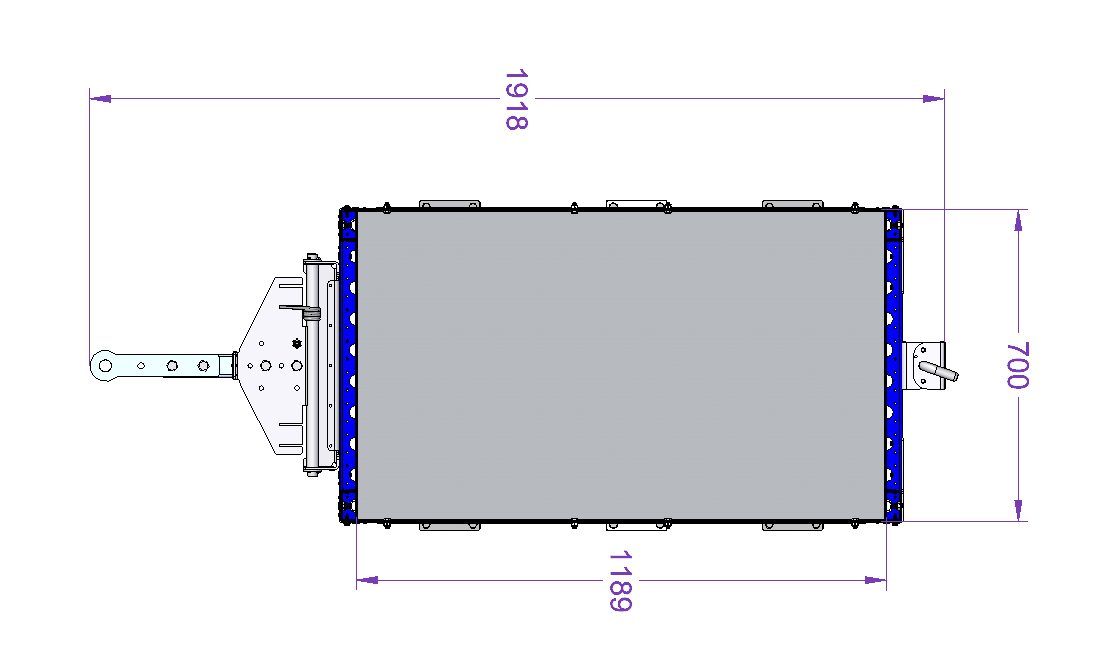

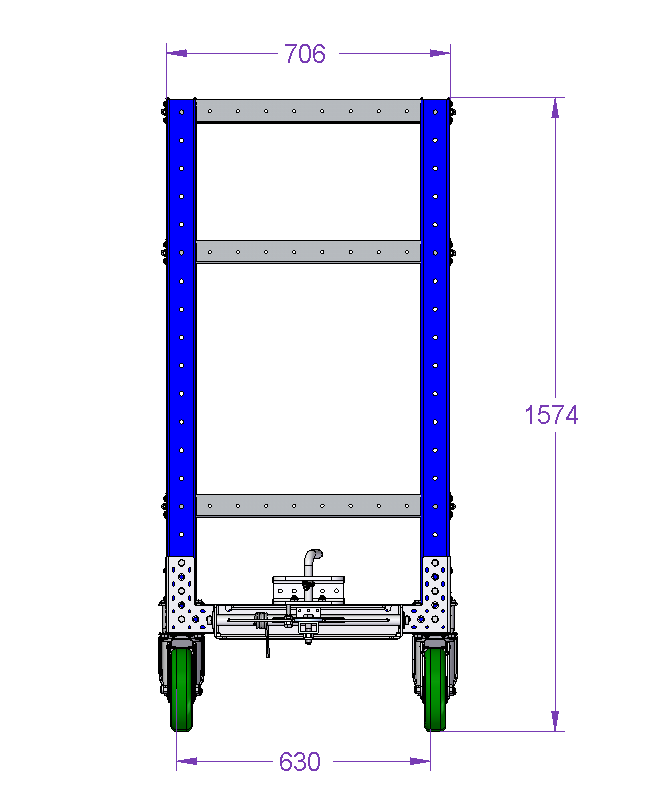

Tugger Shelf Cart 1260 x 700 mm

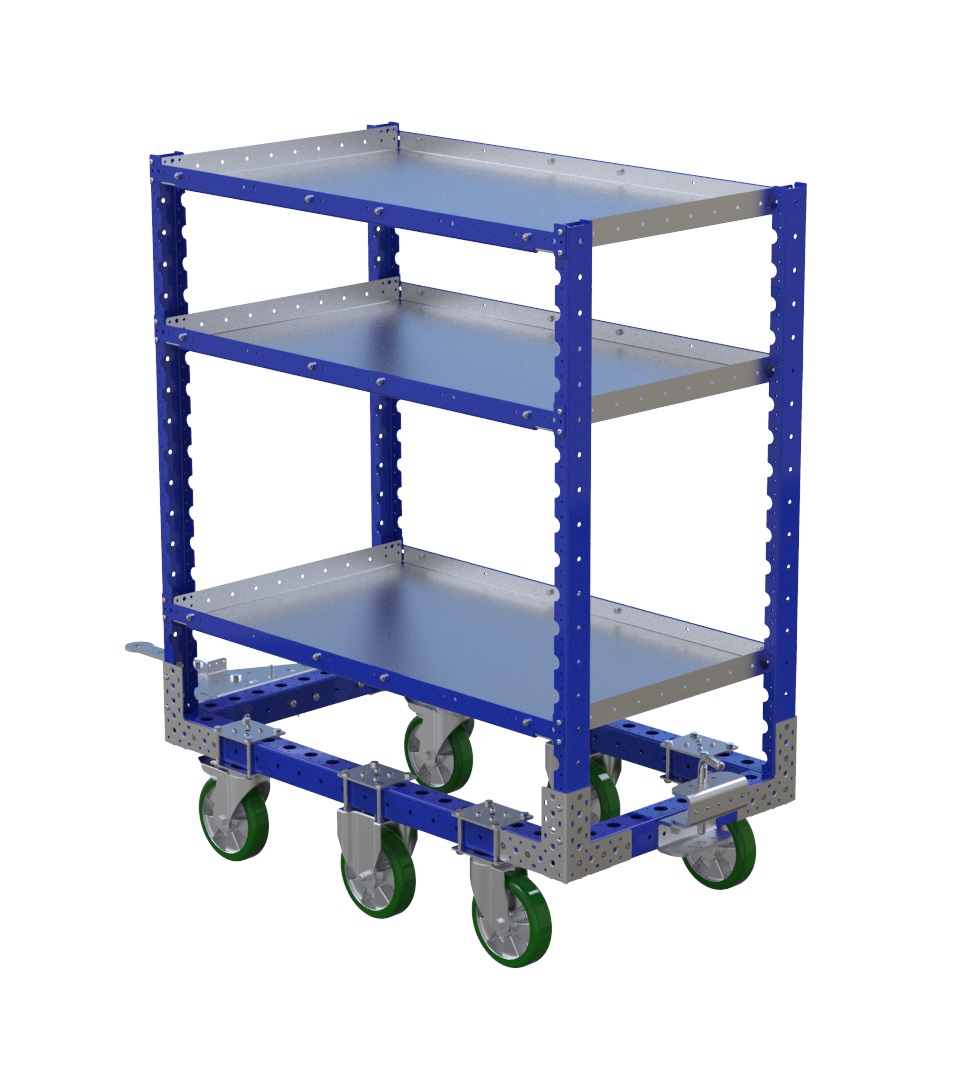

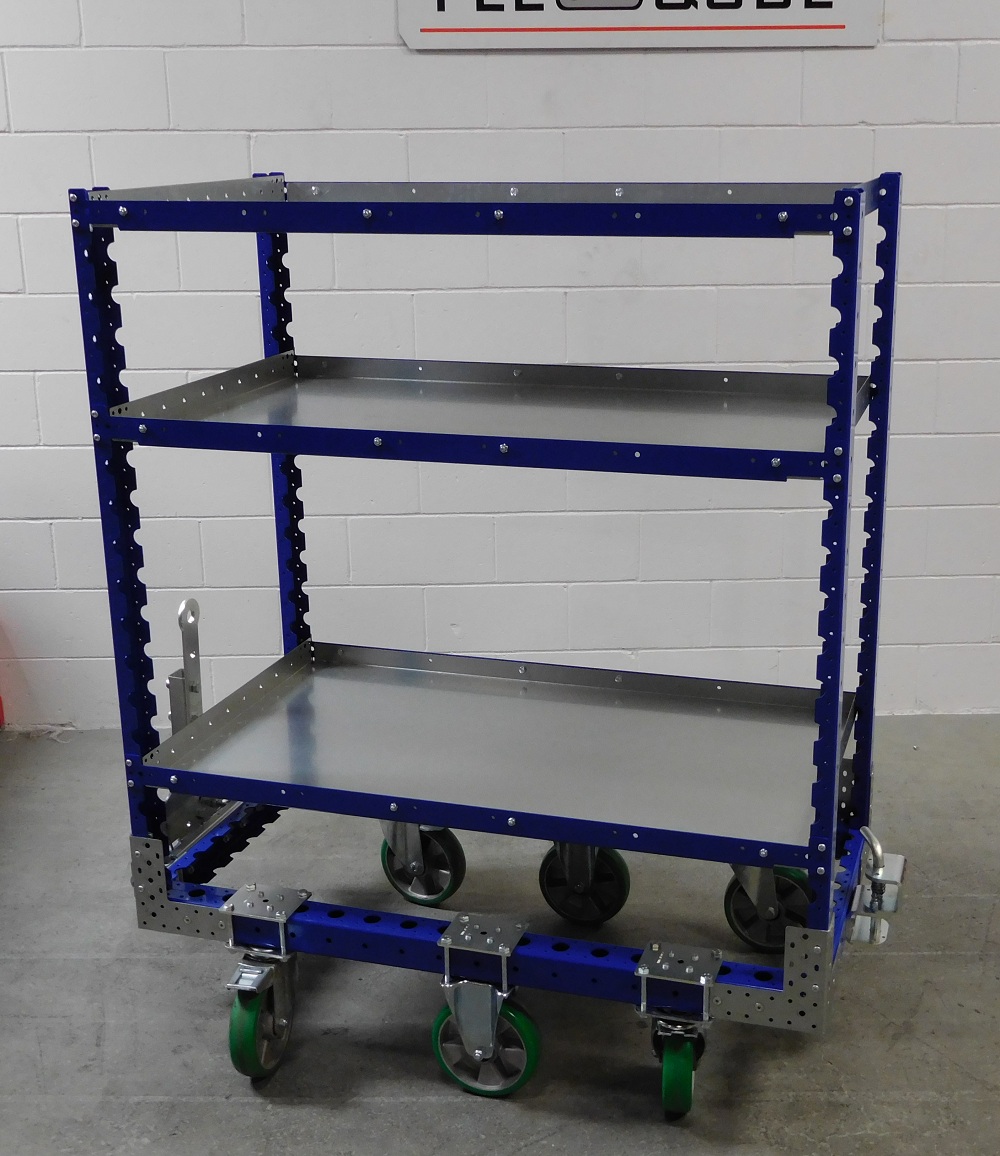

Standard flat shelf cart equipped with three flat shelves.

Technical specifications

Category: Flat Shelf

Type of tow bar: Tongue and Hitch

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 50 inch

Levels: 3

Load capacity: 441 lbs

Width: 28 inch

Load Capacity per Level: 154 lbs

Transportation method: Manual, Tugger

Caster size: 8 inch

Caster Type: Polyurethane

More info

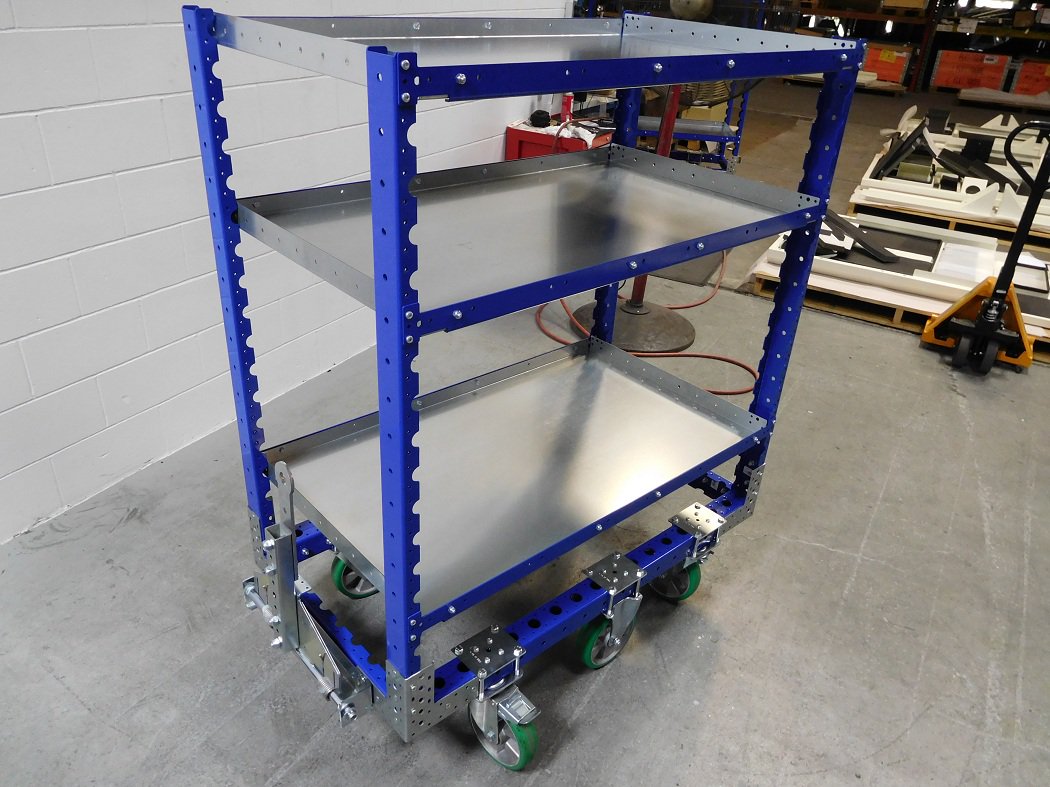

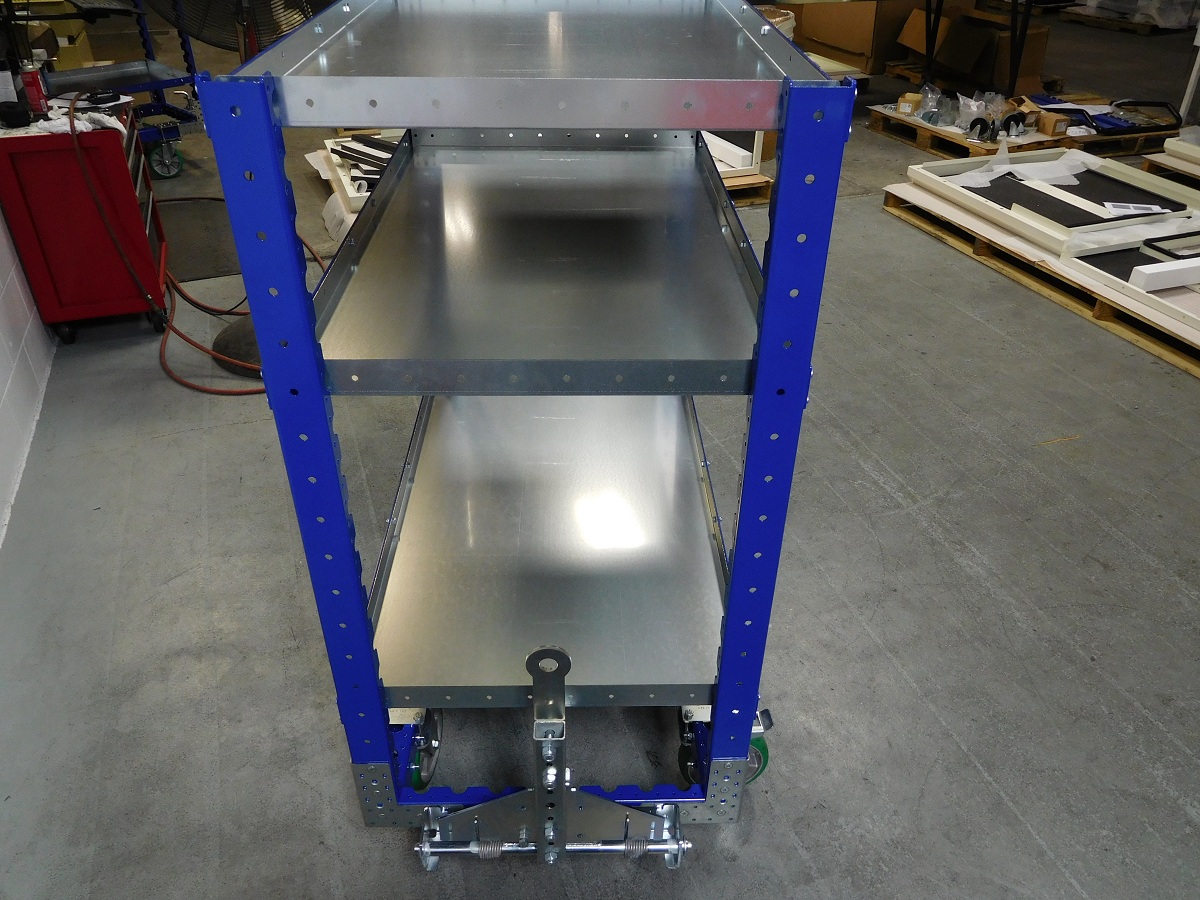

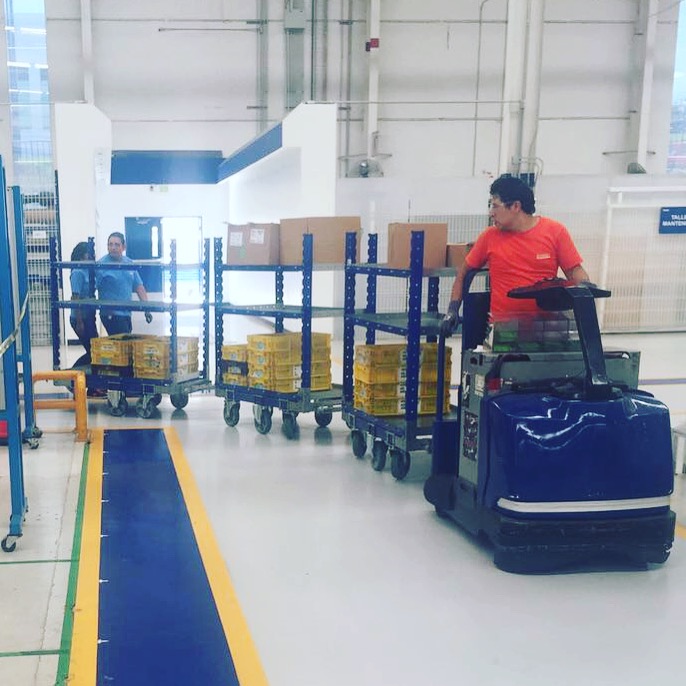

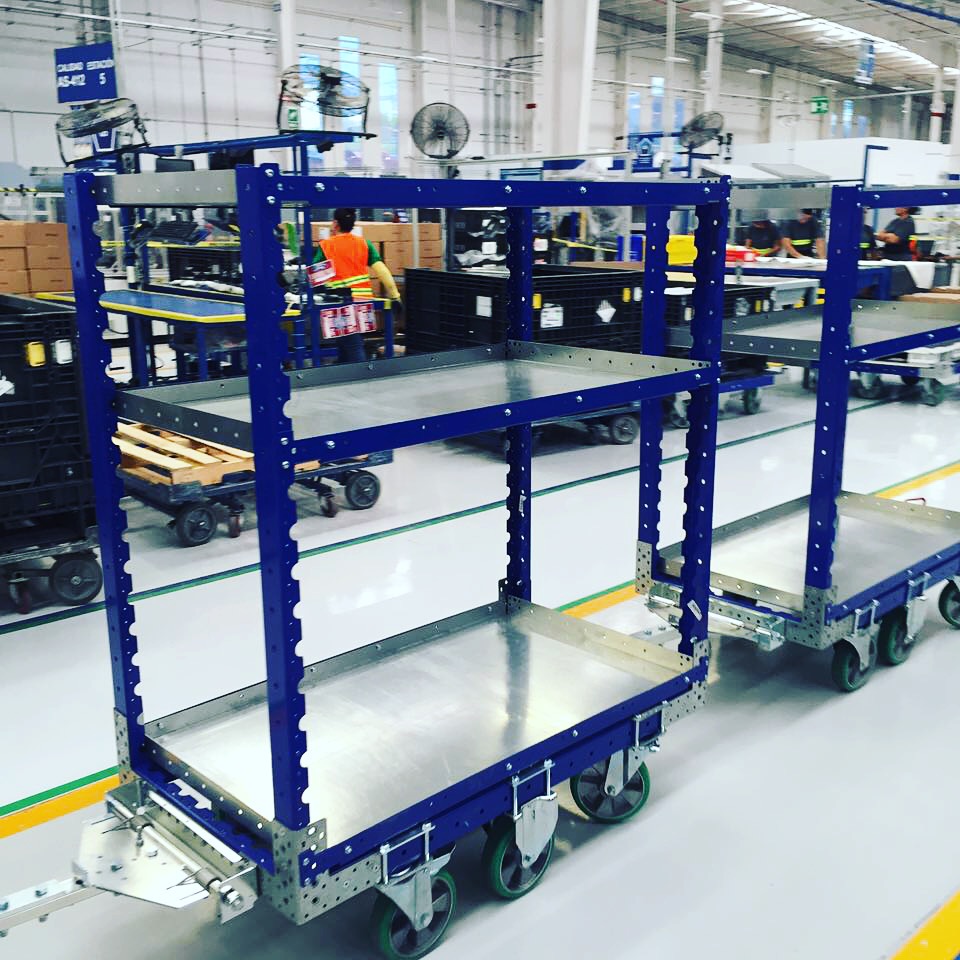

This flat shelf cart was designed to transport totes, bins and boxes. The height of the three flat shelves can be easily adjusted depending on your materials. This cart comes equipped with a drop pin and hitch tow bar for transportation via a tugger train system. It also comes with six high quality polyurethane casters for better tracking when being towed within a tugger train.

Parts included

FlexBeam™ 1190 mm 4 Q-001-1300

FlexBeam™ 700 mm FE 2 Q-001-1407

FlexBeam™ 560 mm FE 2 Q-001-1409

FlexBeam™ 1260 mm FE 4 Q-001-1500

FlexPlate™ 8 Q-002-1001

Wheel Attachment - 105 x 77,5 mm 8 Q-004-1065

Caster Polyurethane 200 mm with Brake 2 Q-004-1099

Caster Polyurethane - 200 mm 2 Q-004-1100

Caster Polyurethane 200 mm Fixed 2 Q-004-1101

Towing VKR - 320 mm 1 Q-005-0103

M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648

Towing Hole 2 Q-005-1056

Beam to Beam Corner Plate 4 Q-005-1356

64 mm FlexBeam™ Collet 20 Q-005-1426

Allen Head - M6 x 30 mm 1 Q-006-1012

Washer 10,5 x 30 x 2,5 1 Q-006-1030

Hex Head - M14 x 60 mm 4 Q-006-1036

Locking Nut M14 4 Q-006-1039

Locking Nut M10 58 Q-006-1042

Locking Nut M6 1 Q-006-1050

Hex Head - M10 x 95 mm 8 Q-006-1088

Hex Head - M8 x 16 mm 24 Q-006-1120

Hex Head - M10 x 90 mm 20 Q-006-1132

Hex Head - M10 x 30 mm 2 Q-006-1161

Locking Nut M8 25 Q-006-1181

Extra Low Head - M10 x 90 mm 16 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 88 Q-006-1384

Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410

Compression Spring for US Tow Hitch 1 Q-012-0007

Flat Shelf - 1190 x 700 mm 3 Q-016-0009

Shelf Edge Lip - 1250 mm 6 Q-016-1239

Handle for Tow Hole 1 Q-017-0022

Tow Hinge Module 1 Q-017-0059

Towing Lip - 28 mm 1 Q-017-1010
