Q-007-1803

Flat Shelf Cart 1260 x 840 mm

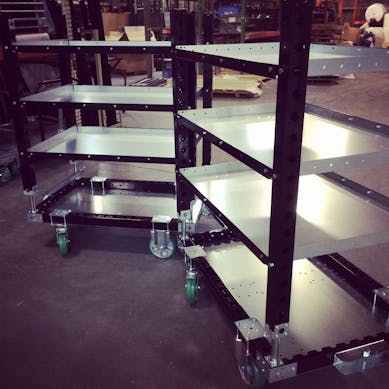

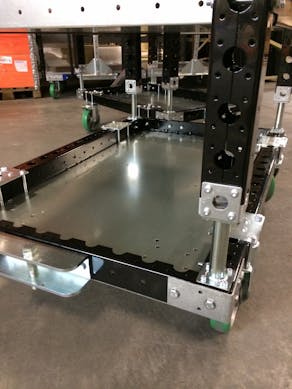

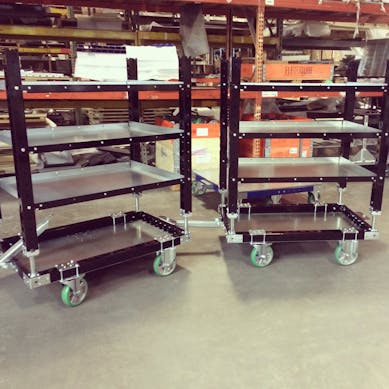

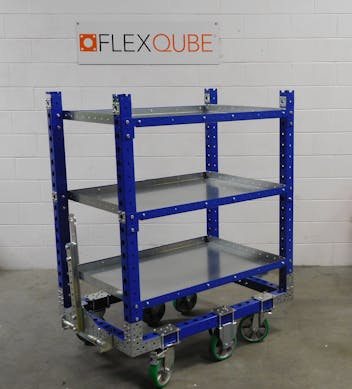

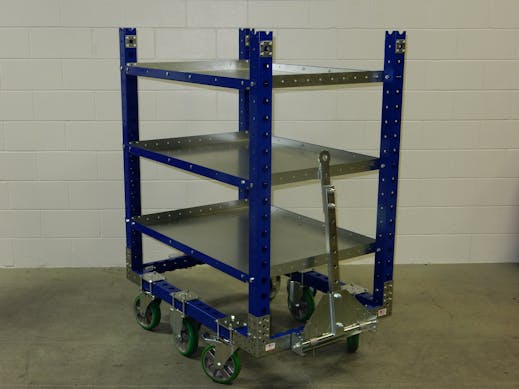

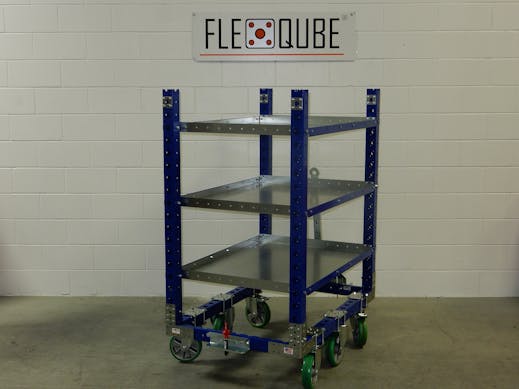

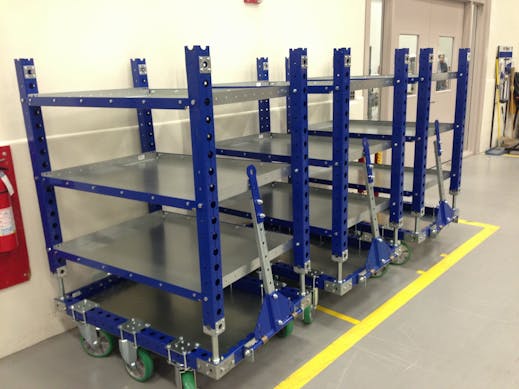

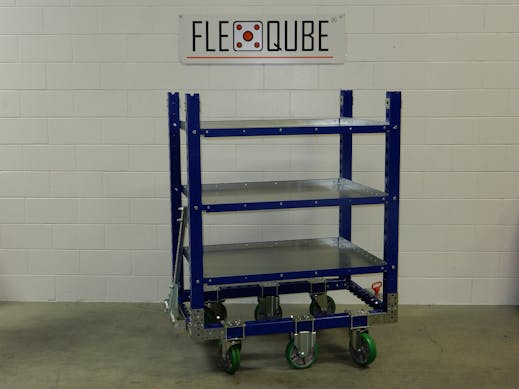

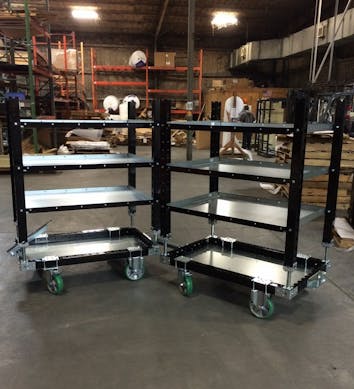

Tuggable three level flat shelf cart equipped with six polyurethane casters, two fixed and four swivel.

Technical specifications

Transportation method: Manual, Tugger

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Category: Flat Shelf

Length: 50 inch

Width: 33 inch

Load capacity: 661 lbs

Levels: 3

Load Capacity per Level: 220 lbs

Type of tow bar: Tongue and Hitch

Caster size: 8 inch

Caster Type: Polyurethane

More info

Tuggable robust three-level flat shelf cart most commonly used for the transportation of totes, boxes and smaller containers. The cart is equipped with a tow bar and six high-quality polyurethane casters giving it excellent tracking properties and silent movement when connected in a train.

Parts included

FlexBeam™ - 1330 mm 8 Q-001-1298

FlexBeam™ 1190 mm 4 Q-001-1300

FlexBeam™ 840 mm FE 2 Q-001-1405

FlexBeam™ 700 mm FE 2 Q-001-1407

FlexPlate™ 20 Q-002-1001

Wheel Attachment - 105 x 77,5 mm 6 Q-004-1065

Caster Polyurethane 200 mm with Brake 2 Q-004-1099

Caster Polyurethane - 200 mm 2 Q-004-1100

Caster Polyurethane 200 mm Fixed 2 Q-004-1101

M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648

Towing Hole 2 Q-005-1056

Beam to Beam Corner Plate 4 Q-005-1356

64 mm FlexBeam™ Collet 24 Q-005-1426

Allen Head - M6 x 30 mm 1 Q-006-1012

Washer 10,5 x 30 x 2,5 1 Q-006-1030

Hex Head - M14 x 60 mm 2 Q-006-1036

Locking Nut M14 2 Q-006-1039

Locking Nut M10 81 Q-006-1042

Washer M10 2 Q-006-1043

Locking Nut M6 1 Q-006-1050

Hex Head - M10 x 95 mm 12 Q-006-1088

Hex Head - M8 x 16 mm 24 Q-006-1120

Hex Head - M10 x 90 mm 40 Q-006-1132

Hex Head - M10 x 30 mm 2 Q-006-1161

Locking Nut M8 25 Q-006-1181

Extra Low Head - M10 x 90 mm 20 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 176 Q-006-1384

Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410

Hex Head Fully Threaded - M10 x 60 mm 3 Q-006-1502

Compression Spring for US Tow Hitch 1 Q-012-0007

Flat Shelf - 1119 x 840 mm 3 Q-016-1237

Angled Plate - 1248 mm 6 Q-016-1238

US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014

Handle for Tow Hole 1 Q-017-0022

Tow Hinge Module 1 Q-017-0059

Towing Lip - 28 mm 1 Q-017-1010
