Flat Shelf Cart - 1330 x 700 mm
Flat Shelf Cart - 1330 x 700 mm
Flat Shelf Cart - 1330 x 700 mm
Flat Shelf Cart - 1330 x 700 mm
Flat Shelf Cart - 1330 x 700 mm
Flat Shelf Cart - 1330 x 700 mm
Q-100-0589

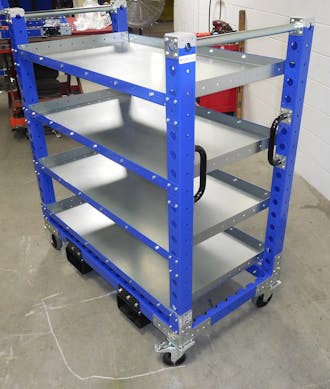

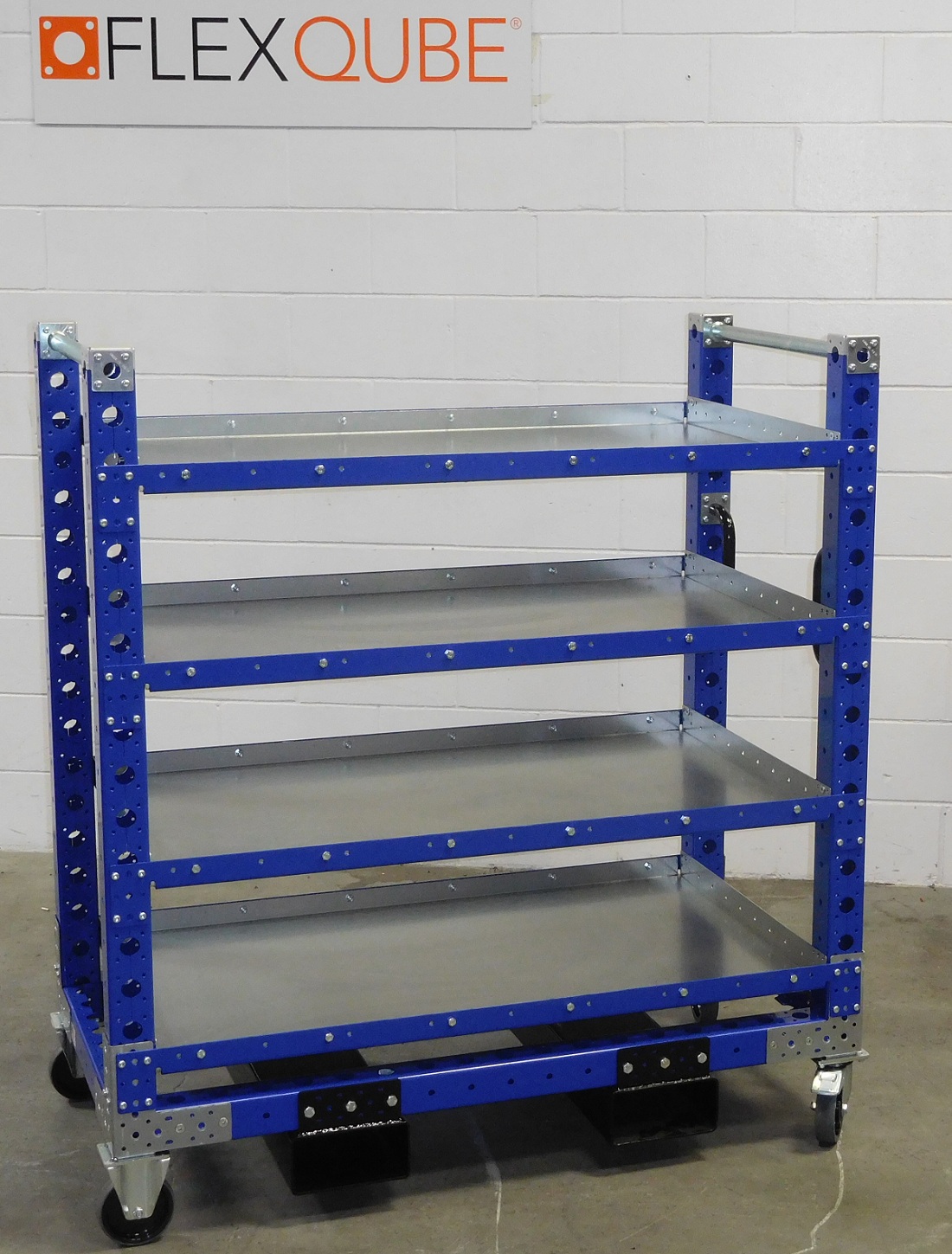

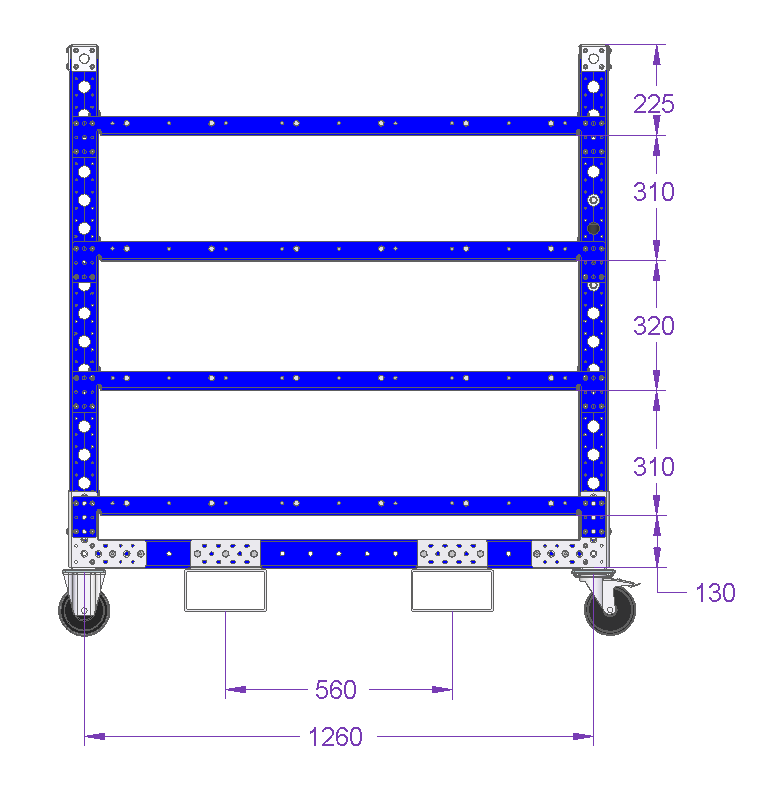

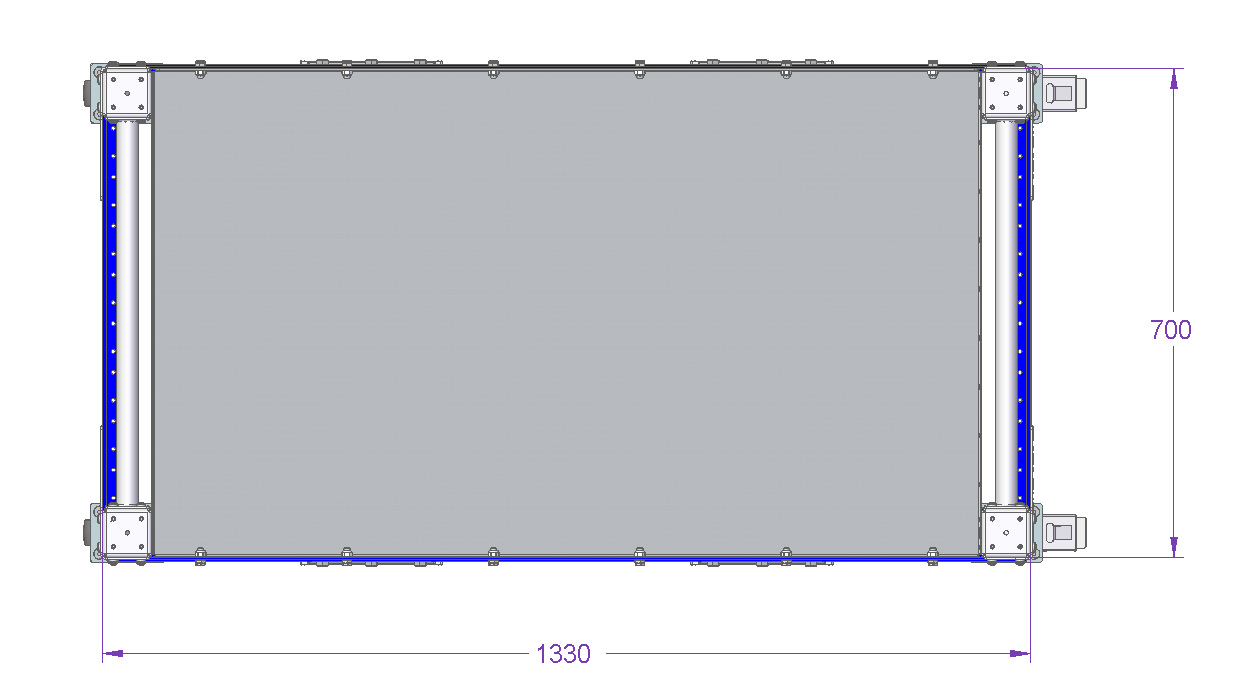

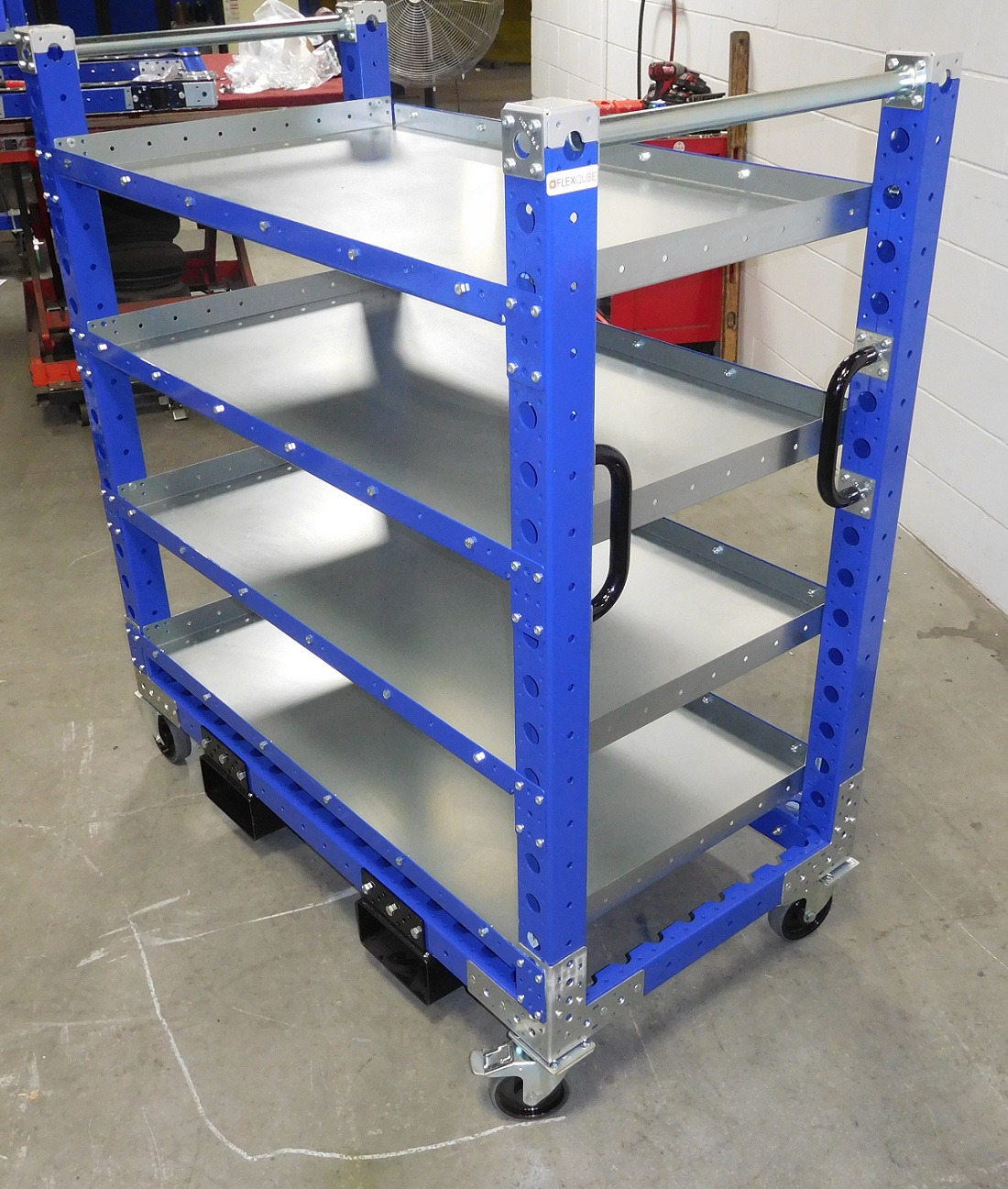

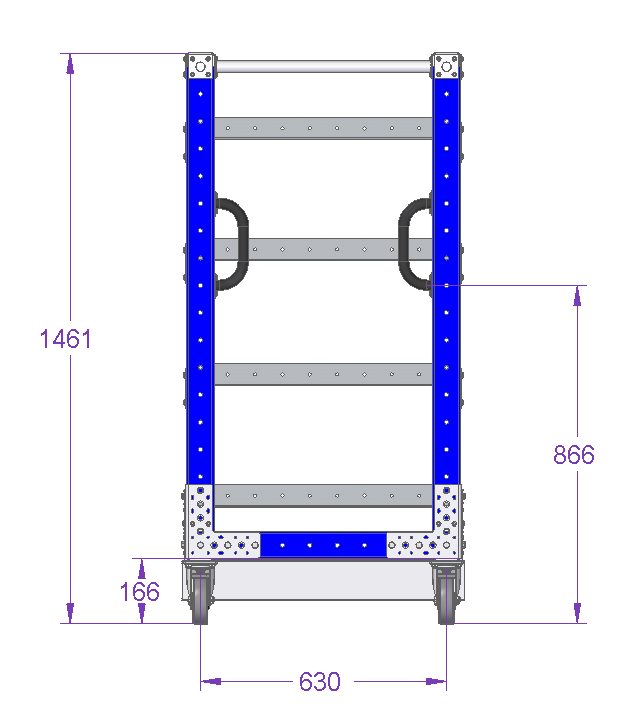

Flat Shelf Cart - 1330 x 700 mm

Custom designed flat shelf equipped with four shelves. Shelf height can easily be adjusted.

Technical specifications

Category: Flat Shelf

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 28 inch

Length: 52 inch

Levels: 4

Load capacity: 794 lbs

Load Capacity per Level: 198 lbs

Transportation method: Manual

Caster size: 5 inch

Caster Type: Gray

Type of Load: Bins, Boxes, Misc parts, Totes

More info

This flat shelf cart was designed to transport totes, bins and boxes. It is equipped four flat shelves. All of these shelves can be easily adjusted higher or lower depending on your materials. It comes with forklift tunnels in case you need to move it via forklift and make it compatible with AGVs.

Parts included
FlexTube™ 560 mm 2 Q-000-1182
FlexQube 4 Q-001-1078
FlexBeam™ - 1260 mm 4 Q-001-1299
FlexBeam™ 1190 mm 8 Q-001-1300
FlexBeam™ 700 mm FE 2 Q-001-1407
FlexPlate™ 16 Q-002-1001
Flexplate™ M10 4 Q-002-1162
125 mm Swivel Caster with Brake 2 Q-004-1364
Fixed Caster - 125 mm 2 Q-004-1365
Fork Tunnel US - 722 mm 2 Q-005-0424
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 16 Q-005-1426
Wheel Attachment - 80 x 60 mm 4 Q-005-1722
Hex Head Fully Threaded - M8 x 20 mm 4 Q-006-1019
Locking Nut M10 44 Q-006-1042
Hex Head - M8 x 16 mm 48 Q-006-1120
Hex Head - M10 x 90 mm 12 Q-006-1132
Locking Nut M8 64 Q-006-1181
M8 Washer 28 Q-006-1183
M8 x 16 mm Countersunk 16 Q-006-1214
Extra Low Head - M10 x 90 mm 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 144 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 16 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 24 Q-006-1410
Handle Bar 210 mm M8 2 Q-015-1037
Flat Shelf - 1190 x 700 mm 4 Q-016-0009
Angled Plate - 1318 mm 8 Q-016-0185
