Flat Shelf Cart - 1330 x 840 mm
Flat Shelf Cart - 1330 x 840 mm
Flat Shelf Cart - 1330 x 840 mm
Flat Shelf Cart - 1330 x 840 mm
Flat Shelf Cart - 1330 x 840 mm
Flat Shelf Cart - 1330 x 840 mm
Q-100-0697

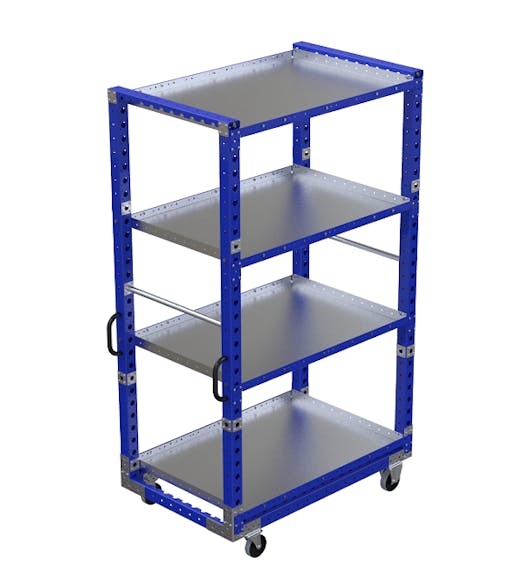

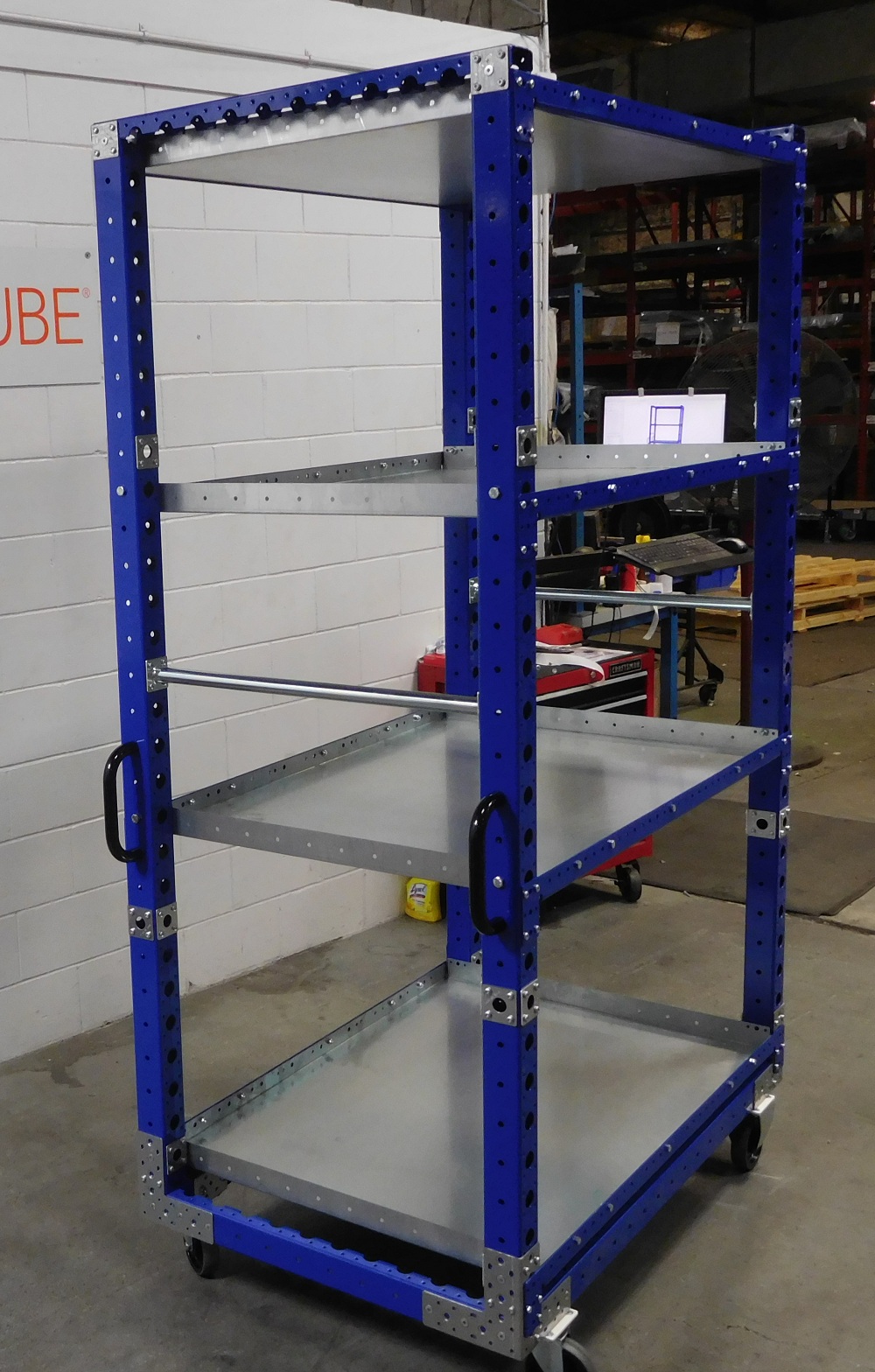

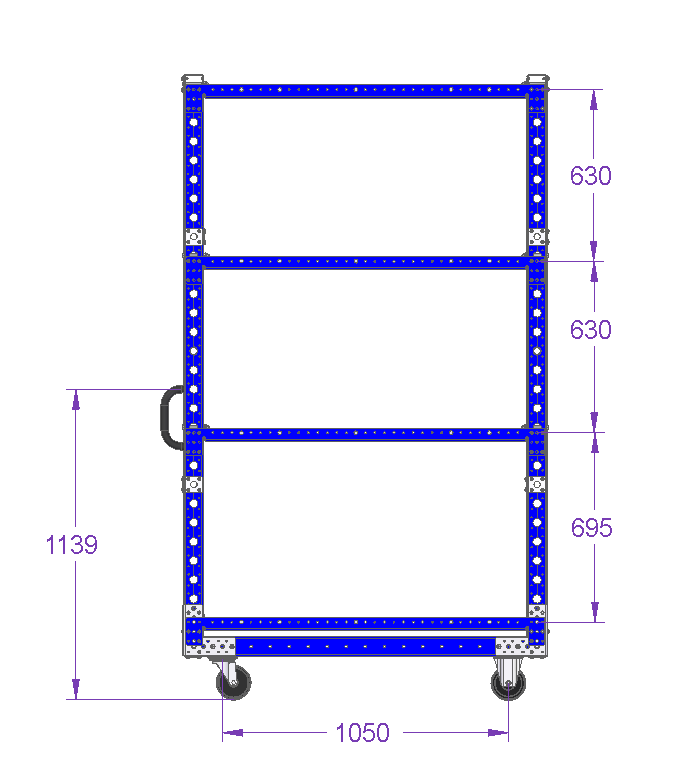

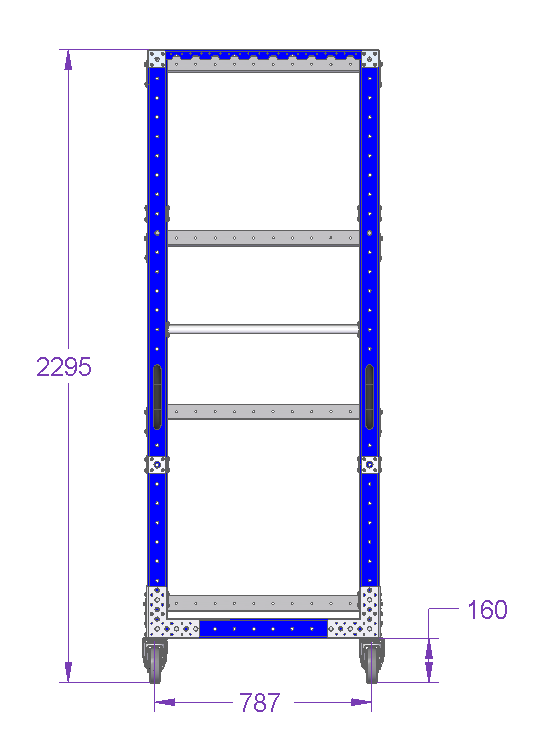

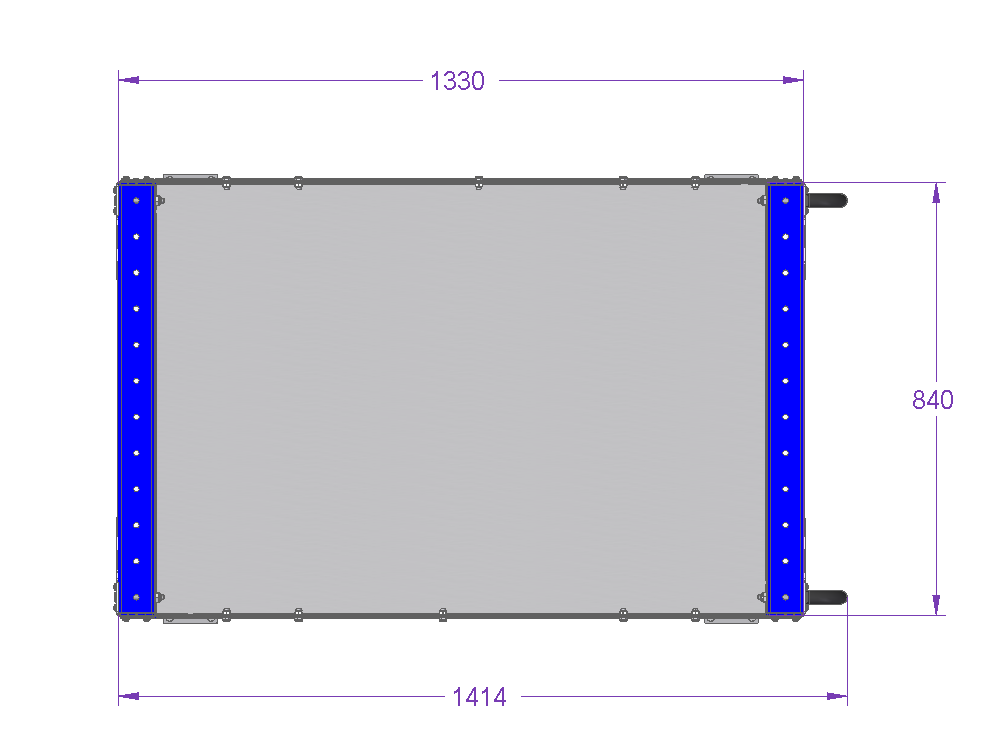

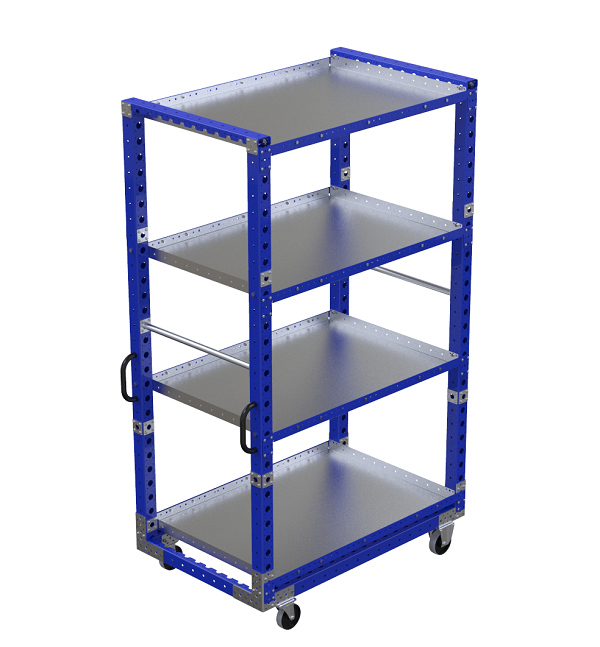

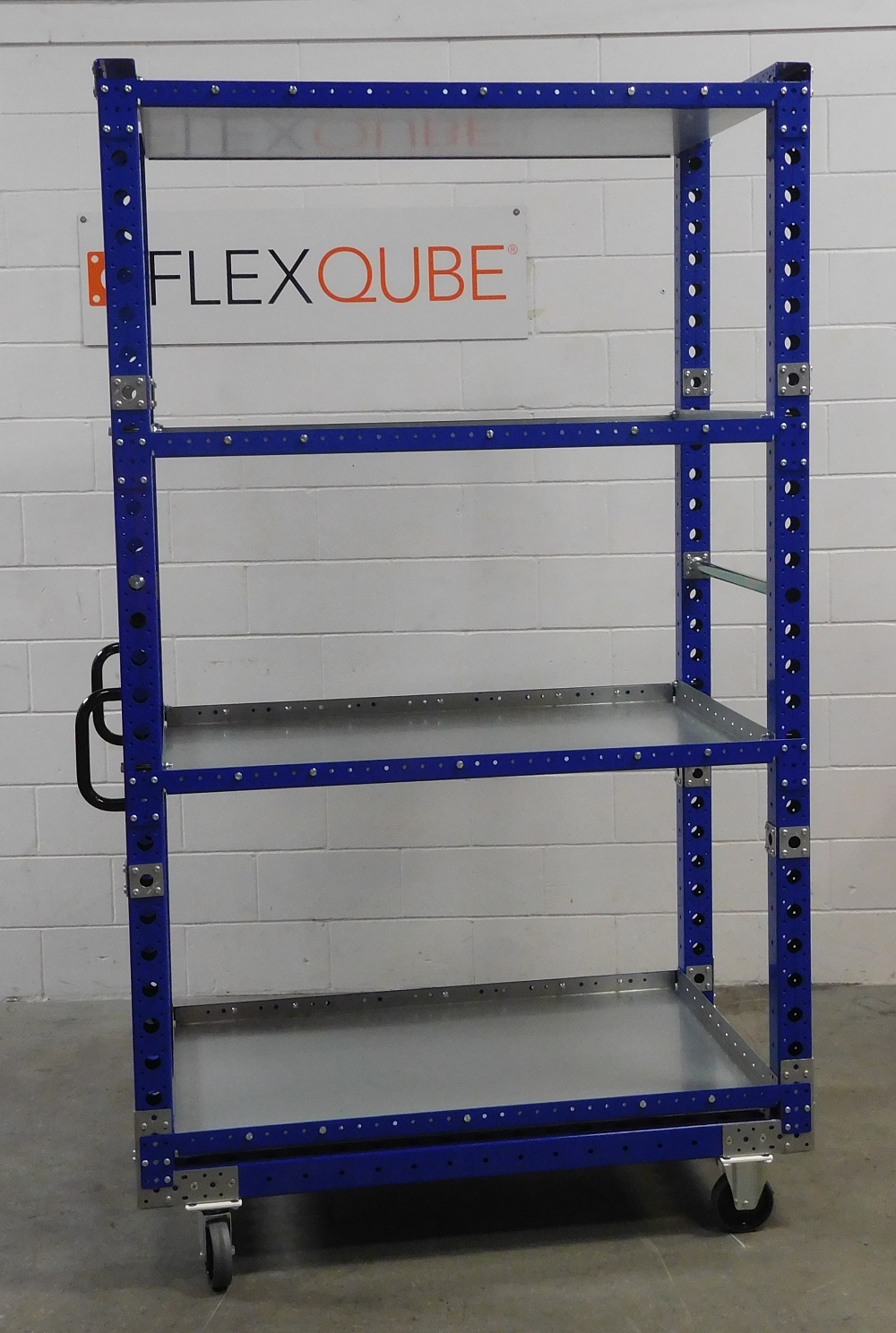

Flat Shelf Cart - 1330 x 840 mm

Standard flat shelf cart for transporting bins, boxes and totes.

Technical specifications

Category: Flat Shelf

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 52 inch

Levels: 4

Load capacity: 798 lbs

Load Capacity per Level: 198 lbs

Width: 33 inch

Transportation method: Manual

Caster size: 5 inch

Caster Type: Gray

More info

The cart is equipped with four swivel casters for smooth manual transportation as well handles and four shelves for storage. The cart can be equipped with more/less shelves.

Parts included
FlexTube™ 700 mm 2 Q-000-1002
FlexBeam™ - 1470 mm 8 Q-001-1296
FlexBeam™ - 1260 mm 4 Q-001-1299
FlexBeam™ 560 mm 8 Q-001-1309
FlexBeam™ 840 mm FE 4 Q-001-1405
FlexPlate™ 32 Q-002-1001
Flexplate™ M10 4 Q-002-1162
Swivel Caster - 125 mm 2 Q-004-1363
Fixed Caster - 125 mm 2 Q-004-1365
Caster to Beam Attachment - 80 x 60 mm 4 Q-005-0265
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 16 Q-005-1426
Locking Nut M10 36 Q-006-1042
Hex Head - M8 x 16 mm 44 Q-006-1120
Hex Head - M10 x 90 mm 8 Q-006-1132
Locking Nut M8 56 Q-006-1181
M8 Washer 24 Q-006-1183
M8 x 16 mm Countersunk 16 Q-006-1214
Extra Low Head - M10 x 90 mm 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 240 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 16 Q-006-1410
Handle Bar 210 mm M8 2 Q-015-1037
Flat Shelf - 1189 x 840 mm 4 Q-016-0153
Angled Plate - 1318 mm 8 Q-016-0185
