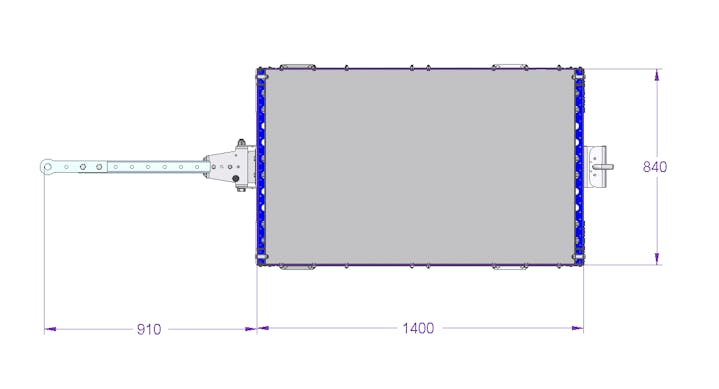

Flat Shelf Cart - 1400 x 840 mm
Flat Shelf Cart - 1400 x 840 mm
Flat Shelf Cart - 1400 x 840 mm
Flat Shelf Cart - 1400 x 840 mm
Q-100-0660

Flat Shelf Cart - 1400 x 840 mm

Standard flat shelf cart for transporting bins, boxes and totes.

Technical specifications

Category: Flat Shelf

Industry: Automotive, Distribution, Industrial Machinery

Type of tow bar: Tongue and Hitch

Width: 33 inch

Length: 55 inch

Levels: 4

Load capacity: 882 lbs

Load Capacity per Level: 220 lbs

Transportation method: Tugger

Caster size: 8 inch

Caster Type: Polyurethane

Type of Load: Bins, Boxes, Misc parts, Totes

More info

This cart is equipped with four flat shelves. These shelves can be used to transport smaller materials such as bins, totes and boxes. The height of the shelves can be easily adjusted higher or lower. It also comes with an equipped drop pin and hitch tow bar for transportation within a tugger train system.

Parts included
FlexBeam™ - 1330 mm 4 Q-001-1298
FlexBeam™ 840 mm FE 2 Q-001-1405
FlexBeam™ 700 mm FE 2 Q-001-1407
FlexBeam™ 1540 mm FE 4 Q-001-1504
FlexPlate™ 8 Q-002-1001
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Caster Polyurethane 200 mm with Brake 2 Q-004-1099
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
Collet - 35 mm 16 Q-005-0028
M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648
Towing VKR - 670 mm 1 Q-005-1055
Towing Hole 2 Q-005-1056
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 20 Q-005-1426
Allen Head - M6 x 30 mm 1 Q-006-1012
Washer 10,5 x 30 x 2,5 1 Q-006-1030
Hex Head - M14 x 60 mm 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
Locking Nut M10 68 Q-006-1042
Washer M10 2 Q-006-1043
Locking Nut M6 1 Q-006-1050
Hex Head - M10 x 95 mm 2 Q-006-1088
Hex Head - M8 x 16 mm 64 Q-006-1120
Hex Head - M10 x 90 mm 18 Q-006-1132
Hex Head - M10 x 30 mm 2 Q-006-1161
Locking Nut M8 65 Q-006-1181
Hex Head Fully Threaded - M10 x 50 mm 18 Q-006-1343
Extra Low Head - M10 x 90 mm 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 100 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410
Compression Spring for US Tow Hitch 1 Q-012-0007
Angled plate - 1388 mm 8 Q-016-0140
Flat Shelf - 1329 x 840 mm 4 Q-016-0141
Handle for Tow Hole 1 Q-017-0022
Tow Hinge Module 1 Q-017-0059
Towing Lip - 28 mm 1 Q-017-1010
