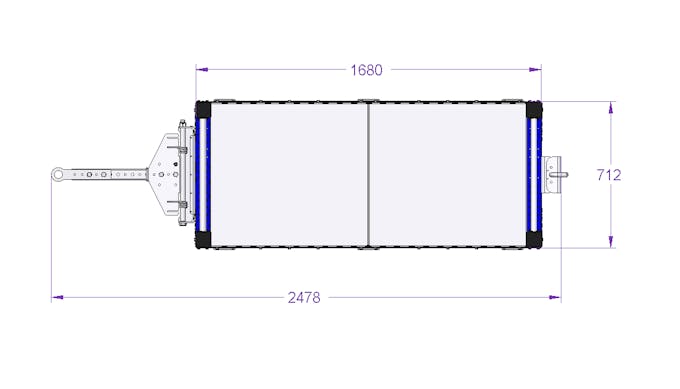

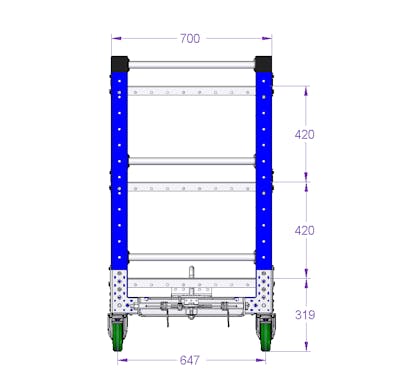

Flat Shelf Cart - 1680 x 700 mm
Flat Shelf Cart - 1680 x 700 mm
Flat Shelf Cart - 1680 x 700 mm
Flat Shelf Cart - 1680 x 700 mm
Q-100-0763

Flat Shelf Cart - 1680 x 700 mm

Standard flat shelf cart equipped with three shelves.

Technical specifications

Category: Flat Shelf

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 28 inch

Length: 66 inch

Levels: 3

Load capacity: 1323 lbs

Load Capacity per Level: 441 lbs

Transportation method: Manual, Tugger

Caster size: 5 inch

Caster Type: Polyurethane

More info

This flat shelf cart is used for transporting bins, totes and boxes. This industrial shelf cart can have its shelf height easily adjusted within 70 mm intervals. Equipped with a drop pin and hitch tow bar for transportation using a tugger train system. More or less shelves can be easily added depending on your materials.

Parts included
FlexTube™ 560 mm 6 Q-000-1182
FlexBeam™ - 1610 mm 4 Q-001-1294
FlexBeam™ 1050 mm FE 8 Q-001-1402
FlexBeam™ 700 mm FE 2 Q-001-1407
FlexBeam™ 560 mm FE 2 Q-001-1409
FlexPlate™ 8 Q-002-1001
Flexplate™ M10 2 Q-002-1162
Caster Polyurathane 125 mm 80 x 60 Swivel 2 Q-004-1220
Caster Polyure. 125 mm 80 x 60 Fixed 2 Q-004-1221
Caster to Beam Attachment - 80 x 60 mm 6 Q-005-0265
Rubber Cap 4 Q-005-0527
Towing Hole 2 Q-005-1056
Spring for Tow Bar 2 Q-005-1070
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 18 Q-005-1426
Wheel Attachment - 80 x 60 mm 2 Q-005-1722
Allen Head - M6 x 30 mm 1 Q-006-1012
Hex Head - M20 x 500 mm 1 Q-006-1016
Hex Head - M14 x 60 mm 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Locking Nut M10 45 Q-006-1042
Locking Nut M6 1 Q-006-1050
Hex Head - M8 x 16 mm 72 Q-006-1120
Hex Head - M10 x 90 mm 18 Q-006-1132
Locking Nut M8 96 Q-006-1181
M8 Washer 40 Q-006-1183
Nut M10 1 Q-006-1195
Countersunk - M8 x 20 24 Q-006-1282
Hex Head Fully Threaded - M10 x 50 mm 1 Q-006-1343
Extra Low Head - M10 x 90 mm 22 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 140 Q-006-1384
M20 Locking Nut 1 Q-006-1405
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Compression Spring for US Tow Hitch 1 Q-012-0007
Flat Shelf w.welded corners - 700 x 770 mm 6 Q-016-0349
Shelf Attachment Plate w.edge - 1680 mm 6 Q-016-0350
US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014
Handle for Tow Hole 1 Q-017-0022
Tow Attachment to Beam 1 Q-017-1080
Tow Hinge 1 Q-017-1083
