Q-007-3033

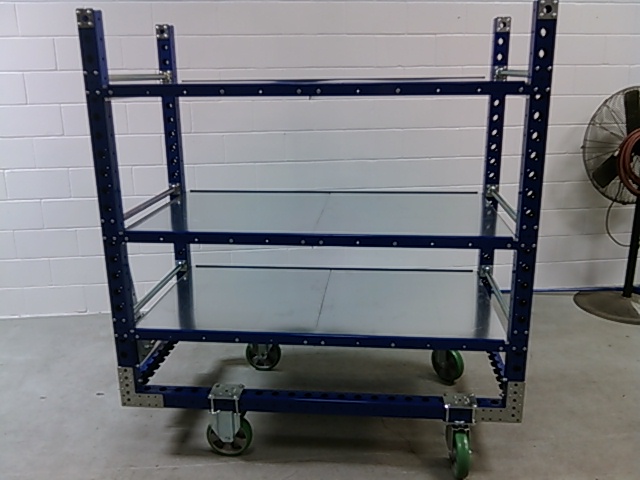

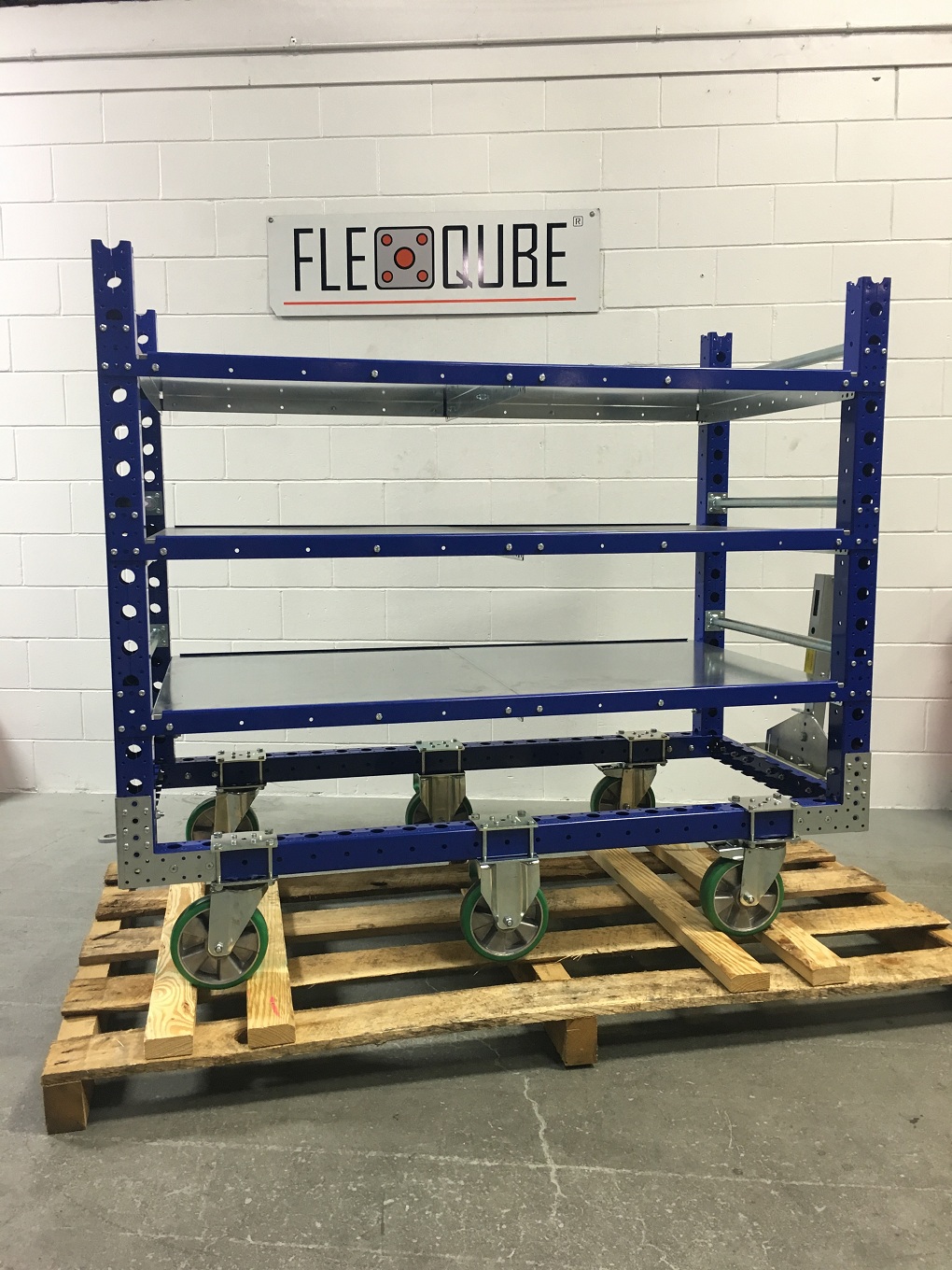

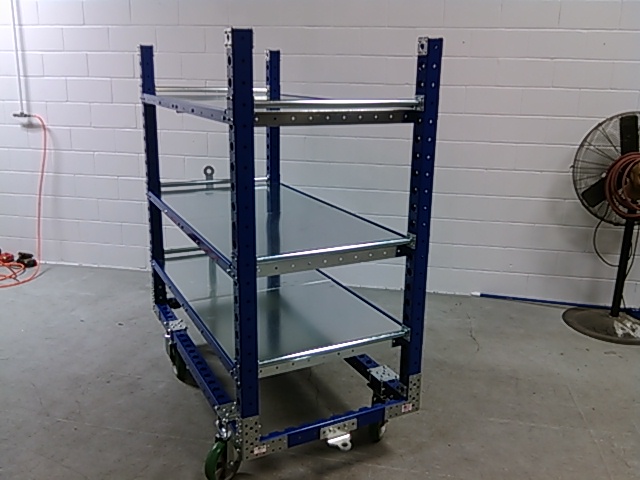

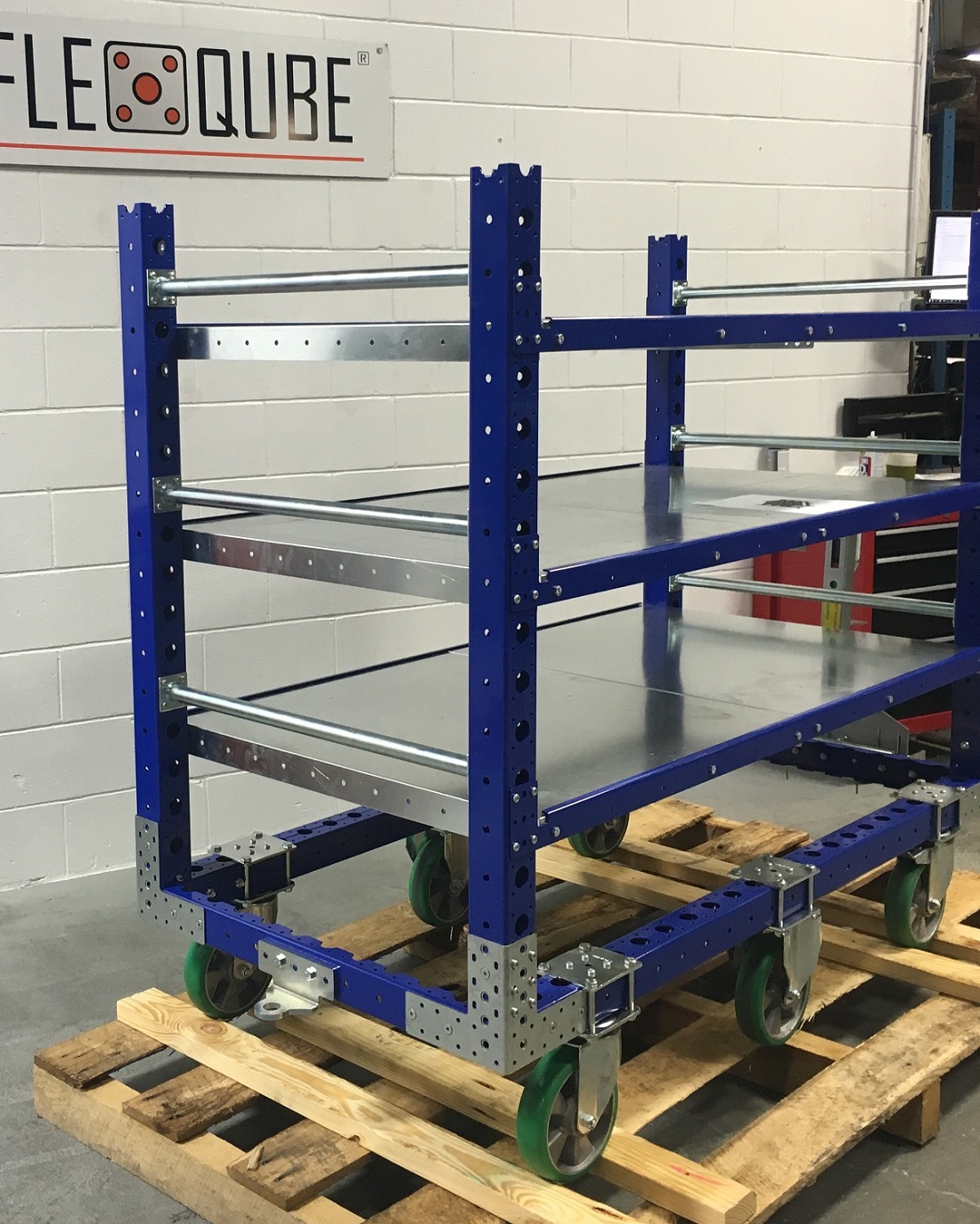

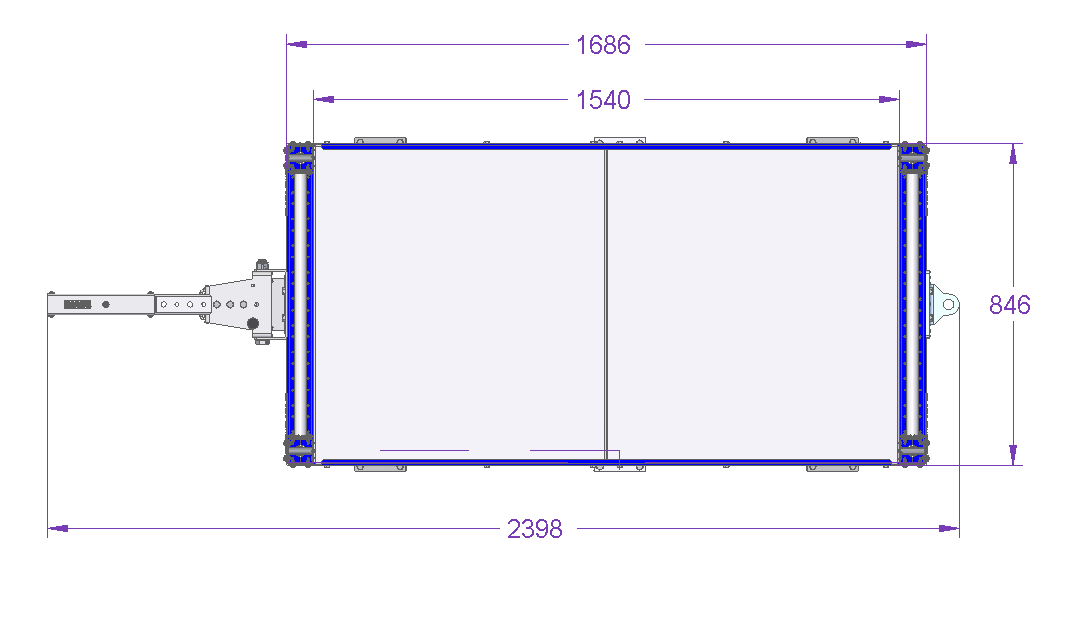

Flat Shelf Cart – 840 x 1680 mm

Standard flat shelf cart for transporting totes, bins, and boxes.

Technical specifications

Category: Flat Shelf

Transportation method: Tugger

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

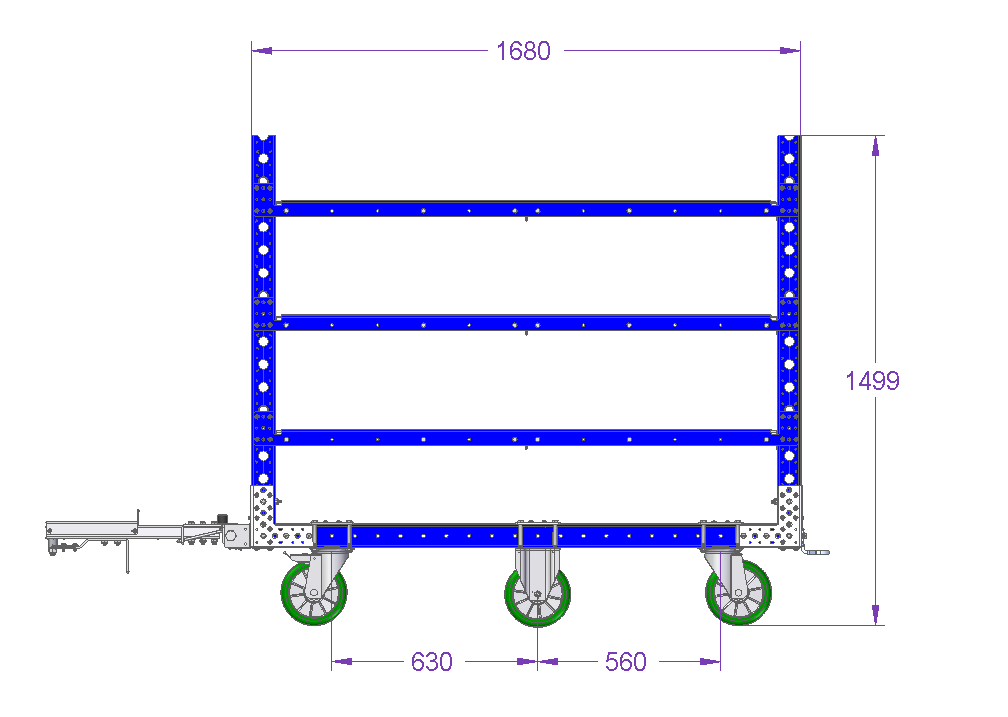

Width: 33 inch

Length: 66 inch

Levels: 3

Load capacity: 661 lbs

Load Capacity per Level: 220 lbs

Caster size: 8 inch

Caster Type: Polyurethane

More info

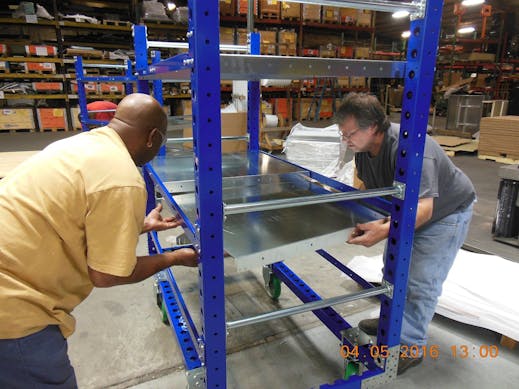

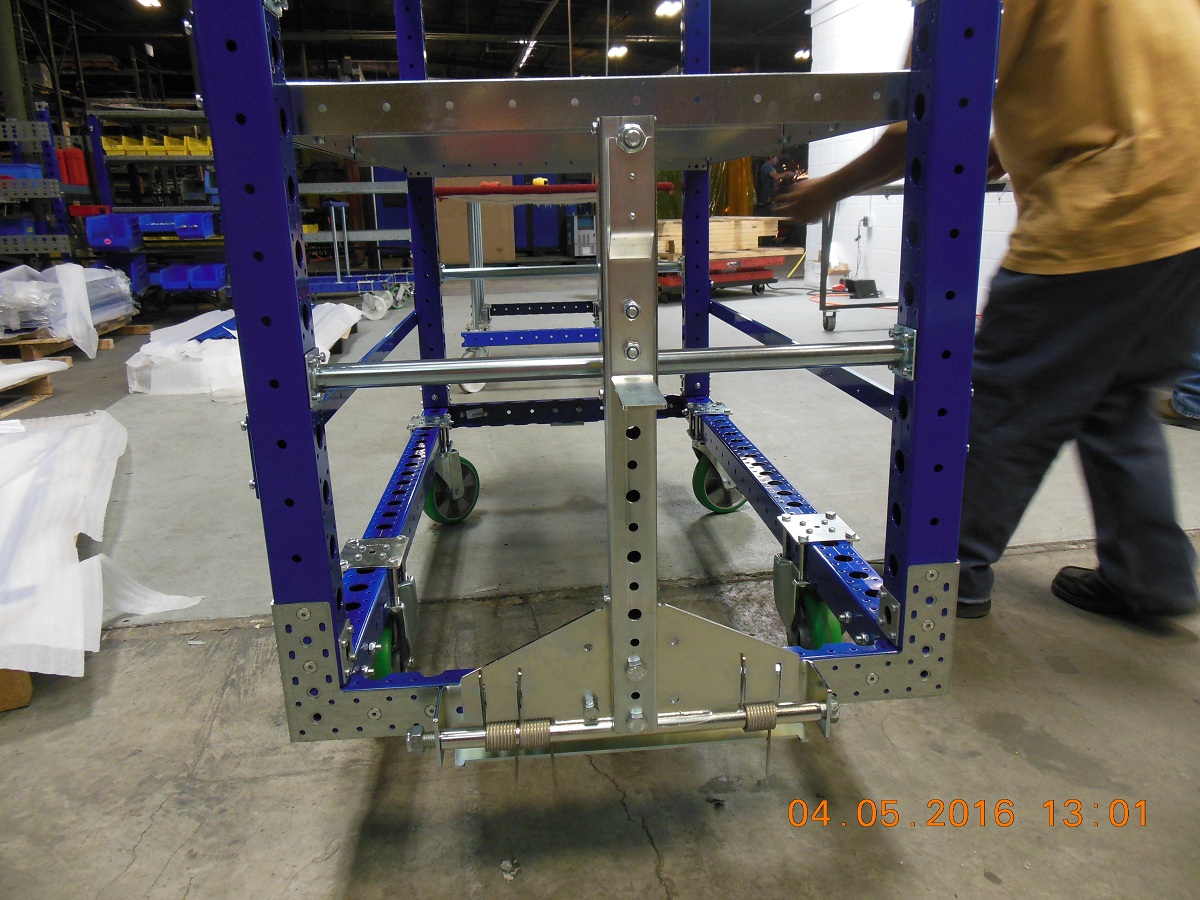

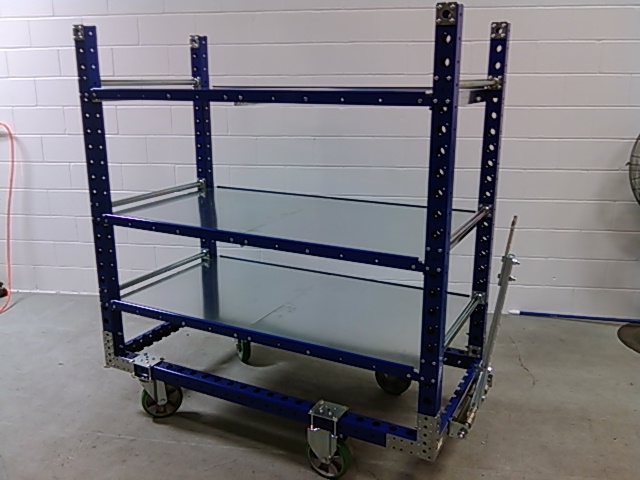

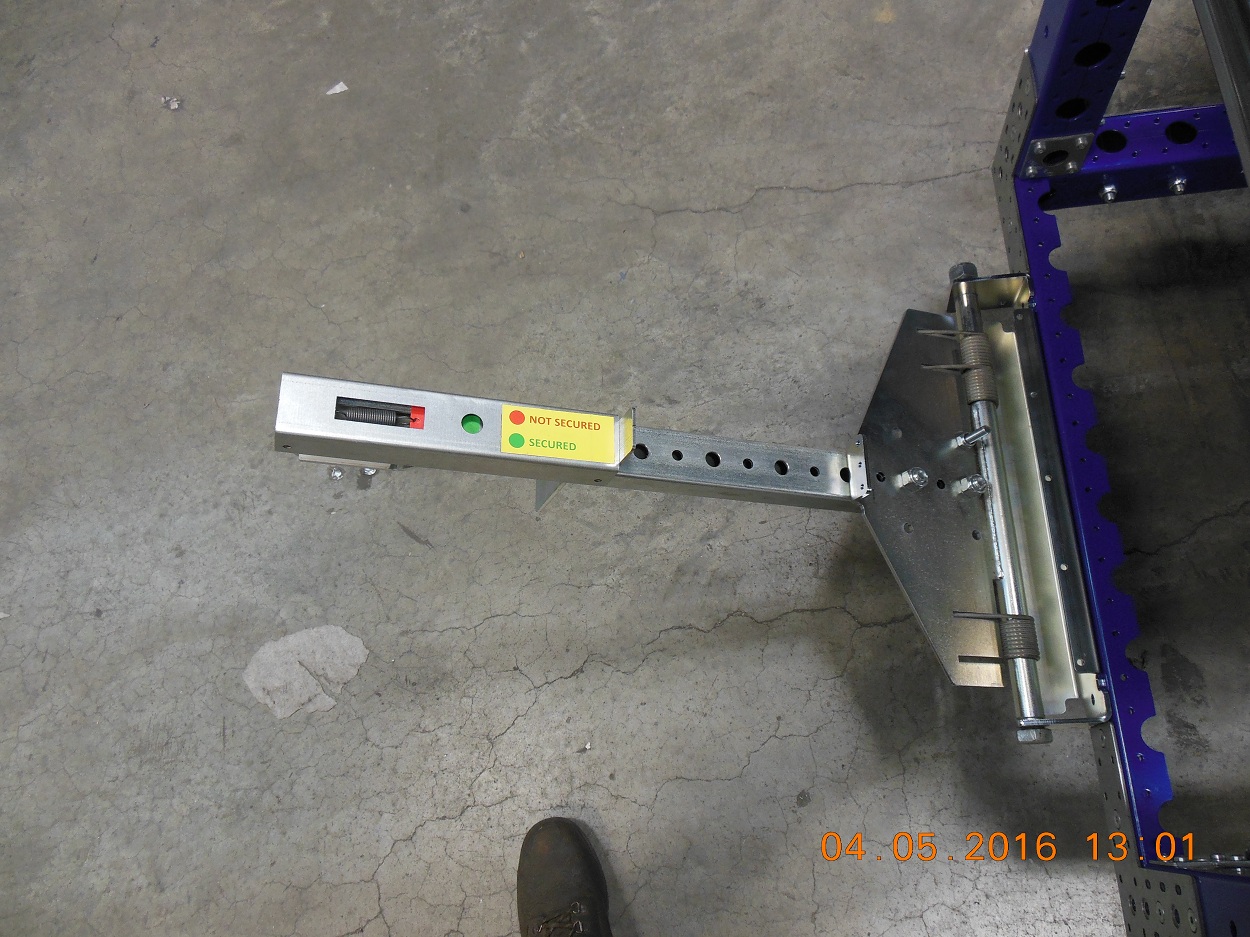

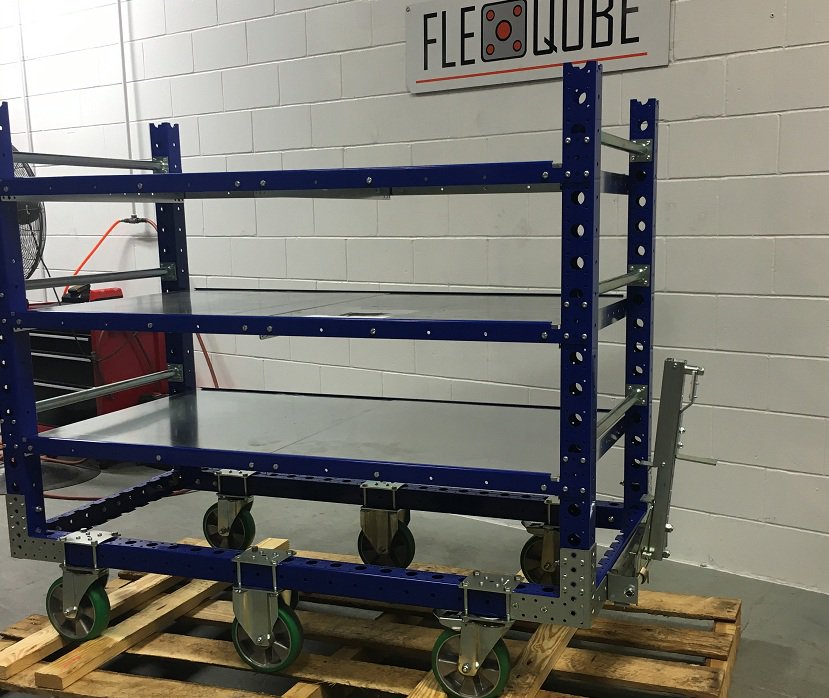

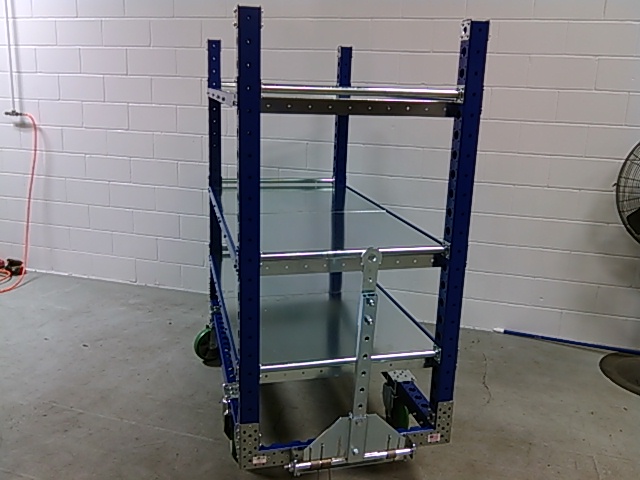

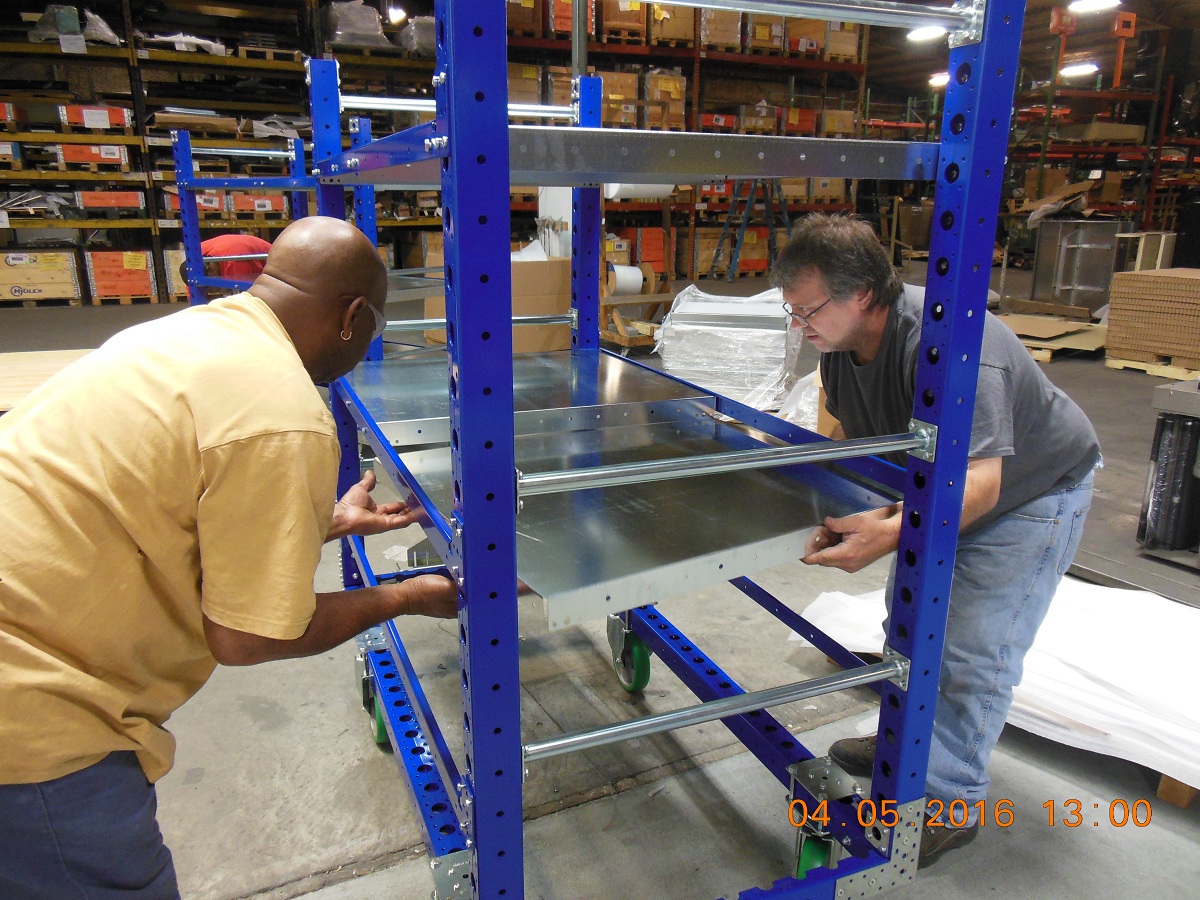

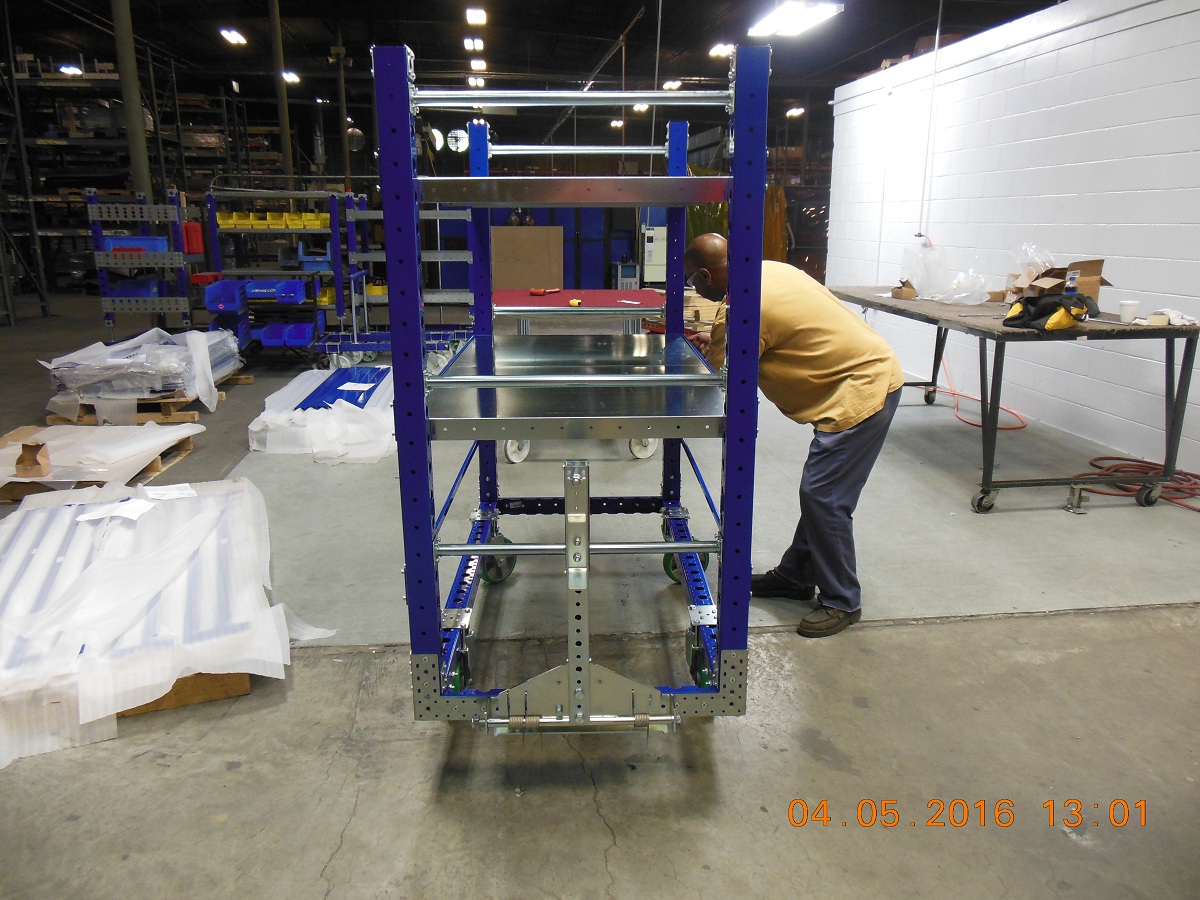

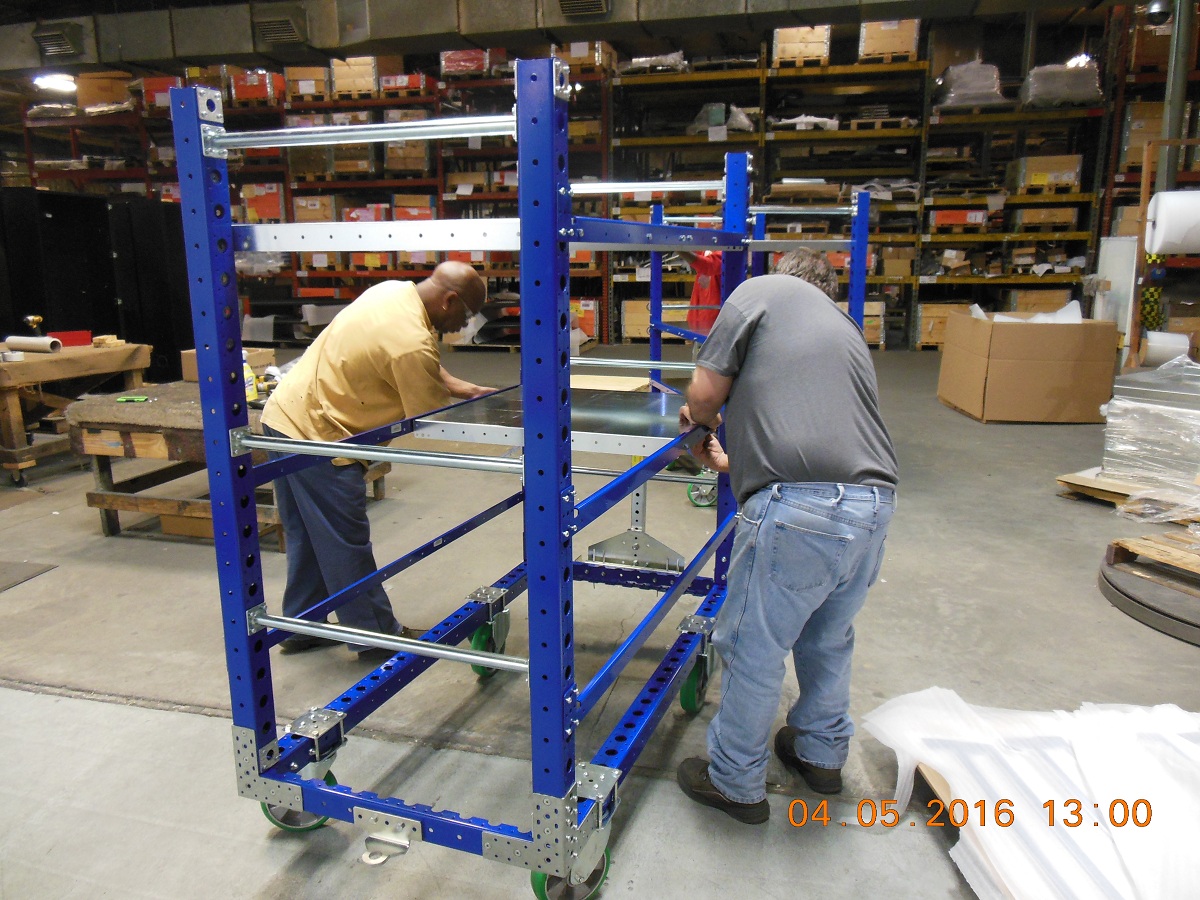

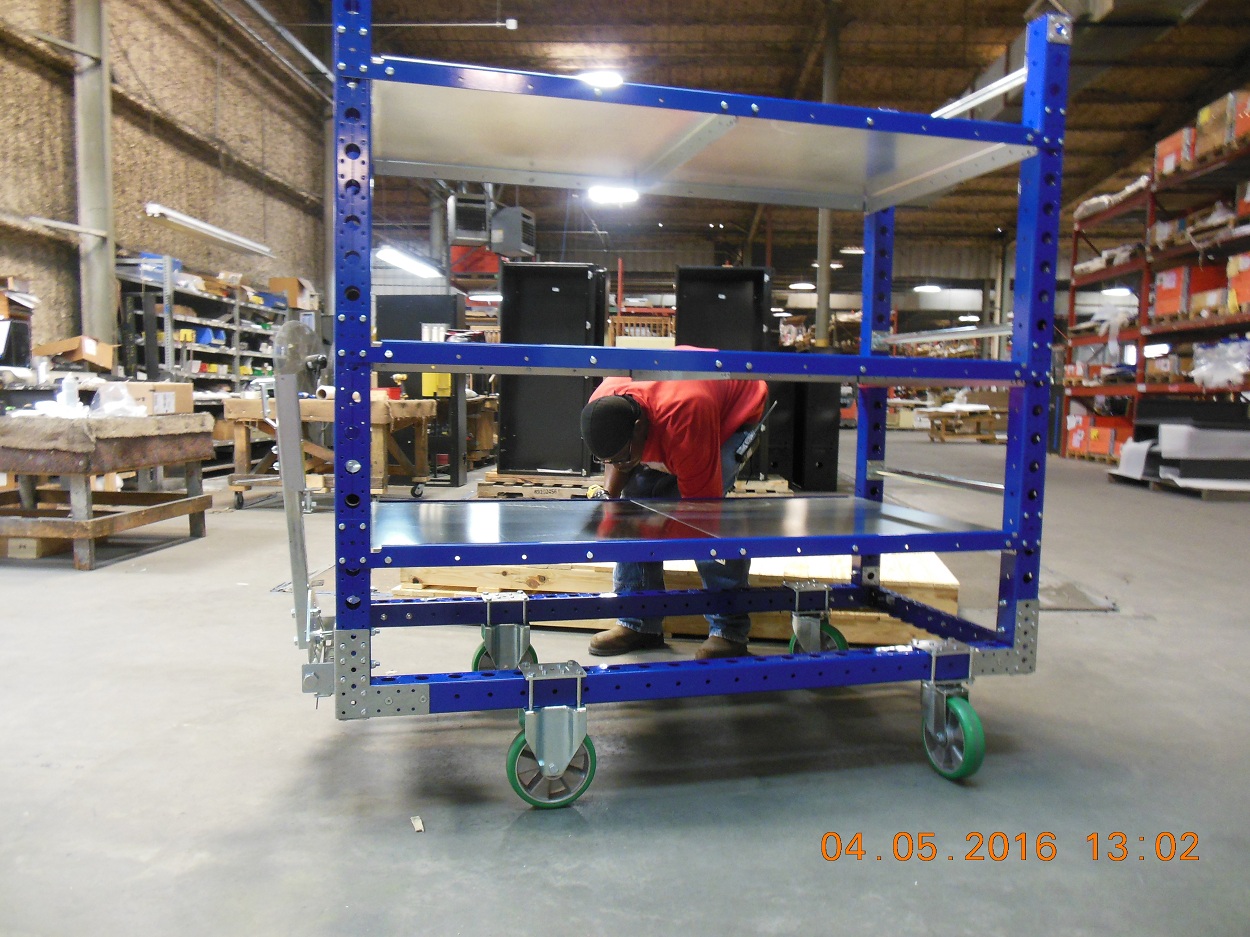

This flat shelf cart is equipped with three standard flat shelves. The shelves are adjutable and they can be easily raised or lowered depending on your materials. This cart has an attached foot release tow bar for transportation via a tugger train system. The purpose of the foot release is to improve ergonomics and reduce bending/flexing by the operators.

Parts included

FlexTube™ 700 mm 6 Q-000-1002

FlexBeam™ - 1610 mm 4 Q-001-1294

FlexBeam™ 1190 mm 8 Q-001-1300

FlexBeam™ 840 mm FE 2 Q-001-1405

FlexBeam™ 700 mm FE 2 Q-001-1407

FlexPlate™ 8 Q-002-1001

Wheel Attachment - 105 x 77,5 mm 8 Q-004-1065

Caster Polyurethane 200 mm with Brake 2 Q-004-1099

Caster Polyurethane - 200 mm 2 Q-004-1100

Caster Polyurethane 200 mm Fixed 2 Q-004-1101

M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648

Spring Cover Plate 1 Q-005-1025

Beam to Beam Corner Plate 4 Q-005-1356

Hex Head M14 x 90 mm 1 Q-005-1406

64 mm FlexBeam™ Collet 24 Q-005-1426

Washer 10,5 x 30 x 2,5 1 Q-006-1030

Locking Nut M14 1 Q-006-1039

Locking Nut M10 57 Q-006-1042

Washer M10 2 Q-006-1043

Hex Head - M10 x 95 mm 12 Q-006-1088

Hex Head - M8 x 16 mm 45 Q-006-1120

Hex Head - M10 x 90 mm 16 Q-006-1132

Locking Nut M8 46 Q-006-1181

Extra Low Head - M10 x 90 mm 20 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 198 Q-006-1384

Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410

Hex Head Fully Threaded - M10 x 60 mm 5 Q-006-1502

Spring 1,5 x 15yd x 70 1 Q-012-1141

Angled plate - 1668 mm 6 Q-016-1092

Flat Shelf - 769,5 x 840 mm 6 Q-016-1093

Foot Release Locking Lip 1 Q-017-0024

US Modular Tow Bar VKR - Foot Release - 530 mm 1 Q-017-0025

Tow Hinge Module 1 Q-017-0059

Locking lip attachment 1 Q-017-1043

Tow Hole 28 mm - Symmetric 1 Q-017-1066

Towing Lock Pin US 1 Q-017-1105

39 mm Sleeve for M10 US 2 Q-017-1106
