Flat Shelf Cart 55 x 48 inch
Flat Shelf Cart 55 x 48 inch
Flat Shelf Cart 55 x 48 inch
Flat Shelf Cart 55 x 48 inch
Q-100-0963

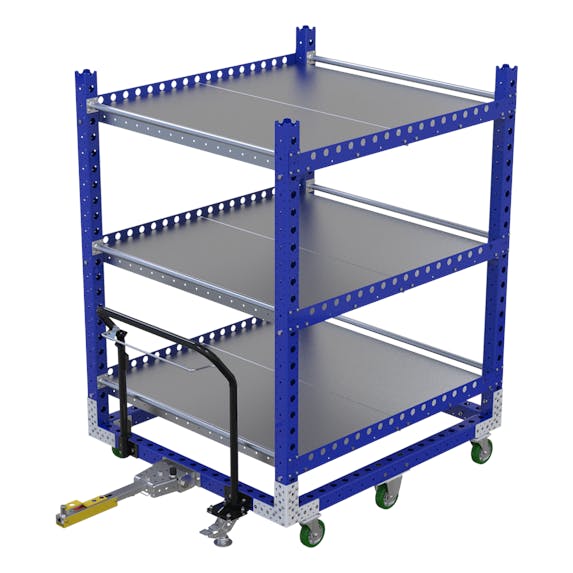

Flat Shelf Cart 55 x 48 inch

Wide flat shelf cart with three shelves equipped.

Technical specifications

Transportation method: Manual, Tugger

Type of tow bar: Wire release

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 50 inch

Length: 55 inch

Levels: 3

Load capacity: 750 lbs

Load Capacity per Level: 249 lbs

Caster size: 5 inch

Caster Type: Polyurethane

Type of Load: Bins, Boxes, Misc parts, Totes

More info

This tugger flat shelf cart is equipped with three shelves, but with the FlexQube concept, more or fewer shelves can be easily added. The height of the shelves is very easy to raise or lower if needed for different materials. This cart is also equipped with a wire release tow bar for transportation within a tugger train system.

Parts included
FlexTube™ 1120 mm 6 Q-000-1258
FlexBeam™ - 1610 mm 8 Q-001-1294
FlexBeam™ - 1330 mm 4 Q-001-1298
FlexBeam™ 1120 mm FE 2 Q-001-1401
FlexBeam™ 1260 mm FE 2 Q-001-1500
FlexPlate™ 16 Q-002-1001
Caster Polyurathane 125 mm 80 x 60 Swivel 4 Q-004-1220
Caster Polyure. 125 mm 80 x 60 Fixed 2 Q-004-1221
Floor Lock COLSON 4 x 4-1/2 1 Q-004-1369
Caster to Beam Attachment - 80 x 60 mm 6 Q-005-0265
Collet - 31 mm 2 Q-005-1008
Old part: Spring for Tow Bar 2 Q-005-1012
Damper GN352 1 Q-005-1016
Spring Cover Plate 1 Q-005-1025
Wire Guidance Plate 1 Q-005-1026
Beam to Beam Corner Plate 4 Q-005-1356
Caster Distance Collet - 18 mm 4 Q-005-1396
64 mm FlexBeam™ Collet 46 Q-005-1426
Wheel Attachment - 80 x 60 mm 2 Q-005-1722
Hex Head - M20 x 500 mm 1 Q-006-1016
Hex Head - M4 x 8 mm 1 Q-006-1028
Locking Nut M10 62 Q-006-1042
Scissor Sprint 2,5 x 16 FZB 1 Q-006-1077
Hex Head - M10 x 95 mm 2 Q-006-1088
Countersunk - M10 x 70 mm 1 Q-006-1112
Hex Head - M8 x 16 mm 54 Q-006-1120
Hex Head - M10 x 90 mm 28 Q-006-1132
Locking Nut M8 78 Q-006-1181
Hex Head - M10 x 40 4 Q-006-1208
M8 x 16 mm Countersunk 16 Q-006-1214
Countersunk - M8 x 20 8 Q-006-1282
Hex Head Fully Threaded - M10 x 50 mm 2 Q-006-1343
Extra Low Head - M10 x 90 mm 20 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 208 Q-006-1384
M20 Locking Nut 1 Q-006-1405
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 1 Q-006-1502
Spring 1,5 x 15yd x 70 1 Q-012-1141
Floor Brake Handle (Europe) 1 Q-015-1052
Angled Plate - 1388 mm 6 Q-016-0035
Flat Shelf - 630 x 1260 mm 6 Q-016-0179
Countersunk Towing Lock Pin - 25 mm 1 Q-017-0010
Towing Equipment - Locking Lip 1 Q-017-1015
Towing - Spring attachment 1 Q-017-1016
Locking lip attachment 1 Q-017-1043
Trigger Handle 1 Q-017-1050
Rubber Bushing 498030 1 Q-017-1062
Tow Hole 28 mm - Symmetric 1 Q-017-1066
Tow Attachment to Beam 1 Q-017-1080
