Flat Shelf Cart 630 x 1190 mm
Flat Shelf Cart 630 x 1190 mm
Flat Shelf Cart 630 x 1190 mm
Flat Shelf Cart 630 x 1190 mm
Q-100-0610

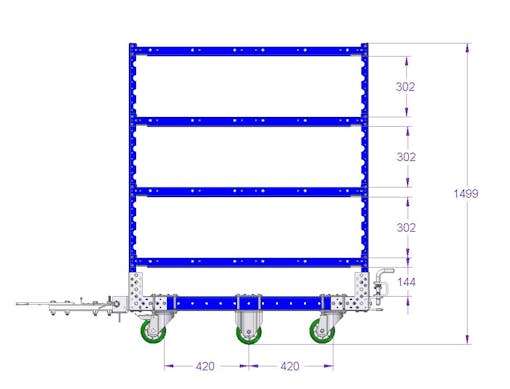

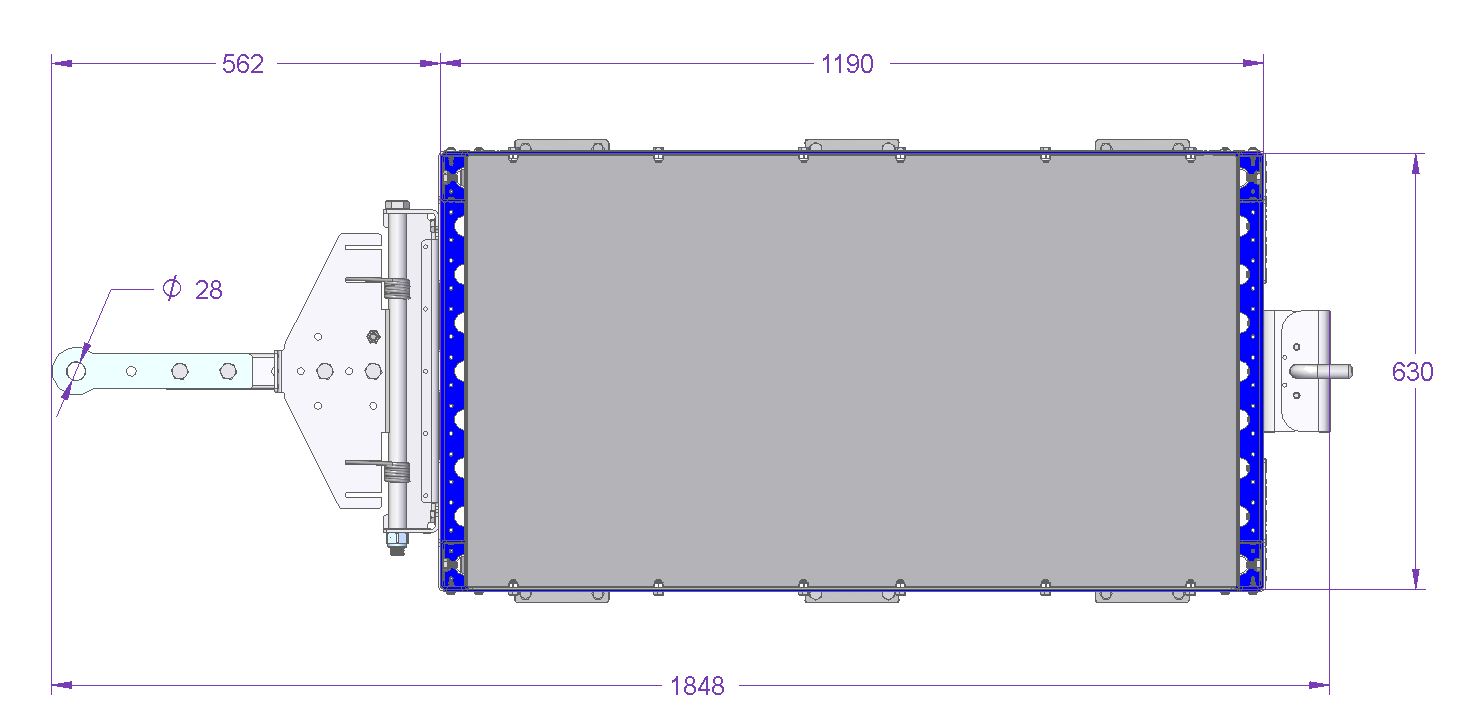

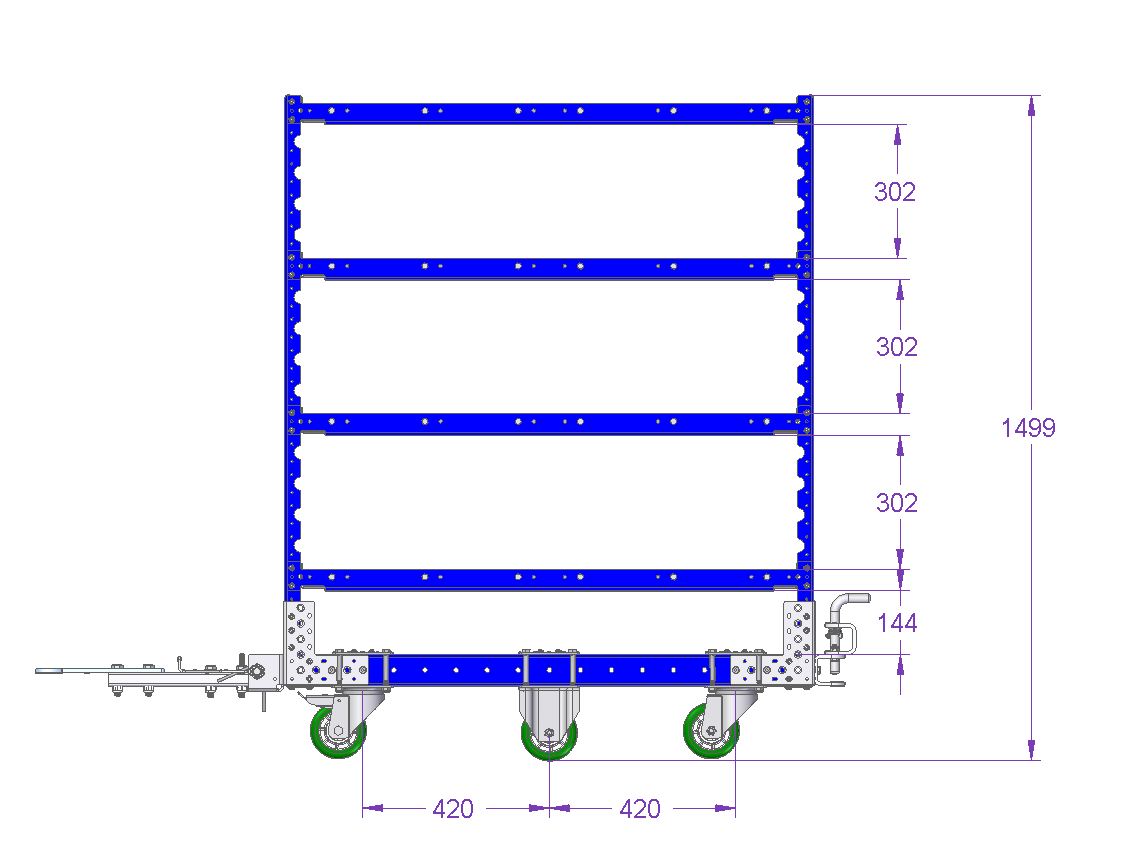

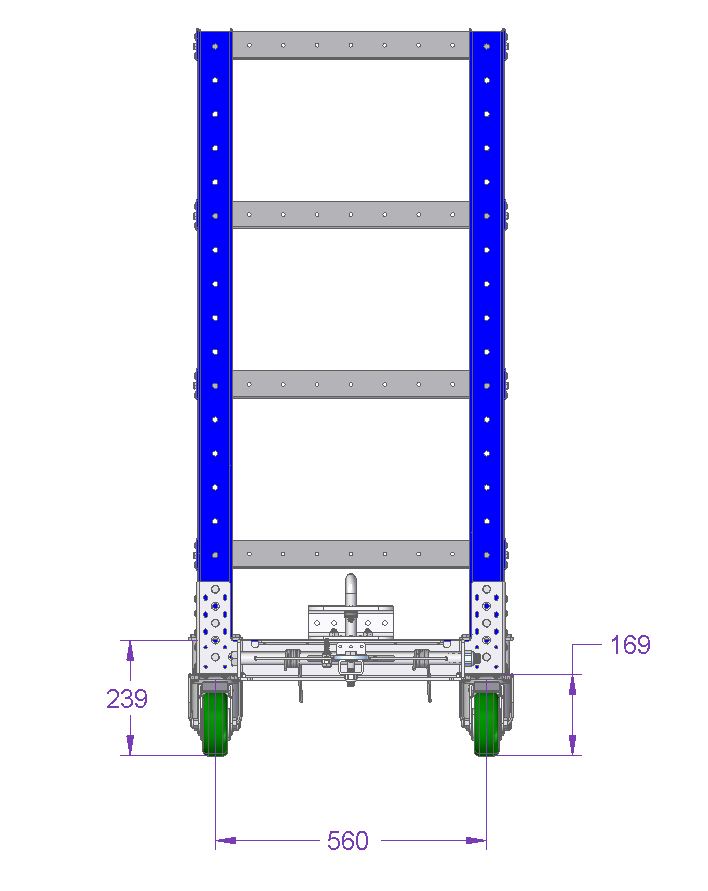

Flat Shelf Cart 630 x 1190 mm

Standard flat shelf cart equipped with four flat shelves.

Technical specifications

Category: Flat Shelf

Type of tow bar: Tongue and Hitch

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 25 inch

Length: 47 inch

Levels: 4

Load capacity: 661 lbs

Load Capacity per Level: 165 lbs

Transportation method: Tugger

Caster size: 5 inch

Caster Type: Polyurethane

More info

This flat shelf cart was designed to transport totes, bins, and boxes. The shelves can be easily adjusted to higher or lower depending on your materials. It comes equipped with a drop pin and hitch tow bar for transportation via a tugger train. It has six high-quality polyurethane casters for better tracking when in a tugger train.

Parts included
FlexBeam™ 1120 mm 4 Q-001-1301
FlexBeam™ 630 mm FE 2 Q-001-1408
FlexBeam™ 1260 mm FE 4 Q-001-1500
FlexPlate™ 4 Q-002-1001
Flexplate™ M10 1 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 8 Q-004-1065
Caster Polyurethane 125 mm w. Brake 2 Q-004-1105
Caster Polyurethane - 125 mm 2 Q-004-1106
Caster Polyurethane 125 mm Fixed 2 Q-004-1107
Towing VKR - 320 mm 1 Q-005-0103
Towing Hole 2 Q-005-1056
Spring for Tow Bar 2 Q-005-1070
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 8 Q-005-1426
Allen Head - M6 x 30 mm 1 Q-006-1012
Hex Head - M20 x 500 mm 1 Q-006-1016
Hex Head - M14 x 60 mm 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Hex Head - M10 x 25 mm 5 Q-006-1041
Locking Nut M10 60 Q-006-1042
Locking Nut M6 1 Q-006-1050
Hex Head - M10 x 95 mm 8 Q-006-1088
Hex Head - M8 x 16 mm 48 Q-006-1120
Hex Head - M10 x 90 mm 16 Q-006-1132
Hex Head - M10 x 30 mm 5 Q-006-1161
Locking Nut M8 48 Q-006-1181
Nut M10 1 Q-006-1195
Hex Head Fully Threaded - M10 x 50 mm 1 Q-006-1343
Extra Low Head - M10 x 90 mm 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 92 Q-006-1384
M20 Locking Nut 1 Q-006-1405
Extra Low Head Allen - M10 x 25 mm 16 Q-006-1410
Compression Spring for US Tow Hitch 1 Q-012-0007
Shelf Edge Lip - 1180 mm 8 Q-016-0163
Flat Shelf - 1119 x 630 mm 4 Q-016-1231
Handle for Tow Hole 1 Q-017-0022
Towing Lip - 28 mm 1 Q-017-1010
Tow Attachment to Beam 1 Q-017-1080
Tow Hinge 1 Q-017-1083
