Q-100-1771

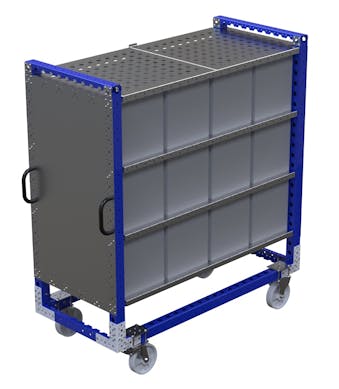

Flat Shelf Cart - 770 x 1680 mm

Shelf cart with four removable shelves designed to transport totes/ bins and boxes.

Technical specifications

Category: Flat Shelf

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 30 inch

Length: 66 inch

Levels: 4

Load capacity: 661 lbs

Load Capacity per Level: 132 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Nylon

Type of Load: Bins, Boxes, Totes

More info

This cart has four levels of removable shelves, the shelves have holes for removing waste, and the covers in the sides help keep the boxes/containers secured while transporting. The handles and the nylon casters help to make manual operation easier.

Parts included
FlexPlate™ 12 Q-002-1001
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Polyamide Caster 200 mm with Brake 2 Q-004-1351
Polyamide Caster 200 mm Fixed 2 Q-004-1354
Spring Threaded Tube Connectors 16 Q-005-0469
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 17 Q-005-1426
Stopper Plate - 1680 mm 3 Q-005-2440
Stopper Plate - 1590 mm 1 Q-005-2442
Locking Nut M10 51 Q-006-1042
Washer M10 1 Q-006-1043
Hex Head - M8 x 16 mm 4 Q-006-1120
Hex Head - M10 x 90 mm 23 Q-006-1132
M8 Washer 4 Q-006-1183
Hex Head - M10 x 20 mm 1 Q-006-1232
Hex Head Fully Threaded - M10 x 16 3 Q-006-1245
Extra Low Head - M10 x 90 mm 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 152 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 28 Q-006-1410
Handle Bar 210 mm M8 2 Q-015-1037
FlexShelf - 770 x 840 mm 8 Q-016-1262
Side Cover Plate - 770 x 1330 mm 2 Q-016-1263
FlexBeam™ 1540 mm STS 8 Q-020-1540
FlexBeam™ FE - 1610 mm 4 Q-020-1610
Outer Tube (No Plate) - 1680 mm 8 Q-025-1680
