Flat Shelf Rack - 1260 x 420 mm
Flat Shelf Rack - 1260 x 420 mm
Flat Shelf Rack - 1260 x 420 mm
Flat Shelf Rack - 1260 x 420 mm
Q-100-0859

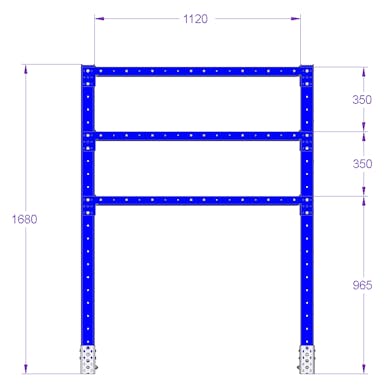

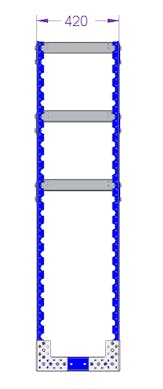

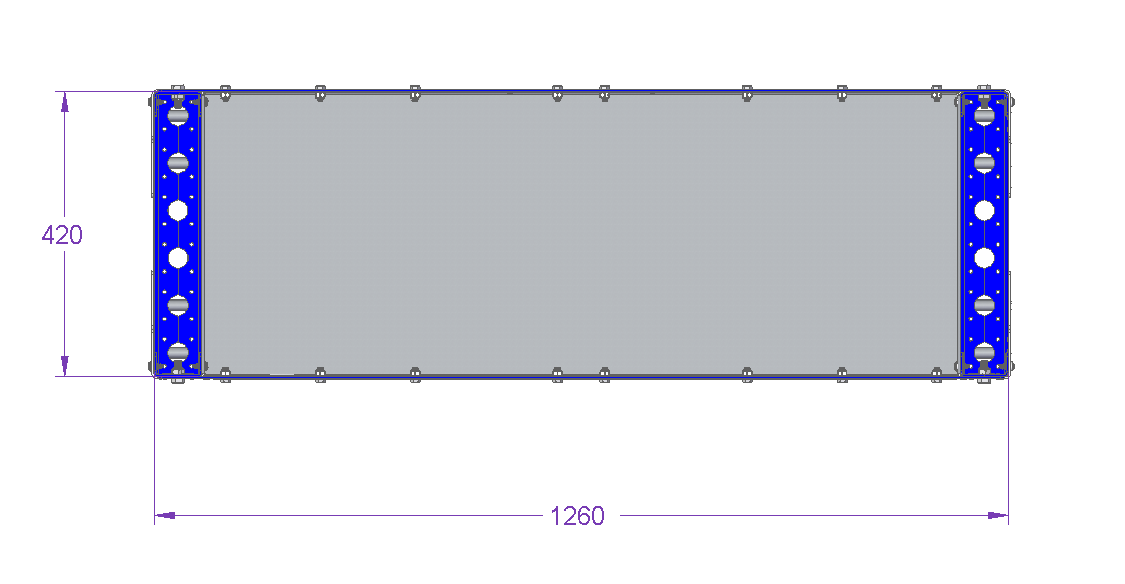

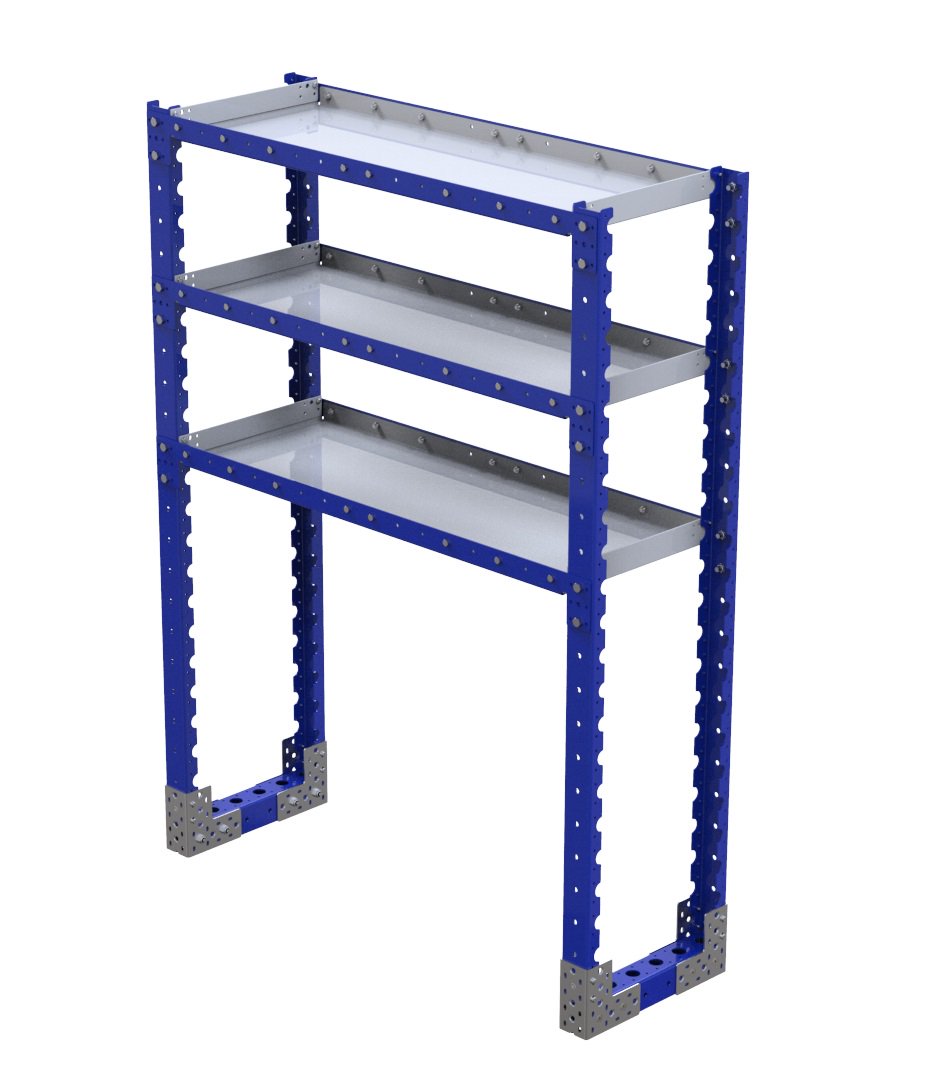

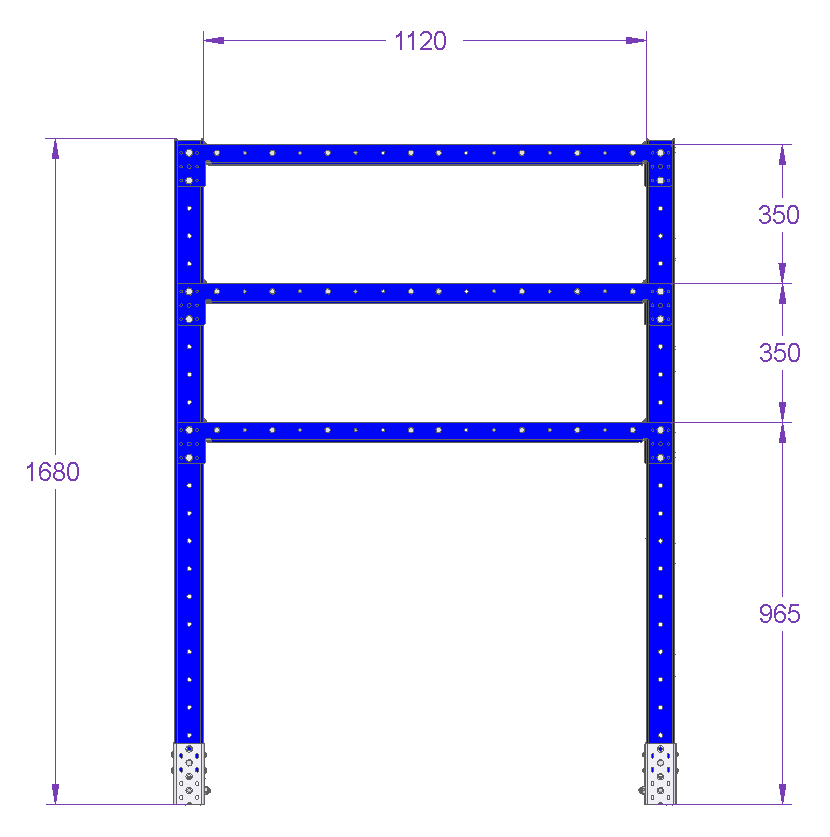

Flat Shelf Rack - 1260 x 420 mm

Narrow flat shelf rack with three shelves equipped.

Technical specifications

Category: Flat Shelf

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Transportation method: Manual

Length: 50 inch

Levels: 3

Load capacity: 600 lbs

Load Capacity per Level: 198 lbs

Width: 17 inch

More info

This solution is suitable for material presentation, it is ideal for bins. totes, boxes and tools.The shelves on this rack can easily be adjusted higher and lower when needed.

Parts included
FlexBeam™ 420 mm FE 4 Q-001-1411
FlexBeam™ - 1610 mm FE 4 Q-001-1505
64 mm FlexBeam™ Collet 8 Q-005-1426
Heavy Duty Joint M10 4 Q-005-1580
Hex Head - M10 x 25 mm 24 Q-006-1041
Locking Nut M10 36 Q-006-1042
Hex Head - M8 x 16 mm 48 Q-006-1120
Locking Nut M8 48 Q-006-1181
Extra Low Head - M10 x 90 mm 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 28 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Angled Plate - 1248 mm 6 Q-016-1238
