Flat Shelf Tugger Cart - 630 x 420 mm
Flat Shelf Tugger Cart - 630 x 420 mm
Flat Shelf Tugger Cart - 630 x 420 mm
Flat Shelf Tugger Cart - 630 x 420 mm
Q-100-0958

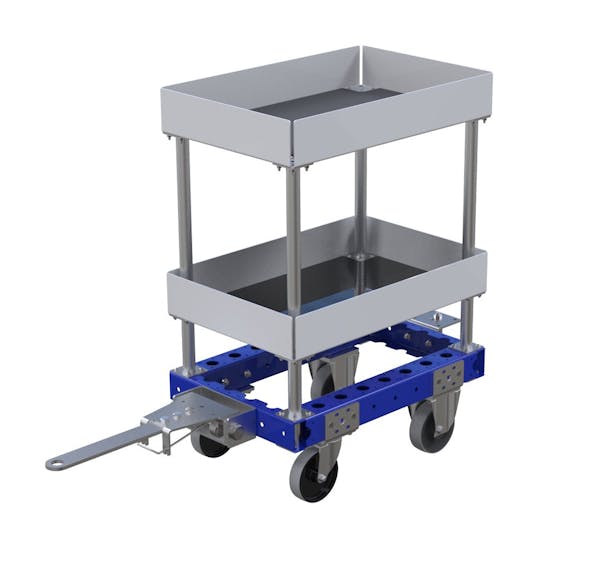

Flat Shelf Tugger Cart - 630 x 420 mm

Small custom built flat shelf cart with two shelves equipped.

Technical specifications

Category: Flat Shelf

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 17 inch

Length: 25 inch

Levels: 2

Load capacity: 150 lbs

Load Capacity per Level: 75 lbs

Transportation method: Manual, Tugger

Caster Type: Gray

Caster size: 5 inch

Type of Load: Bins, Boxes, Misc parts, Totes

More info

This flat shelf tugger cart is designed to transport small totes & boxes throughout the facility. This cart is equipped with a drop pin hitch & 4 casters. The raised edges allows the totes to not be displaced during transportation.

Parts included
Outer Tube (One Plate) - 210 mm 4 Q-000-0071
FlexTube™ 420 mm 4 Q-000-1270
FlexBeam™ 560 mm 4 Q-001-1309
FlexBeam™ 420 mm FE 2 Q-001-1411
Flexplate™ M10 4 Q-002-1162
Flexplate™ 30,5 mm hole 4 Q-002-1320
Swivel Caster - 125 mm 2 Q-004-1363
Fixed Caster - 125 mm 2 Q-004-1365
Caster to Beam Attachment - 80 x 60 mm 5 Q-005-0265
163 mm Collet - 30 x 2 mm 1 Q-005-0298
184 mm Collet - 25 x 2 mm 1 Q-005-0299
Spring tow bar 1 Q-005-0450
Spring Threaded Tube Connectors 4 Q-005-0469
64 mm FlexBeam™ Collet 8 Q-005-1426
M10 x 80 mm Countersunk 1 Q-006-0019
M6 x 20 K6S 10.9 Round Head (black) 32 Q-006-1018
Hex Head - M10 x 25 mm 7 Q-006-1041
Locking Nut M10 16 Q-006-1042
Locking Nut M6 32 Q-006-1050
Locking Nut M8 16 Q-006-1181
M8 x 16 mm Countersunk 16 Q-006-1214
Hex head M20 x 210 mm 1 Q-006-1364
Extra Low Head - M10 x 90 mm 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 32 Q-006-1384
M20 Locking Nut 1 Q-006-1405
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Top plate w. edge - 630 x 420 mm 2 Q-016-0451
Rubber cartpet - 622 x 412 mm 2 Q-016-0488
Countersunk towing lock pin - 63 mm 1 Q-017-0034
Hinge attachment 1 Q-017-0035
Towbar Hinge 1 Q-017-0036
Tow bar lip - 400 mm 1 Q-017-0049
