FlexShelf Cart - 700 x 665 mm
Q-100-0801

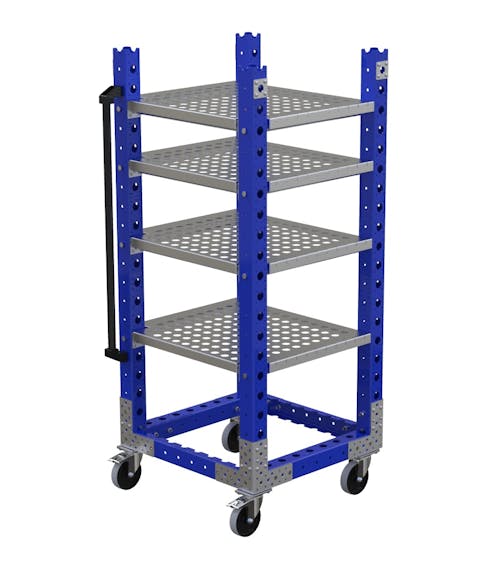

FlexShelf Cart - 700 x 665 mm

This is a custom designed tall shelf cart.

Technical specifications

Category: Flat Shelf

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 28 inch

Levels: 4

Load capacity: 441 lbs

Load Capacity per Level: 110 lbs

Width: 26 inch

Transportation method: Manual

Caster size: 5 inch

Caster Type: Gray

More info

This tall flexshelf was designed for transporting bins, totes and boxes. It comes equipped with four shelves, these shelves can be easily raised or lowered. It also comes equipped with an attached handle to make it easier to transport manually.

Parts included
FlexTube™ 560 mm 4 Q-000-1182
Outer Tube (No Plate) 950 mm 1 Q-000-1472
FlexBeam™ - 1400 mm 8 Q-001-1297
FlexBeam™ 630 mm 4 Q-001-1308
FlexBeam™ 700 mm FE 1 Q-001-1407
FlexBeam™ 560 mm FE 1 Q-001-1409
FlexPlate™ 4 Q-002-1001
Swivel Caster - 125 mm 2 Q-004-1363
125 mm Swivel Caster with Brake 2 Q-004-1364
Spring Threaded Tube Connectors 16 Q-005-0469
Handle for 30 mm Tube 2 Q-005-1240
Shelf 700 x 595 mm with Holes 4 Q-005-1342
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 8 Q-005-1426
Wheel Attachment - 80 x 60 mm 4 Q-005-1722
Locking Nut M10 24 Q-006-1042
Locking Nut M8 16 Q-006-1181
M8 x 16 mm Countersunk 16 Q-006-1214
Hex Head - M10 x 100 mm 16 Q-006-1302
Extra low head [1,5 mm] M10x40 mm 2 Q-006-1361
Extra Low Head - M10 x 90 mm 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 80 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 16 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 10 Q-006-1410
