Q-100-1562

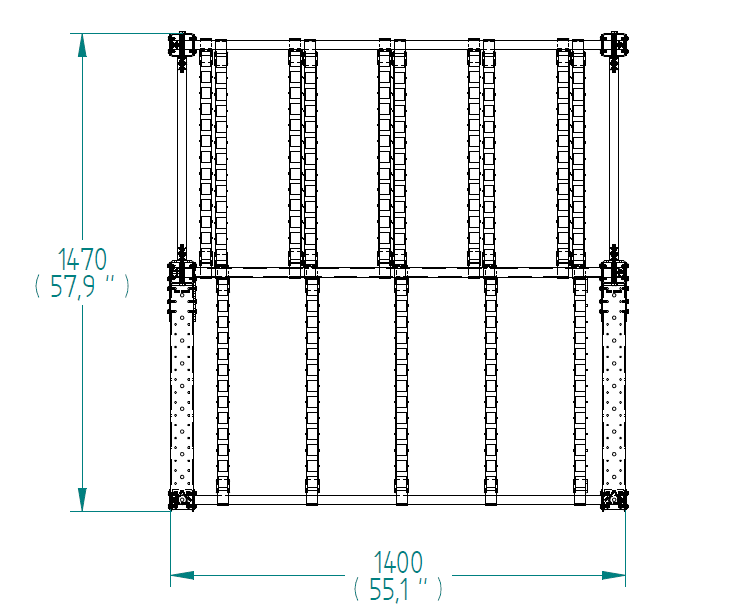

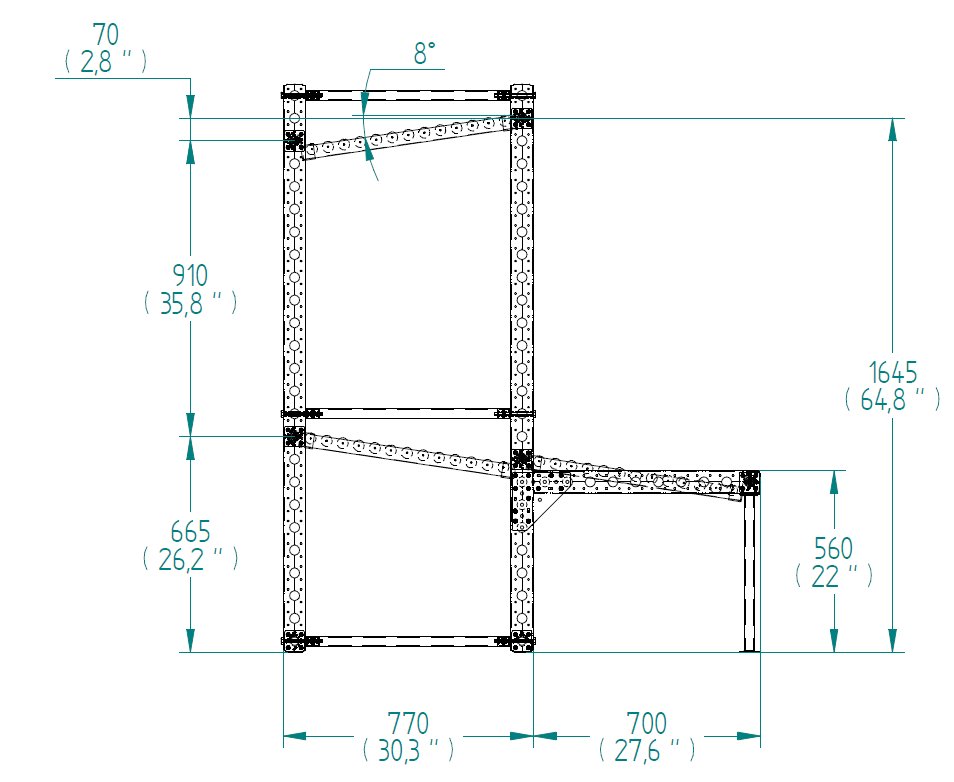

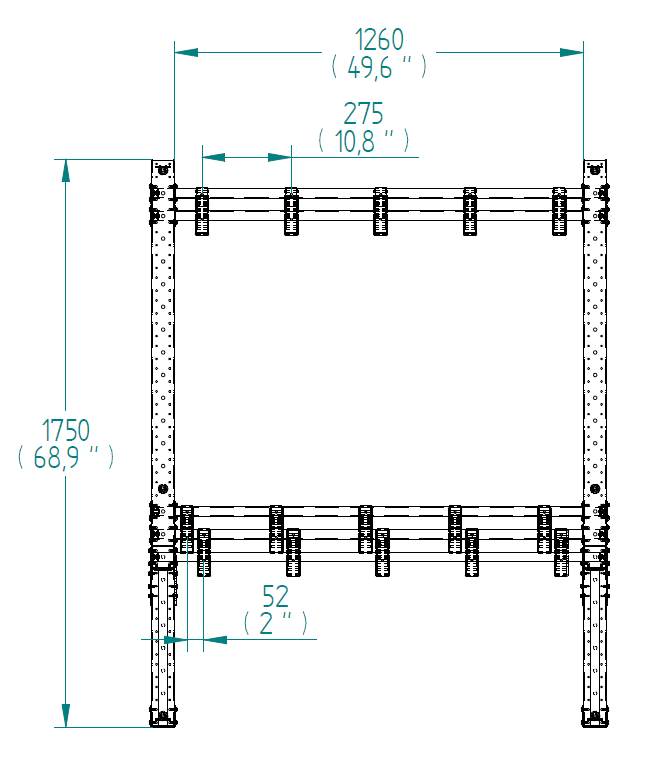

Flow Rack - 1400 x 1470 mm

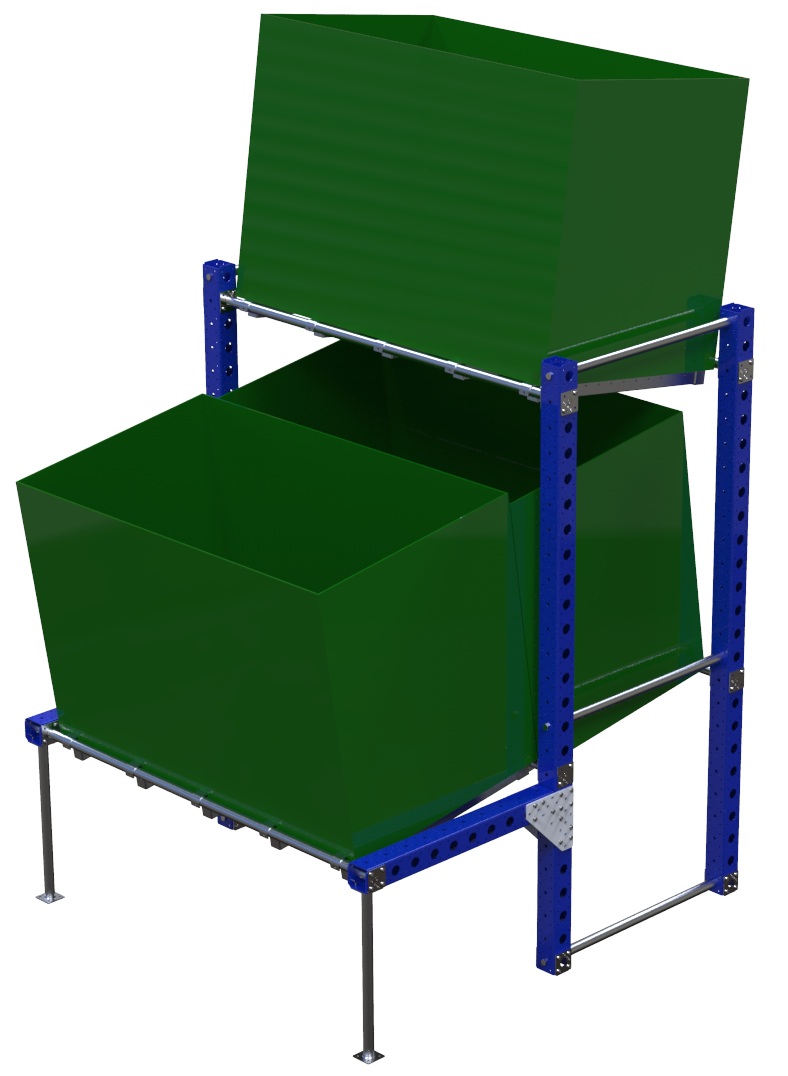

This two level flow rack is designed to store and move bins, totes and boxes.

Technical specifications

Category: Flow Rack

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 58 inch

Load capacity: 31 lbs

Width: 55 inch

Transportation method: Manual

More info

This flow rack is used to store and move parts or components in boxes. The two levels are equipped with high-quality steel rollers and are installed according to the customer’s operation. This is a straightforward but yet robust solution for handling your materials.

Parts included

FlexTube™ 490 mm 2 Q-000-1247

FlexPlate™ 8 Q-002-1001

Flexplate™ M10 10 Q-002-1162

Flexplate™ 30,5 mm hole 10 Q-002-1320

Roller rail - 660 mm 15 Q-003-0110

Rail Support No Stop 15 Q-003-1021

Rail Support Drop 30 mm Stop 15 Q-003-1022

Spring Threaded Tube Connectors 34 Q-005-0469

Triangle Joint 4 Q-005-0483

64 mm FlexBeam™ Collet 8 Q-005-1426

Fully Threaded - M10 x 120 mm 12 Q-006-1037

Self Tapping Screw M6 Torx H60 x 16 132 Q-006-1384

Extra Low Head Allen - M10 x 25 mm 10 Q-006-1410

FlexBeam™ FE - 1750 mm 8 Q-021-1750

Outer Tube (No Plate) - 630 mm 6 Q-025-0630

Outer tube (No plate) - 1400 mm 5 Q-025-1400
