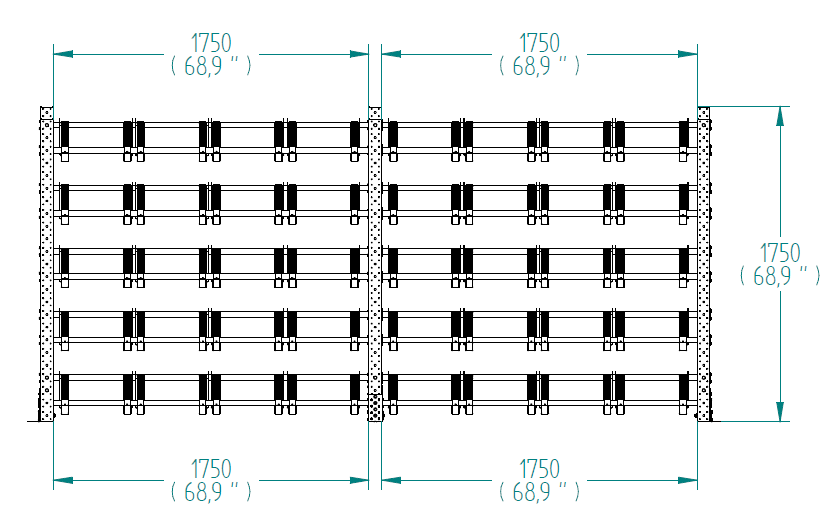

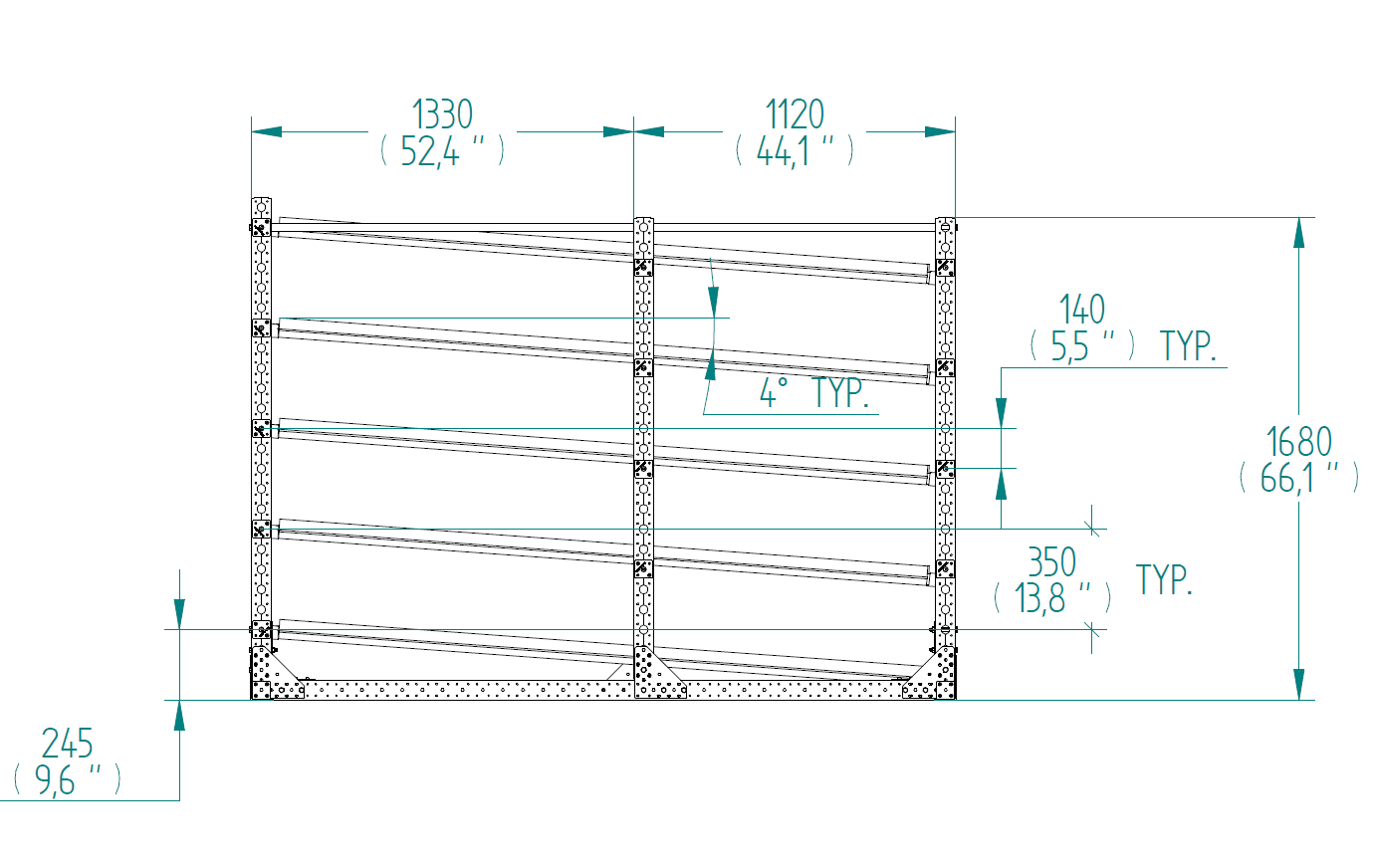

Flow Rack - 2450 x 3710 mm
Flow Rack - 2450 x 3710 mm
Flow Rack - 2450 x 3710 mm
Flow Rack - 2450 x 3710 mm
Q-100-1491

Flow Rack - 2450 x 3710 mm

This four-level roller rack station is designed to improve the flow of bins totes and boxes.

Technical specifications

Category: Flow Rack

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Transportation method: Manual

Width: 96 inch

Length: 146 inch

Levels: 5

Load capacity: 3840 lbs

Load Capacity per Level: 959 lbs

More info

This large flow rack is used to store and move boxes. It is equipped with four flow shelves which are equipped with high-quality steel rollers which are installed according to the customer’s operation. This is a straightforward but yet robust solution for handling your materials. The quantity of levels and rollers is customizable depending on the requirements.

Parts included
Flexplate™ M10 52 Q-002-1162
Roller Rail - 2330 mm 80 Q-003-0064
RR Guide 10 mm Offset - 2260 mm 80 Q-003-0164
Rail Support No Stop 80 Q-003-1021
Rail Support Drop 30 mm Stop 80 Q-003-1022
L Bracket Joint 6 Q-005-0031
T-Joint 2 Q-005-0065
L-Bracket Joint - 70 x 70 mm 4 Q-005-0429
Spring Threaded Tube Connectors 114 Q-005-0469
Triangle Joint 6 Q-005-0483
64 mm FlexBeam™ Collet 26 Q-005-1426
Heavy Duty Joint M10 2 Q-005-1580
Fully Threaded - M10 x 120 mm 4 Q-006-1037
Hex Head - M10 x 25 mm 4 Q-006-1041
Locking Nut M10 33 Q-006-1042
Hex Head - M10 x 90 mm 24 Q-006-1132
Hex Head Fully Threaded - M10 x 50 mm 8 Q-006-1343
Extra low head [1,5 mm] M10x40 mm 30 Q-006-1361
Extra Low Head - M10 x 90 mm 7 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 242 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 28 Q-006-1410
FlexBeam™ FE - 1610 mm 6 Q-021-1610
FlexBeam™ FE - 1750 mm 6 Q-021-1750
FlexBeam™ FE - 2310 mm 6 Q-021-2310
Outer Tube (No Plate) - 980 mm 3 Q-025-0980
Outer Tube (No Plate) - 1260 mm 3 Q-025-1260
Outer Tube (No Plate) - 1817 mm 30 Q-025-1817
