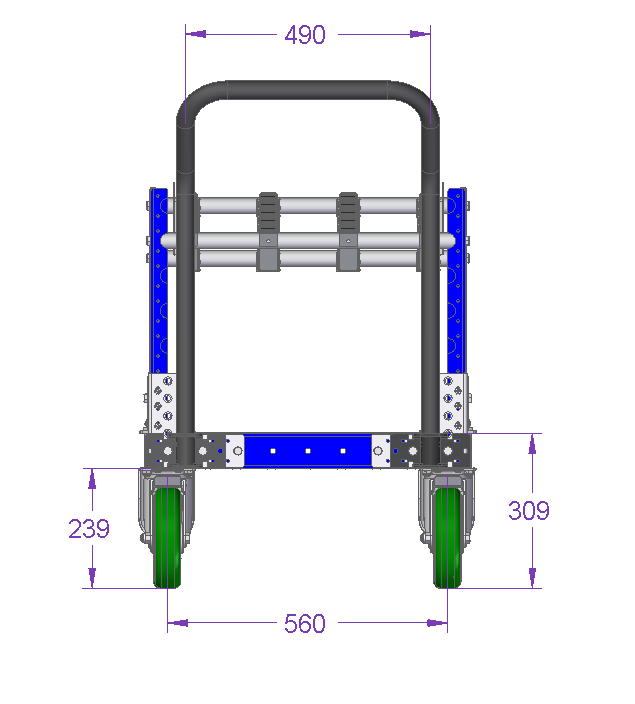

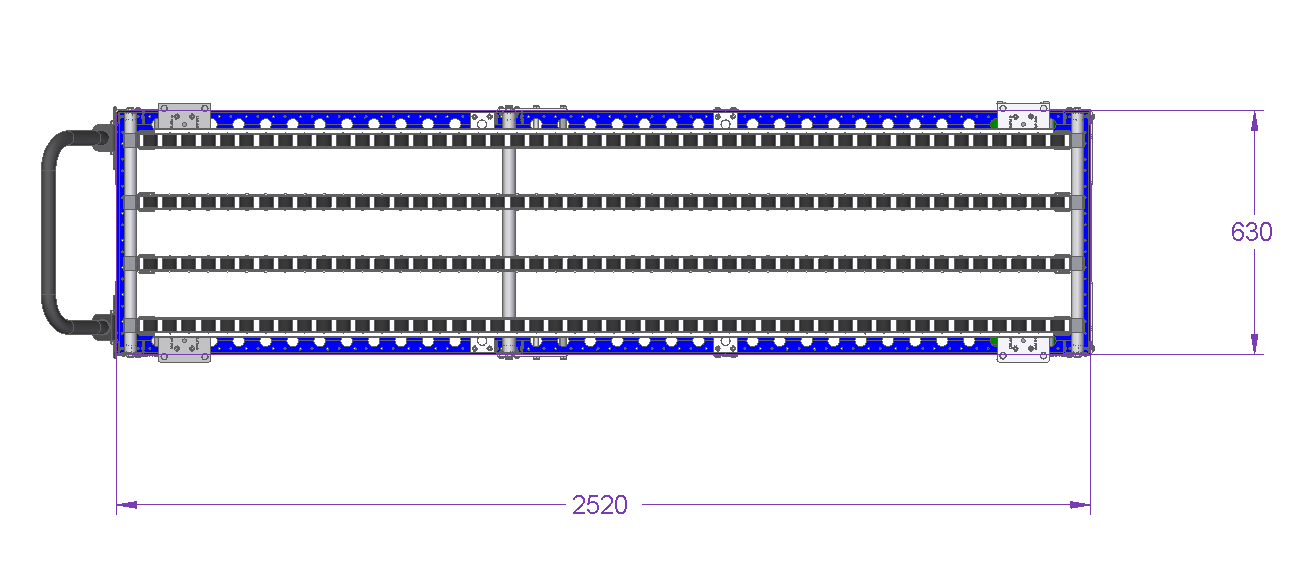

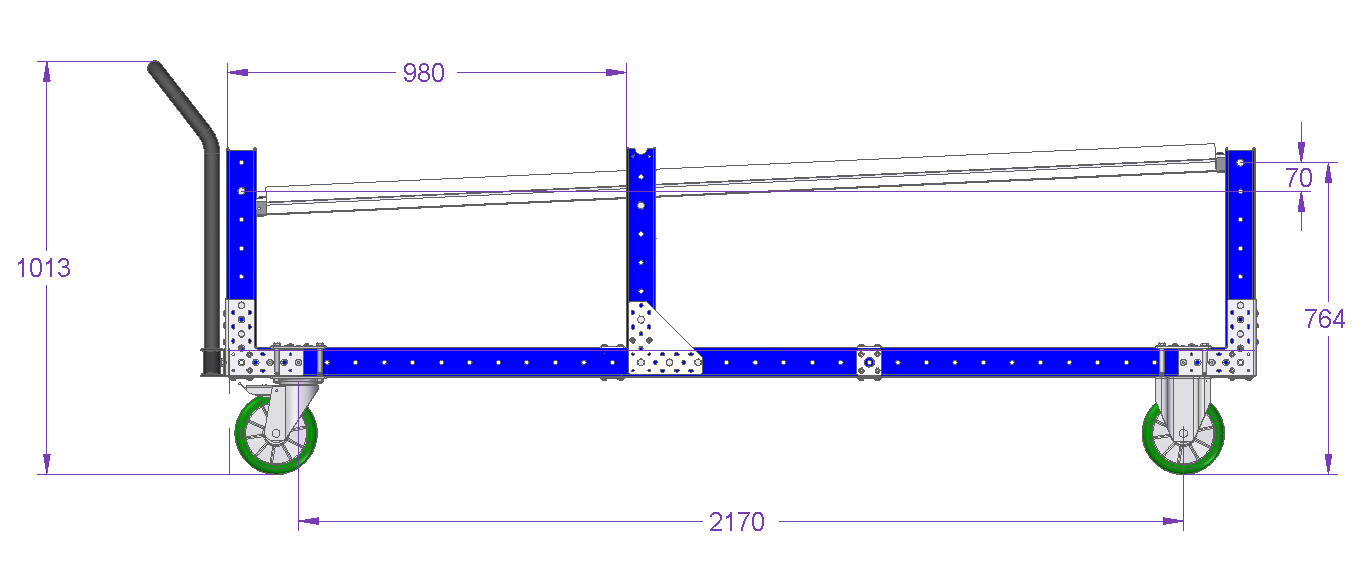

Flow Rack - 2520 x 630 mm
Flow Rack - 2520 x 630 mm
Flow Rack - 2520 x 630 mm
Flow Rack - 2520 x 630 mm
Q-100-0953

Flow Rack - 2520 x 630 mm

Custom built flow rack ideal for totes, bins and boxes.

Technical specifications

Category: Flow Rack

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 25 inch

Length: 99 inch

Load capacity: 441 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Polyurethane

Type of Load: Bins, Boxes, Totes

More info

This heavy duty flow rack is ideal for a smooth flow of bins and boxes. This flow rack is equipped with a handle bar to improve ergonomics for the operator.

Parts included
FlexBeam™ - 1540 mm 4 Q-001-1295
FlexBeam™ 910 mm 4 Q-001-1304
FlexBeam™ 490 mm 2 Q-001-1310
FlexBeam™ 630 mm FE 2 Q-001-1408
FlexBeam™ 490 mm FE 4 Q-001-1410
FlexPlate™ 16 Q-002-1001
RollerTrax Attachment 4 Q-003-0001
RollerTrax Attachment Drop Stop - 20 mm 4 Q-003-0002
RR Guide 10 mm offset - 2330 mm 2 Q-003-0102
Roller rail - 2410 mm 4 Q-003-0103
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Caster Polyurethane 200 mm with Brake 2 Q-004-1099
Caster Polyurethan 200 mm Fixed IP2 2 Q-004-1212
Spring Threaded Tube Connectors 6 Q-005-0469
Triangle Joint 2 Q-005-0483
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 12 Q-005-1426
Hex Head - M10 x 25 mm 12 Q-006-1041
Locking Nut M10 52 Q-006-1042
Hex Head - M10 x 90 mm 22 Q-006-1132
Extra Low Head - M10 x 90 mm 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 104 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 16 Q-006-1410
Handlebar Attachment EUR 2 Q-015-0026
Tube for handlebar EUR - 490 mm 1 Q-015-0043
Outer Tube (No Plate) - 624 mm 3 Q-025-0624
